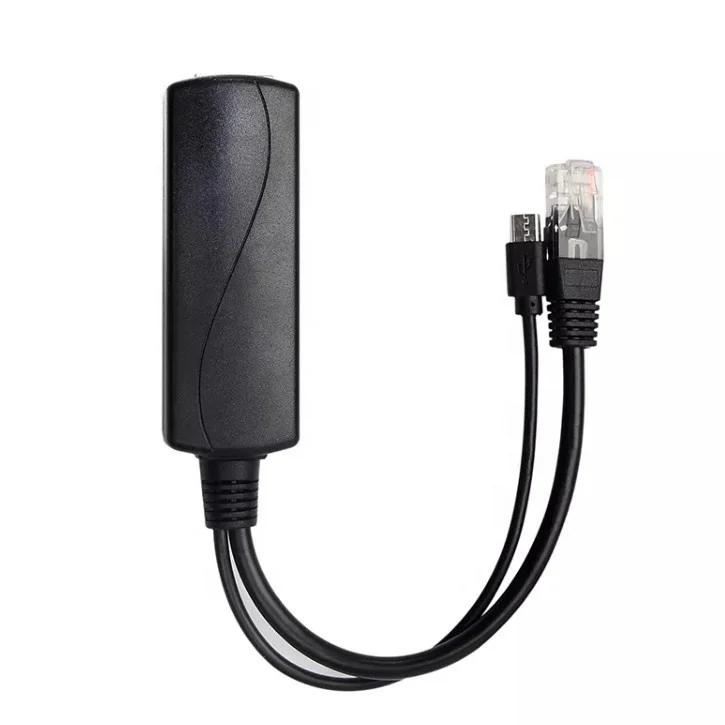

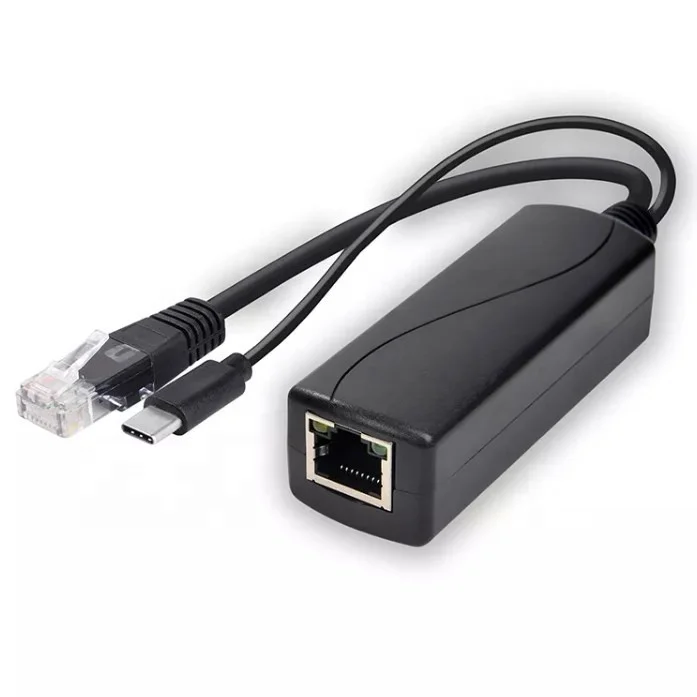

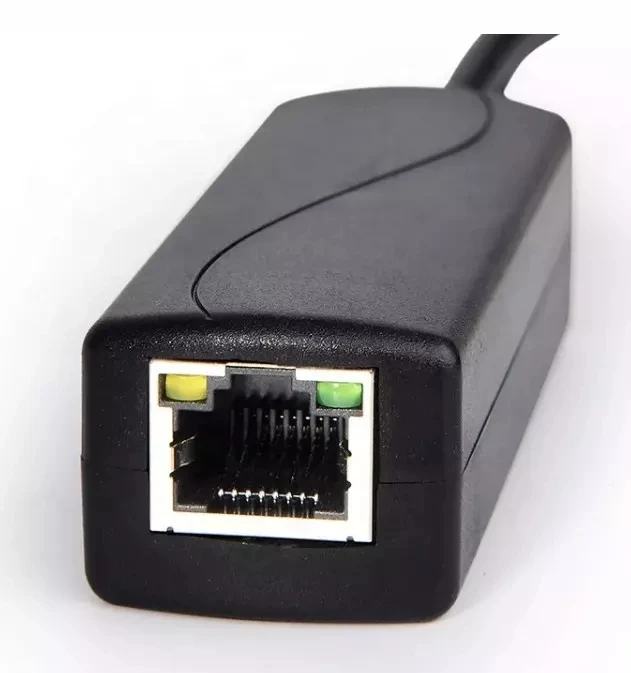

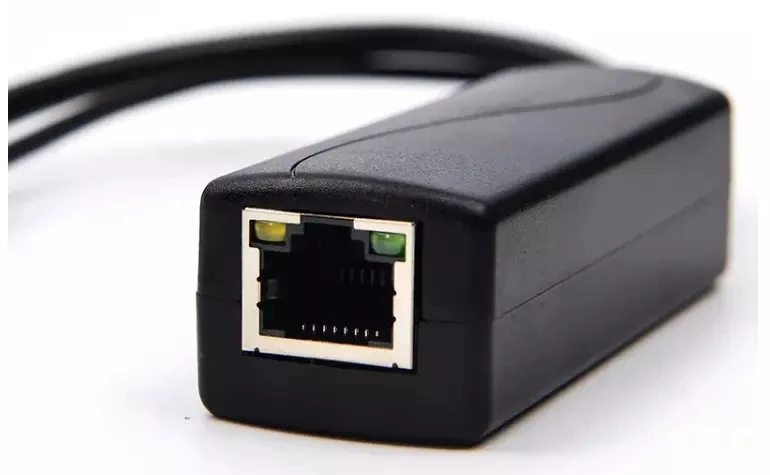

12V 2.5A Gigabit Type C USB PoE Splitter Power over Ethernet RJ45 adapter 48V to 12V 2.5A Splitter

Model

PD26G

Transfer Rate

10/100/1000M

Power

Input 44-57V/600mA , Output 12V/2.5A MAX

Standard

IEEE802.3 af/at

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, 1 output RJ45 port, 1 TYPEC output

Standard

IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af , IEEE802.3at

LED

Yellow and Green 12V lamp

Environment

Work within -20~50°,Storage within -30~60°
Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

Dimension

81*28*24mm

Weight

0.1kg

No.

Parameter

Symbol

Min

Typical values

Max

Unit

1

Input Voltage

Vin

44

50

57

V

2

output voltage

+VDC

12

12.1

12.3

V

3

output Current

PWR

0.1

2

A

4

Isolation Voltage

ISO

1.5

KV

5

Efficiency

90.4

%(1A)

89.3

%(2A)

6

Ripple & Noise

200

mVp-p

7

Storage Temperature

Tj

-30

25

60

℃

8

Operating Temperature

Tstg

-20

25

50

℃
