Products Description

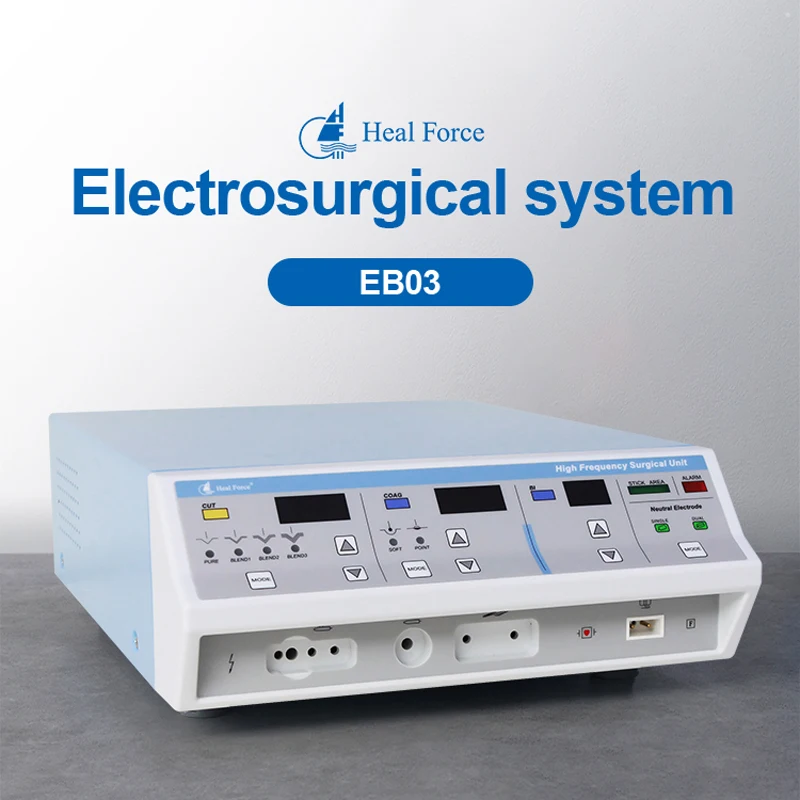

New EB03 electrosurgical generator comes up with two version "Grey" and "White". The twin systems allow for the same mono & bipolar working modes but with different power range. She has integrated 7 different monopolar and bipolar modes, tissue responding and automatic return electrode monitoring to give intuitive indication of potential burn risk, which enables highly efficient and safe surgical cutting and coagulation through all types of tissue
Product name | Heal Force Electrosurgical Unit 350W | ||||||
Rate frequency | 512 kHz (110/240vAC, 60/50Hz) | ||||||
Isolated output | YES | ||||||

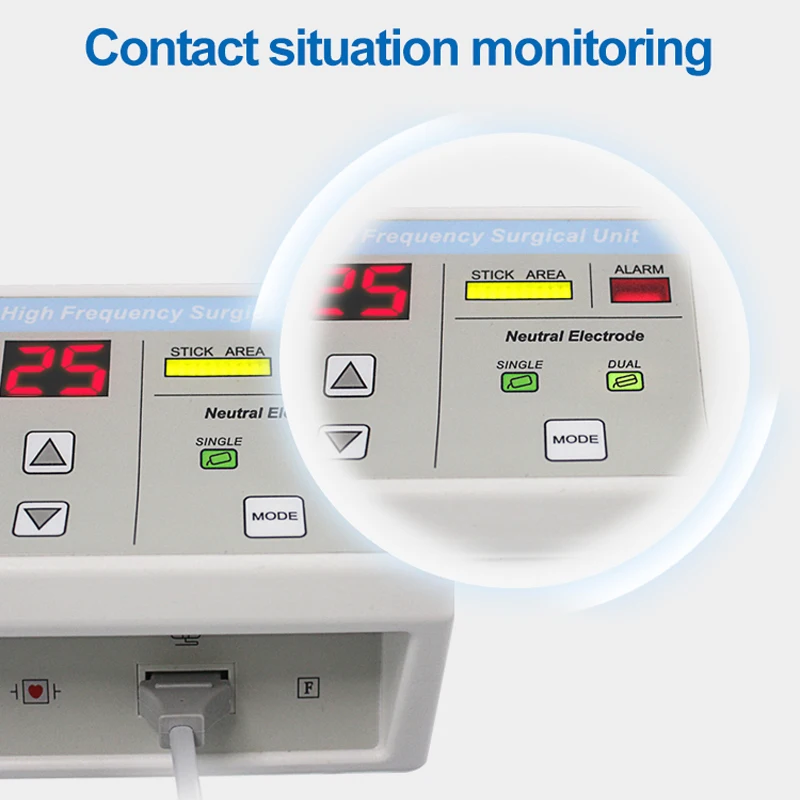

Quantitative display of contact area | YES, for "Split" type of neutral electrode | ||||||
Contact area indicator lamp | 10 lamps (one for 10% contact), alarm beep and flicker if contact < 20% | ||||||
Split/solid neutral electrode definition | YES, "Split" or "Solid" indicator lamp lights up | ||||||
Adjustable alarm volume | YES | ||||||
Operational duty cycle | 10 seconds ON, 30 seconds OFF | ||||||
Cooling method | Convection | ||||||
Accessory & supply connection | Finger-switch pencil | 1 | |||||
Finger-switch pencil | 2 | ||||||
Patient return electrode | 1 | ||||||
Foot-switch | 1 | ||||||
AC power supply | 1 | ||||||
Equipotential bonding | 1 | ||||||
Surgical smoke evacuator | 1 (but surgical smoke evacuator is optional) | ||||||
Regulation | Type according to EN 60601-1 | CF | |||||
Protection class to EN 60601-1 | class I | ||||||
Protection class to EN 60601-1 | IIb | ||||||
Packaging | Dimension (WxDxH) | 330 x 450 x 150 mm | |||||
Weight | 7.0 KG | ||||||
Monopolar | ||||||||
Cutting mode | Max. power output (watts) | Load (ohms) | Open circuit Vp-p | Crest factor | ||||
Pure Cut | 350w (grey) / 150w (white) | 500 Ω | 1,800 / 1,200v | 1.5 | ||||
Blend1 | 300w (grey) / 120w (white) | 500 Ω | 2,700 / 2,000v | 1.9 | ||||
Blend2 | 200w (grey) / 80w (white) | 500 Ω | 2,400 / 1,700v | 2.3 | ||||
Blend3 | 150w (grey) / 60w (white) | 500 Ω | 2,900 / 3,000v | 3.1 | ||||
Coagulation mode | ||||||||
Point | 100w (grey) / 70w (white) | 500 Ω | 4,600 / 3,900v | 4.5 | ||||
Soft | 100w (grey) / 70w (white) | 500 Ω | 3,600 / 3,300v | |||||
Bipolar | ||||||||
Cutting mode | - | - | - | - | ||||
Standard | 50w (grey) / 50w (white) | 100 Ω | 600V | 1.5 | ||||
Details Images
The new EB03 has optimized the structural design and reduced weight and volume both by 50%, can be easily mounted onto the support tray of ceiling pendant for endoscopic application.
The "arrow" shaped front design separates working area from accessory connections.Thanks to its slightly folded edge, any liquid onto the control panel will never reach into the power socket underneath if accidental splash happens in operating theatre.

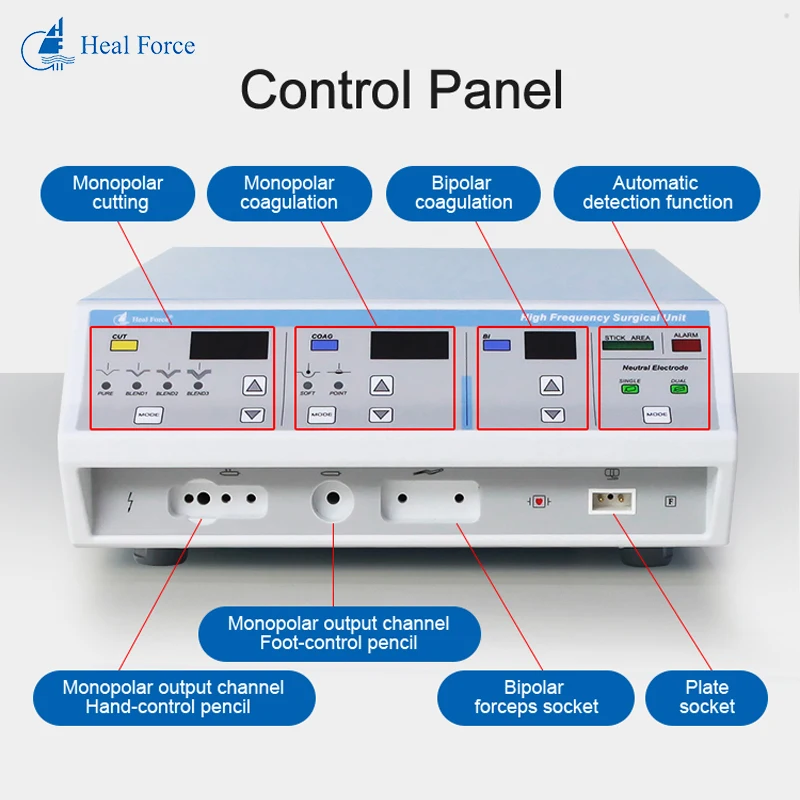

Front panel of new EB03 consists of two differently sloped areas, 130 ° sloped "Measurement area" and 160 ° sloped "Control area", to provide operator great physical comfort when they setup or adjust power setting, and observe the power measurement and neutral electrode's contact situation from an ergonomic viewing angle and height.
Resistance from nerve,muscle,adipose tissue and bone to electrical circuits vary. Impedance response technology in EB03 electrosurgical system measures the tissue resistance then automatically adjust power output under preseted range, to optimize real cutting or coagulation performance, which makes EB03 system qualified for wide range of applications, from various open surgeries to minimal-access procedures, as well as under-water operation in Gynaecology and
Urology
Urology
Resistance from nerve,muscle,adipose tissue and bone to electrical circuits vary. Impedance response technology in EB03 electrosurgical system measures the tissue resistance then automatically adjust power output under preseted range, to optimize real cutting or coagulation performance, which makes EB03 system qualified for wide range of applications, from various open surgeries to minimal-access procedures, as well as under-water operation in Gynaecology and Urology
