Landto Tech Oil Filling Machine Semi Automatic Lab Dispenser Pump with Tube

Product Overview

Description

oil filling machine semi automatic lab dispenser pump with tube

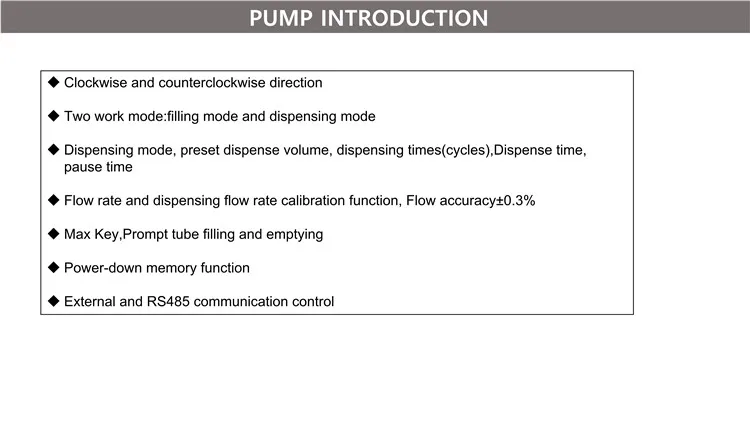

[Product introduction]

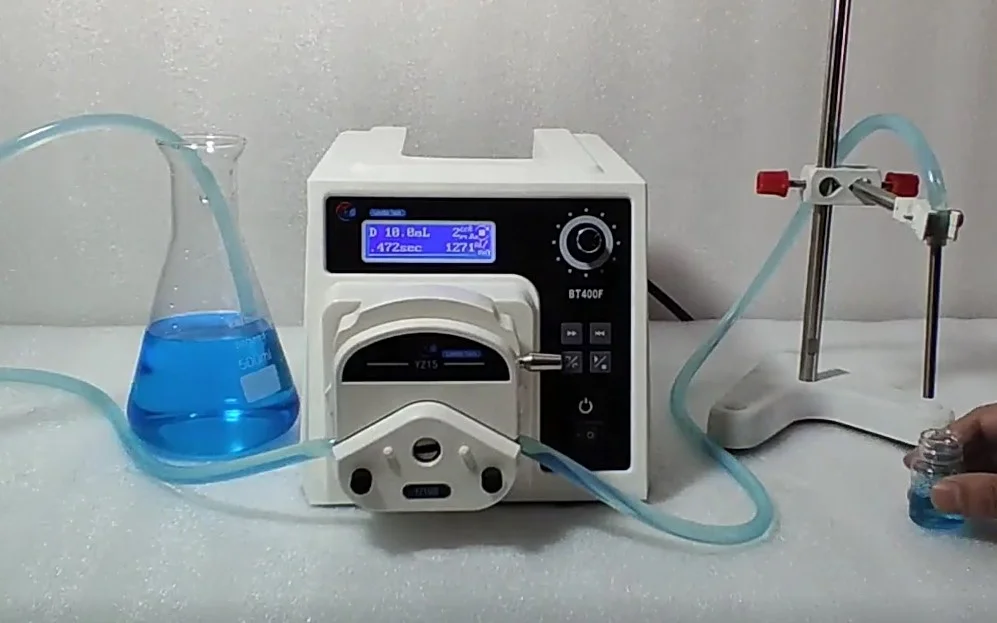

oil filling machine semi automatic lab dispenser pump with tube



 Clockwise and counterclockwise direction

 Two work mode:filling mode and dispensing mode



 Dispensing mode, preset dispense volume, dispensing times(cycles),Dispense time, pause time



 Flow rate and dispensing flow rate calibration function, Flow accuracy±0.5%

 Max Key,Prompt tube filling and emptying

 Power-down memory function

 External and RS485 communication control



 [Features]

oil filling machine semi automatic lab dispenser pump with tube



Model	BT200F
Speed range	0.1-200RPM
Speed resolution	0.1(<100RPM),1(≥100RPM)
Dispensing function	High precision dispensing
Dispensing Volume	0.01ml-999L
Copy number	1-9999times(“0” means unlimited cycle)
Pause time	0.1S-24Hr
Display function	128×32 Graphic LCD
Direction function	Clock-wise/counter clock-wise direction
Operation mode	Membrane keypad and rotary encoded switch, more easy and prompt
MAX speed function	Prime key for tube fast filling and emptying
Power-down memory function	After power on, running as before
Back to the suction function	Prevent the liquid drop after pump stop
Calibration function	flow rate automatic calibration function, Flow accuracy ±0.5%
External control function	Choose different module to realize star/stop,direction,flow rate control 0-5V,0-10V,4-20mA,0-10KHz 4 module for choice
Communication	RS485 communication interface(Generic Modbus statute)
Output interface	start/stop, direction , 0 - 10 KHz frequency output ,OC output
Noise control	Intelligent temperature control system, super low noise

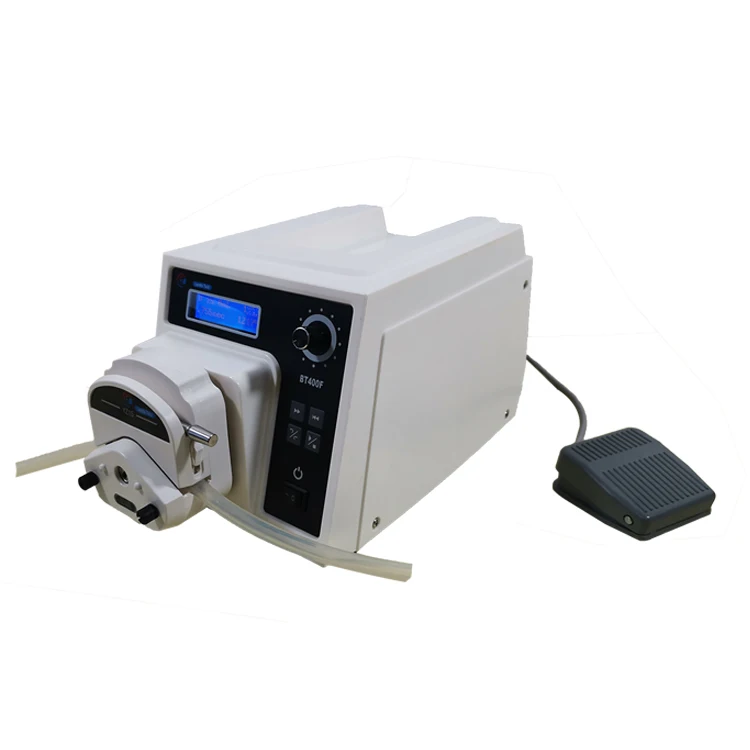

Foot switch control	Optional foot switch for start/stop
Power supply	AC90-260V,50Hz/60Hz
Power consumption	<35W
Operating condition	Temperature 0 to 40 °C, Relative humidity < 80%
Dimensions (L*W*H)	292mm×208mm×180mm(not including the pump head)
Drive weight	3.8KG
IP rating	IP31



[Selection guide]

oil filling machine semi automatic lab dispenser pump with tube











[Related product]

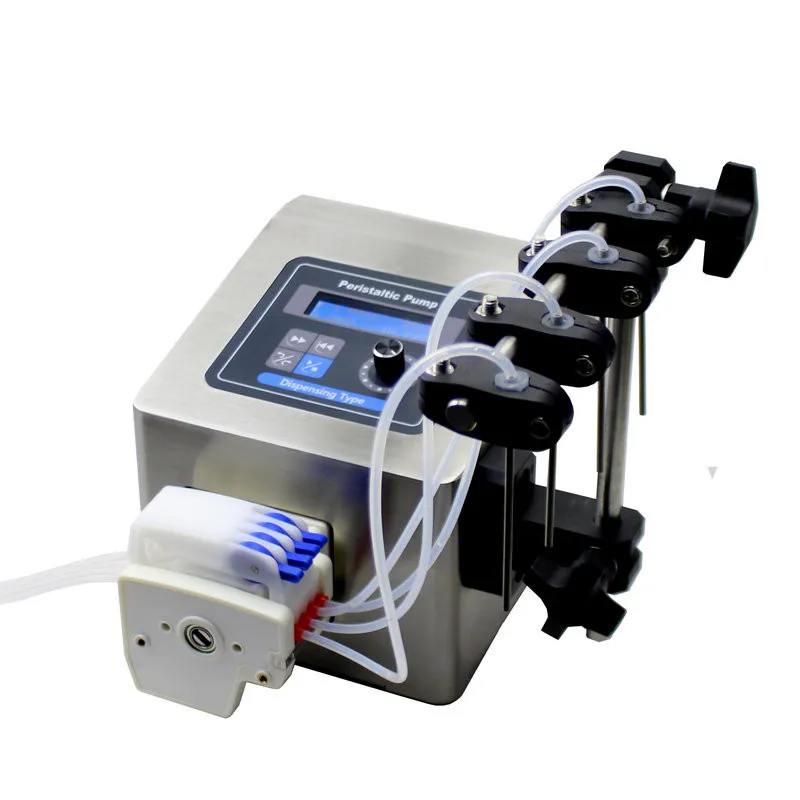

 BT100F+DG4









[Company introduction]



Baoding Landto Electronic Technology Co., Ltd is a professional high-tech enterprise which headquarter is located in Hebei province, China. We are specialized in developing and producing various precision pump and related products, including Filling machine, Peristaltic Pump, syringe Pump and Piston Pumps. The products are exported to more than 50 Eurasia and American countries, Such as USA, Germany, Turkey, Brazil, South Korea, Singapore, Malaysia etc. We sincerely look forward to your cooperation.
