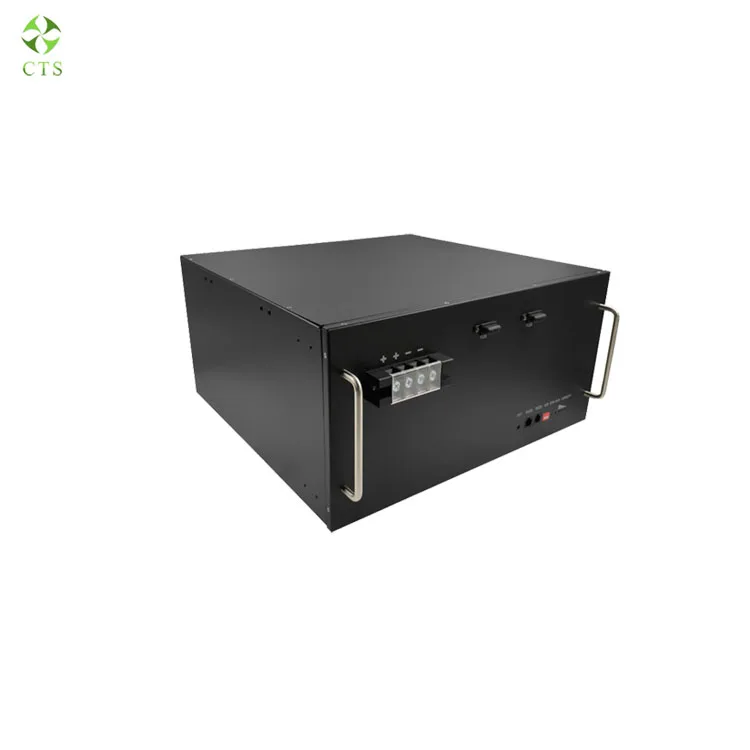

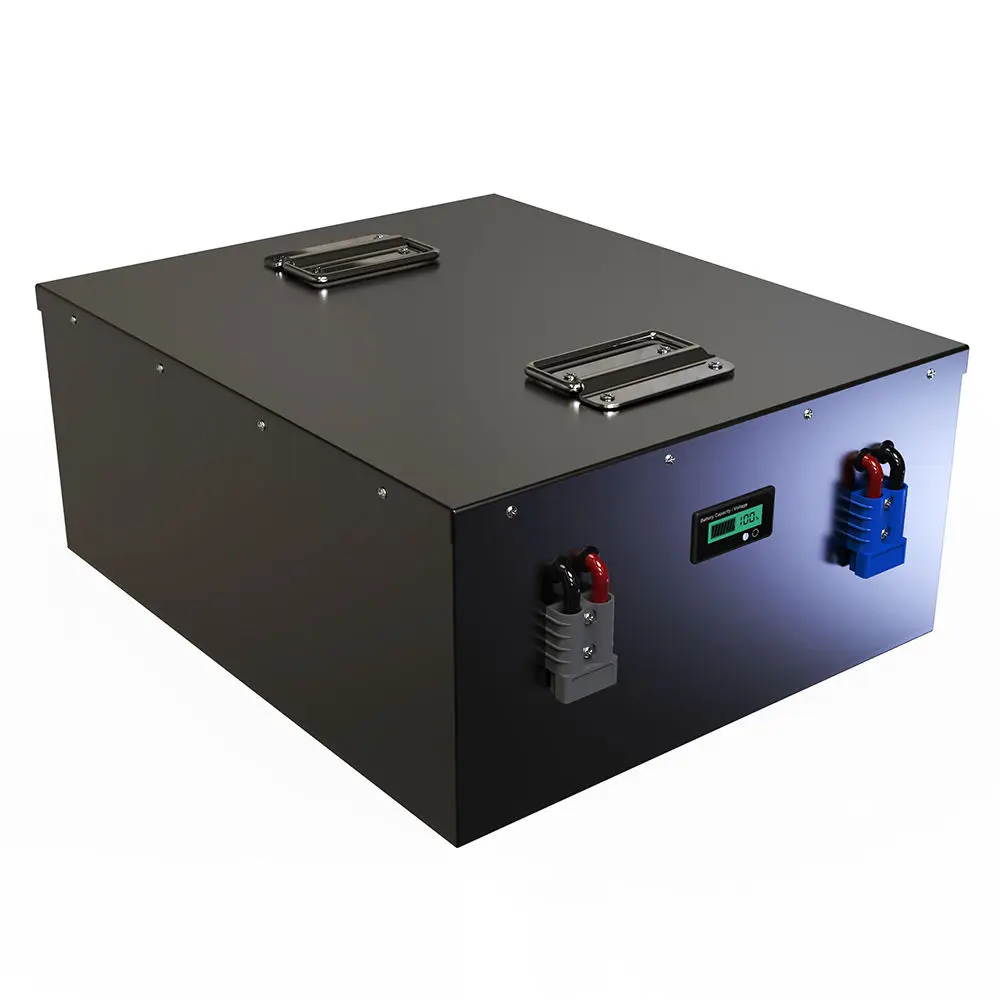

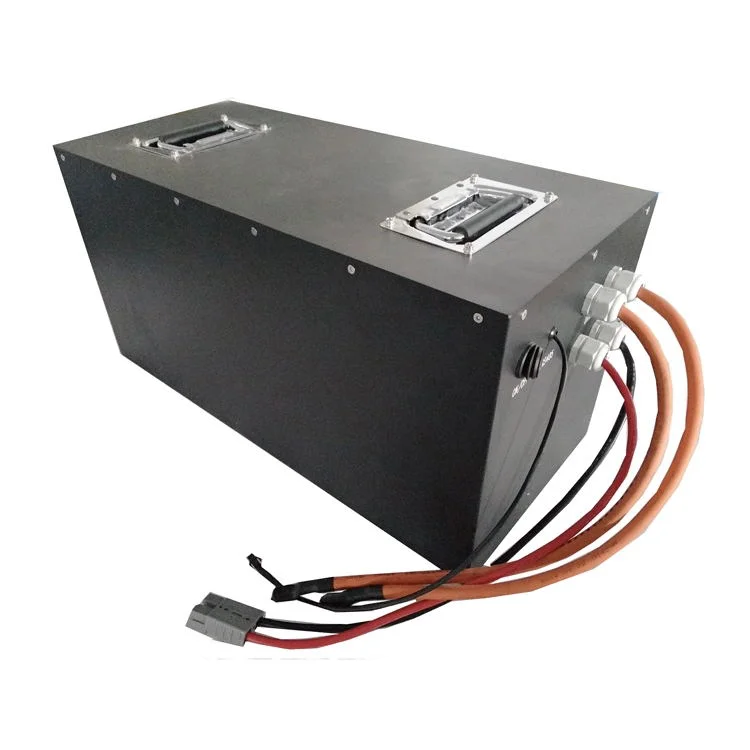

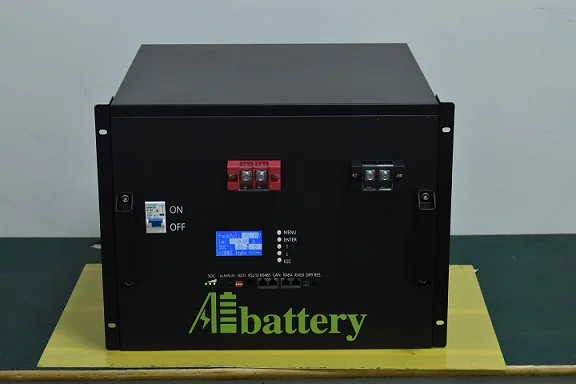

48v 50ah 100ah 200ah 300ah lifepo4 48v 51.2v lithium ion battery 110v for home energy storage with BMS
- Category: >>>
- Supplier: Lofty Group Ltd.
Share on (1600601167369):
Product Overview
Description
Banner
OEM/ODM Service

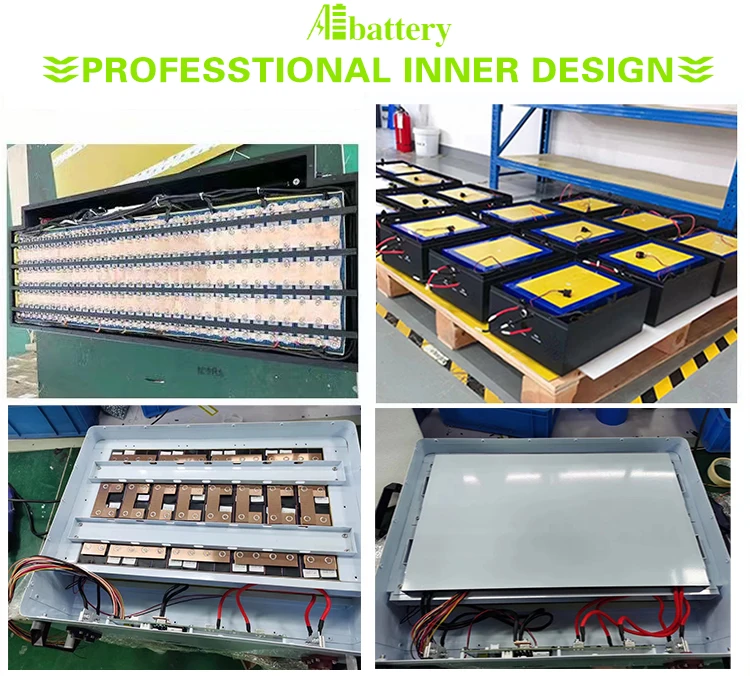

√ Customized : logo, inner design, cells, etc.
√ Customized voltage from 3.2V/12V/24V/48V/72V to 1000V
√ Customized capacity from 5AH/100AH/200AH/300AH/500AH to 1000AH
√ Customized size and case: ABS, Metal
√ Customized water proof: IP65, IP67
√ Customized voltage from 3.2V/12V/24V/48V/72V to 1000V
√ Customized capacity from 5AH/100AH/200AH/300AH/500AH to 1000AH
√ Customized size and case: ABS, Metal
√ Customized water proof: IP65, IP67
Parameter:
Model | AL48-50 | AL48-100 | AL48-200 | AL48-500 | AL48-1000 | ||||
Nominal volt（V） | 51.2 | ||||||||
Nominal capacity（AH） | 50 | 100 | 200 | 500 | 1000 | ||||
Working volt range (V) | 42-56.25 | ||||||||
Recommend charging volt（V） | 52.5 | ||||||||
Recommend discharging cutoff volt（V） | 45 | ||||||||
Standard charging current(A) | 25 | 50 | 100 | 100 | 200 | ||||
Max. Constant charging current(A) | 50 | 100 | 200 | 500 | 1000 | ||||
Standard discharging current（A） | 25 | 50 | 100 | 100 | 200 | ||||
Max. Discharging current（A） | 50 | 100 | 200 | 500 | 1000 | ||||
Temperature（℃） | -30℃～60℃(Recommend 10℃～35℃) | ||||||||
Allowable humidity range | 0～85% RH | ||||||||
Storage temperature（℃） | -20℃～65℃(Recommend 10℃～35℃) | ||||||||
Cooling method | Natural air cooling | ||||||||
Maximum Dimension（W*D*H）for rack type | 482*420*132 | 482*420*176 | 580*760*210 | 550*483*175*5 | 550*483*175*10 | ||||
Net Weight | 23KG | 42KG | 90KG | 280KG | 560KG | ||||
Battery Cell | A Grade Prismatic Cell | ||||||||
Protection | Built-in Smart BMS | ||||||||
Feature & Why Choose AIBATTERY
√ 6000+ Cycles & 10 Years lifespan
√ Smart BMS with full protection, prevent overcharging, overdischarging, overcurrent and overheating.

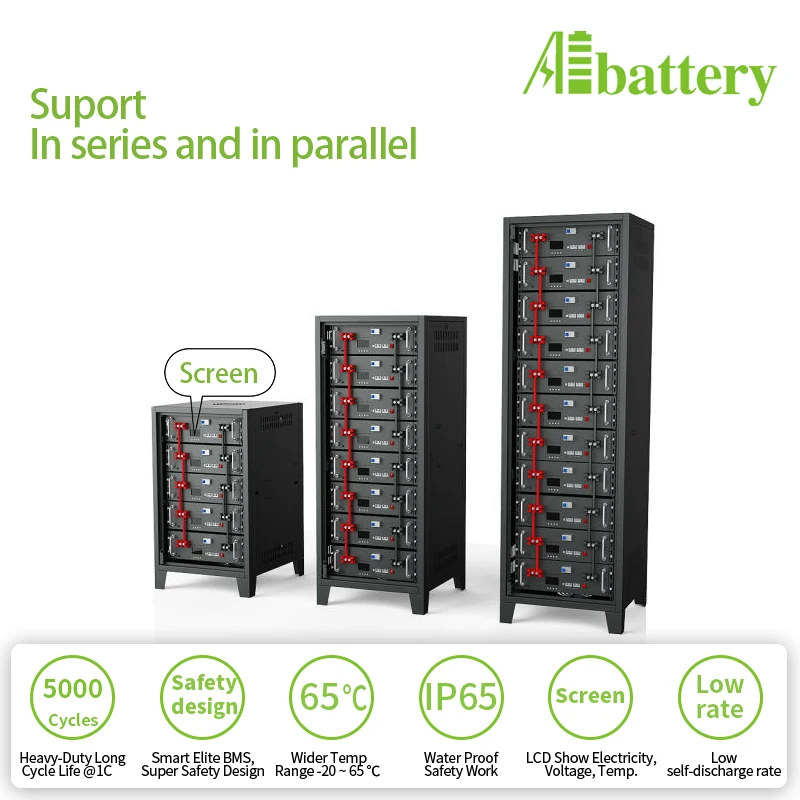

√ Support in series or parallel
√ Bluetooth comfortable monitoring battery health
√ Wider Temperature Range : -20 to 65 ℃
√ Quick charging,low self-discharge rate, ≤3%/month.
√ 28 process test before ship to promise you get safety battery, no explosion,no fire
√ Full Certifications:CE,UN38.3,MSDS,ISO,UL,IEC reports,etc.
√ 5 Years warranty support, free maintain, 24 hours service.
√ Smart BMS with full protection, prevent overcharging, overdischarging, overcurrent and overheating.
√ Support in series or parallel
√ Bluetooth comfortable monitoring battery health
√ Wider Temperature Range : -20 to 65 ℃
√ Quick charging,low self-discharge rate, ≤3%/month.
√ 28 process test before ship to promise you get safety battery, no explosion,no fire
√ Full Certifications:CE,UN38.3,MSDS,ISO,UL,IEC reports,etc.
√ 5 Years warranty support, free maintain, 24 hours service.
Applications
√ Electric propelling applications: Engine starting battery , Robots , Electric bicycle/motorcycle/scooter, Golf trolley/carts, Power tools.

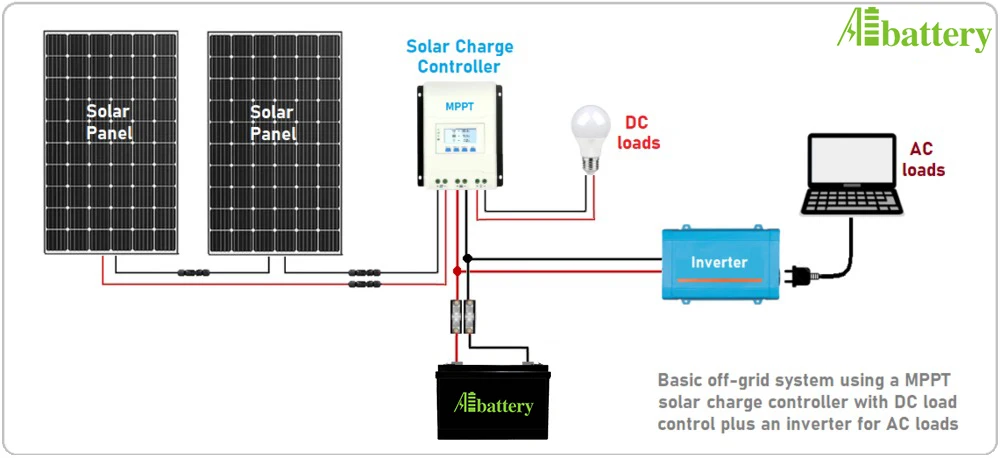

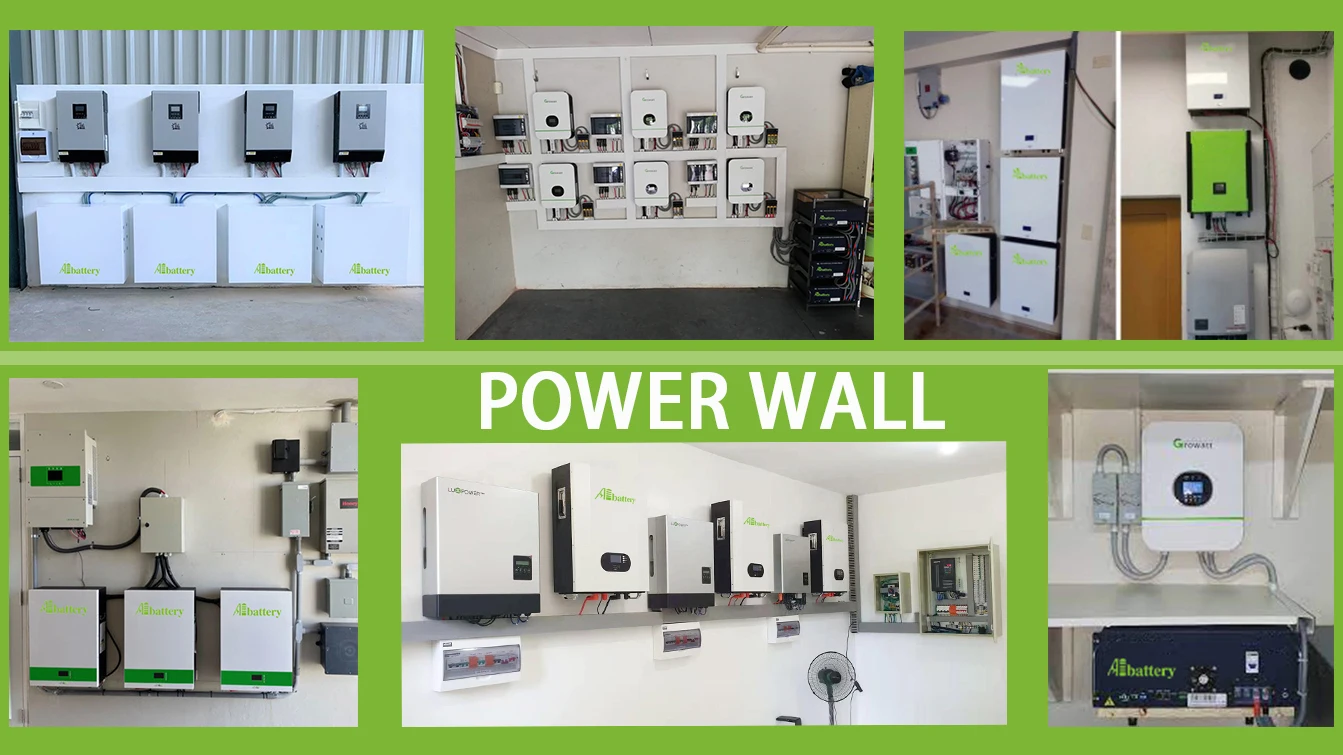

√ Energy storage: Solar and wind power system , City on/off grid , Community and family, RV Caravan, Marine yachts.
√ Back-up system and UPS: Telecom base, CATV-system, Computer server center, Medical instrument, Military equipment.
√ Other applications: Security and electronics , Mobile POS , Mining light/torch/LED light/emergency light.
√ Energy storage: Solar and wind power system , City on/off grid , Community and family, RV Caravan, Marine yachts.
√ Back-up system and UPS: Telecom base, CATV-system, Computer server center, Medical instrument, Military equipment.
√ Other applications: Security and electronics , Mobile POS , Mining light/torch/LED light/emergency light.
Company profile
AIBATTERYis belongto Lofty Group Ltd,which is a unique company with vertical integration of designing, devel-
oping and manufacturing high-technology lithium battery since from 2008. LiFePo4 and NMC are the major mate-
rial.Support OEM/ODM battery pack,which can be used in solar, boat,RV, household energy storage,electric
vehicle.E-bike.UPSeneray storage system,telecommunication base station,E-scooter, golf cart, fork lift.
cleanina car.etcithe company has passedSO9001CEHROHSUUN38.3MSDS.etc Certiication. we strive
to meet international standards in every production section. So far exported to 106 countries. We strongly believe
the bright future of human being will be achieved with greener and more efficient power.
oping and manufacturing high-technology lithium battery since from 2008. LiFePo4 and NMC are the major mate-
rial.Support OEM/ODM battery pack,which can be used in solar, boat,RV, household energy storage,electric
vehicle.E-bike.UPSeneray storage system,telecommunication base station,E-scooter, golf cart, fork lift.
cleanina car.etcithe company has passedSO9001CEHROHSUUN38.3MSDS.etc Certiication. we strive
to meet international standards in every production section. So far exported to 106 countries. We strongly believe
the bright future of human being will be achieved with greener and more efficient power.
FAQ
Q1.: Do you accept OEM/ODM?
A1: YES, LOGO/size/weight/cell/BMS/LED screen/inner design is accepted customized.
Q2. What is your warranty?
A2: 5 years warranty. Free maintain. AIBATTERY have a complete warranty policy documents.
Q3.: Can we do series and parallel connection by ourselves ?
A3: Yes. Recommend pay attention to below tips:
a.: Connect the same spec. battery pack. Please don't mix them.
b.: The voltage difference of the connection batteries should be 50mV below.
c.: Support 4 series or 4 parallel connection.
If we don't obey the tips, It may cause battery damaged or shorten the battery lifespan.
Q4: What's the lead time?
A4: Some models have stock can ship at once, some models within 30 units lead time: 3-10 days. More quantity is 10-20 days.
Q5. Do you have any communication Apps for batteries? Can the battery compatible with my inverter?
A5: Yes, It can add RS485 & RS232 & CAN Protocol, Bluetooth. our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
Q6. What kind of payment do you accept?
A6: TT/Bank Wire transfer/Trade assurance/Credit card/PayPal/L/C, etc.
Q7. Which certificates do you have?
A7. CE/ISO/ROHS/UN38.3/MSDS ...etc.
A1: YES, LOGO/size/weight/cell/BMS/LED screen/inner design is accepted customized.
Q2. What is your warranty?
A2: 5 years warranty. Free maintain. AIBATTERY have a complete warranty policy documents.
Q3.: Can we do series and parallel connection by ourselves ?
A3: Yes. Recommend pay attention to below tips:
a.: Connect the same spec. battery pack. Please don't mix them.
b.: The voltage difference of the connection batteries should be 50mV below.
c.: Support 4 series or 4 parallel connection.
If we don't obey the tips, It may cause battery damaged or shorten the battery lifespan.
Q4: What's the lead time?
A4: Some models have stock can ship at once, some models within 30 units lead time: 3-10 days. More quantity is 10-20 days.
Q5. Do you have any communication Apps for batteries? Can the battery compatible with my inverter?
A5: Yes, It can add RS485 & RS232 & CAN Protocol, Bluetooth. our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
Q6. What kind of payment do you accept?
A6: TT/Bank Wire transfer/Trade assurance/Credit card/PayPal/L/C, etc.
Q7. Which certificates do you have?
A7. CE/ISO/ROHS/UN38.3/MSDS ...etc.
