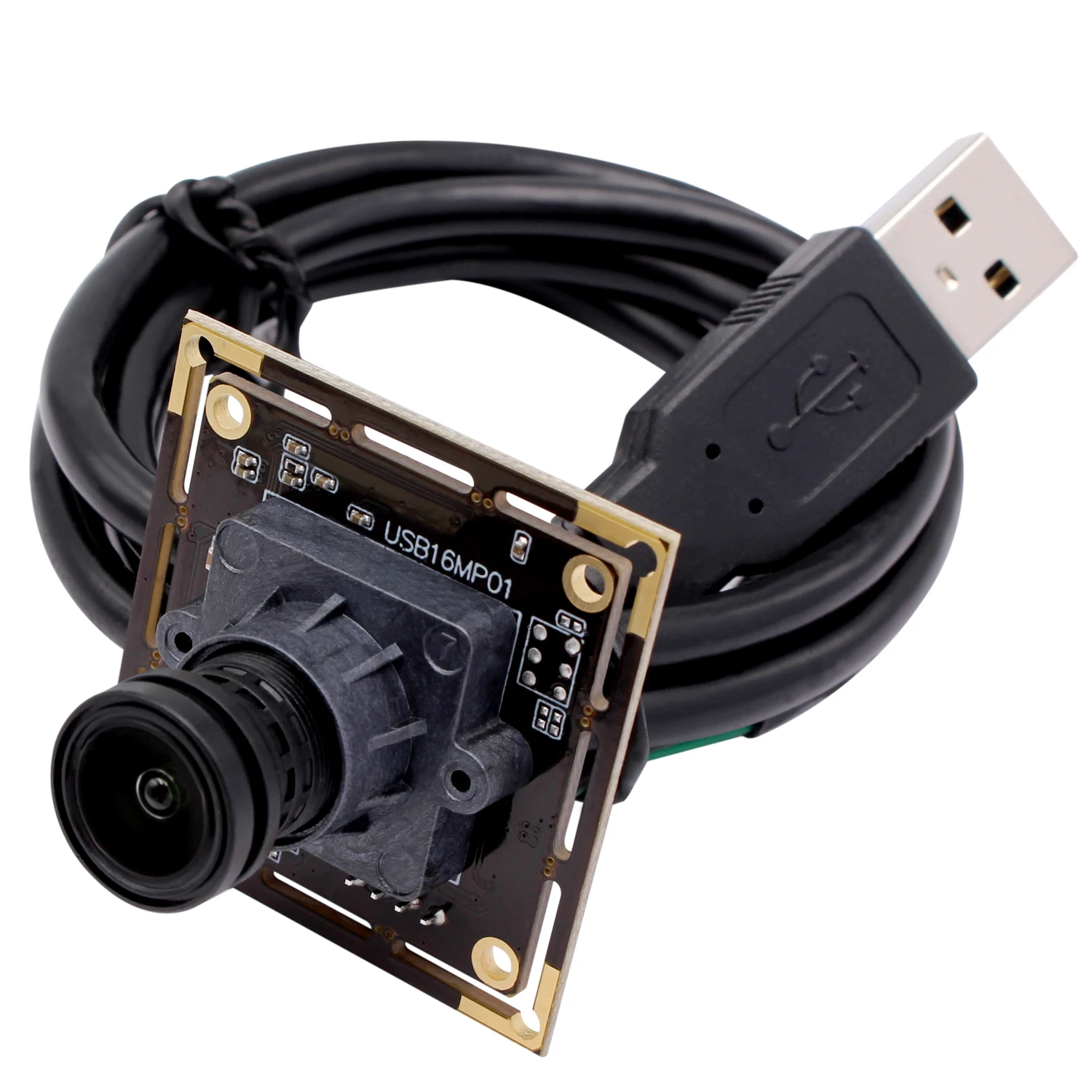

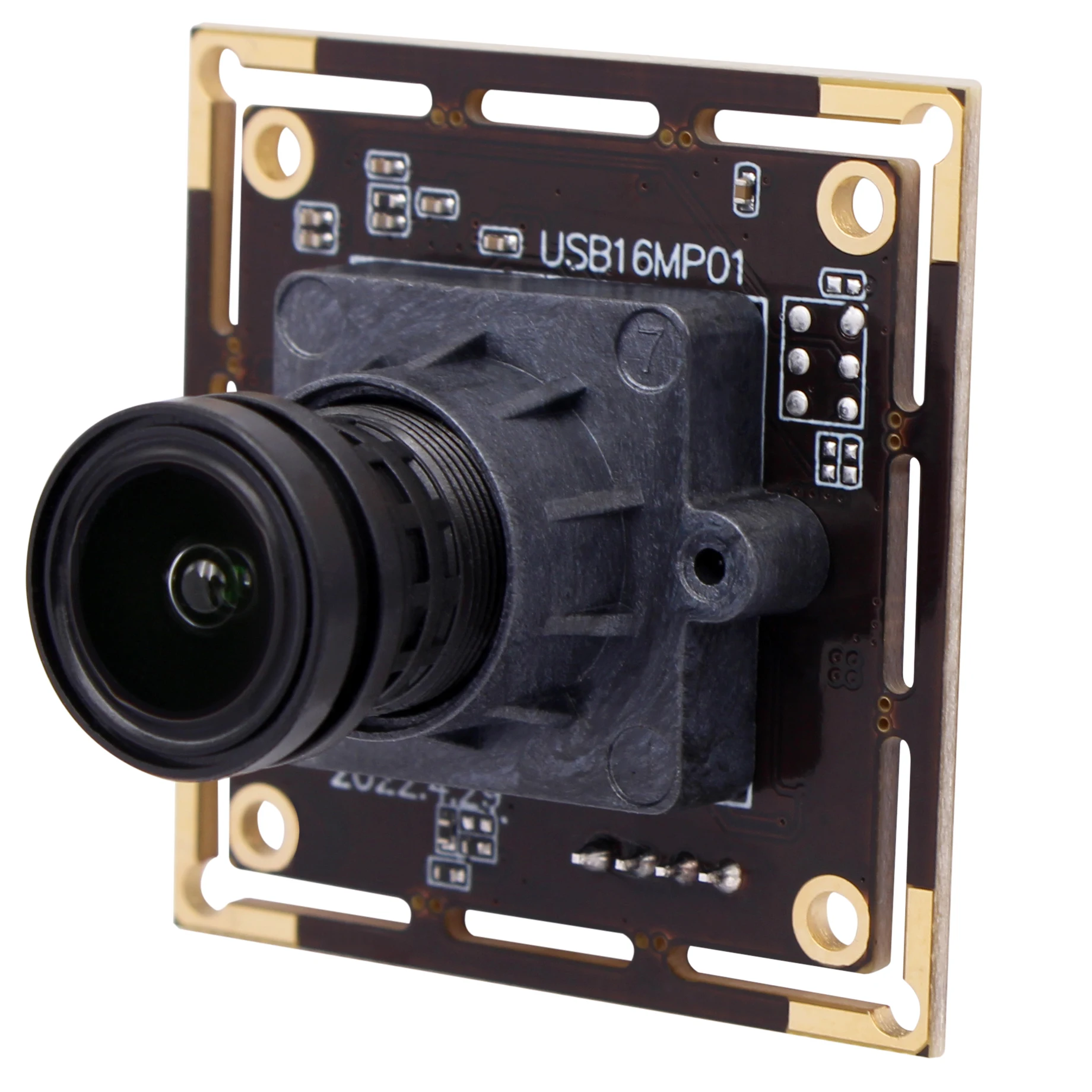

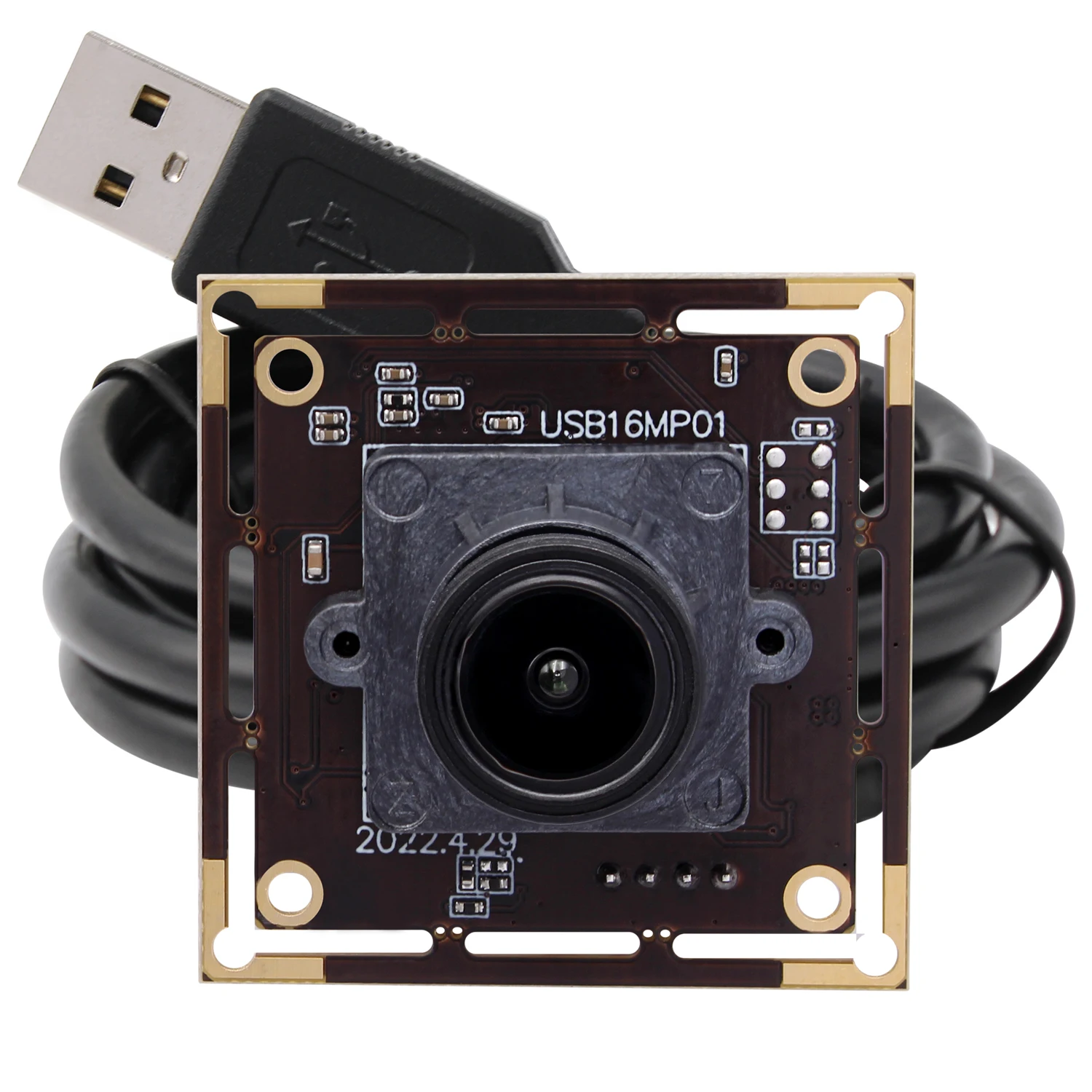

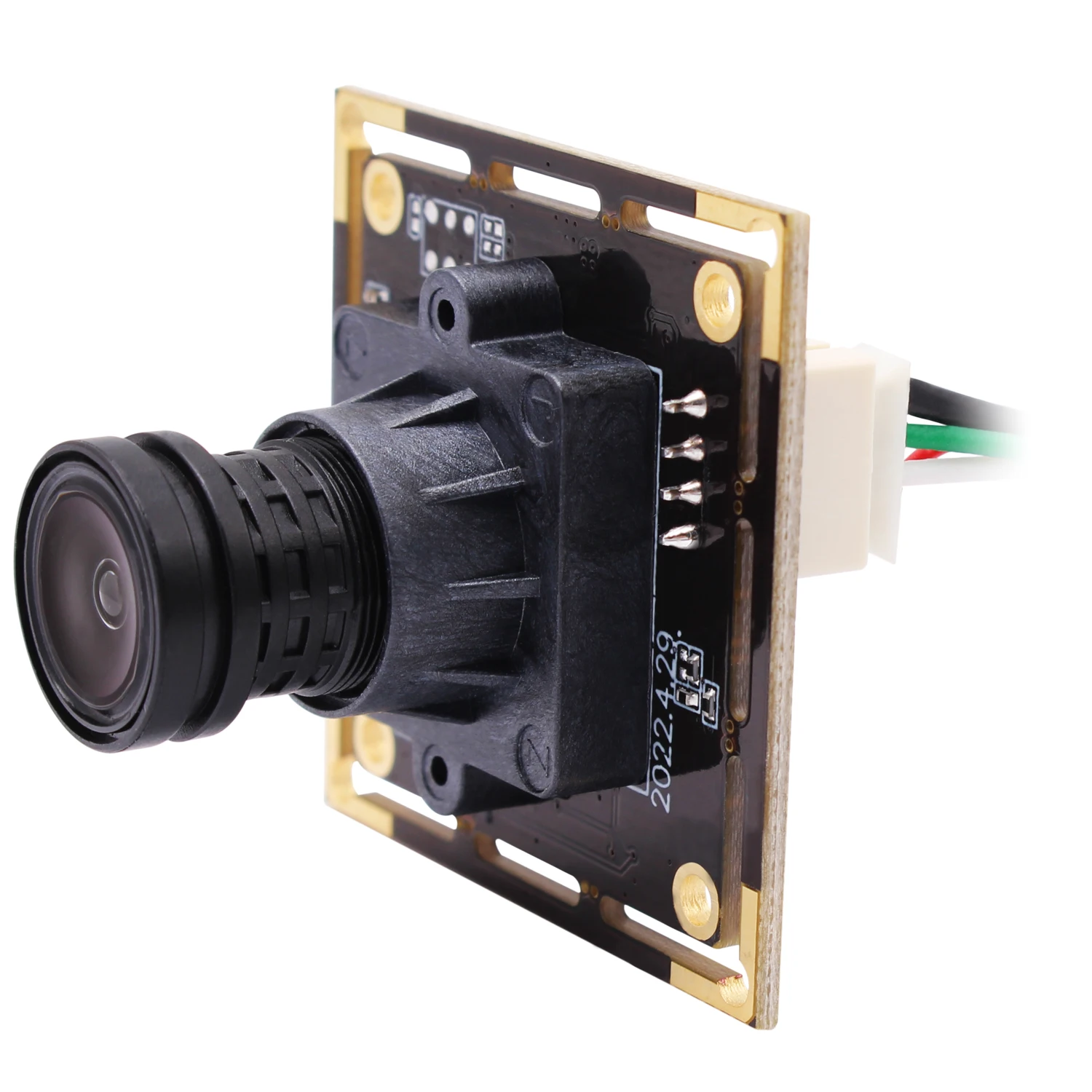

16MP 4656X3496 Mini USB Camera Module CMOS IMX298 Sensor Machine Vision USB Webcam For Windows Android Mac Linux Raspberry Pi
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600601176563):
Product Overview
Description
16MP 4656X3496 Mini USB Camera Module CMOS IMX298 Sensor Machine Vision USB Webcam For Windows Android Mac Linux Raspberry Pi
Key Feature:
1) More than HD: This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction, Max. still resolution 4656 x 3496 .
2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial
3) No Distortion: This camera module has 2.8/3.6mm M12 Lens optional,170/180 degree fisheye lens optional,transmitting the most realistic image effect.
4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5) Applications: this tiny camera is highly recommended for the video surveillance system, live streaming, video conference,dashcam, and other vision
2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial
3) No Distortion: This camera module has 2.8/3.6mm M12 Lens optional,170/180 degree fisheye lens optional,transmitting the most realistic image effect.
4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5) Applications: this tiny camera is highly recommended for the video surveillance system, live streaming, video conference,dashcam, and other vision
Specification
Model | ELP-USB16MP01 | ||
Sensor | SONY IMX298 | ||
Sensor Size | 1/2.8inch | ||
Pixel Size | 1.12um | ||
Image Area | 6.4mm x 5.3mm | ||
Max. Resolution | 4656(H) X 3496(V) 16 Megapixel | ||
Compression Format | MJPEG / YUY2 (YUYV) | ||
Resolution & Frame Rate | 4656 x 3496 MJPEG@10fps YUY2 @ 1fps 4160 x 3120 MJPEG@10fps YUY2 @ 1fps 3840 x 2160 MJPEG@10fps YUY2 @ 1fps 2592 x 1944 MJPEG@10fps YUY2 @ 1fps 2048 x 1536 MJPEG@30fps YUY2 @ 1fps 1600 x 1200 MJPEG@30fps YUY2 @ 5fps 1280 x 720 MJPEG@30fps YUY2 @ 10fps 800 x 600 MJPEG@30fps YUY2 @ 15fps | 4208 x 3120MJPEG@10fps YUY2 @ 1fps 4000 x 3000MJPEG@10fps YUY2 @ 1fps 3264 x 2448MJPEG@10fps YUY2 @ 1fps 2320 x 1744MJPEG@30fps YUY2 @ 1fps 1920 x 1080MJPEG@30fps YUY2 @ 5fps 1280 x 960MJPEG@30fps YUY2 @ 10fps 1024 x 768MJPEG@30fps YUY2 @ 10fps 640 x 480MJPEG@30fps YUY2 @ 30fps | |
Min Illumination | 0.5 Lux | ||
Shutter Type | Electronic Rolling Shutter / Frame Exposure | ||
Connecting Port Type | USB2.0 High Speed | ||
Free Drive Protocol | USB Video Class (UVC) | ||
AEC | Support | ||
AWB | Support | ||
AGC | Support | ||
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure | ||
Lens Parameter | Standard No Distortion L75 Lens, FOV about 76 degree. Optional 2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140 degree /180 degree Fisheye Lens etc. | ||

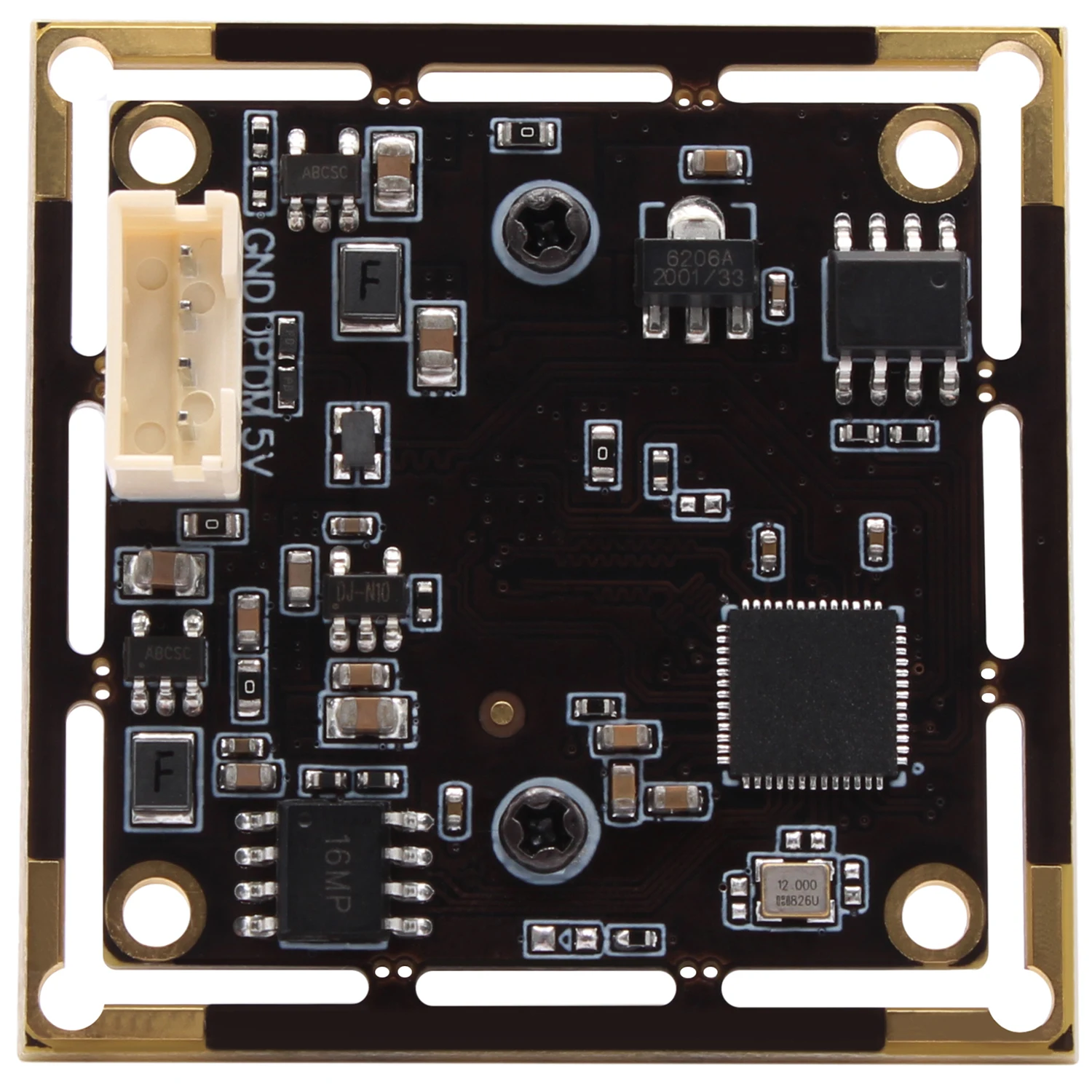

Power Supply | USB BUS POWER 4P-2.0mm Socket | ||
Operating Voltage | DC5V | ||
Working Current | 150mA~240mA | ||
Working Temperature | -10~70C | ||
Storage Temperature | -20~85C | ||
Board Size /Weight | 38X38mm (Compatible 32X32mm) / about 30g | ||
Cable | Standard 1m / Optional 2m,3m,5m | ||
Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC | ||
Application
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring,environmental
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,evaluator, Medical Equipment, on-the-spot law enforcement,door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc.itable for producing PET plastic containers and bottles in all shapes
monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,evaluator, Medical Equipment, on-the-spot law enforcement,door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc.itable for producing PET plastic containers and bottles in all shapes
Product Display
16MP Webcam with 3.6mm lens
ELP-USB16MP01-F36
2.8mm lens
ELP-USB16MP01-F28
170 degree fisheye lens
ELP-USB16MP01-L170
180 degree fisheye lens
ELP-USB16MP01-L180
Packing and delivery
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who has 16 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
