SR6225UE AR1021X USB WiFi 2T2R 11a/n with External PA Linux driver M.2 wifi6 PCIe wifi6 IPQ9574 QCA9531 5.8ghz wifi module
- Category: >>>
- Supplier: Shenzhen Qinrun Electronics Co. Ltd.
Share on (1600601188446):
Product Overview
Description
Product Description

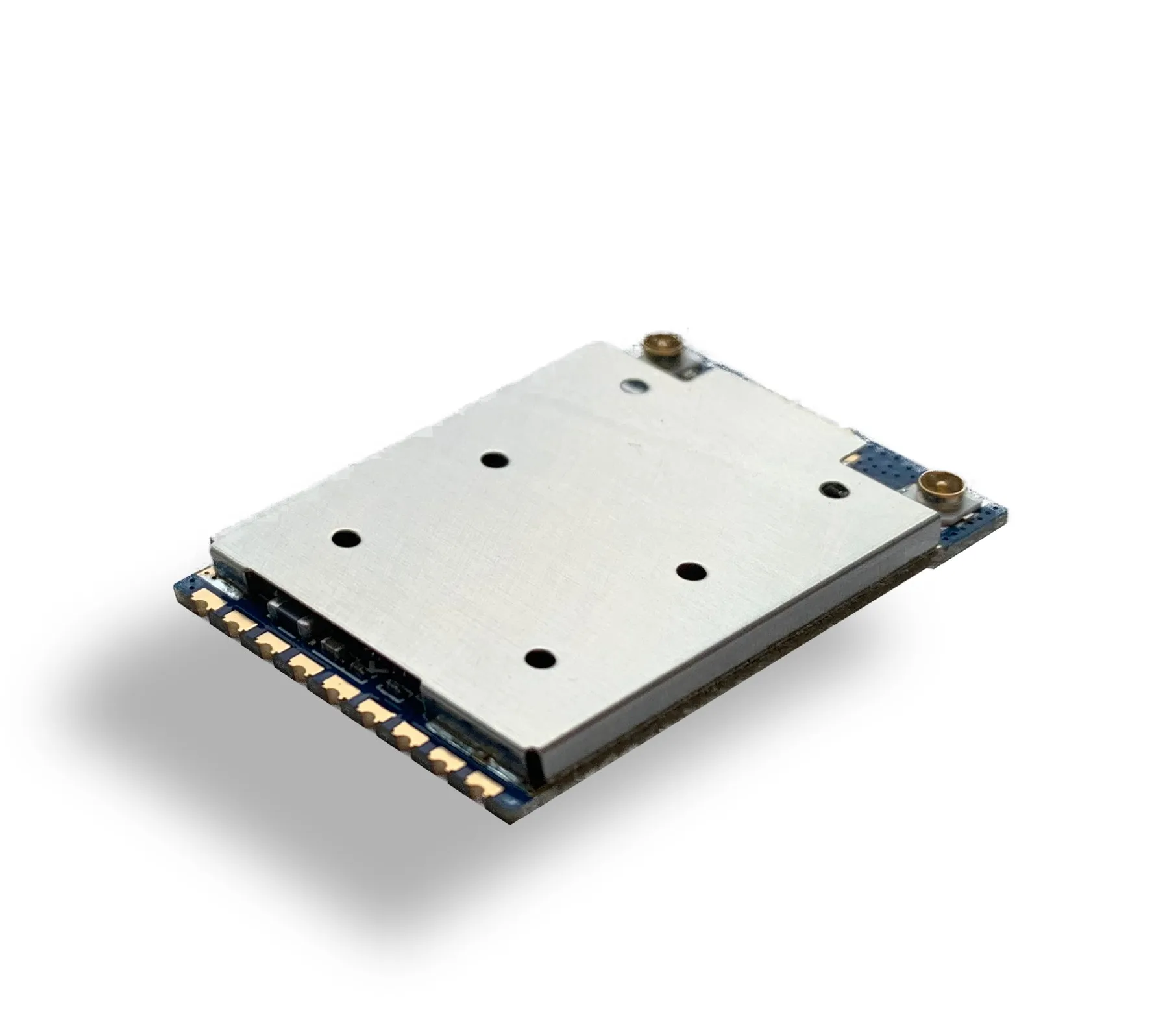

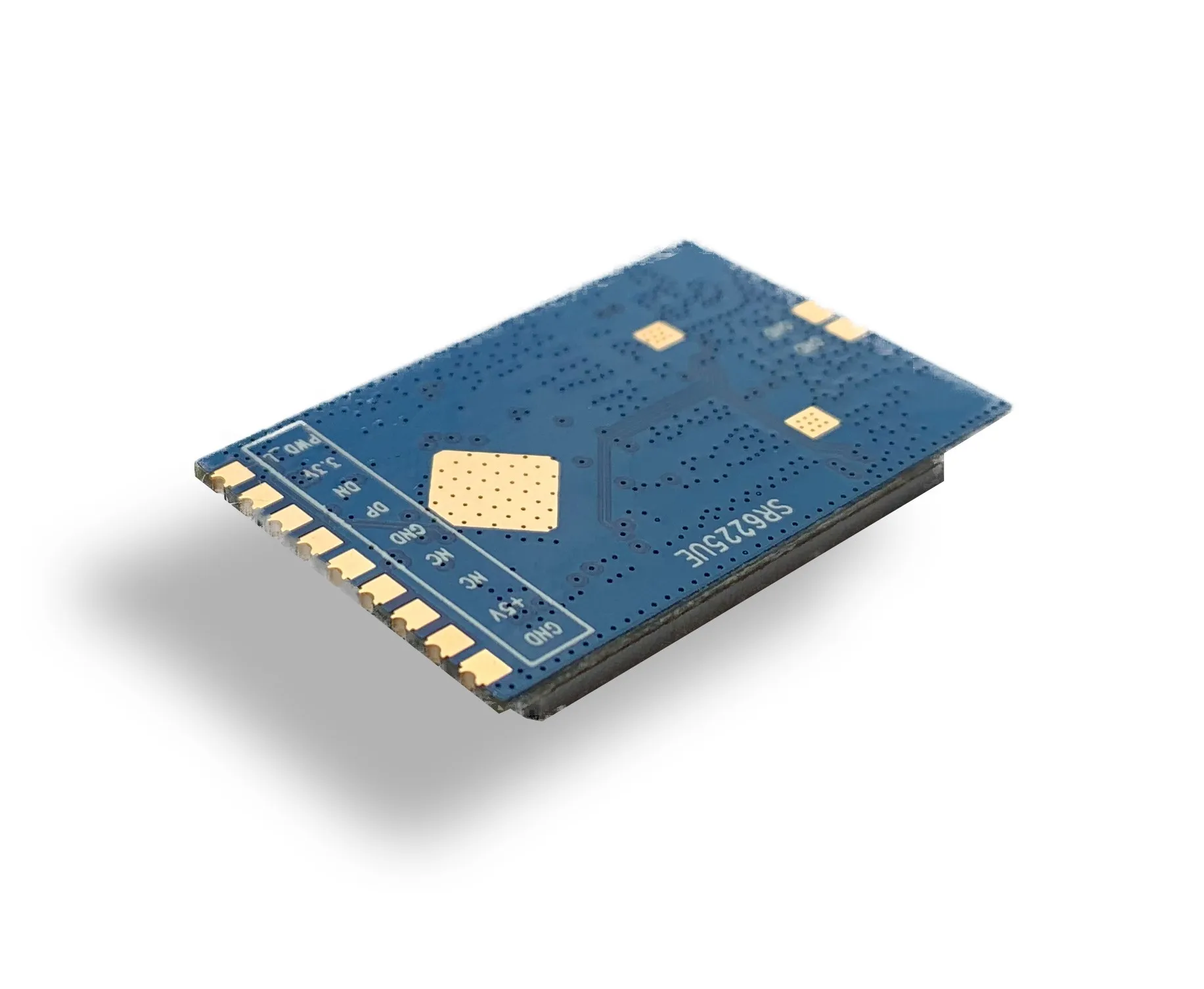

The module SR6225UE is based on Qualcomm Atheros AR1021X which is a highly integrated SOC solution for 5GHz IEEE 802.11a/n 2x2 MIMO WLAN. SR6225UE provides wireless modem functionality for CE applications utilizing direct sequence spread spectrum and OFDM/CCK technology. SR6225UE supports IEEE802. 11 a/n protocol, data rate up to 54 Mbps for 11a and 144.4 Mbps for 11n@HT20, 300 Mbps for 11n@HT40.
General Specification
Recommended Operating Rating
Element | Min. | Typ. | Max. | Unit |
Operating Temperature | -10 | 25 | 70 | Deg.c |
VCC 5V | 4.5 | 5 | 5.2 | V |
VCC 3.3V | 3.15 | 3.3 | 3.45 | V |
VDD IO | 1.7 | 1.8 or 3.3 | 3.45 | V |
DC Characteristics
Element | Power | Min. | Typ. | Max. | Unit |
Standby | 5V | - | 3 | - | mA |
3.3V | - | 5 | - | mA | |
Tx Current (Dual Chain) | 5V | - | - | 650 | mA |
3.3V | - | - | 350 | mA | |
Rx Current (Dual Chain) | 5V | - | 20 | - | mA |
3.3V | - | 115 | - | mA |
Environment Condition
Temperature | Operating Temperature: -10 deg.C ~ 70 deg.C |
Storage Temperature: -10 deg.C ~ 70 deg.C | |
Humidity | Operating Humidity: 5% ~ 95% |
Storage Humidity: 5% ~ 95% |
RF Specification
Hardware Overview
1.Block Diagram
Dimensions
1.Physical Dimensions
Application
IPC
Portables
