Nylon 66 material Expandable Cable Sleeve
- Category: >>>
- Supplier: Xiamen QX Trade Co. Ltd.
Share on (1600601191940):
Product Overview
Description
Product Description

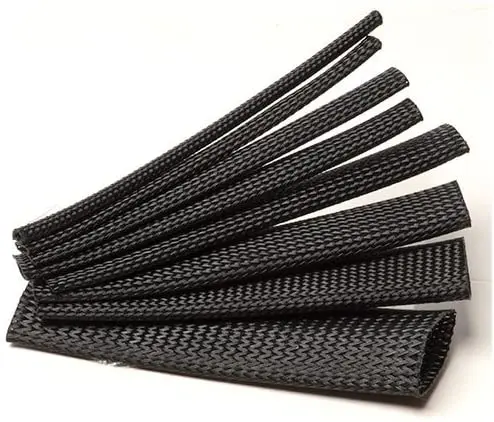

Flexibility Expandable Durable Nylon 66 Cable Sleeve for automotive industry
Nylon 66 Cable Sleeve from Nylon monofilament yarns.
The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion.

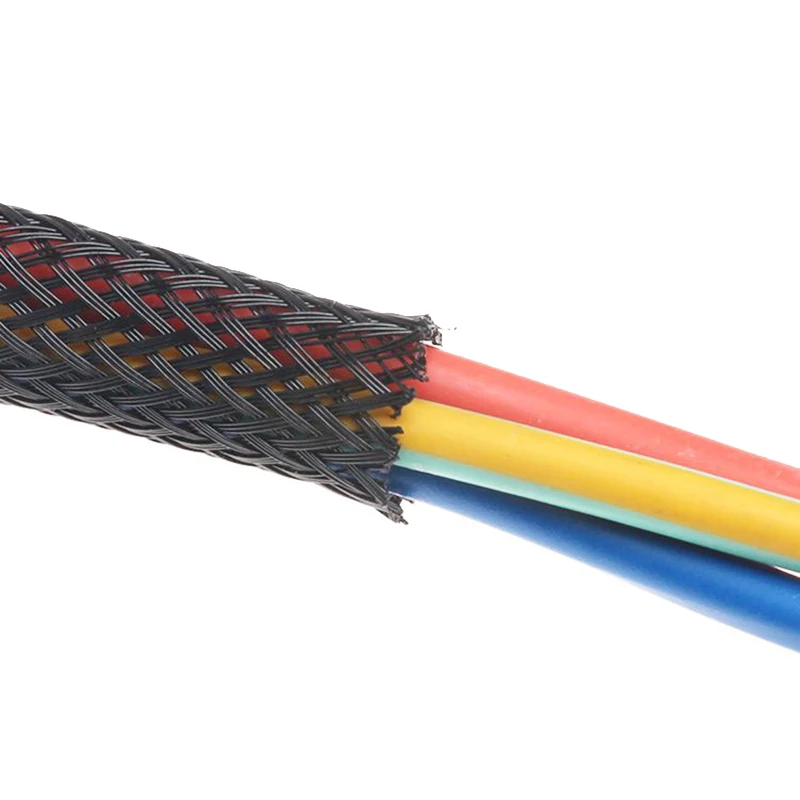

The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.

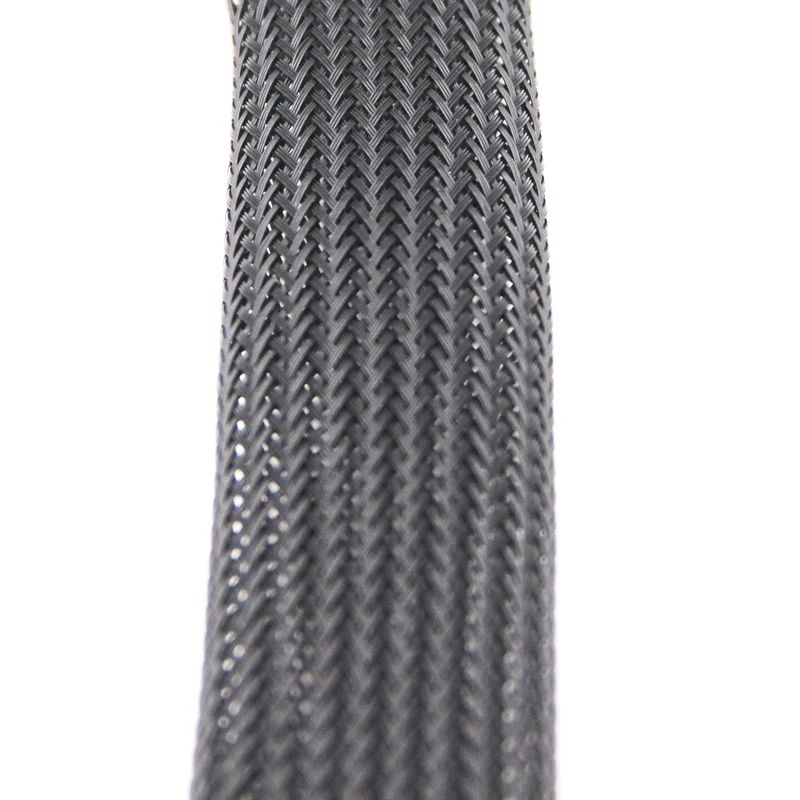

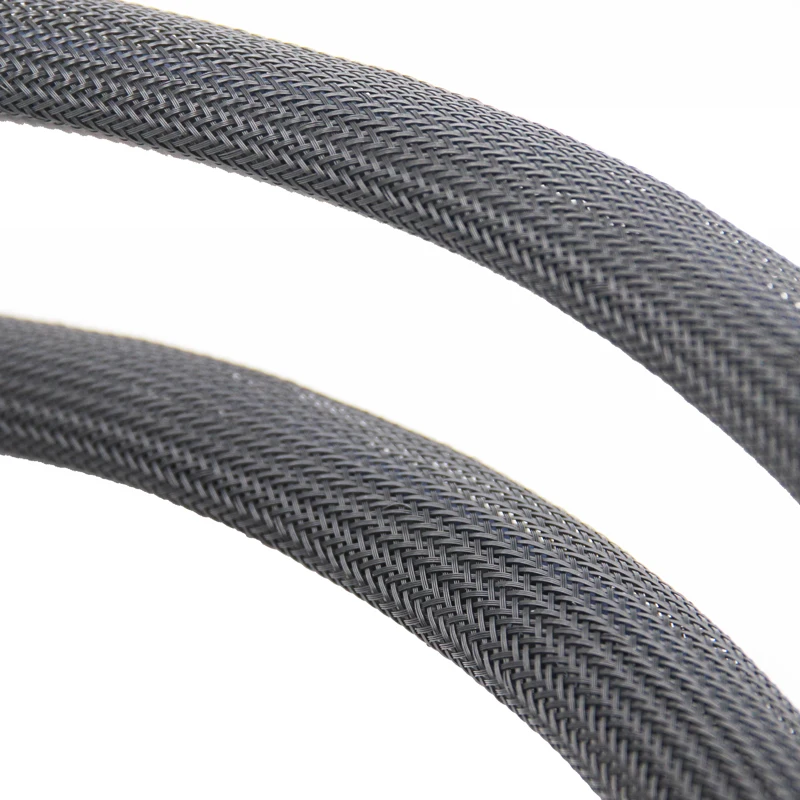

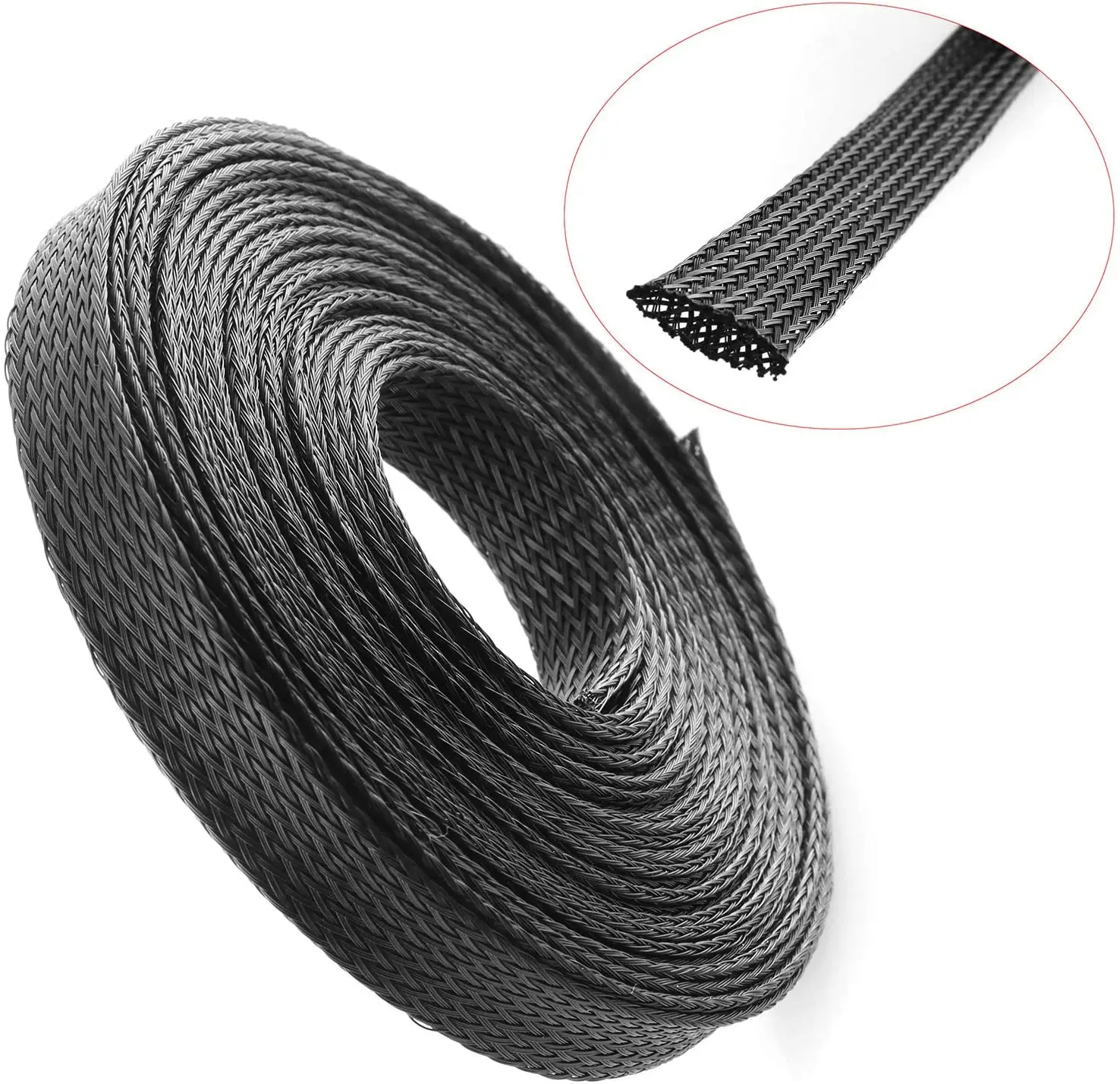

Details Images
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.

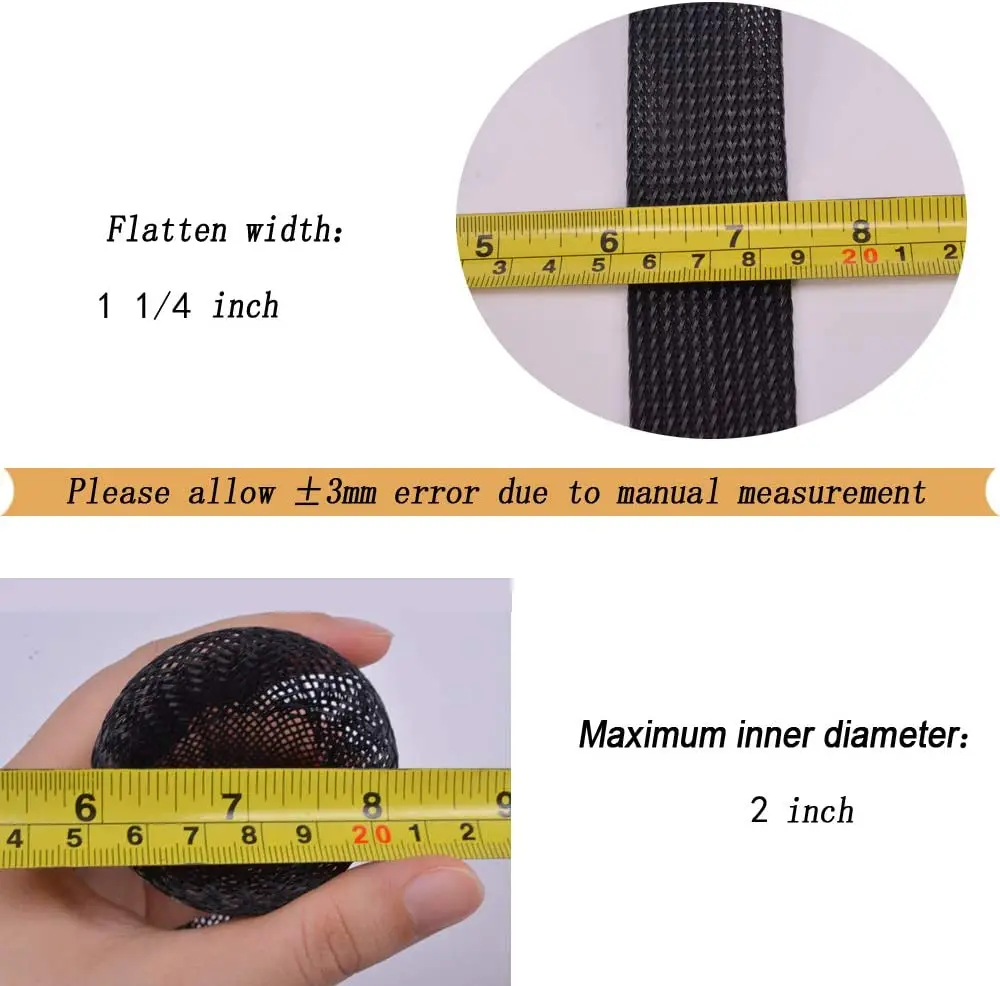

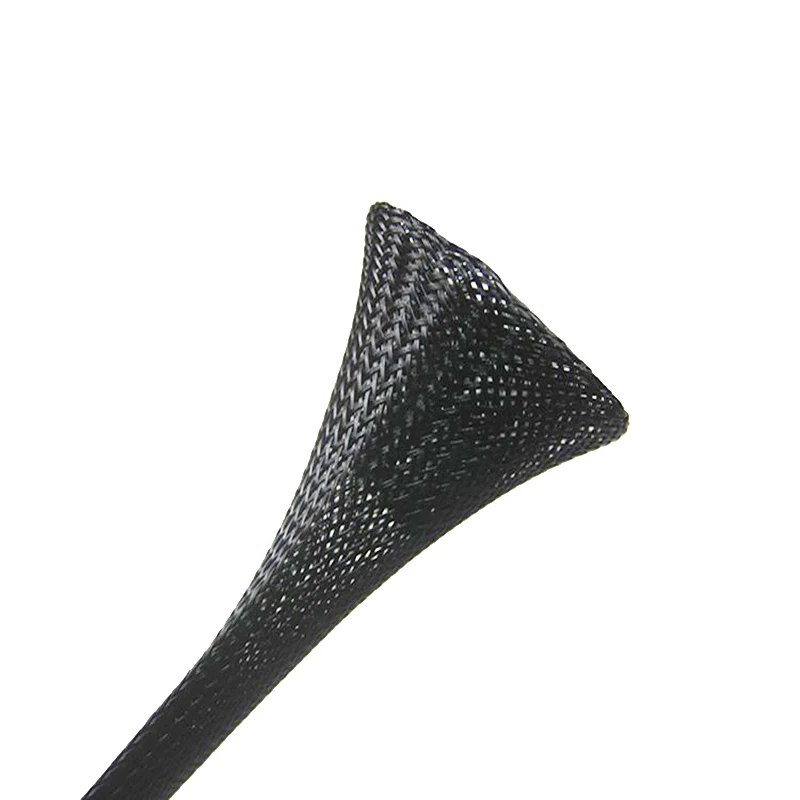

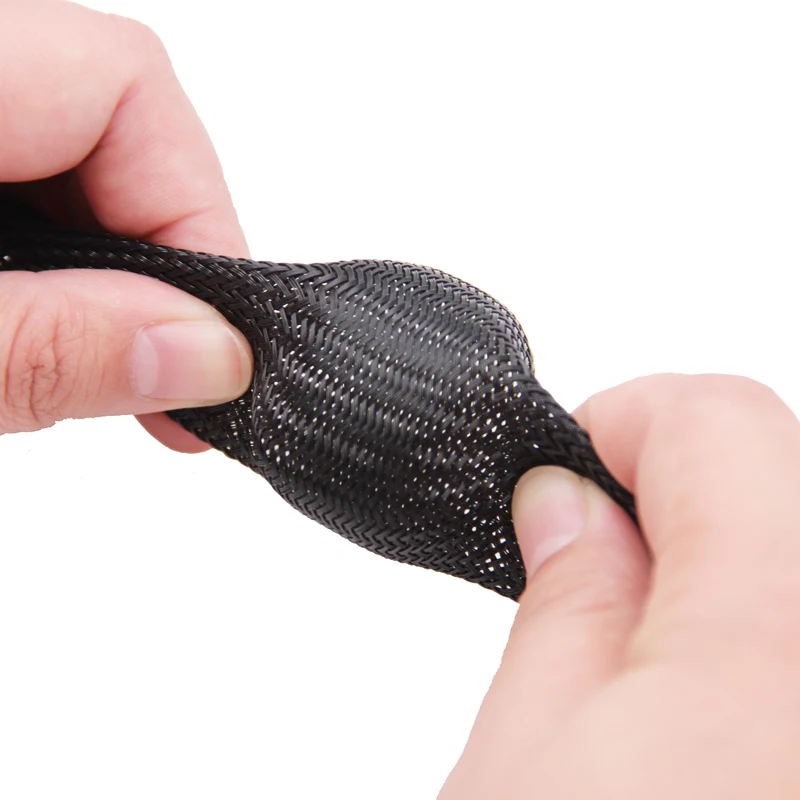

3. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
5. Logo printing is available.6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Datasheet
Part No. | Nominal size(W) | Wall Thickness | Expanded range | Packing(L) | |||
Inch | mm | Min.(I) | Max.(O) | ||||
BS-PA003 | 1/8" | 3.0 | 1.0 | 6.0 | 1000m/roll | ||
BS-PA006 | 1/4" | 6.0 | 3.0 | 9.0 | 500m/roll | ||
BS-PA008 | 5/16" | 8.0 | 5.0 | 16.0 | 300m/roll | ||
BS-PA010 | 3/8" | 10.0 | 7.0 | 19.0 | 300m/roll | ||
BS-PA012 | 1/2" | 12.0 | 8.0 | 24.0 | 300m/roll | ||
BS-PA016 | 5/8" | 16.0 | 10.0 | 27.0 | 300m/roll | ||
BS-PA019 | 3/4" | 20.0 | 14.0 | 30.0 | 300m/roll | ||
BS-PA025 | 1" | 25.0 | 18.0 | 35.0 | 200m/roll | ||
BS-PA032 | 1-1/4" | 30.0 | 20.0 | 50.0 | 200m/roll | ||
BS-PA038 | 1-1/2" | 40.0 | 30.0 | 60.0 | 100m/roll | ||
BS-PA045 | 1-3/4" | 45.0 | 35.0 | 75.0 | 100m/roll | ||
BS-PA050 | 2" | 50.0 | 40.0 | 80.0 | 100m/roll | ||
BS-PA064 | 2-1/2" | 64.0 | 45.0 | 105.0 | 100m/roll | ||
BS-PA076 | 3" | 76.0 | 64.0 | 120.0 | 100m/roll | ||
Application

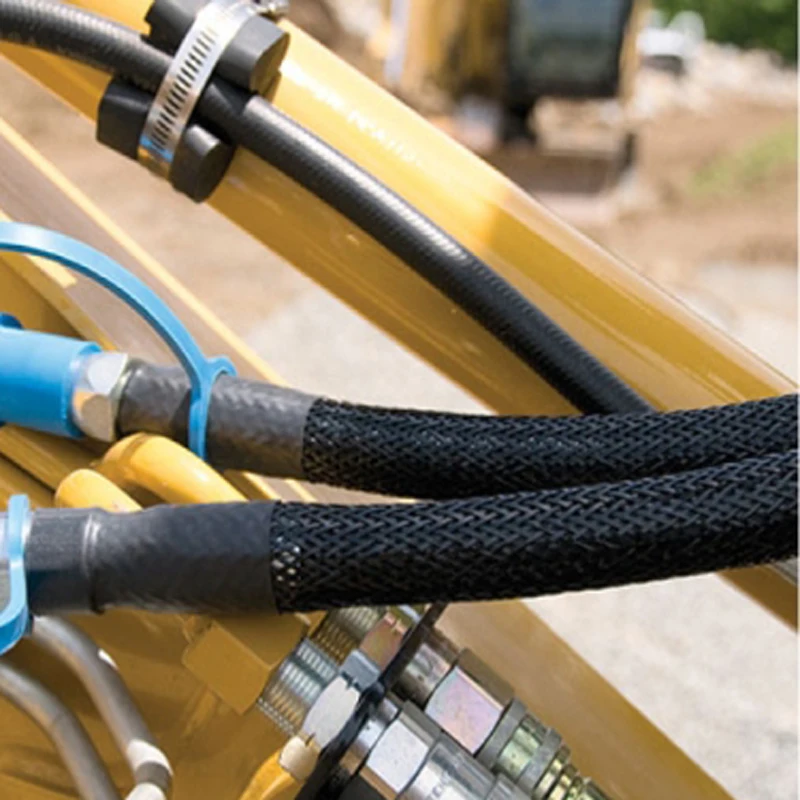

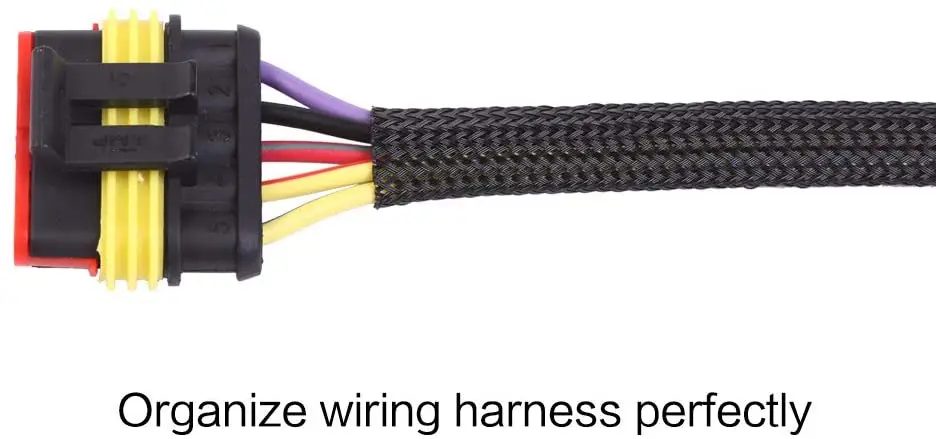

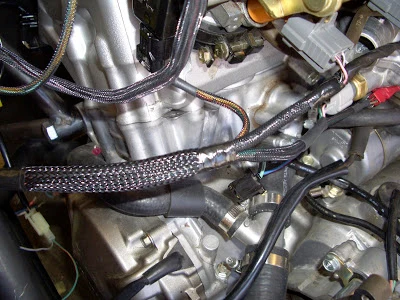

Nylon 66 Cable Sleeve is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.
The unique braided construction and wide expandable allows quick and easy installation over large connectors and long runs.
Nylon 66 Cable Sleeve can be found in applications ranging from small office/home office to cable harnesses.
Related Products
Customers' Review
Company Profile
Company information
Xiamen Qx Trade Co.,Ltd is a leading supplier of cable and wire management product,which founded 2005.
Our main products including Cable and wire braided sleeve,cable wrap,insulating sleeve and tubing,special sleeve,nylon cable tie,Hook and Loop etc.
Our products have passed ISO 9001:2022 quality system certification, products are exported to Europe, the Middle East, North America, Southeast Asia and other places.

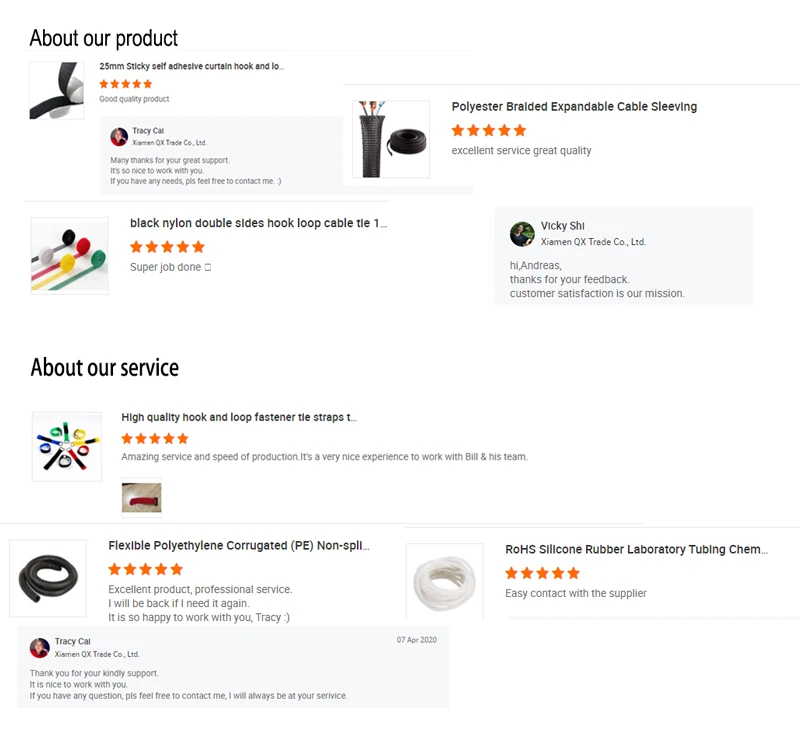

Good feedback from customer
Factory Show
Main production line
Automatic production, high efficiency, manual operation is simple
The environment is clean and orderly
Main production equipment
Equipment is complete
The corner of the warehouse
Certifications
Trade Condition
1.Trade terms: FOB, CIF, EXW
2.Payment terms: T/T,L/C,Western Unnion, Paypal,Escrow,Money Gram
3.Lead time: 7-15days
4.Sample time: 3-5 days
5.Package: Export carton or according to your requirement
