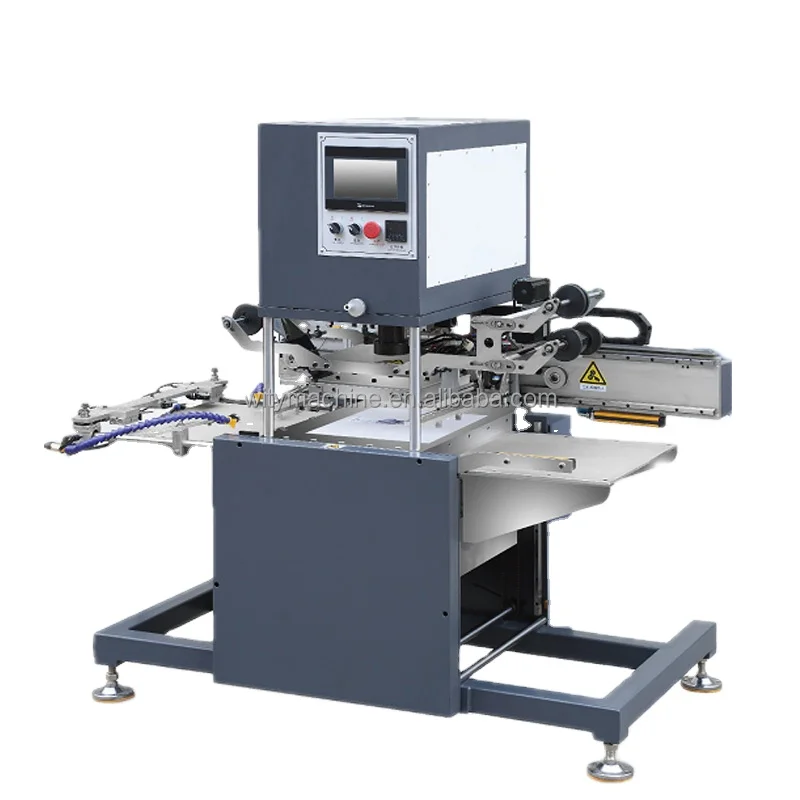

Automatic Hot Foil Stamping Machine For Paper Cardboard
- Category: >>>
- Supplier: Ruian Wity Machinery Co. Ltd.
Share on (1600601192385):
Product Overview
Description
Product Description
This Hot Foil Stamping Machine is a latest automatic foil stamping equipment. It is widely used in foil stamping with various kinds of paper and other flat materials, such as invitation card, red pocket, cartons. With foil stamping, the products can be made with more personalized and more exquisite.
Feature
- PLC control, easy to operate with one person.
- Foil stamping pressure, temperature and time can be adjusted.
- The feeding guide can be adjusted in both direction.
- Foil stamping plate vertical position can be micro-adjusted through touch screen.
- Servo motor for feeding, paper deliver and collecting with sensor for positioning.
- Feeding and collecting table work up and down automatically.
- Automatic working mode.
- With safety protection, machine will automatically stop when sensing operator approaching dangerous area.
- Foil stamping pressure, temperature and time can be adjusted.
- The feeding guide can be adjusted in both direction.
- Foil stamping plate vertical position can be micro-adjusted through touch screen.
- Servo motor for feeding, paper deliver and collecting with sensor for positioning.
- Feeding and collecting table work up and down automatically.
- Automatic working mode.
- With safety protection, machine will automatically stop when sensing operator approaching dangerous area.
Specification
Model | TJ-450 | TJ550 | TJ-780 | TJ-780 heavy duty |
Max. Paper size | 400*400mm | 550*500mm | 700*520mm | 750*550mm |
Effective foil stamping size | 300*280mm | 300*280mm | 500*500mm | 600*500mm |
Paper thickness | 80-1500gsm | 80-1500gsm | 80-1500gsm | 80-1500gsm |
Working speed | 15-40pcs/min | 15-35pcs/min | 15-30pcs/min | 15-25pcs/min |
Max. pressure | 1 tons | 1.2 tons | 2 tons | 30 tons |
Temperature | 0-300℃ | 0-300℃ | 0-300℃ | 0-300℃ |
Feeding paper height | 320mm | 500mm | 500mm | 500mm |
Delivery paper height | 320mm | 500mm | 500mm | 500mm |
Air supply | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Power required | 220V 1P | 380V 3P | 380V 3P | 380V 3P |
Machine weight | About 450KGS | About 750 KGS | About 1500KGS | About 1800KGS |
Machine dimension | 1000*1450*1450mm | 1700*1150*1600mm | 2650*1450*1900mm | 2650*1450*1900mm |

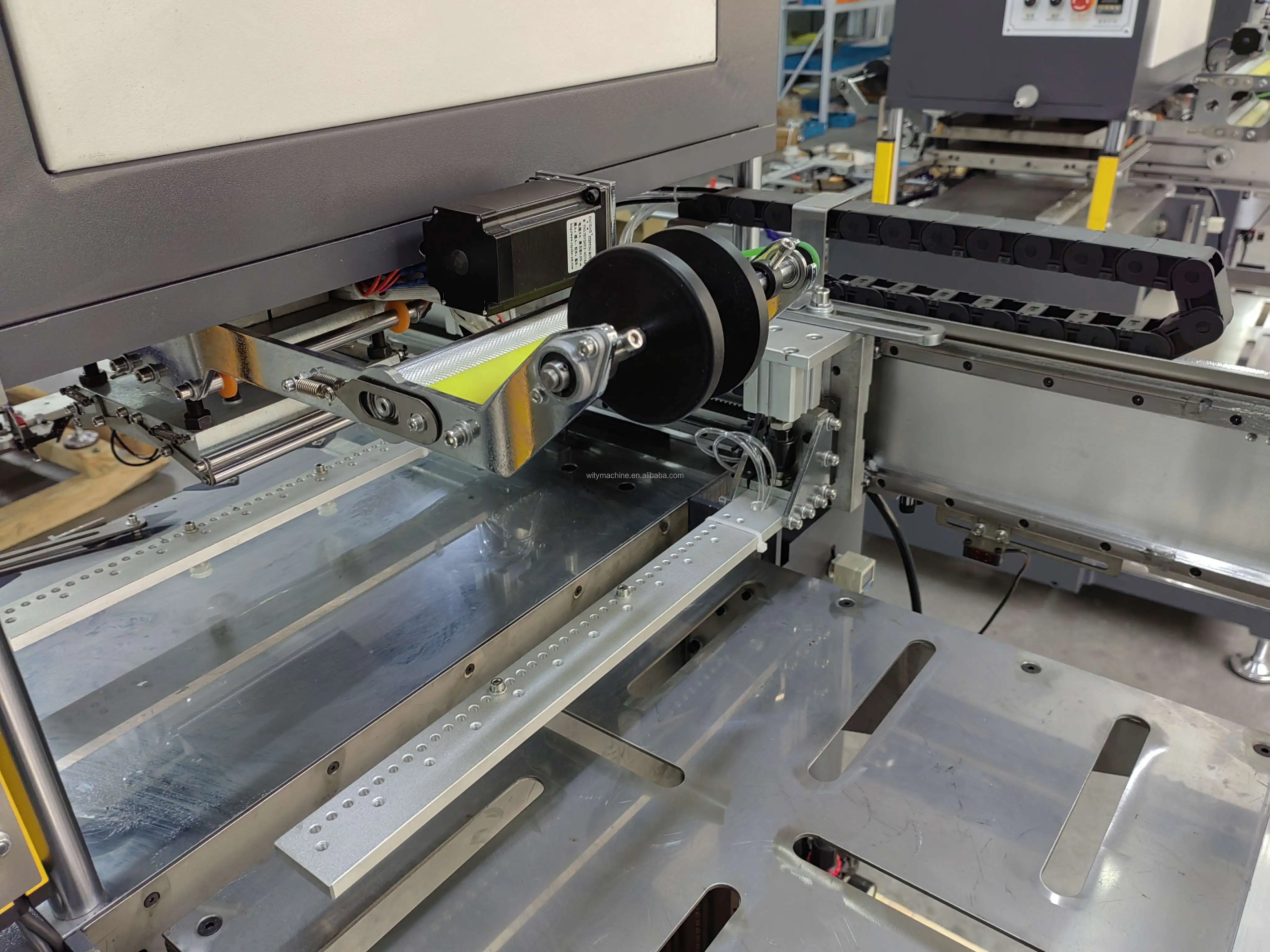

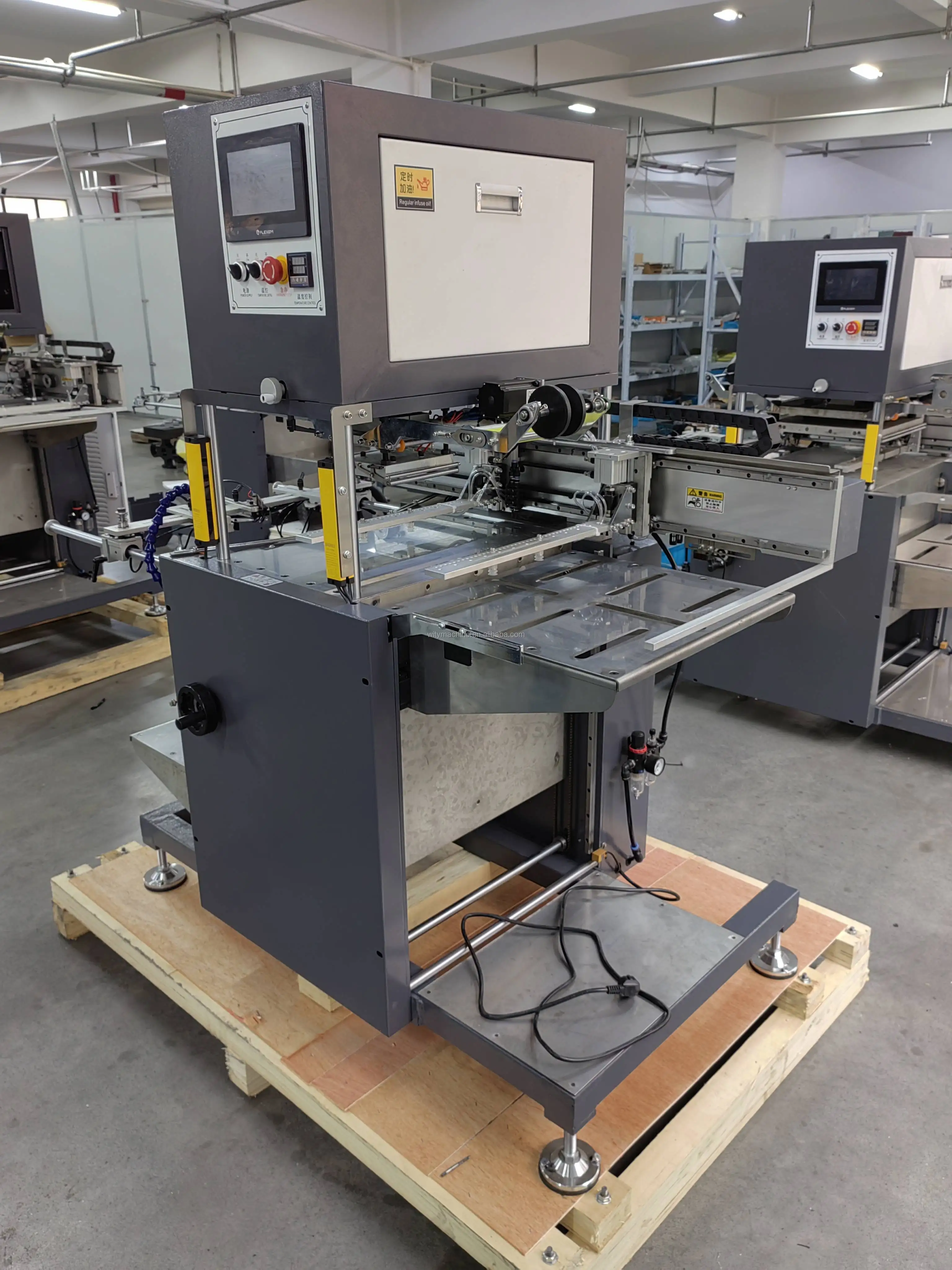

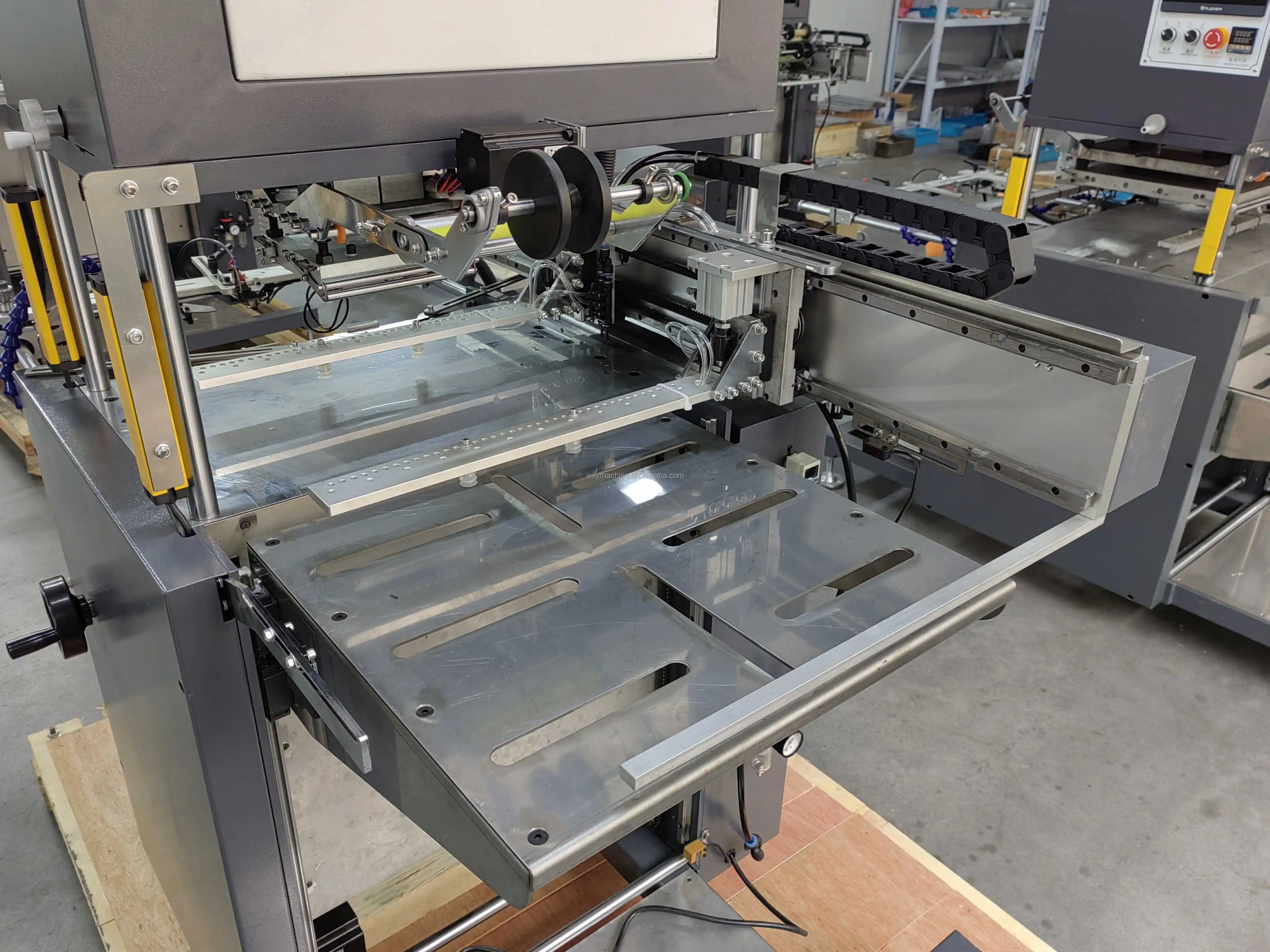

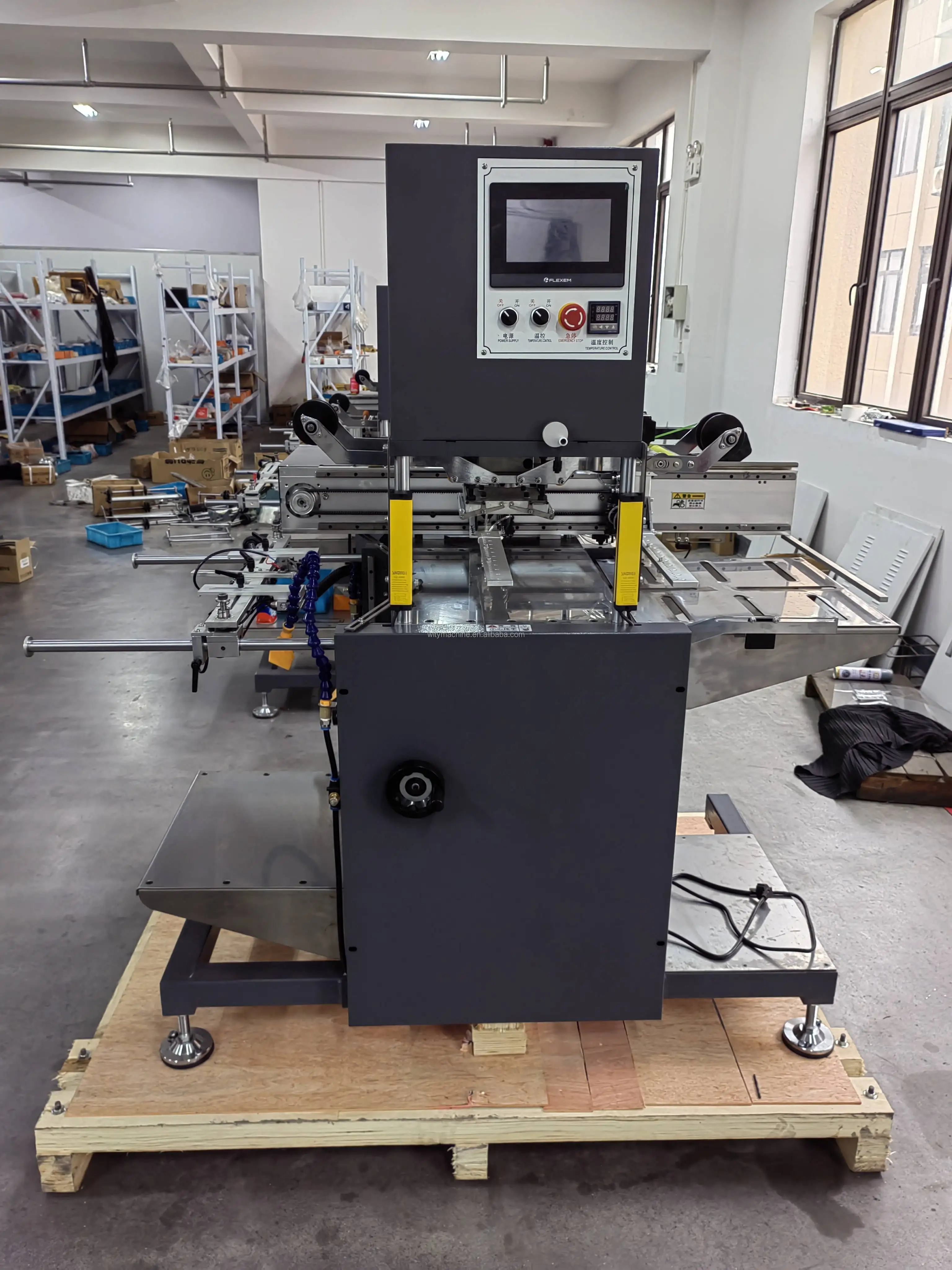

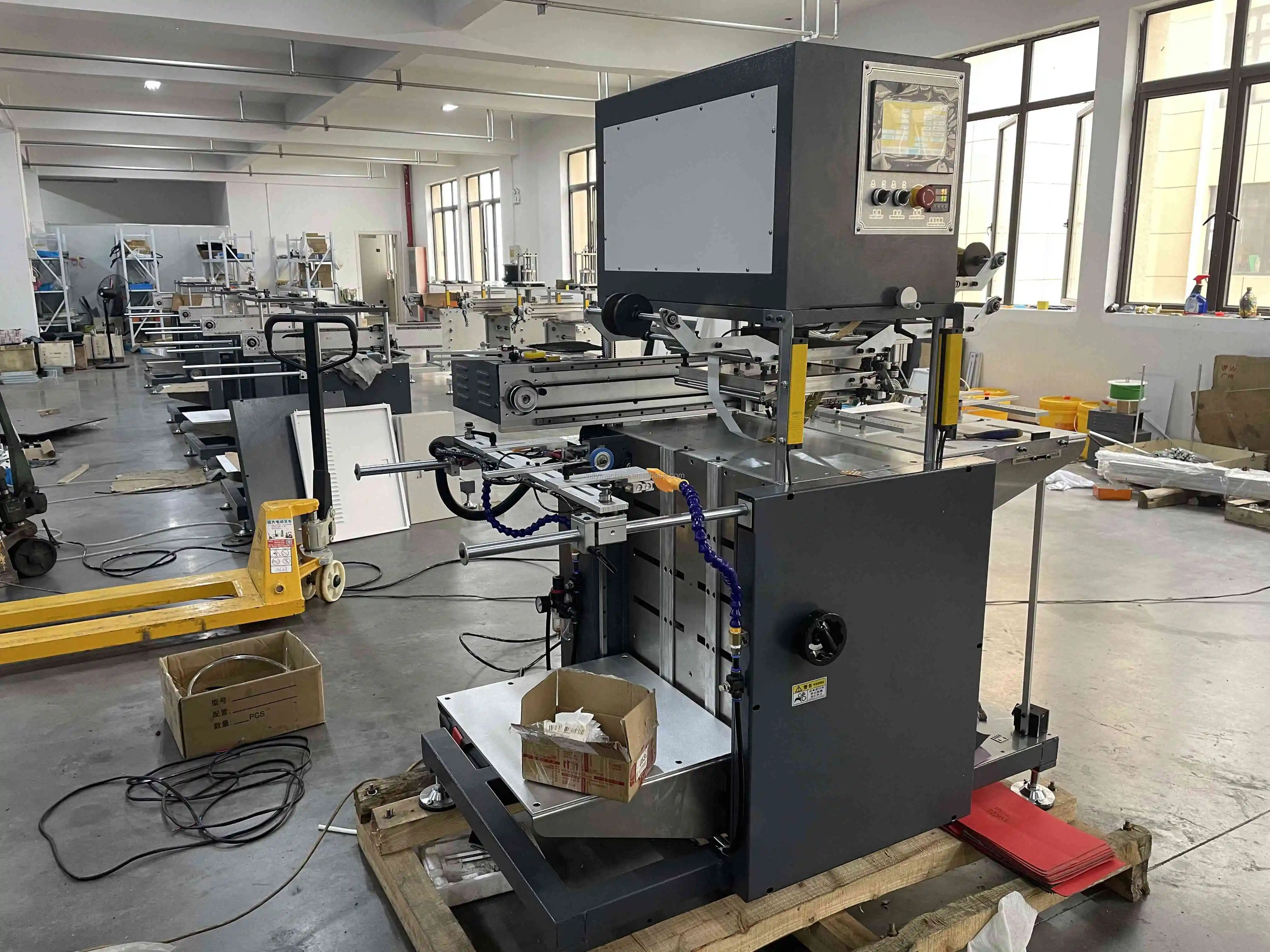

Details Images

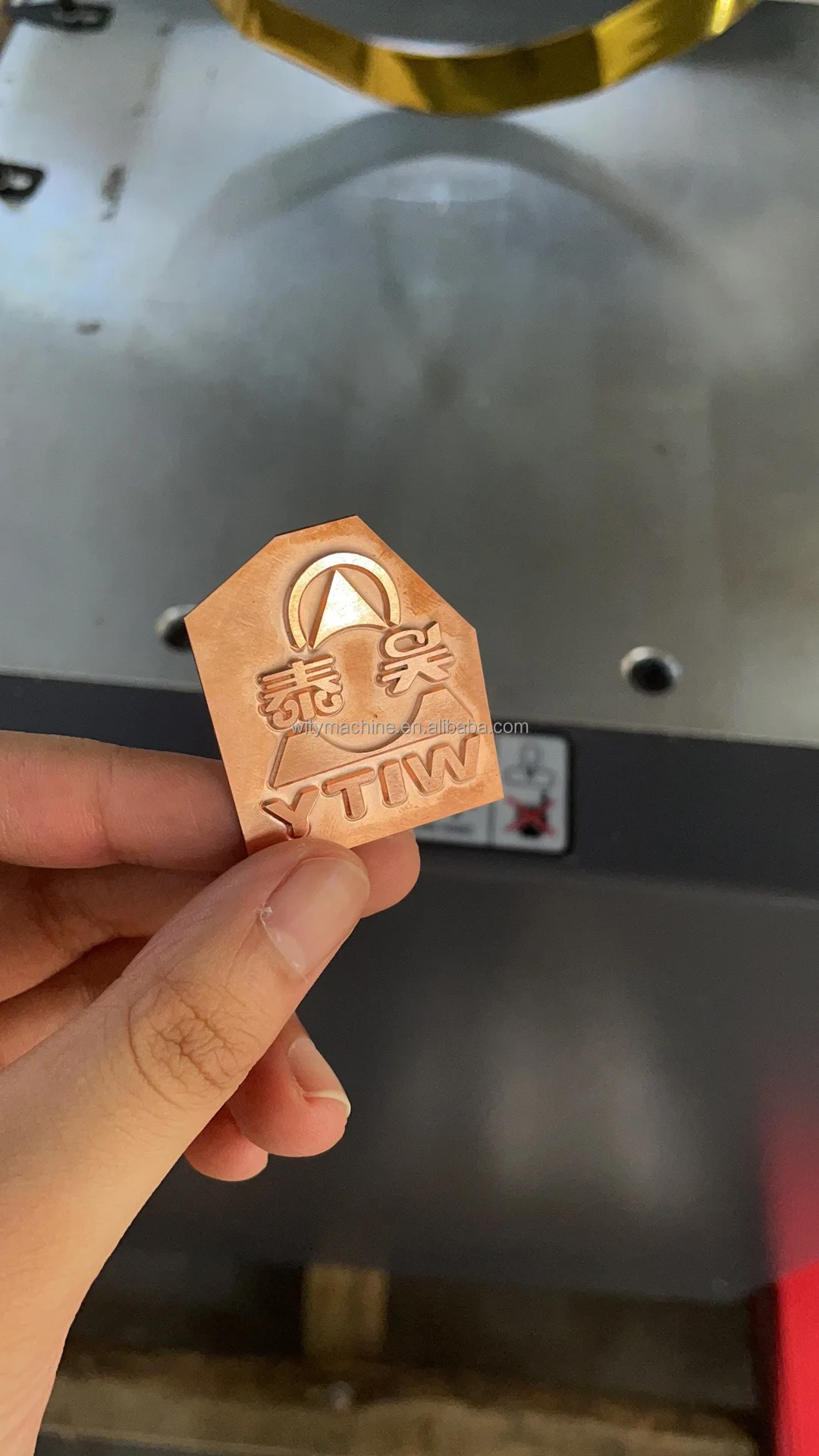

Samples
