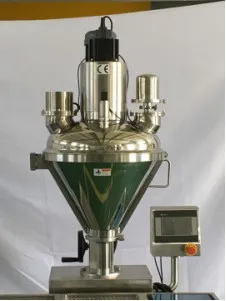

Stainless Steel 316/304 Auger Filling Machine for Xylitol
- Category: >>>
- Supplier: Shanghai Tops Group Co. Ltd.
Share on (1600601207464):
Product Overview
Description
General Introduction:

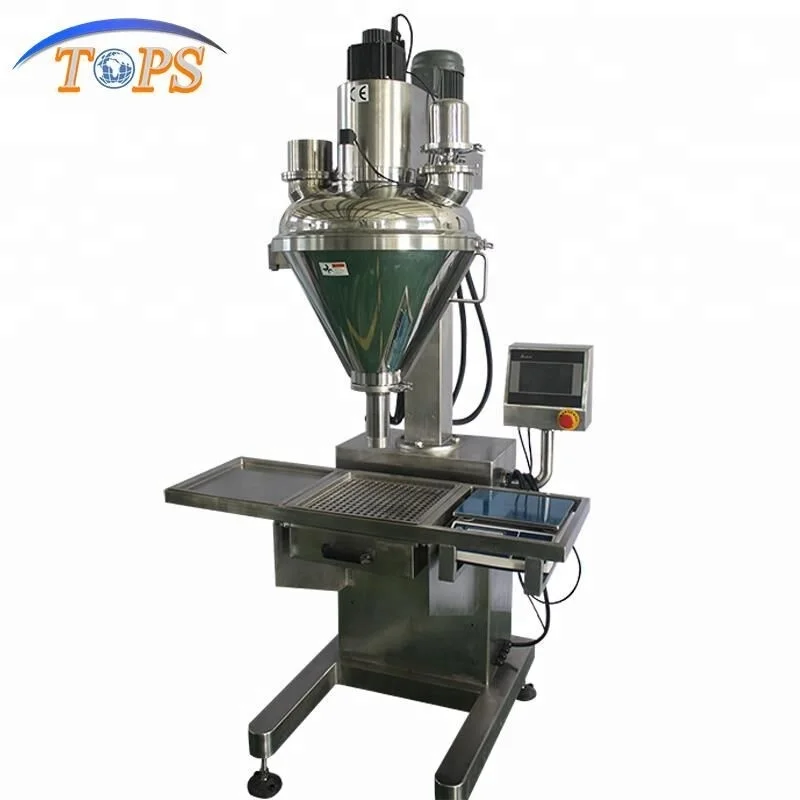

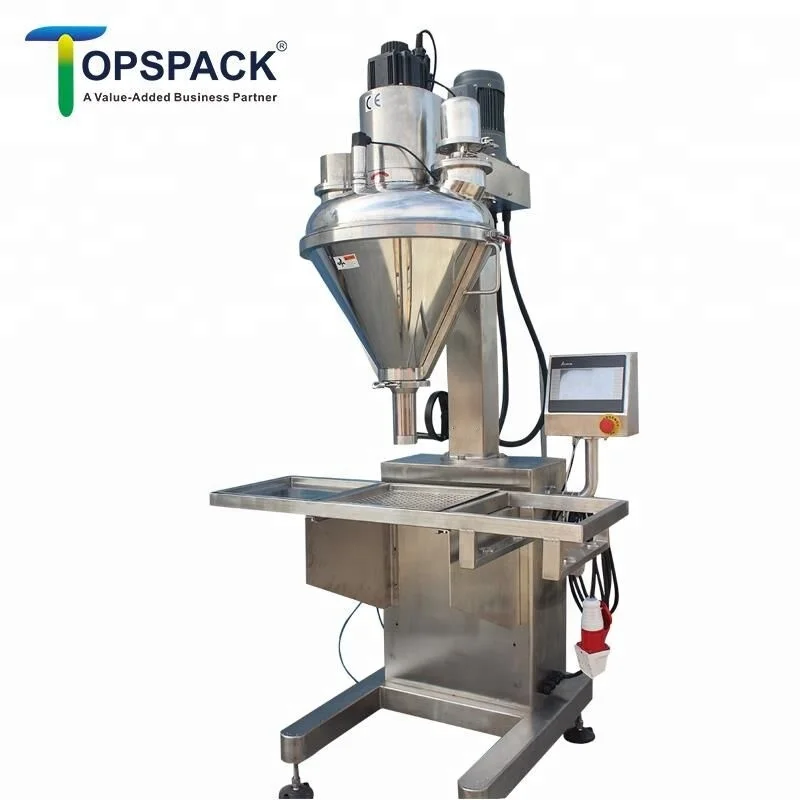

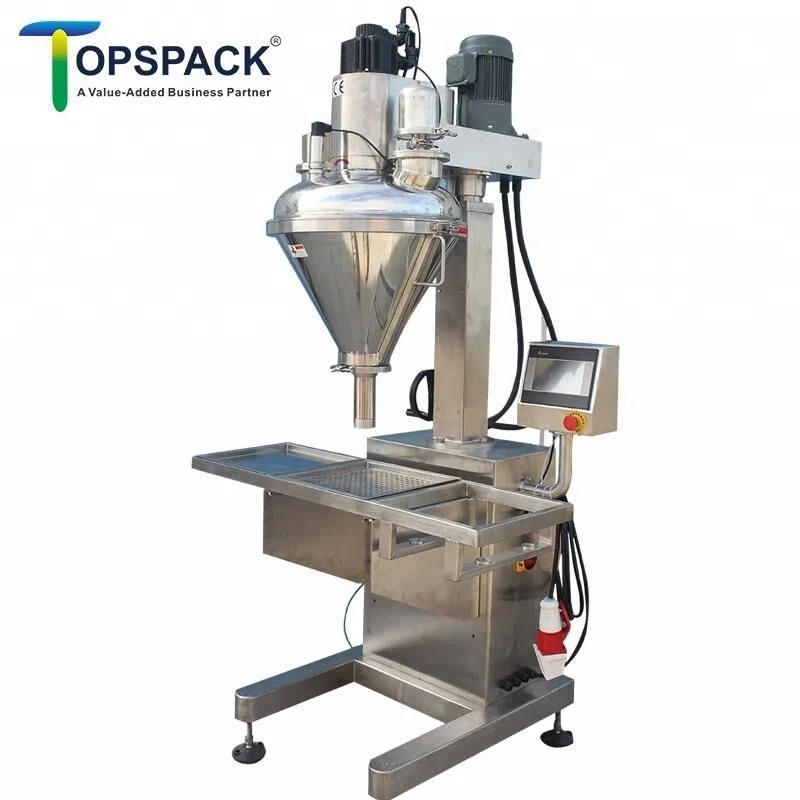

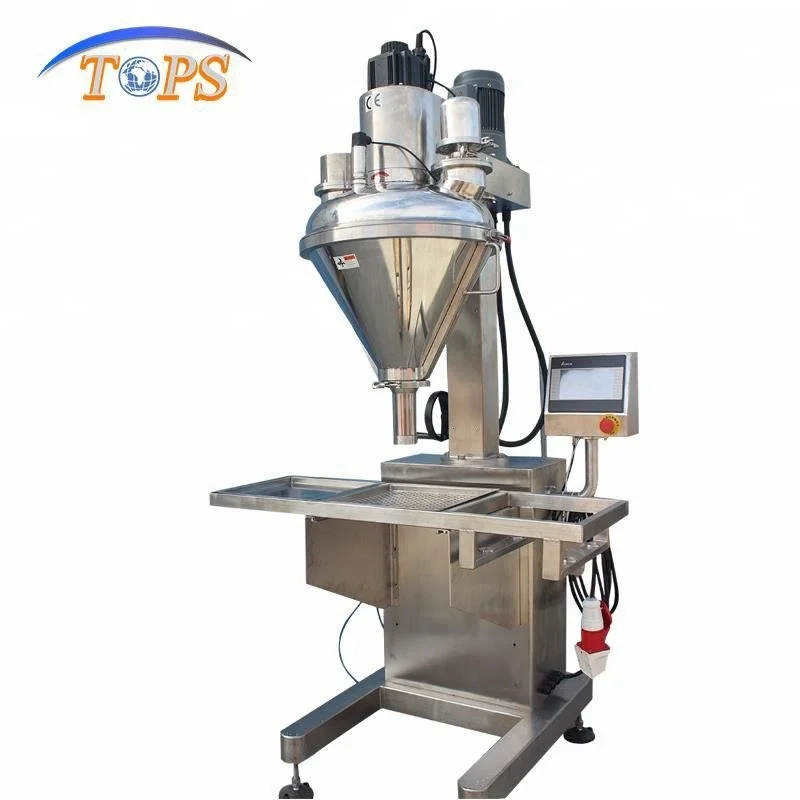

Automatic Auger Filler
This type semi automatic auger filler can do dosing and filling work. Due to the special professional design, so it is suitable for the fluidity or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, talcum powder, agriculture pesticide, dyestuff, and so on.
Features

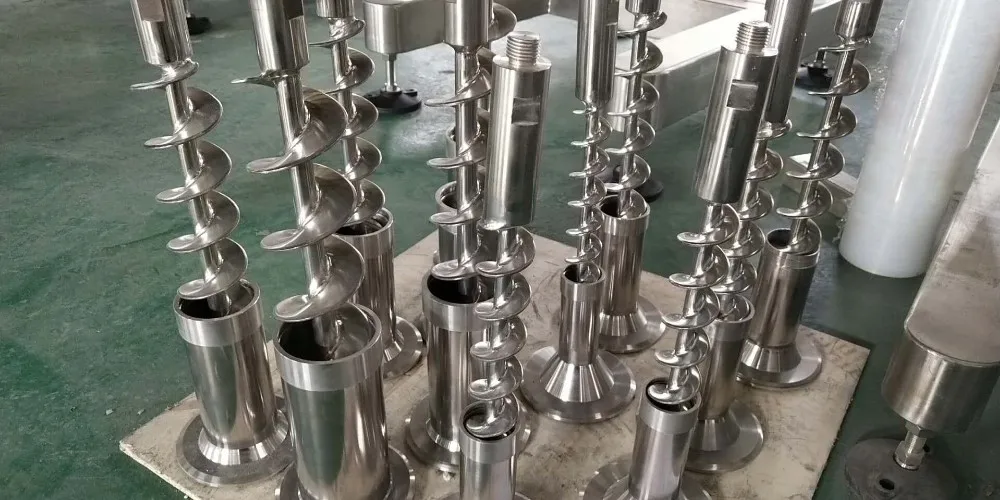

1.Lathing auger screw to guarantee the precise filling accuracy
2.PLC control and touch screen display
3.Servo motor drives screw to guarantee stable performance
4.Quick disconnecting hopper could be washed easily without tools
5.Can be setting to semi-auto filling by pedal switch or auto filling
6.Full stainless steel 304 material
7.weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to materials’ density change.
8.Save 20 sets of formula inside the machine for later use
9.Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
10.Multi language interface
2.PLC control and touch screen display
3.Servo motor drives screw to guarantee stable performance
4.Quick disconnecting hopper could be washed easily without tools
5.Can be setting to semi-auto filling by pedal switch or auto filling
6.Full stainless steel 304 material
7.weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to materials’ density change.
8.Save 20 sets of formula inside the machine for later use
9.Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
10.Multi language interface
Specification
Model | TP-PF-A10N | TP-PF-A21N | TP-PF-A22N |
Control system | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Hopper | 11L | 25L | 50L |
Packing Weight | 1-50g | 1 - 500g | 10 - 5000g |
Weight dosing | By auger | By auger | By auger |
Packing Accuracy | ≤ 100g, ≤±2% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5% |
Filling Speed | 40–120 times per min | 40–120 times per min | 40–120 times per min |
Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
Total Power | 0.84 KW | 1.2 KW | 1.6 KW |
Total Weight | 90kg | 160kg | 300kg |
Overall Dimensions | 590×560×1070mm | 1500×760×1850mm | 2000×970×2300mm |
