OEM Factory Pure Sine Wave Inverter 3KW 12V/24V 220V 5000W Inverter With Battery Charger For Solar Air Conditioner Inverter
- Category: >>>
- Supplier: Guangdong Multifit Solar Co. Ltd.
Share on (1600601215099):
Product Overview
Description
Product Description
Technical Data | ||||||
Item No. | VMI-D 1500W | VMI-D 2000W | VMI-D 3000W | |||
Nominal AC OutputOptinal 220V/110V | 220V/200-240V 120V/105V-132V | |||||
Nominal frequency | 50Hz/60Hz | |||||
Continuous AC power for 3 hours 25℃ | 1500W | 2000W | 2700W | |||
Continuous AC power 25℃ | 1350W | 1800W | 2400W | |||
Nominal AC current/Max. AC current(peak) | 6.15A/18.5A 1ms 11.25A/33.75A 1ms | 8.17A/24.55A 1ms 15A/45A 1ms | 10.91A/32.73A 1ms 20.0A/60.0A 1ms | |||
THD Oupt voltage | ≤3% | |||||
Power Factor | 1.0 | 0.9 | 0.8 | |||
AC Input voltage/range | 220V/200-240V 120V/105V-132V | |||||
AC input frequency | 50Hz/60Hz | |||||
Battery voltage/range Optional | 12V/10-16V 24V/20-32V 48V/40-64V | |||||
Max. battery charging current/continuous charging current at 25 ℃ | 30A/10-30A/50A | |||||
Battery type/Battery capacity | Lead acid 100-1000Ah;Lithium | |||||
Charge control mode | 3 stage | |||||
Max. Efficiency | >85% | |||||
Self-consumption with no load | 20W | 25W | 30W | |||
Self-consumption with no load/standby/for LCD type only | 5W | |||||
Protection | Over voltage/AC short circuit/Overload/Battery discharge voltage/Battery over voltage/Over Temperature/Over current/DC polarity reverse | |||||
Transfer time | ≤4ms | |||||
Dimension | 420*350*150mm | |||||
Net weight kgs | 15 | 16 | 16.5 | |||
IEC60529 protecting degree | IP20 | |||||
Noise emission | ≤30dB(1M) | |||||
Warranty | 2 years | |||||
Certificate | CE/ISO9001 | |||||
Applications
Related Products
Company Profile

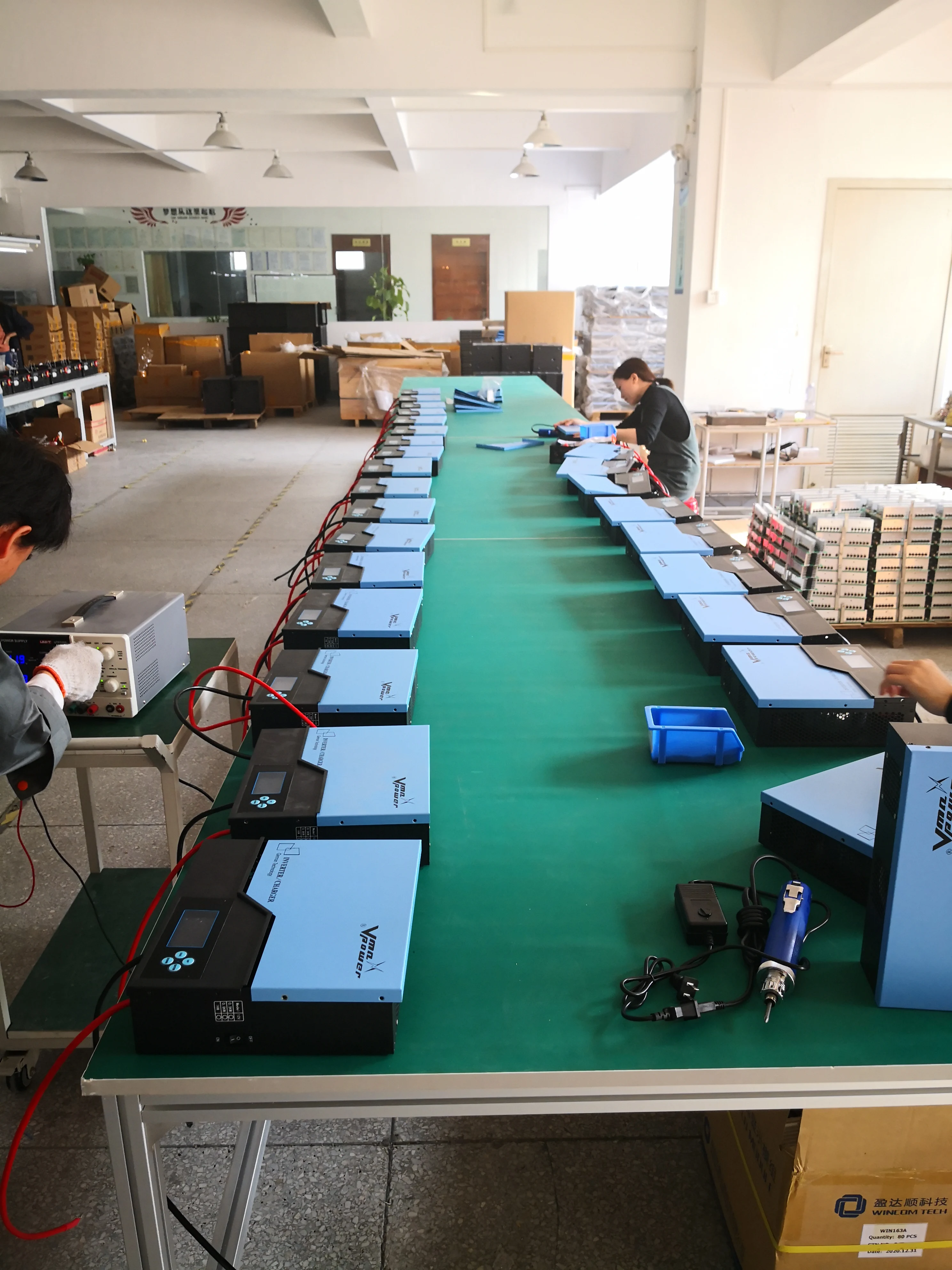

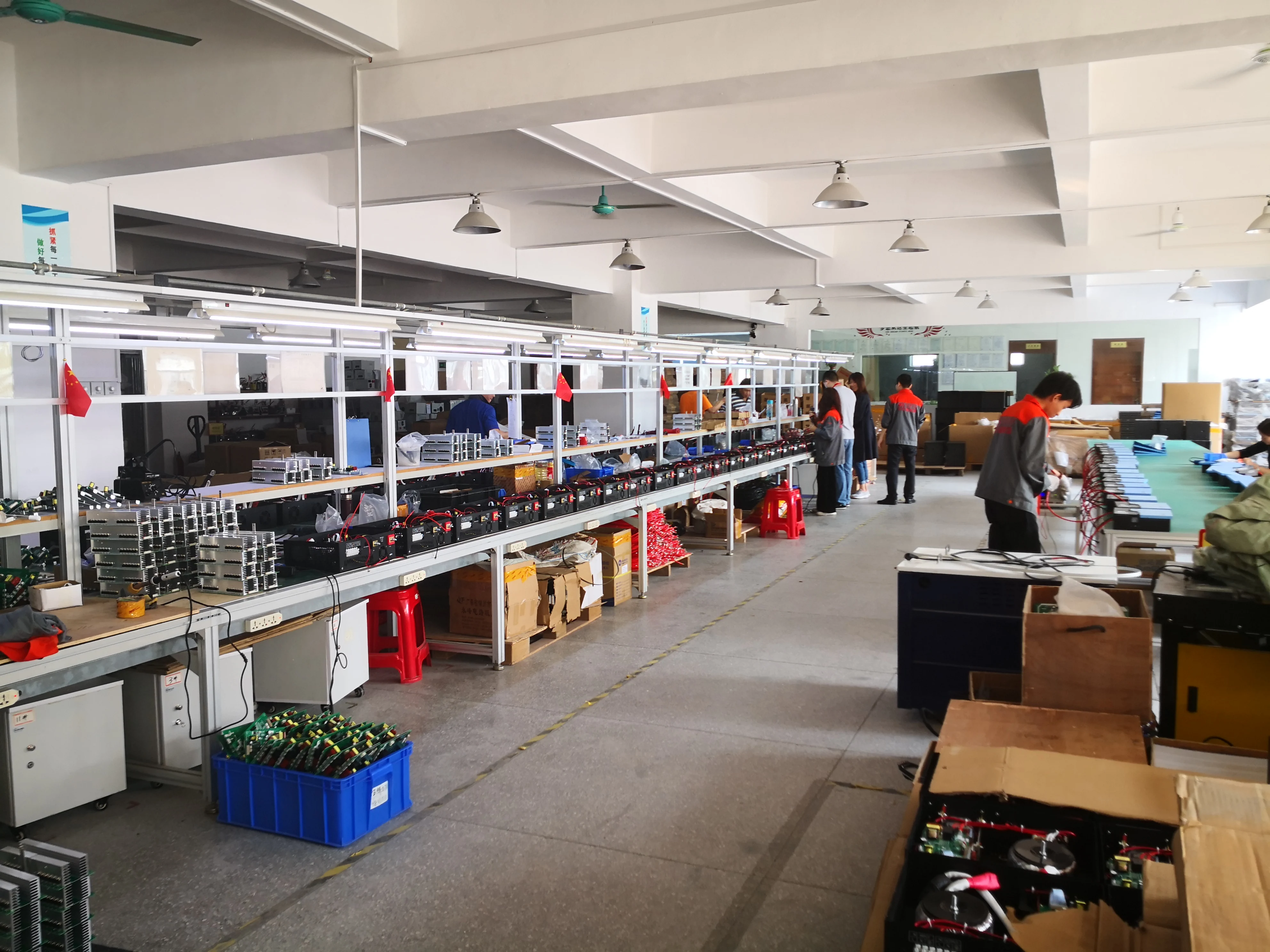

Multifit was founded in 2009,Based on providing the world-class small-scale photovoltaic power plants for civilian solutions and innovative research and development of renewable energy electrical products,we have cultivated a group of sales and R&D teams with ideals, experience and technology.The product has obtained more than 10 patent certificates,Now it has been exported to Europe, America, Asia, Africa and Latin America and others,there are more than 50 countries and regions in the world.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory. Multifit Solar is an original design manufacturer of power inverter, the solar charge controller and solar
array box since 2009.
Q2: Where is your factory located? How can I visit there?
A: Our factories are located in BeiJing and Shantou City, Guangdong, China. Its takes half hours from Airport or Train Station.
Welcome to visit our technology development and production lines at your free time!
Q3: How can I get some samples?
A: We can provide you samples for quality checking.
Kindly contact us for getting more discount and profitable project solutions.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q5: Where is your loading port?
A: Multifit have 2 factories in Beijing and Shantou City Guangdong.
The loading port is TianJin/ Shanghai or Shenzhen/ Guangzhou for optional.
Q6: How long is your factory delivery time?
A: 3-7 days for sample order, 5-10 days for MOQ order,15-30 days for 20ft container.
Q7: Is it OK to print my logo on the product?
A: Yes. Please inform us formally before production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
A: We are a factory. Multifit Solar is an original design manufacturer of power inverter, the solar charge controller and solar
array box since 2009.
Q2: Where is your factory located? How can I visit there?
A: Our factories are located in BeiJing and Shantou City, Guangdong, China. Its takes half hours from Airport or Train Station.
Welcome to visit our technology development and production lines at your free time!
Q3: How can I get some samples?
A: We can provide you samples for quality checking.
Kindly contact us for getting more discount and profitable project solutions.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q5: Where is your loading port?
A: Multifit have 2 factories in Beijing and Shantou City Guangdong.
The loading port is TianJin/ Shanghai or Shenzhen/ Guangzhou for optional.
Q6: How long is your factory delivery time?
A: 3-7 days for sample order, 5-10 days for MOQ order,15-30 days for 20ft container.
Q7: Is it OK to print my logo on the product?
A: Yes. Please inform us formally before production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Packing & Delivery
