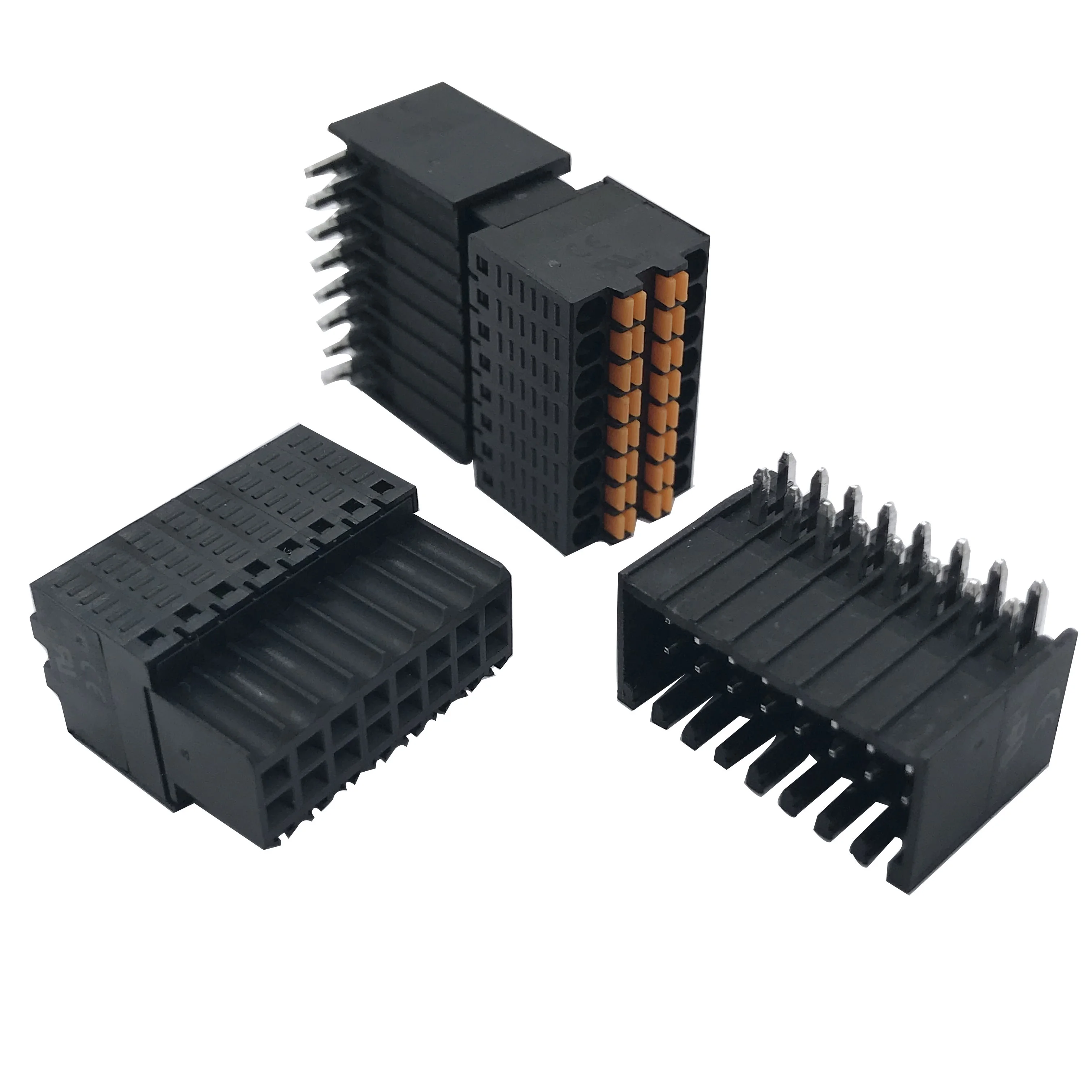

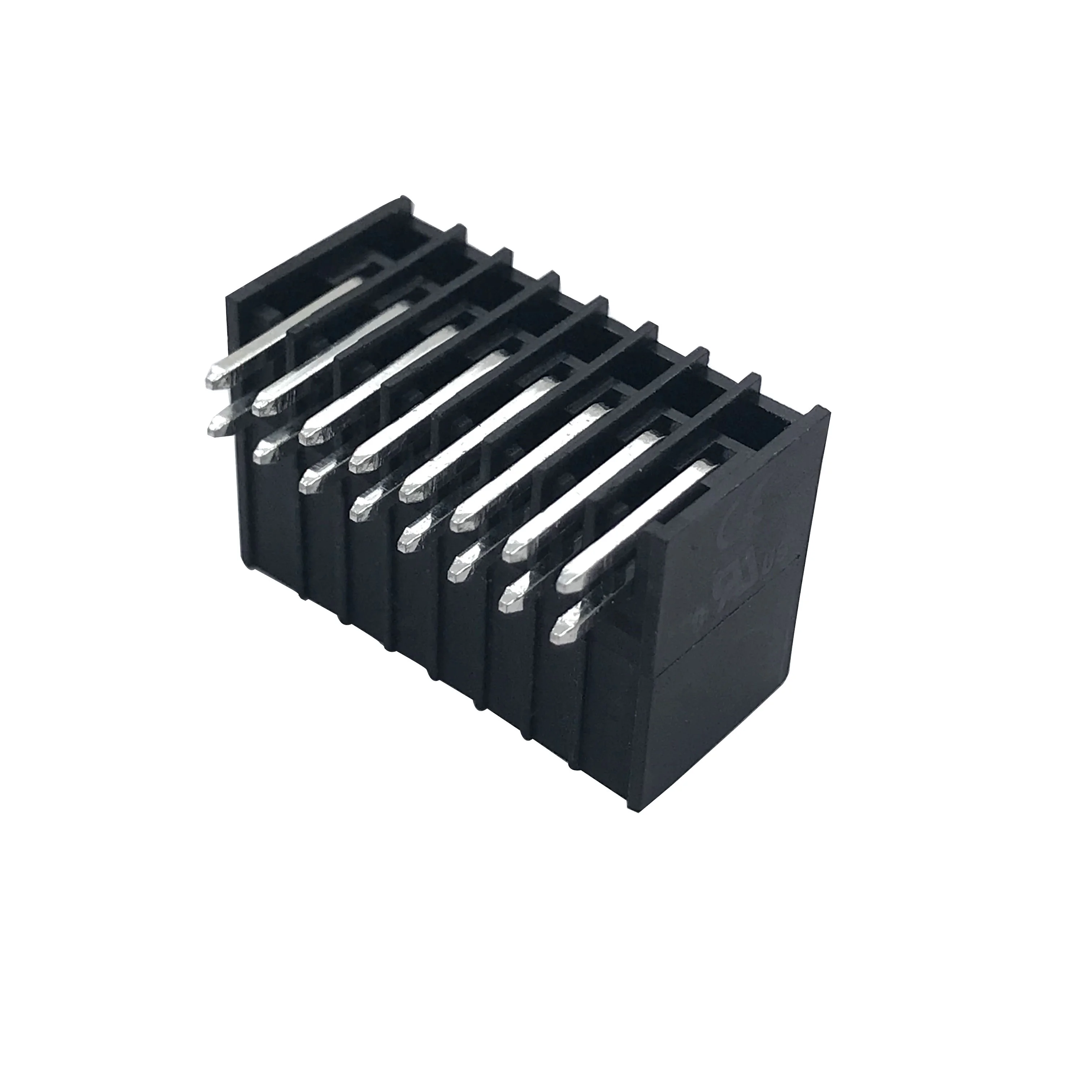

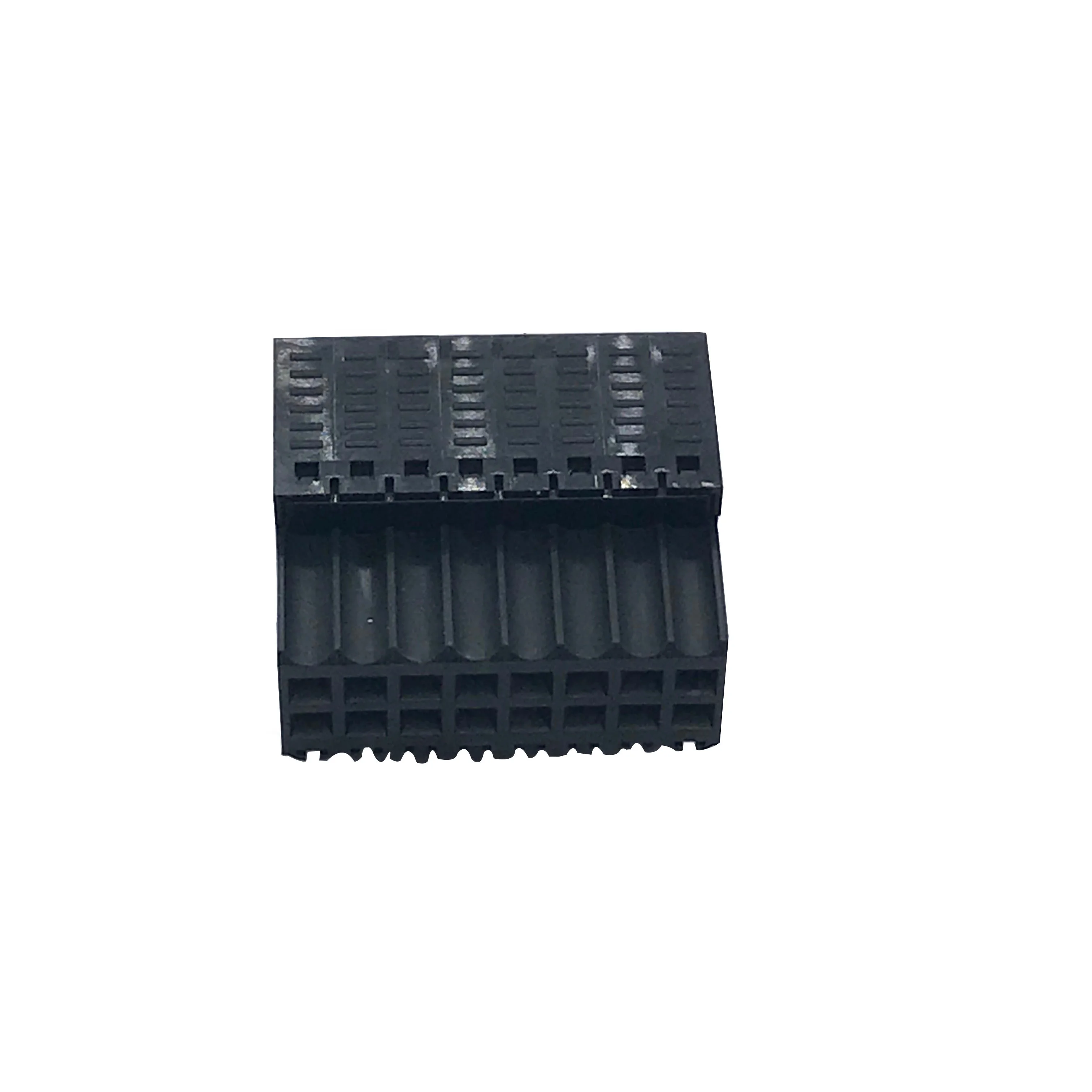

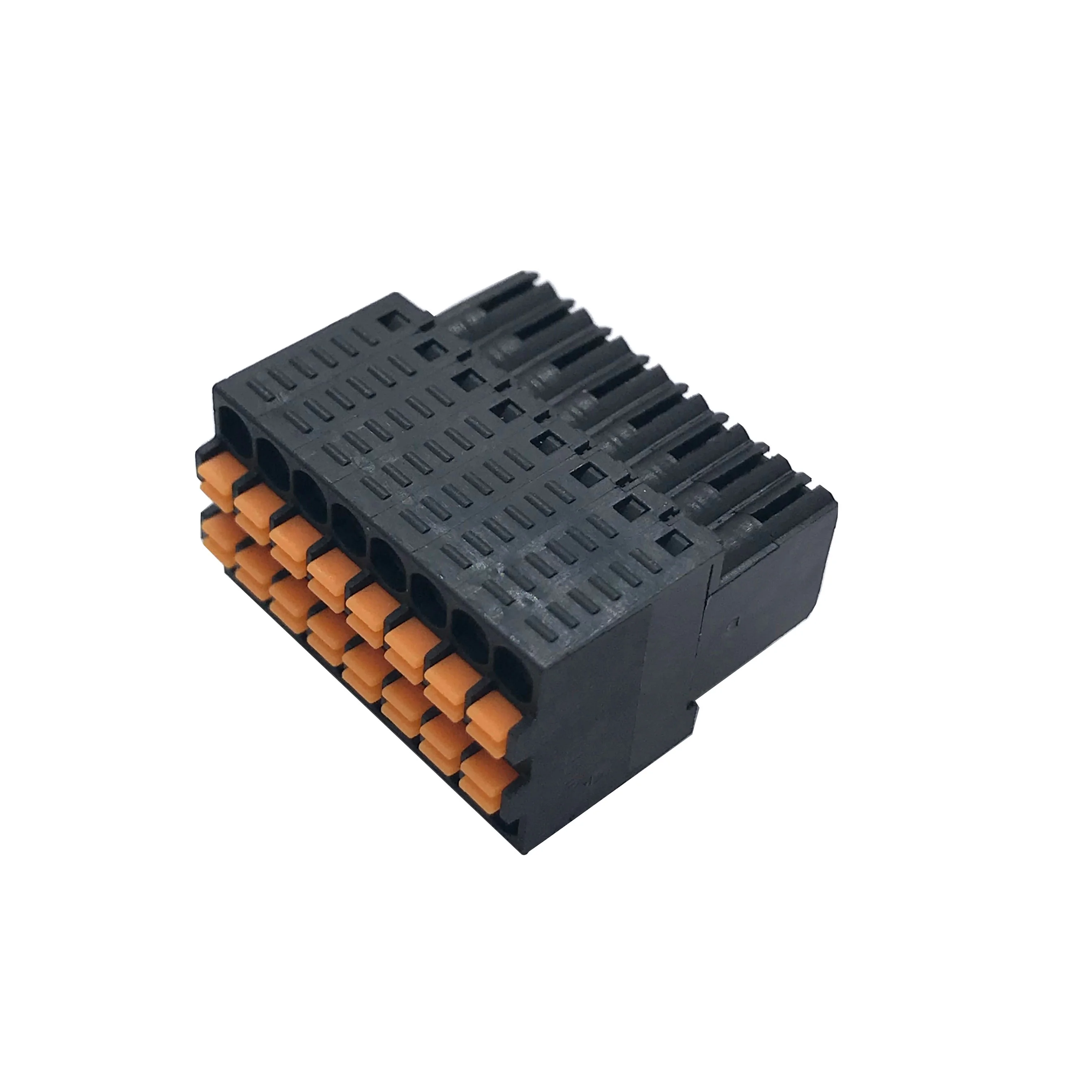

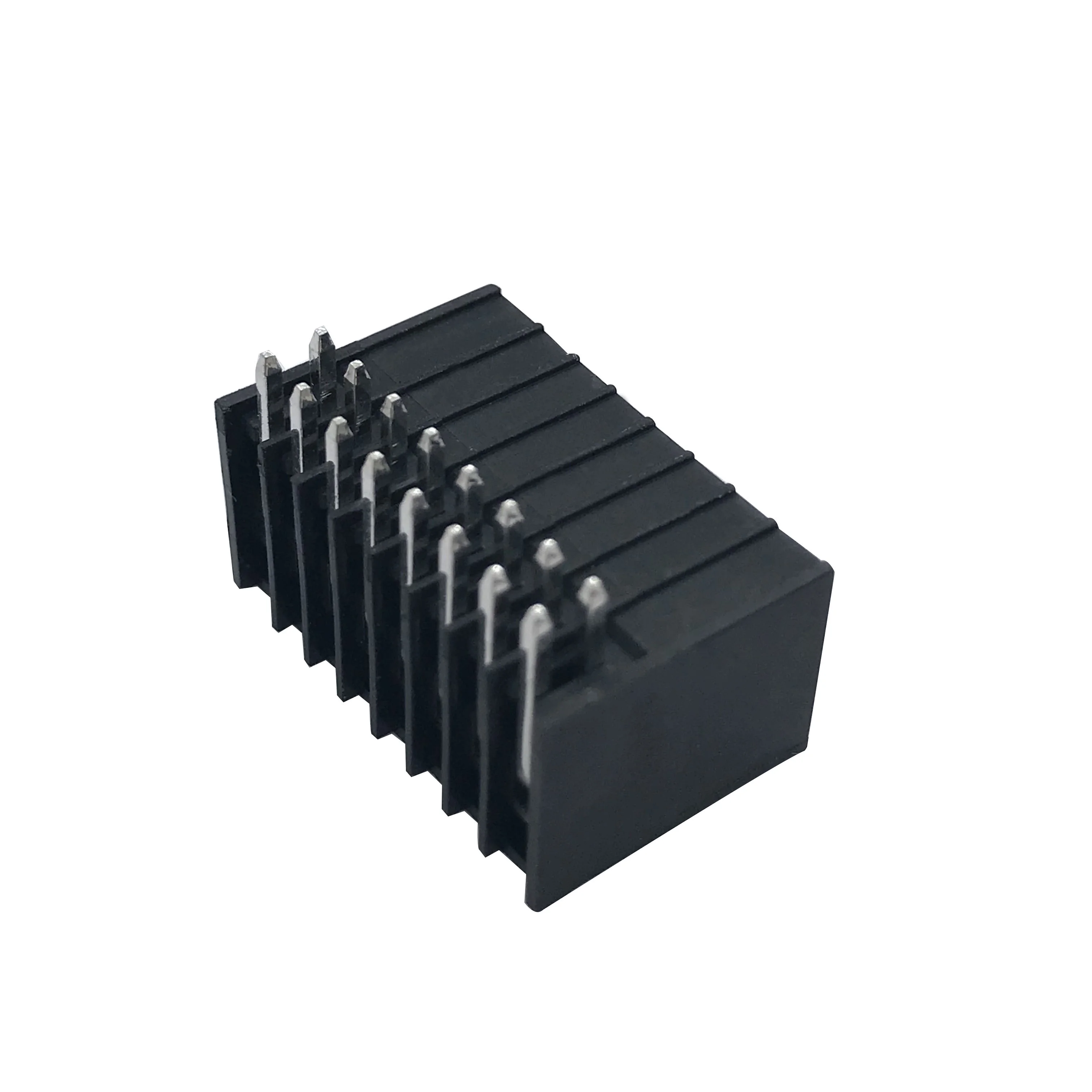

Pitch 2.54mm 254 Plug in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks
Pitch 2.54mm 254 Plug-in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks
Pitch 2.54mm 254 Plug-in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks
Pitch 2.54mm 254 Plug-in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks
Pitch 2.54mm 254 Plug-in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks
Pitch 2.54mm 254 Plug-in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks
Pitch 2.54mm 254 Plug-in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks

Pitch 2.54mm 254 Plug in Terminal Block Female Male Vertical 90 Degree Pluggable Terminal Blocks

Share on (1600601289794):


Price:

Quantity:


Product Overview

Description





Place of Origin
GUA
Brand Name
BSC
Model Number

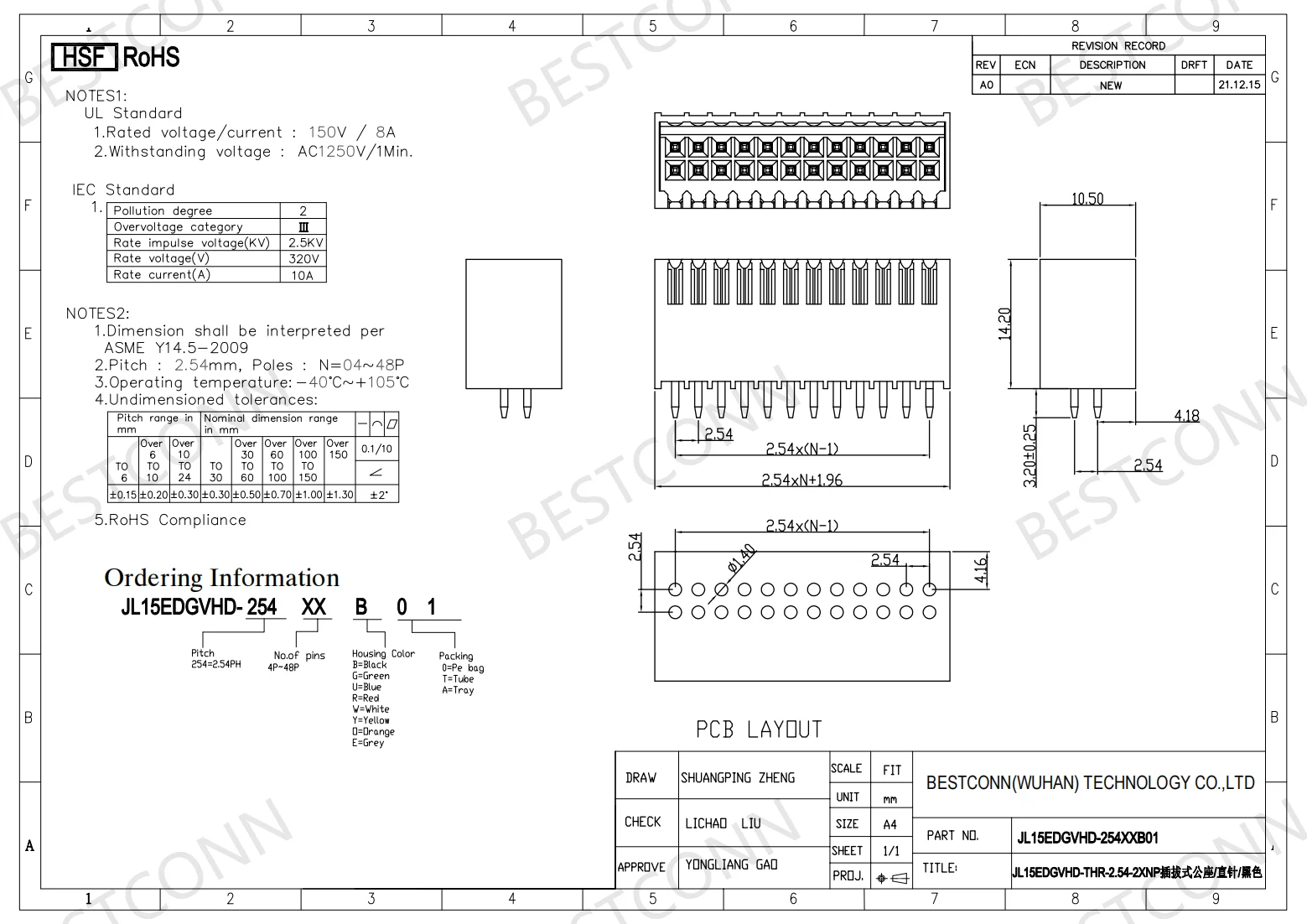

JL15EDGVHD-254XXB01
Number of Contacts
4 - 48
Conductor Size
12-4 AWG
Type
Plug-in
Product name
Terminal Blocks
Pitch
2.54mm
Color
Black
Rated Voltage
150V/ 8A
Withstanding Voltage
AC1250V/ 1min.
Type
Plug-in
Operating Temperature
-40°C to~ + 105°C
Stripping Length
7~8mm
Housing Material
PA66
MOQ
1000 Pieces
















A terminal block (also called as connection terminal or terminal connector) is a modular block with an insulated frame that secures two or more wires together. It consists of a clamping component and a conducting strip.








Bestconn(Wuhan) Technology Co.,Ltd is a specialized provider of connector total solution, in developing and delivering reliable Bconnectors, cable, and wire harness that stand for quality, reliability, and convenience. Our products are widely used in electronic applications around the world including telecommunications, household appliances, electronic toys, automotive, medical equipment, and more. We can provide standard or custom products to your requirement. Creating superior products and the highest value for our customers is our ultimate goal. Welcome to join us and let’s link to the future together!




Products Range

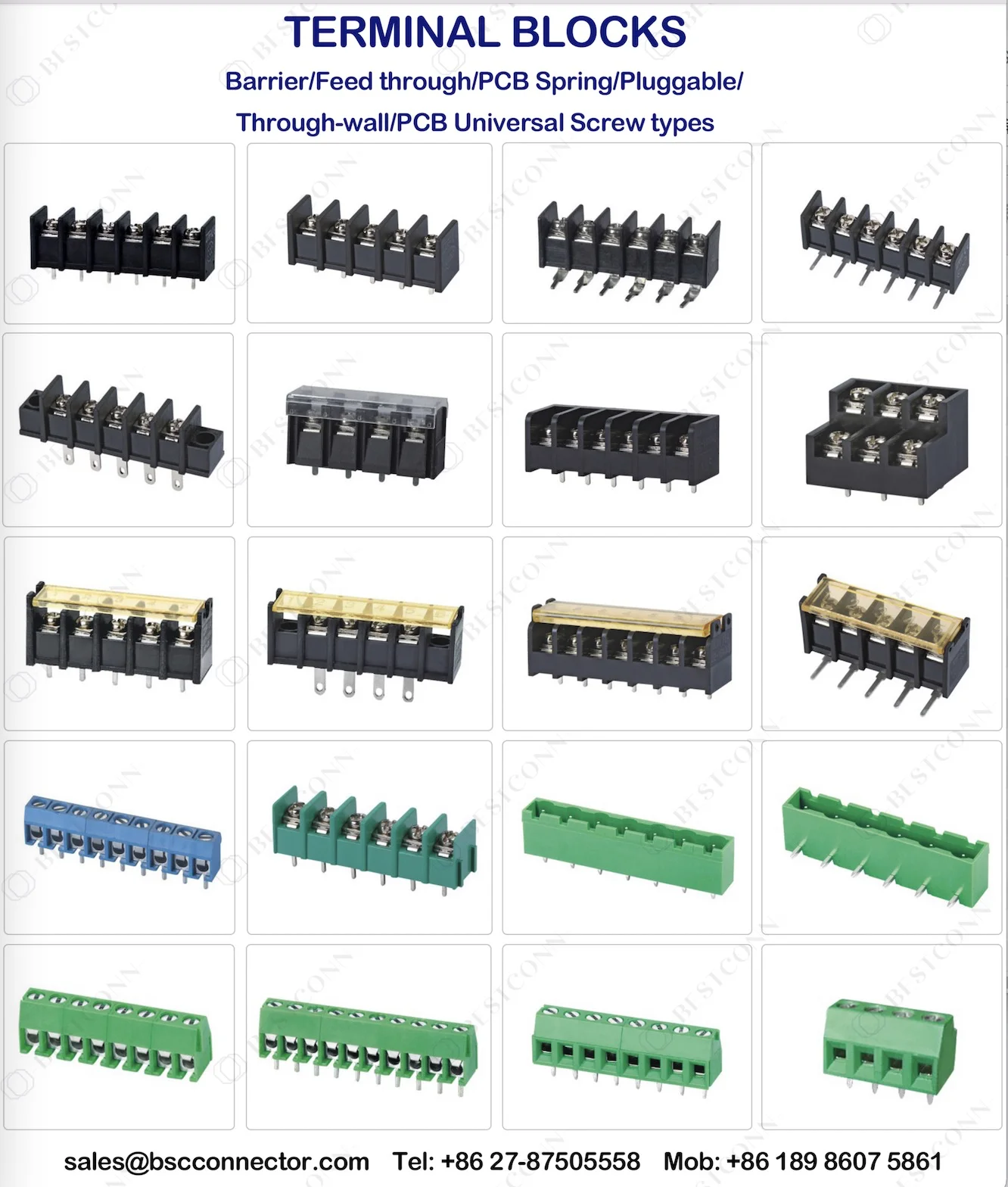

PIN HEADERS/FEMALE HEADERS/EJECTOR HEADERS/BOX HEADERS/PLCC/IC SOCKET/IC ADAPTER/MACHINE FEMALE HEADER/MACHINE PIN HEADER/WAFER/DIP PLUG/IDC SOCKET/DIN41612/BOARD-TO-BOARD CONNECTOR/TERMINAL BLOCKS/MMICRO MATCH/CABLE ASSEMBLY
