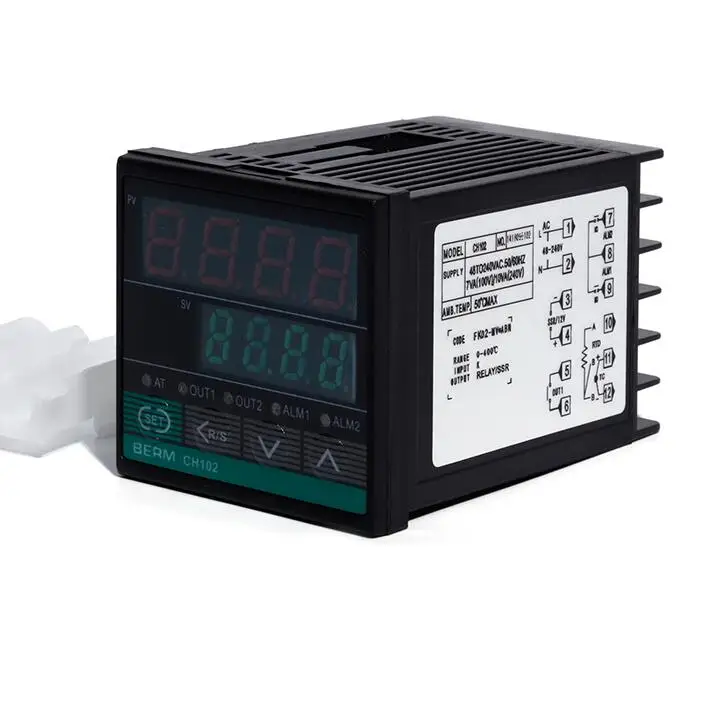

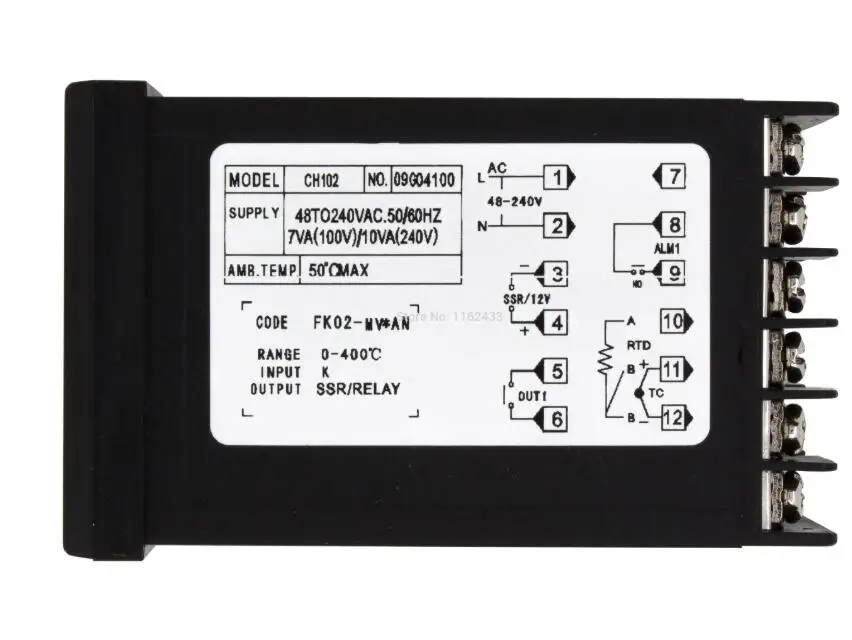

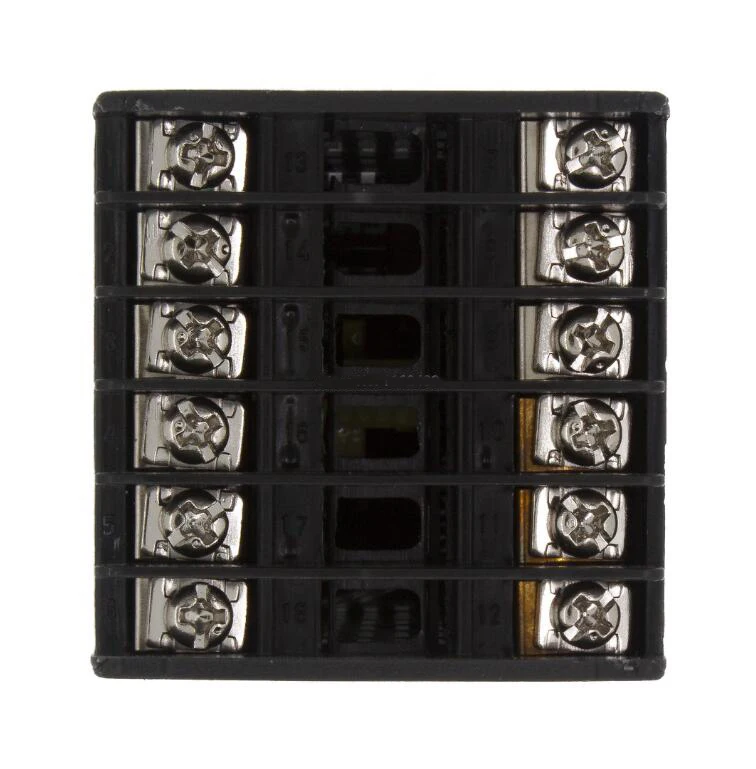

48x48mm 1/16 Din TC/RTD K E J PT100 CH102 LED Digital PID Temperature Controller Output SSR or Relay AC 110/220V Thermostat

Model number

External dimensions

Perforation dimensions

Related product

CH102

48x48x100 mm

45 0.50x45 0.50 mm

Visiting...

CH402

48x96x100 mm

45 0.50x92 0.50 mm

Order

CD701

72x72x100 mm

68 0.50x68 0.50 mm

Order

CD901

96x96x100 mm

92 0.50x92 0.50 mm

Order

Model number

CD-CH series

Accuracy

RTD input: ±0.5%FS±1°C, Others input: ±1%FS±1°C

Supply voltage

100-240Vac, 24Vac, 50/60 Hz; 24Vdc

Input types

Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII
RTD: Pt100, JPt100
Voltage: 0-5V, 1-5V
Current: 0-20mA, 4-20mA

Output types

Electromagnetic relay, SSR, current, voltage, SCR (not in one product, need to select). Default is 1pcs, if 2pcs, need to be customized

Power consumption

AC100-240V: under 10VA; AC24V: under 5VA; DC24V: under 160mA

Control method

PID, or ON/OFF

Setting method

Touch switch

Indication method

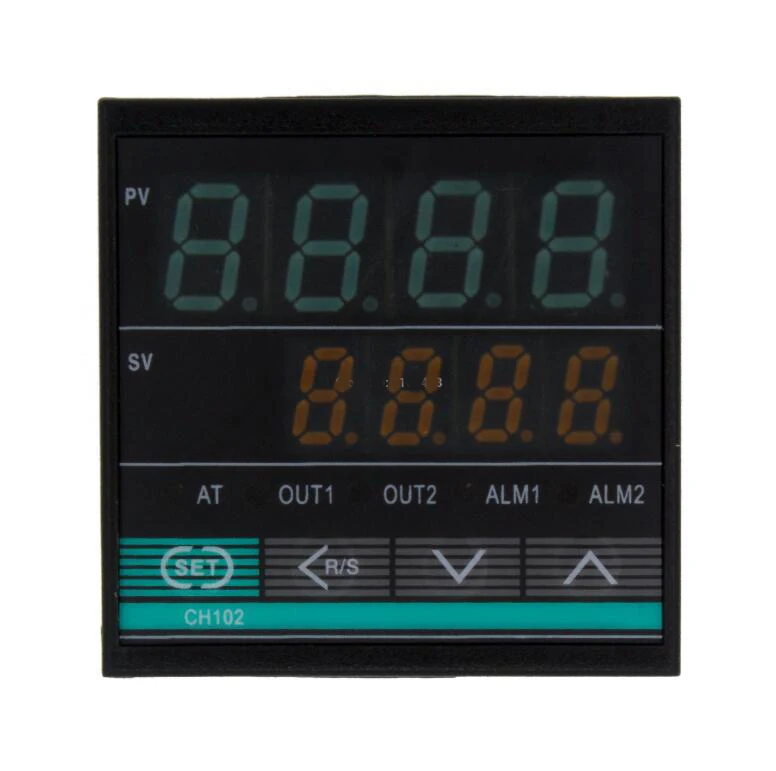

8-segment 4-digital display and LED indication

Alarms

1. Alarm quantity: Default is 1pcs, if 2pcs, need to be customized
2. Alarm form: N: No alarm
A: Deviation low
C: Deviation high/low
D: Band
E: Deviation high with hold action
F: Deviation low with hold action
G: Deviation high/low with hold action
H: Process high
J: Process low
K: Process high with hold action
L: Process low with hold action

Operating temperature

0 to 50 °C (32 to 122 °F)

Operating humidity

45-85% RH max, non-condensing

Alias name

CD-CH series pid temperature controller, intelligent temperature controller

Electromagnetic relay

Contact rating: 3A at 250Vac

Solid state relay

Contact rating can be selected, order separately (Single phase 40A, Three phase 40A)

Current

4-20mA

Voltage

0-5V

SCR

Zero crossing pulse

K

0-1372 °C (Bolt, Press spring, Ring, Probe, Armor high temperature resistant, special thread waterproof probe)

J

0-1200 °C

R

0-1700 °C

S

0-1769 °C (Probe, Armor)

B

0-1820 °C

E

0-1000 °C (Bolt, Press spring, Ring, Probe, special thread waterproof probe)

N

0-1300 °C

T

-199.9-400.0 °C

WRe

0-2320 °C

Pt100

-199.9-649.0 °C (Bolt, Press spring, Ring, Probe, Polish rod, Polish rod waterproof, Polish rod waterproof anticorrosive, special thread waterproof probe)

JPT100

-199.9-649.0 °C

Cu50

-50.0-150.0 °C (Probe, Polish rod waterproof)

Voltage 0-5V, 1-5V

-1999-9999

Current 0-20mA, 4-20mA

-1999-9999
