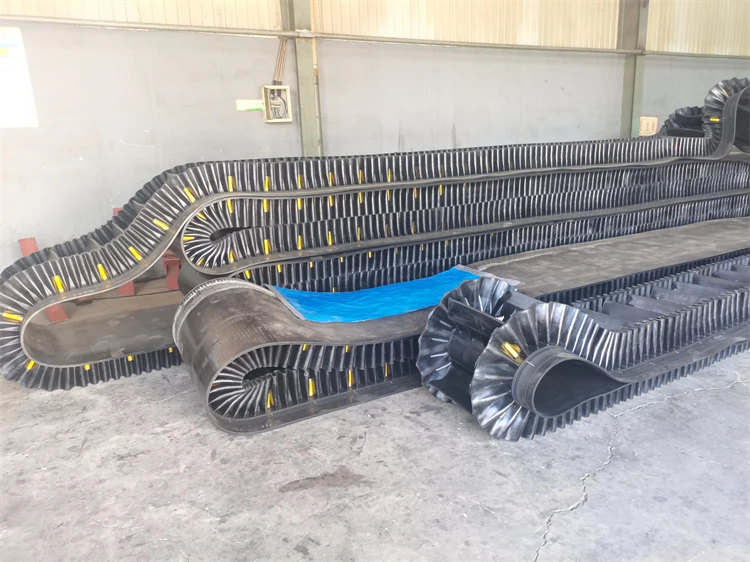

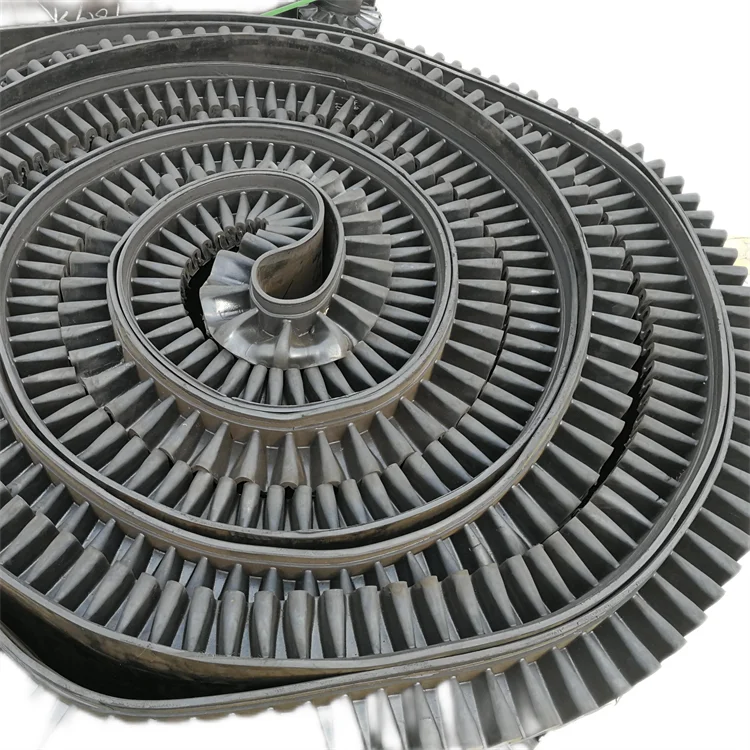

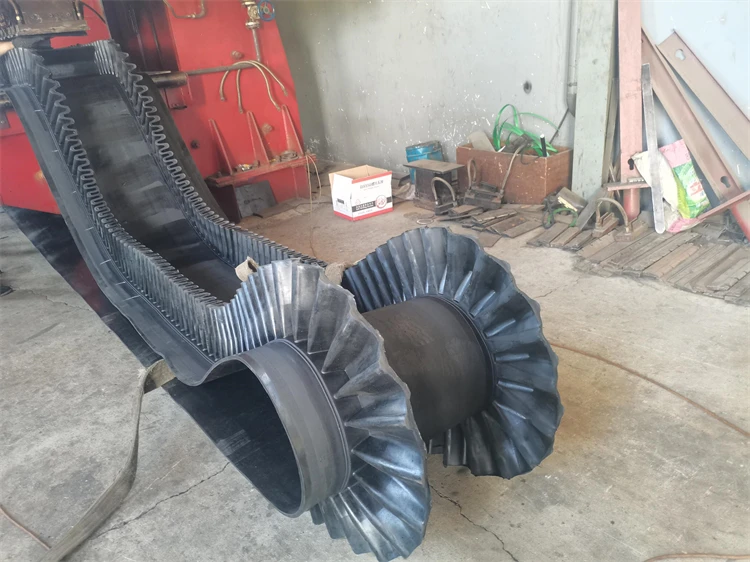

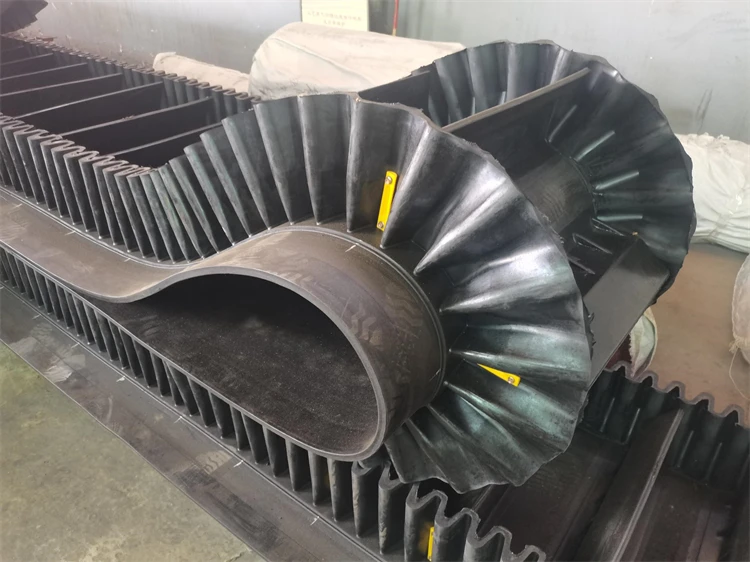

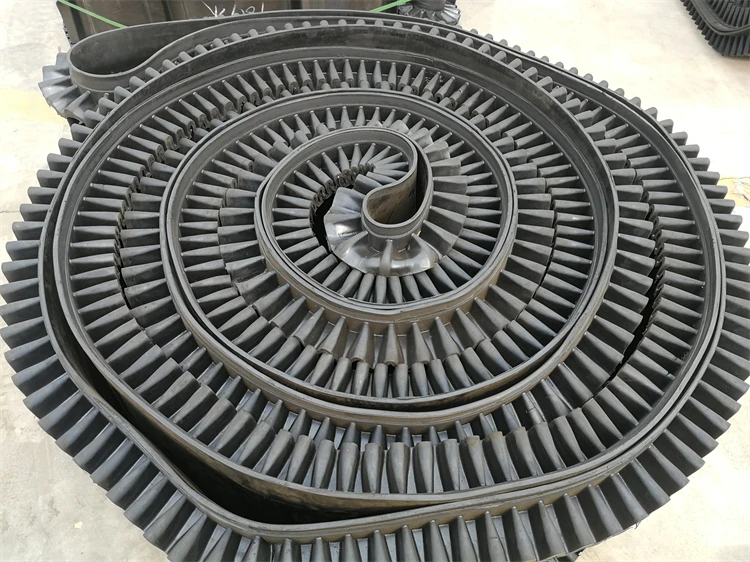

Professional Manufacturer Good Quality Green Pvc Rubber Cleat 600mm Corrugated Sidewall Conveyor Belt
- Category: >>>
- Supplier: Baoding Texiang Conveying Machinery Manufacturing Co. Ltd.
Share on (1600601367074):
Product Overview
Description
Products Description
Product Name | Corrugated Sidewall Conveyor Belt | ||||||
Thickness of bottom cover rubber | 1.5-4.5mm | ||||||
Thickness of top cover rubber | 3-6mm | ||||||
Tensiles Strength | 9-25MPa | ||||||
Quality Control | ISO9001:2008, BV | ||||||
Cleat types | T, TC | ||||||
The height of the rib is 60-500mm. The base tape is composed of four parts: upper cover glue, lower cover glue, belt core and transverse rigid layer. The thickness of the upper covering rubber is generally 3-6mm; the thickness of the lower covering rubber is generally 1.5-4.5mm, and the core material can bear the tensile force. The material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or Steel core (ST). In order to increase the transverse rigidity of the baseband, a special reinforcement layer is added to the core, which is called transverse rigidity layer. The width specification of the base tape is the same as that of the ordinary tape, and conforms to the standard of GB7984-2001.
Detailed introduction
The sidewall can continuously convey various bulk materials at any inclination angle of 0-90 degrees, with large conveying inclination, wide application range and small footprint. No transfer point, reduced civil construction investment, low maintenance cost, large conveying capacity, etc., solve the conveying angle that cannot be achieved by ordinary conveyor belts or patterned conveyor belts.
The bottom of the side and the partition and the base band are thermally vulcanized into one body. The height of the sidewall and the partition can reach 40-630mm, and the canvas is attached to the sidewall to strengthen the tear resistance of the sidewall.
The base tape is composed of four parts: upper cover glue, lower cover glue, belt core and transverse rigid layer. The thickness of the upper covering glue is generally 3-6mm; the thickness of the lower covering glue is generally 1.5-4.5mm. The core material bears the tensile force, and its material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or steel wire rope (ST). In order to increase the lateral rigidity of the baseband, a special reinforcement layer is added to the core, which is called lateral rigidity layer. The width specification of the base tape is the same as that of the ordinary tape, and conforms to the standard of GB/T7984-2001.
The sidewall can continuously convey various bulk materials at any inclination angle of 0-90 degrees, with large conveying inclination, wide application range and small footprint. No transfer point, reduced civil construction investment, low maintenance cost, large conveying capacity, etc., solve the conveying angle that cannot be achieved by ordinary conveyor belts or patterned conveyor belts.
The bottom of the side and the partition and the base band are thermally vulcanized into one body. The height of the sidewall and the partition can reach 40-630mm, and the canvas is attached to the sidewall to strengthen the tear resistance of the sidewall.
The base tape is composed of four parts: upper cover glue, lower cover glue, belt core and transverse rigid layer. The thickness of the upper covering glue is generally 3-6mm; the thickness of the lower covering glue is generally 1.5-4.5mm. The core material bears the tensile force, and its material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or steel wire rope (ST). In order to increase the lateral rigidity of the baseband, a special reinforcement layer is added to the core, which is called lateral rigidity layer. The width specification of the base tape is the same as that of the ordinary tape, and conforms to the standard of GB/T7984-2001.
