AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop Out Hd mi Extender Over Cat6
AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop-Out Hd mi Extender Over Cat6
AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop-Out Hd mi Extender Over Cat6
AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop-Out Hd mi Extender Over Cat6
AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop-Out Hd mi Extender Over Cat6
AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop-Out Hd mi Extender Over Cat6
AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop-Out Hd mi Extender Over Cat6

AOST Kvm Extender Hd mi 60M 1080P L/R Audio Loop Out Hd mi Extender Over Cat6

Share on (1600601389141):


Price:$40.00 - $48.00

Quantity:


Product Overview

Description



Product Description


 Feature :


































































Length of CAT-6/CAT-5E cable  between Rx and TX


Up to 60 meters


HD MI Input


1080p/1080i/720p/576p/576i/480p/480i


HD MI Output


1080p/1080i/720p/576p/576i/480p/480i


Max bandwidth


340MHz


Input video signal


0.5~1.5Volts p-p


Output DDC signal


5Volts p-p (TTL)


Input HD MI cable distance


≤10m AWG26 HD MI standard cable


Output HD MI cable distance


≤15m AWG26 HD MI standard cable


working current


300mA


Power adapter format


DC5V/1A


Operating Temperature range


 (-15 to +45℃)


Operating Humidity range


 5 to 90%RH (No Condensation)


Dimension (L x W x H)


122x50x19 (mm)


TX Weight


 108g


RX Weight


108g



































1



Support HD MI 1.4/HDCP1.4



2



Support local loop-out



3



Support 60m long distance transmission



4



Low power consumption, low temperature and high safety



5



Both the TX and RX support 3.5MM left and right audio output



6



Support IR control



7



Support USB mouse and keyboard extension

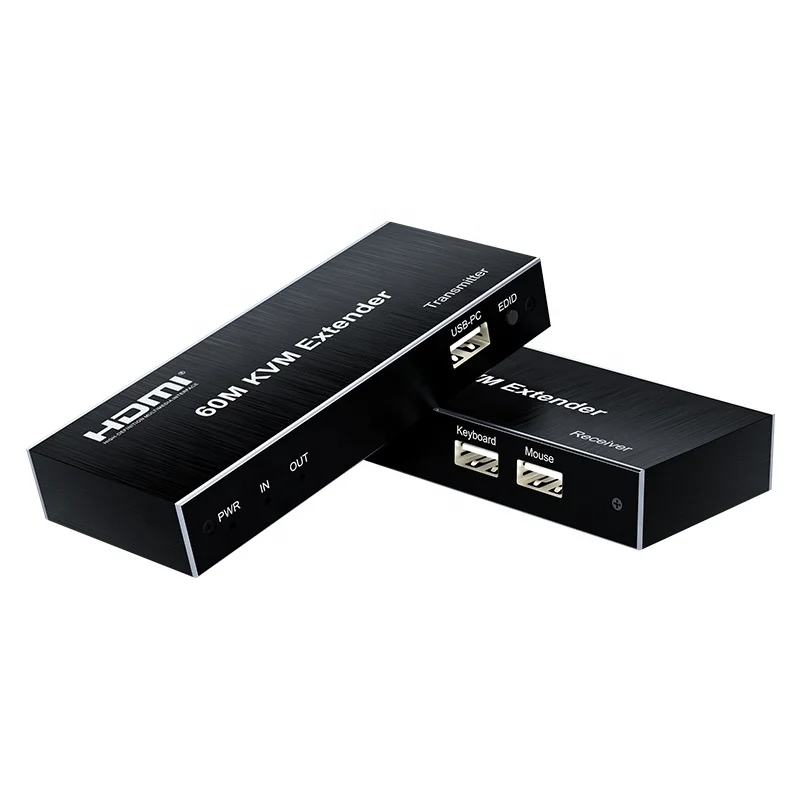

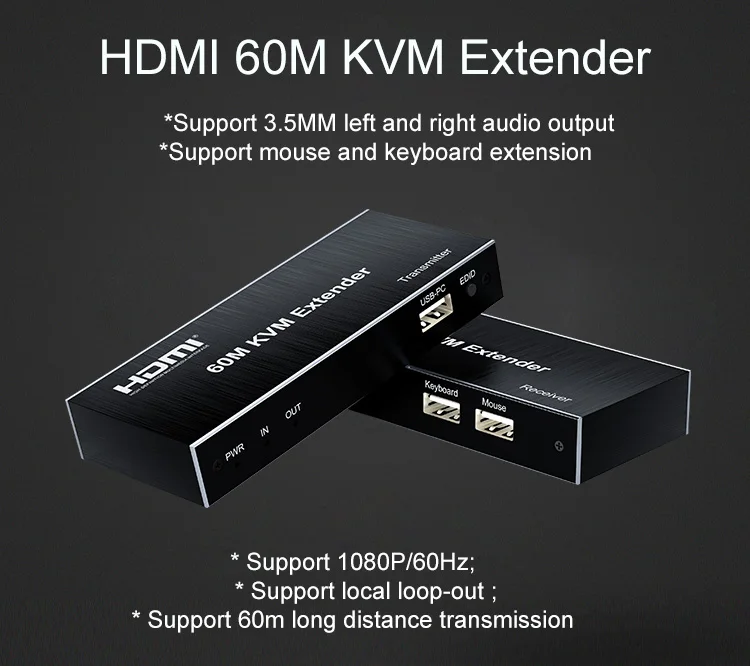

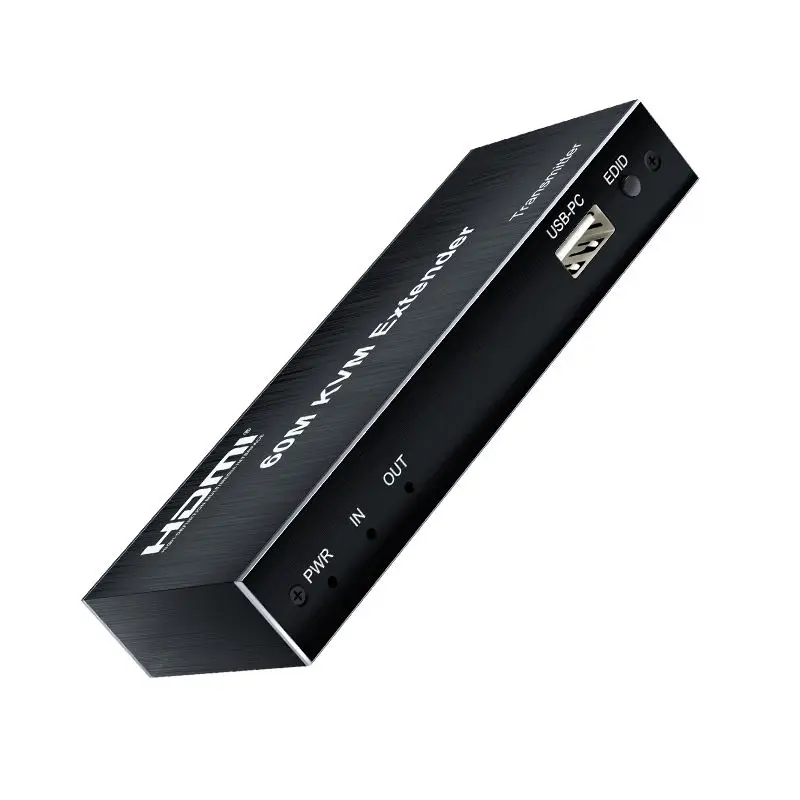

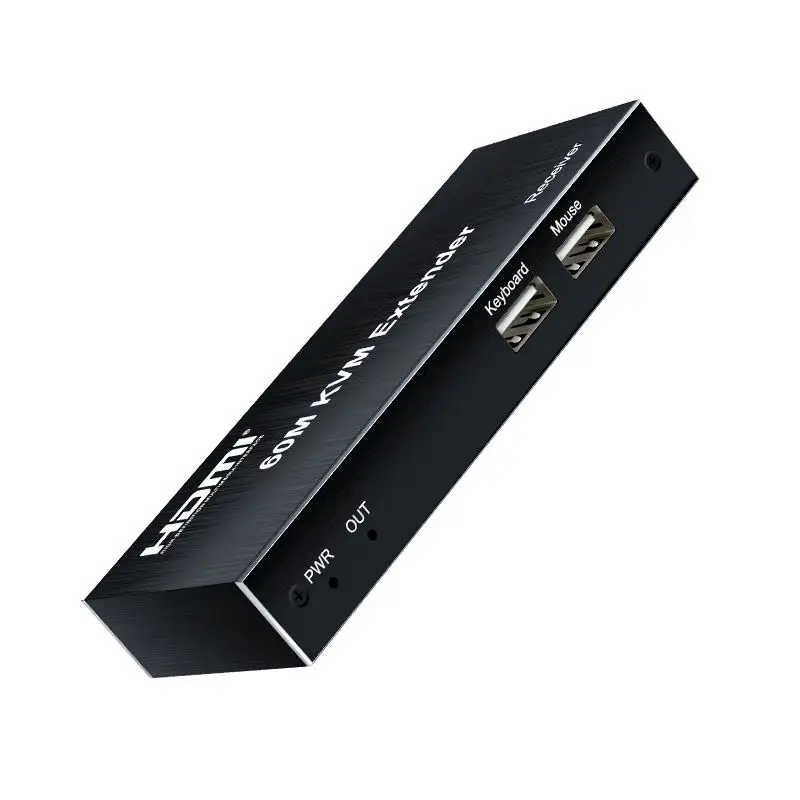

KVM extender 2.jpgKVM extender 1.jpgKVM extender7.jpgKVM extender 3.jpgKVM extender4.jpgKVM extender5.jpgKVM extender6.jpg
