2 core 18AWG 19/0.235/2C nickel plated copper/ PTFE insulation /stainless steel shielding wire
- Category: Power Cables >>>
- Supplier: Henan,Aoguli,Electric,Co.,Ltd.
Share on:
Product Overview
Description
FEP / PFA / PTFE / ETFE CONSTRUCTION
These cables are used for example in news technologies if high demands for resistance against chemicals and solvents must be fulfilled. Further advantages are the low and high temperature resistance as well as the good electrical insulating
characteristics with low, nearly frequency-independent dielectric characteristics
characteristics with low, nearly frequency-independent dielectric characteristics

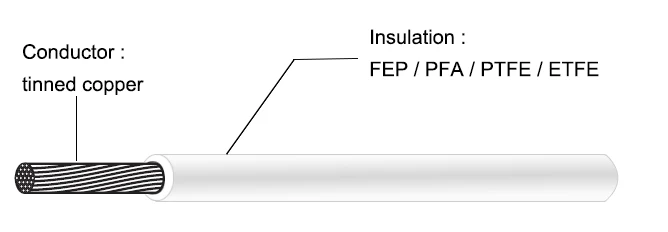

Conductor | solid or stranded tinned copper | ||||||
Insulation | FEP / PFA / PTFE / ETFE | ||||||
Sheath | PVC | ||||||
Core Colour | white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc | ||||||
Temperature | -65～+200℃ | ||||||

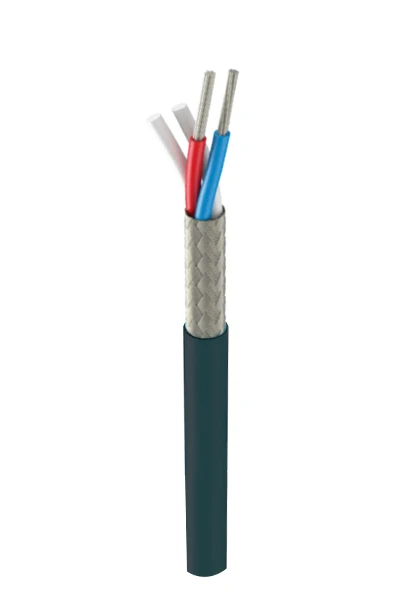

Conductor:
Silver plated copper alloy
Insulation:
FEP, Tape plus dispersion
Assembly:
2 cores + 2 PTFE fillers
Outer screen:
0.08 mm silver plated copper braid
Jacket
Extruded FEP, 0.20 mm minimum wall thickness
Silver plated copper alloy
Insulation:
FEP, Tape plus dispersion
Assembly:
2 cores + 2 PTFE fillers
Inner screen:
0.08 mm silver plated copper braid
0.08 mm silver plated copper braid
Outer screen:
0.08 mm silver plated copper braid
Jacket
Extruded FEP, 0.20 mm minimum wall thickness
FEP + PFA FEATURES
1.excellent resistance against chemicals and solvents
2.excellent temperature resistance and flexibility at low temperatures
3.excellent electrical insulating characteristics
with low, nearly frequency-independent dielectric characteristics
2.excellent temperature resistance and flexibility at low temperatures
3.excellent electrical insulating characteristics
with low, nearly frequency-independent dielectric characteristics
ETFE FEATURES
1.high resistance against chemicals and solvents .
2.low and high temperature resistance .
3.good electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics.
2.low and high temperature resistance .
3.good electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics.
Temperature range
Temperature range | ETFE | FEP | PFA |
fixed laying | -90/+135 °C | -90/+180 °C | -90/+250 °C |
flexible application | -55/+135 °C | -55/+180 °C | -55/+250 °C |
limited time of use | +150 °C | +200 °C | +260 °C |
UL | up to +150 °C | up to +250 °C |
* Please feel free to contact us if you need more parameters
