Product Overview

Description

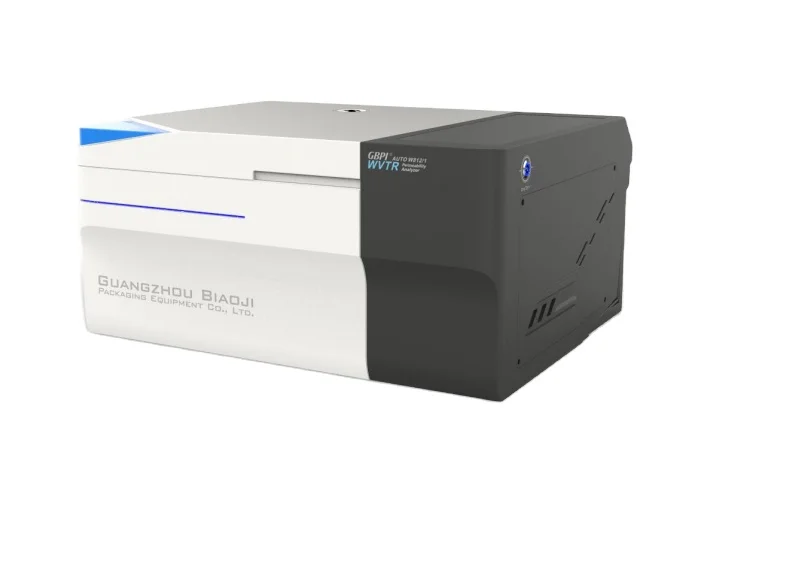

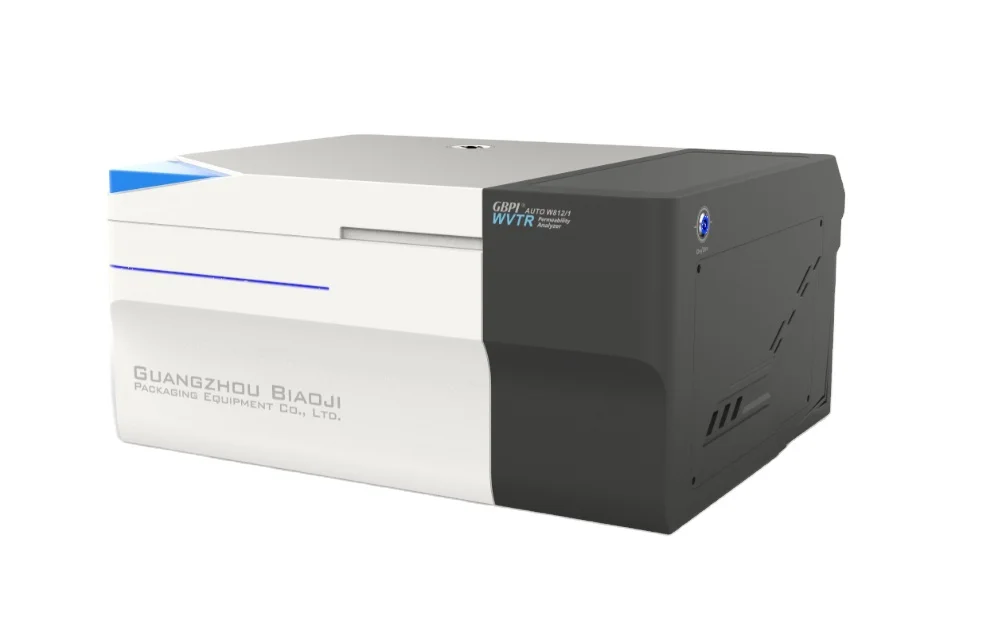

W812 Water Vapor Permeability

Analyzer

(Cup Method)






Application


This product is based on the test principle of cup method water vapor transmission, and

is designed and manufactured according to ASTM E96, GB/T 1037 standards, and provides a

wide range and high efficiency water vapor transmission rate detection for low, medium and

high water vapor barrier materials. test.

It is suitable for the water vapor transmission performance test of films, sheets, paper,

fabrics, non-woven fabrics and related materials in the fields of food, medicine, medical

equipment, daily chemicals, etc.




Test principle

Desiccant (weight gain method) or place water (weight loss method) in the

sample cup; seal the sample cup with the sample and place it in the test box;

control the temperature, humidity and wind speed of the test box; The difference

in humidity drives the water vapor to penetrate the sample, and the mass of the

sample cup increases or decreases; the mass of the sample cup is regularly

weighed, and the performance parameters such as the water vapor transmission

amount of the sample are calculated




Standard


ASTM E96,GB/T 1037,GB/T 16928,GB/T 17146,GB/T 12704,GB/T 19082,

GB/T 21332,ASTM D1653,ISO 2528,TAPPIT464,DIN 53122-1,YBB00092003,etc.




Specification


Item                                      Technical parameters

Test range                         film:0.05~10,000 g/(m2·24h) Container:0.0002~30 g/(pkg·24 h)

Test precision               film:0.05 g/(m2·24h),Container:0.0002 g/(pkg·24 h)

Test station                       12 Pieces

Balance range                  210 g

Balance indexing             0.1 mg

Temperature range      10~50±0.1 ℃

Humidity range             5%~95%,100% RH

air speed                            0.5~2.5 m/s(0.03~0.5 m/s optional)

Sample size                  Φ74 mm

Sample thickness          ≤3 mm

Test method                       weight gain method, weight loss method

Standard test area               33 cm2

Carrier gas specification    Air compressor

Air pressure                        ≥0.6 MPa

Connection size                 Φ6 mm Polyurethane tube









Features



  • Test chamber and breathable cup design upgrade, efficient multi-mode

  • Precise control of temperature, humidity and wind speed

  • Fault self-check, professional safety protection

  • Excellent appearance, convenient control, real-time visualization of curves

  • Intelligent operating system, global certification

  • Offline or online detection

  • Professional calibration service, accurate and reliable data

  • Lab intelligent IoT platform





                                                                             About GBPI


GBPI is a professional manufacturer focused on developing outside_.jpg


and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
