Product Overview
Description
Product Description

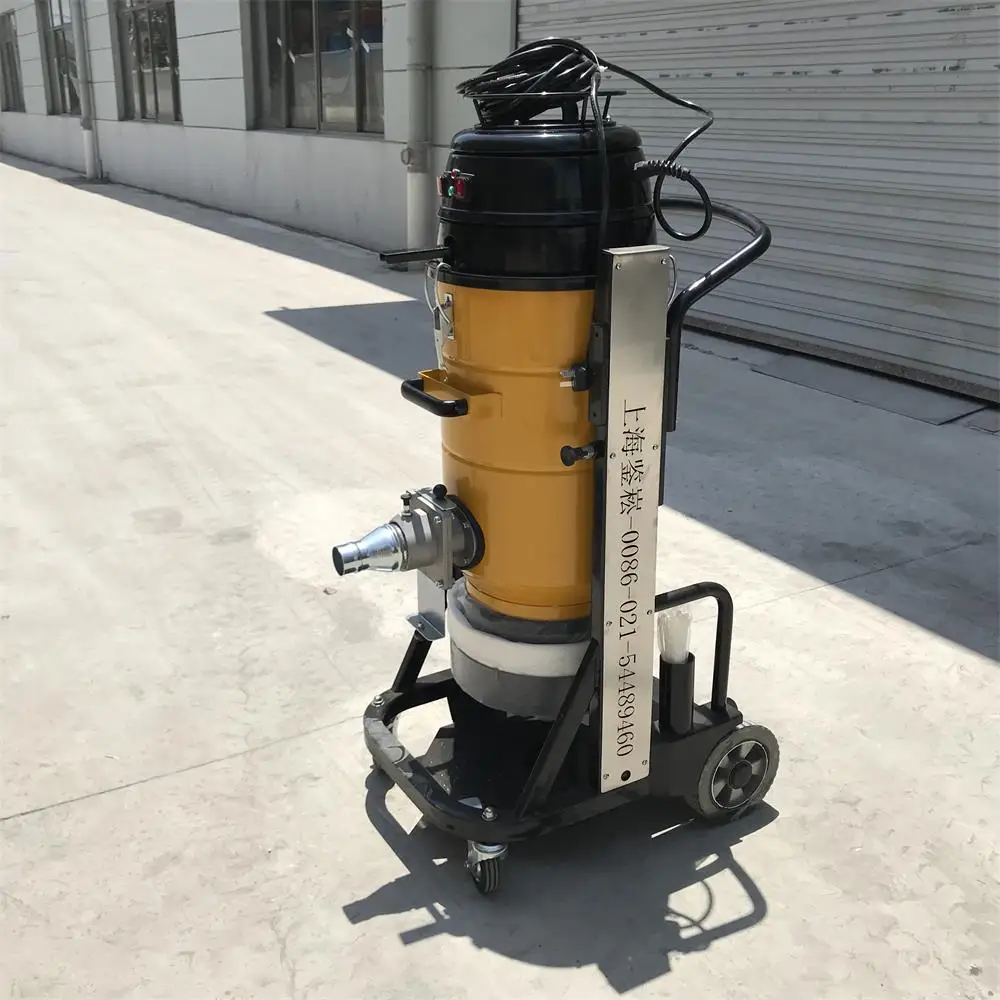

V2 Portable 120V 220V Vacuum Cleaners For Concrete Grinding
Jiansong’s range of industrial vacuum cleaners include small to large, wet and dry vacuum cleaners, fine dust collection vacuum cleaners that collect concrete slurry and concrete dust.
The performance of the vacuum cleaner depends on the overall design, the filtration, and the air flow.
All JS vacuum cleaners use HEPA filter. It stands for “High Efficiency Particulate Air filter”. This filter is for filtering out particles contained in an airstream, at high efficiencies.
Why choose JS industrial vacuum cleaner
1, Full Series
2, Cyclone + HEPA H13
3, Higher CFM
4, Automatic Filter Cleaning
5, Customization Available
The performance of the vacuum cleaner depends on the overall design, the filtration, and the air flow.
All JS vacuum cleaners use HEPA filter. It stands for “High Efficiency Particulate Air filter”. This filter is for filtering out particles contained in an airstream, at high efficiencies.
Why choose JS industrial vacuum cleaner
1, Full Series
2, Cyclone + HEPA H13
3, Higher CFM
4, Automatic Filter Cleaning
5, Customization Available
V2 Highlights compare to counterparts:
1, Self clean HEPA H13 conical filter
2, Airflow 171 CFM 290m3/h
3, 110V / 220V. Net weight 82KG
1, Self clean HEPA H13 conical filter
2, Airflow 171 CFM 290m3/h
3, 110V / 220V. Net weight 82KG
7*24 on line service
Please contact: Ms. Echo
Mobile and whatsapp:
Mobile and whatsapp:
+86 136 3149 9577
Email: echo.guan@jiansongsh.com
More than 70 machines
one-stop service
Own 2 factories
in Shanghai and Suzhou
Since 2009
machine design and manufacturing

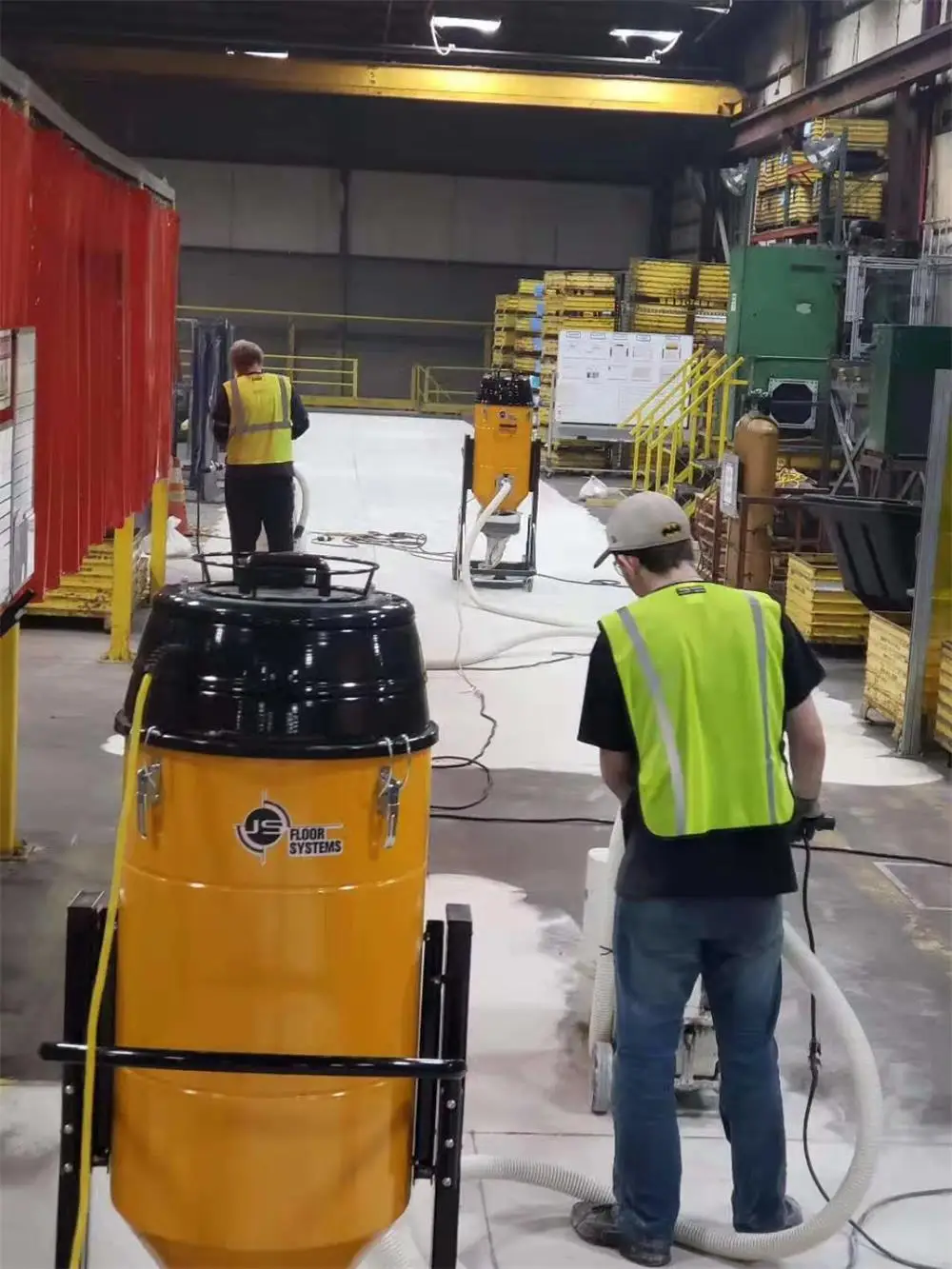

Field of Applications
For very fine concrete dust collecting,
Keep your floor clean and neat.
Technical Data
Model# | V2 | V2X | V3 | V3X |
Airflow | 290m3/h | 290m3/h | 430m3/h | 430m3/h |
Filtration area | 28000cm2 | 28000cm2 | 44000cm2 | 44000cm2 |
Power | 3HP 2.2KW | 3HP 2.2KW | 4.5HP 3.3KW | 4.5HP 3.3KW |
Voltage | 1ph 220V 1ph 110V | 1ph 220V 1ph 110V | 1ph 220V 1ph 110V | 1ph 220V 1ph 110V |
AMPS | 14A | 14A | 21A | 21A |
Net weight | 82KG | 120KG | 97KG | 150KG |
Filter type | HEPA H13 | HEPA H13 | HEPA H13 | HEPA H13 |
Auto clean | Yes | Yes | Yes | Yes |
Features | With pre separator | With pre separator |

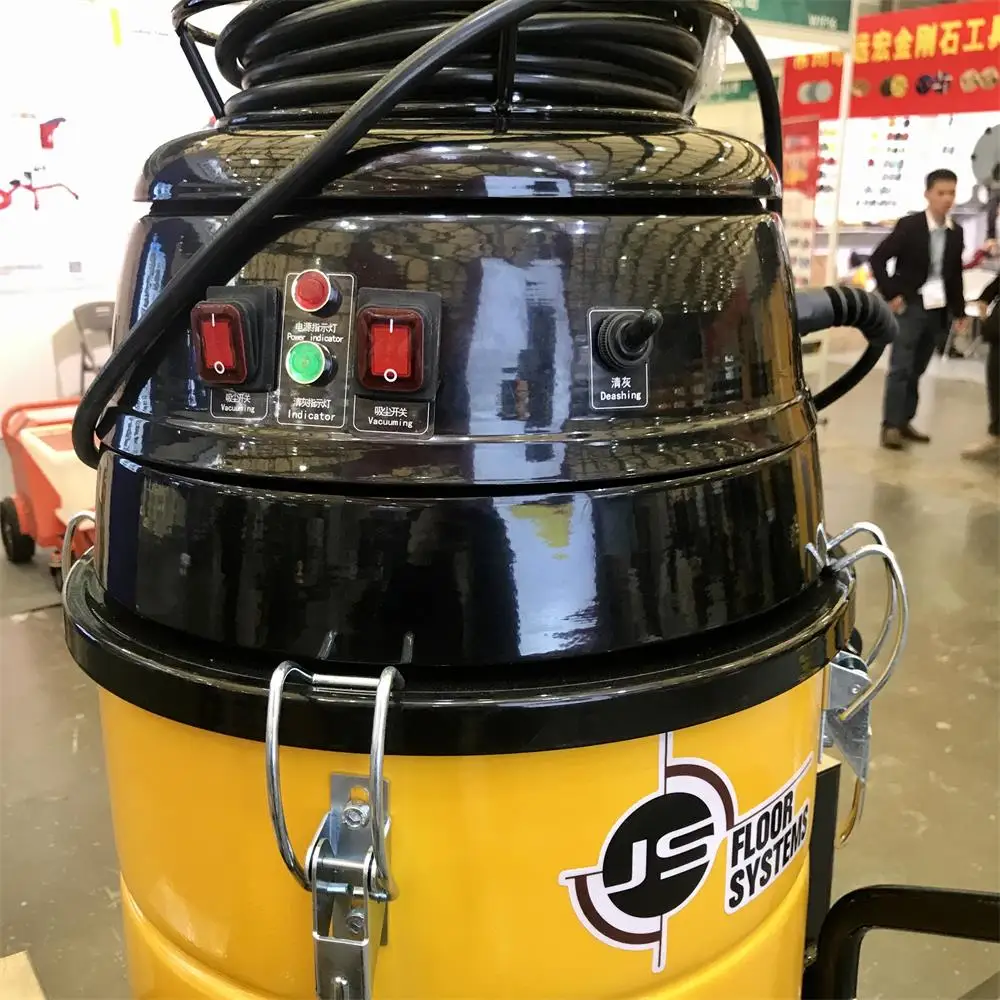

Features / Construction
Airflow (CFM) is what actually does the job when you are vacuuming. Airflow is all about the speed or air moving from the floor tool up the tubes down the hose into the bag through the filter, through the motor and out the side of the machine.

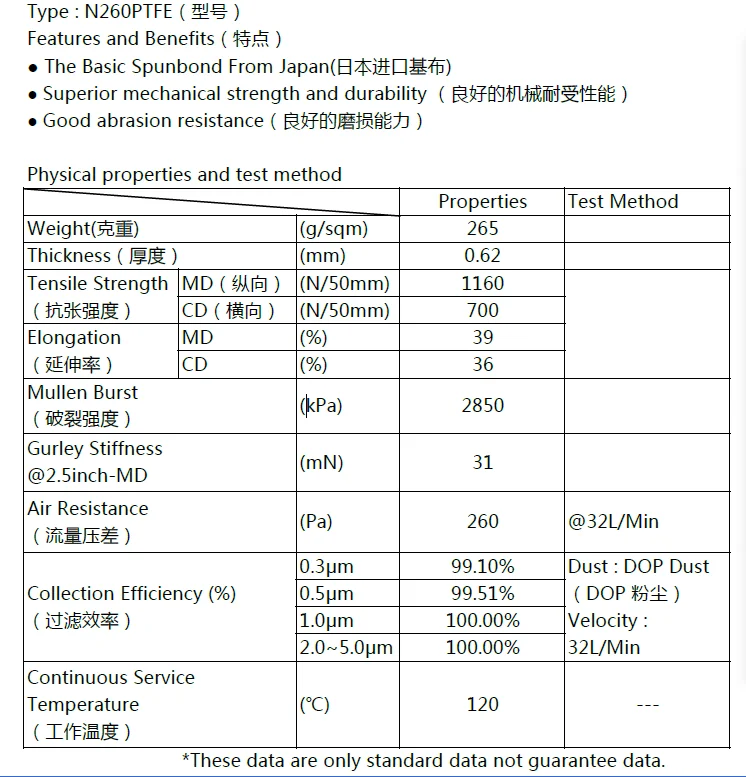

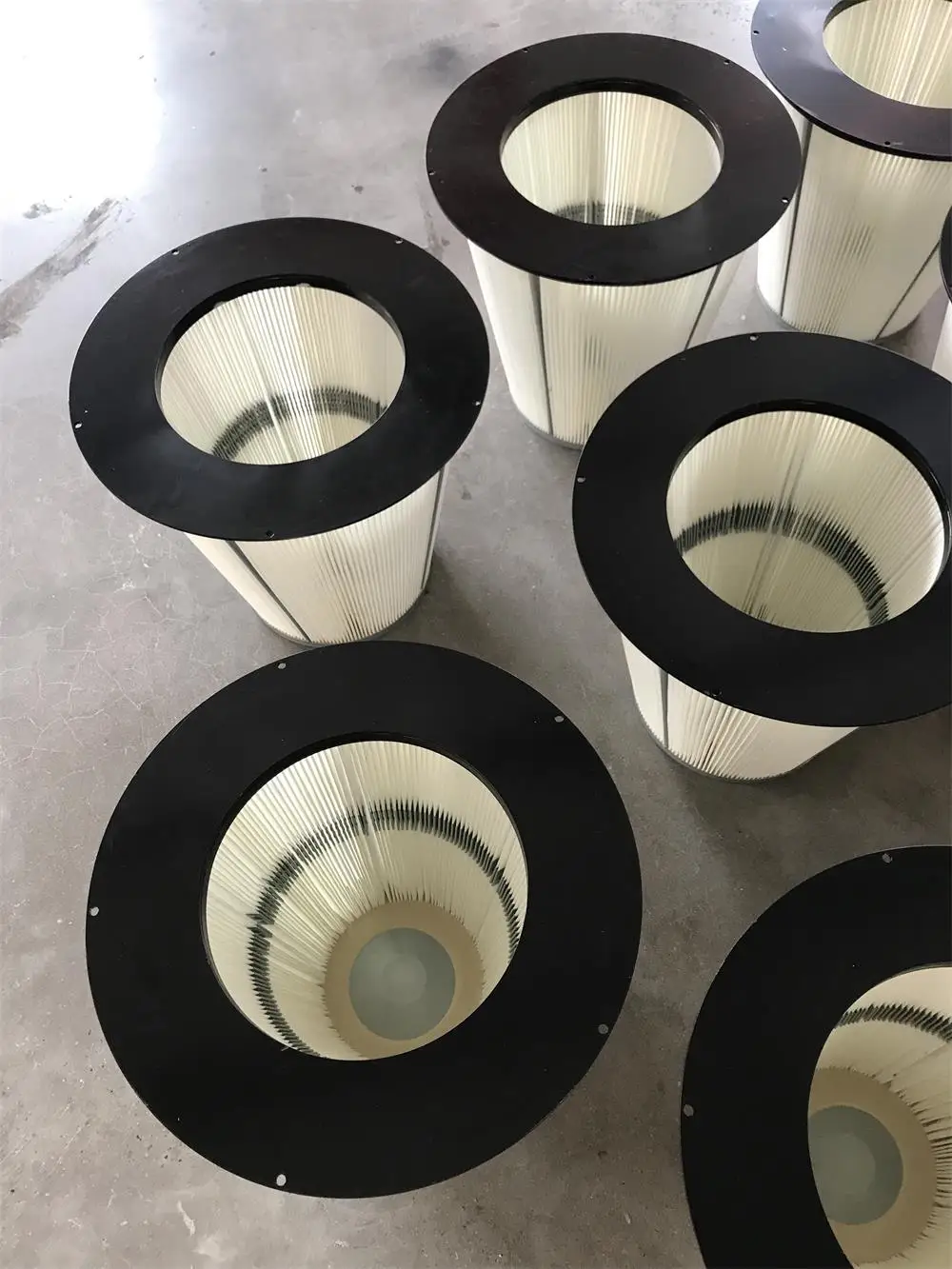

HEPA H13
Conical filter
For very fine dust

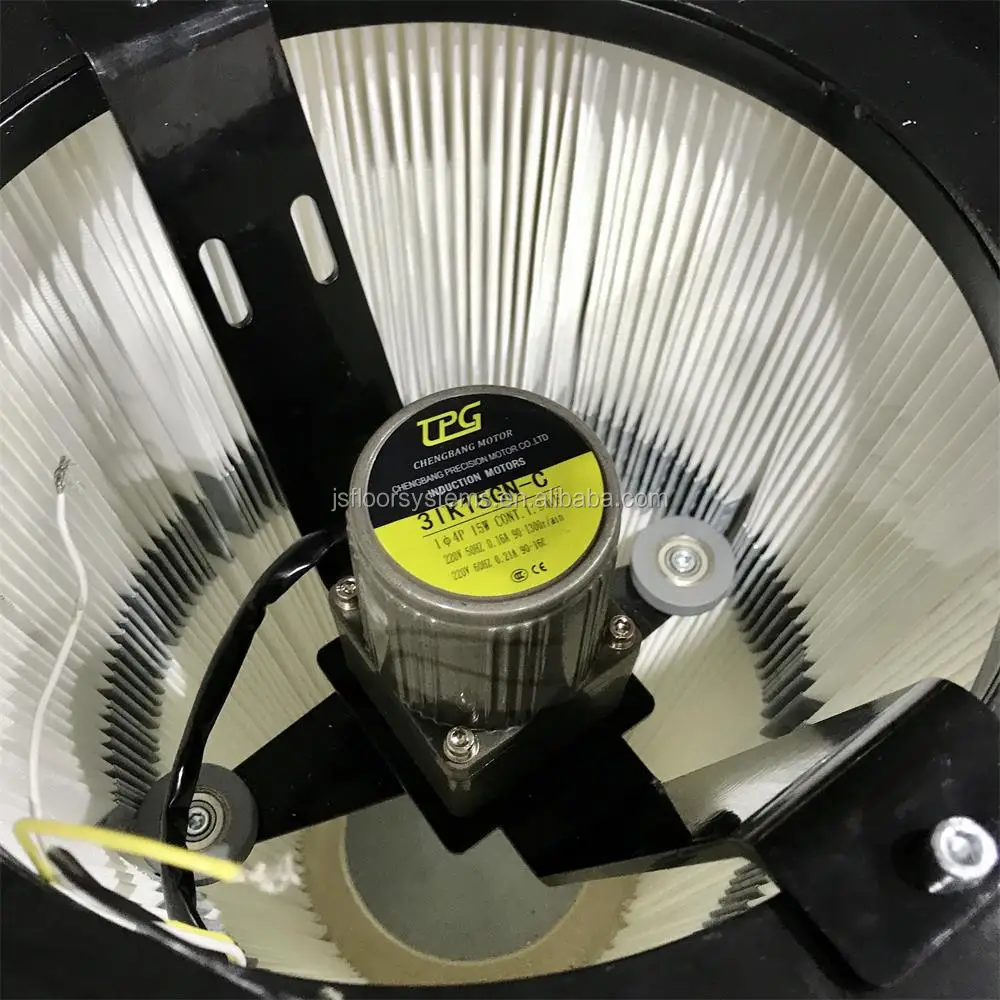

Self clean motor
Each vacuum motor 1.1KW total 2.2KW
High quality vacuum motor
Dust port
Chamber

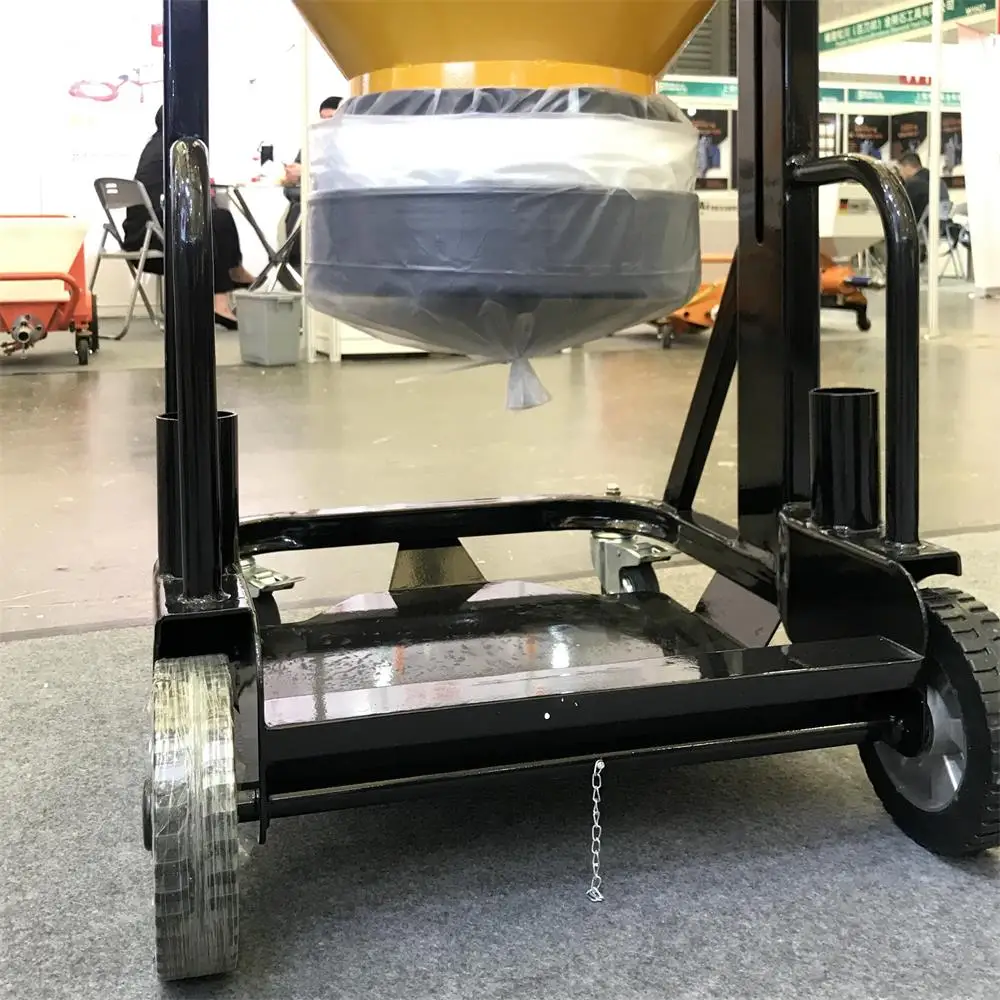

Wheels

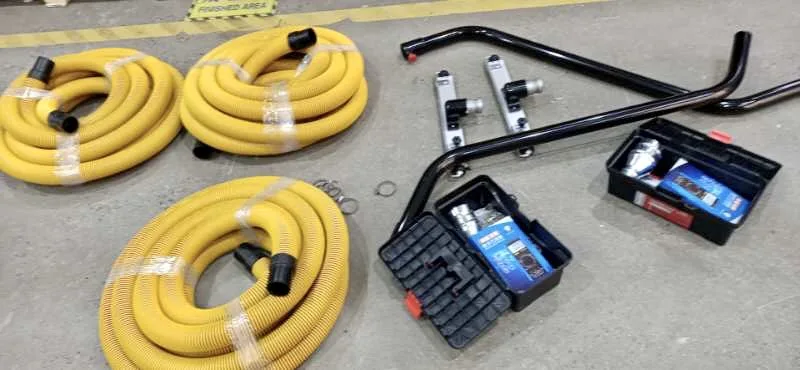

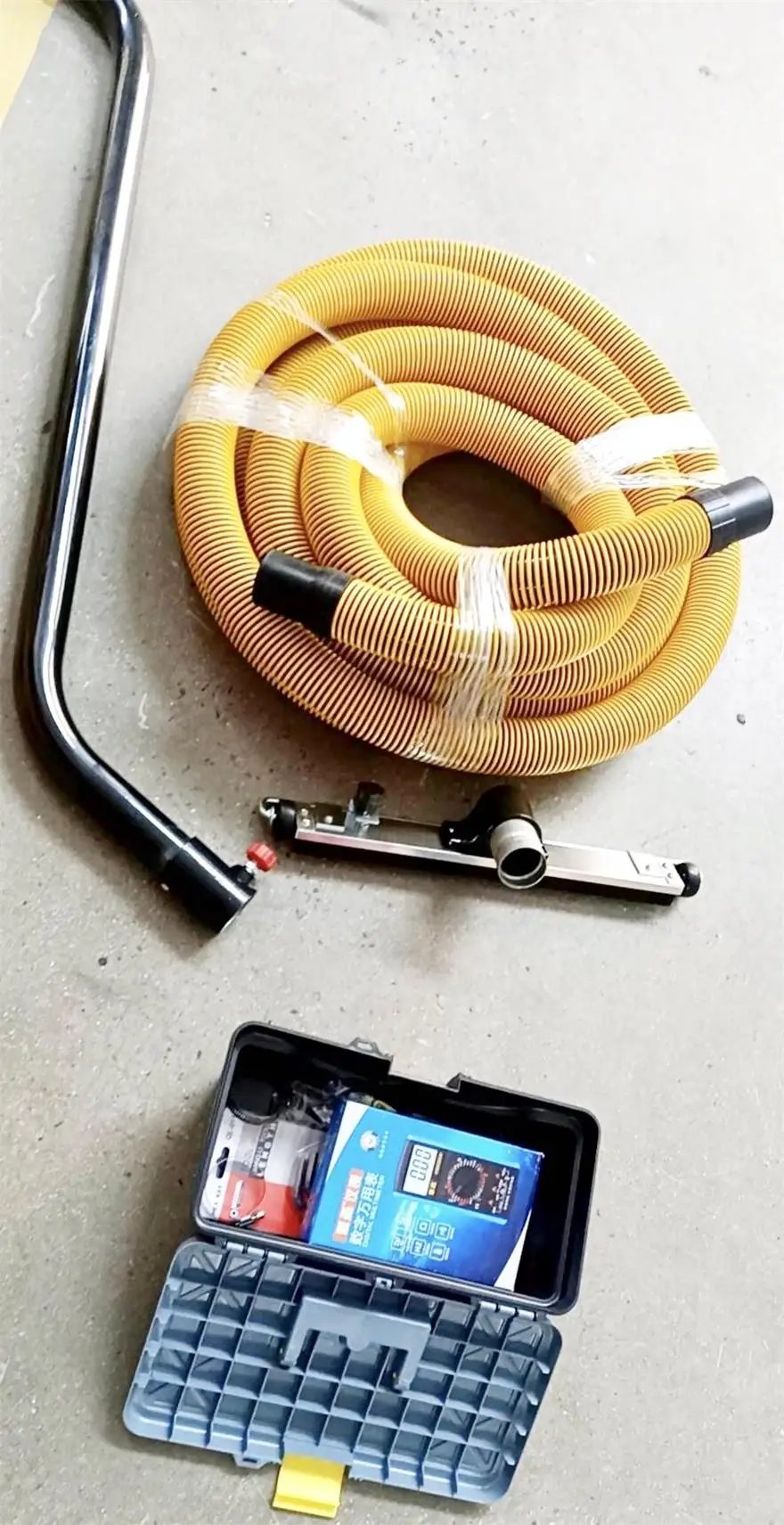

Tools / Accessories
Accessories come with machine:
Dust bag 22m
Vacuum hose 10m 50mm
Suction squeegee 1 pc
220V cable and plug
Tool kit 1 set
Related Products
About JS Floor Systems
Company Profile
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service and products are appreciated by customers all over the world.
Our advantage
1, More than 11 years of experience of machine design and produce.
2, Own two factories and one software office, in Shanghai and Suzhou.
3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.
2, Own two factories and one software office, in Shanghai and Suzhou.
3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.
Certificates
Staff Training
CNC Process

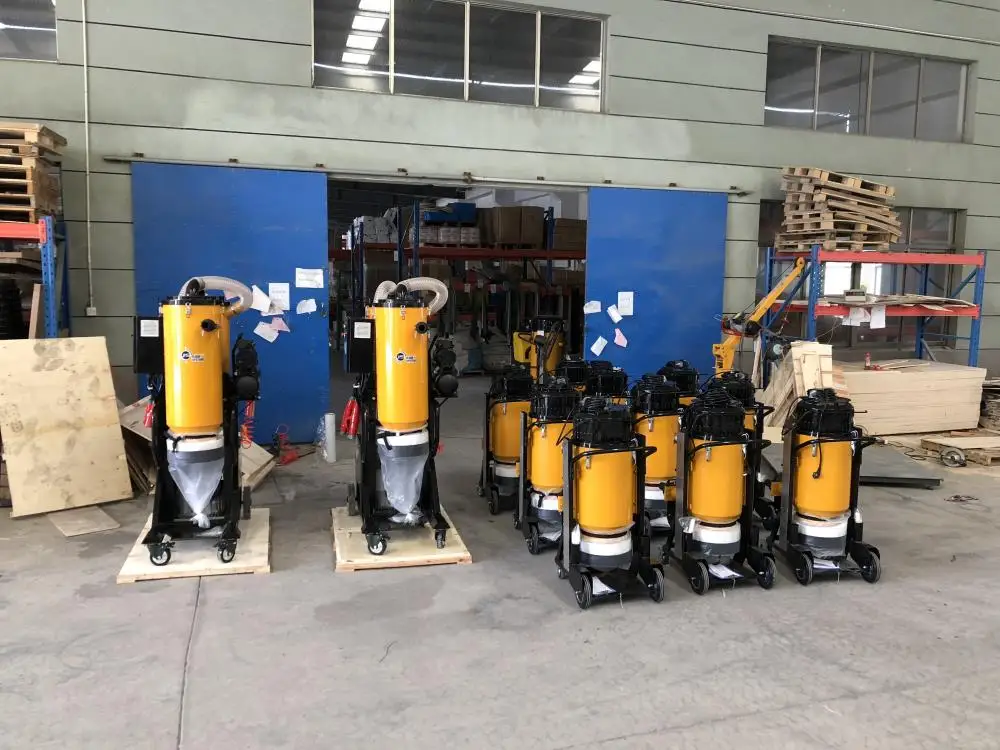

Factory

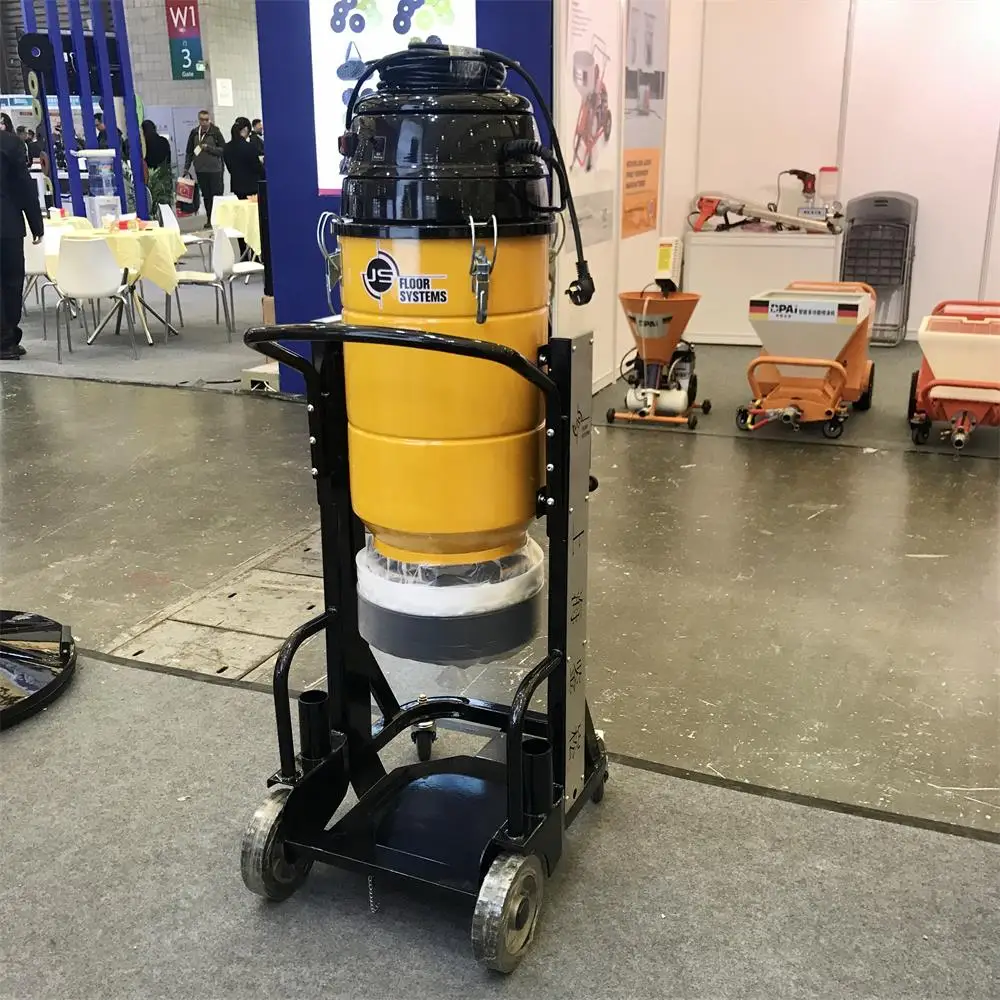

Trade Shows
Shared by Customers
FAQ
Q1: Do you make the metal and resin pads yourself?
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
