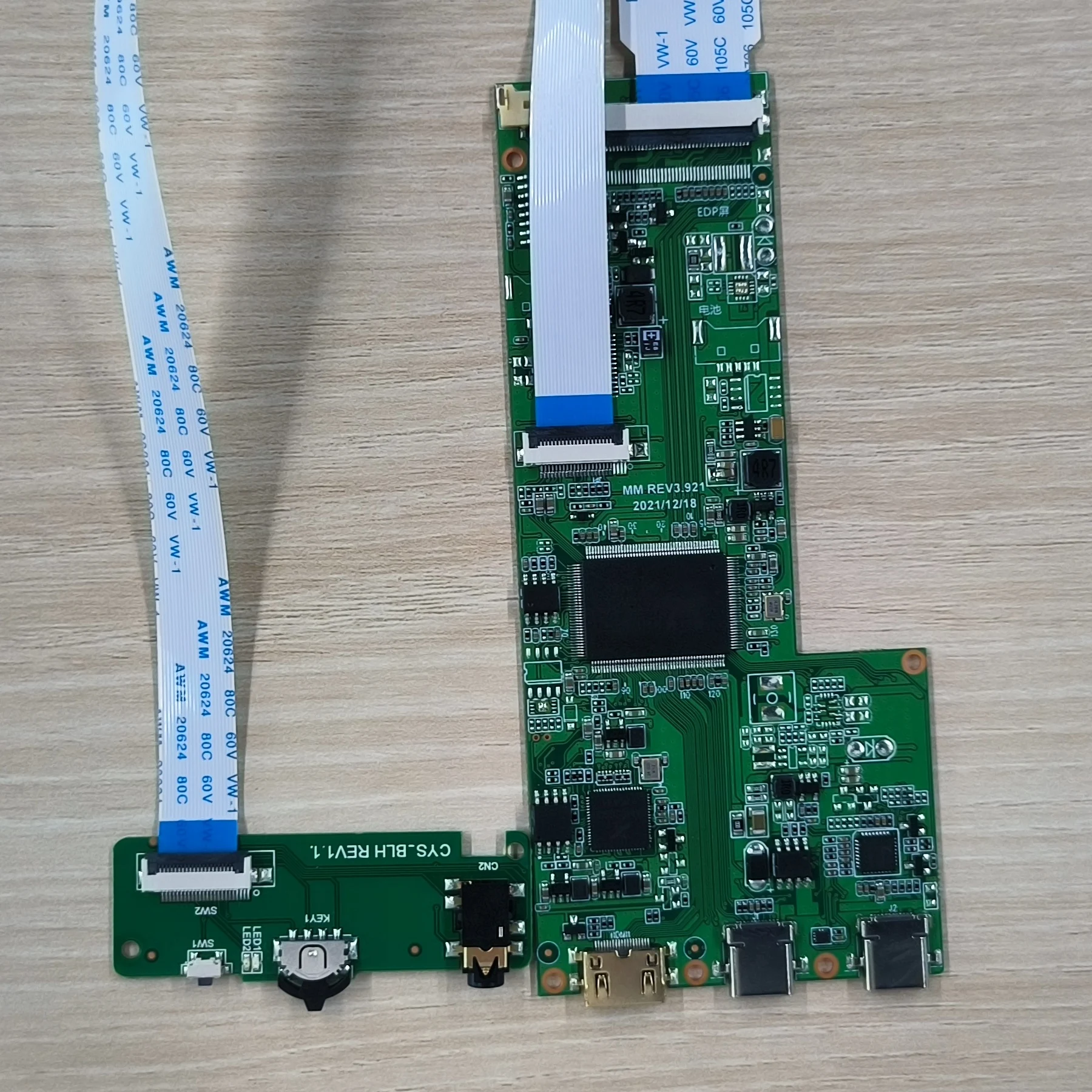

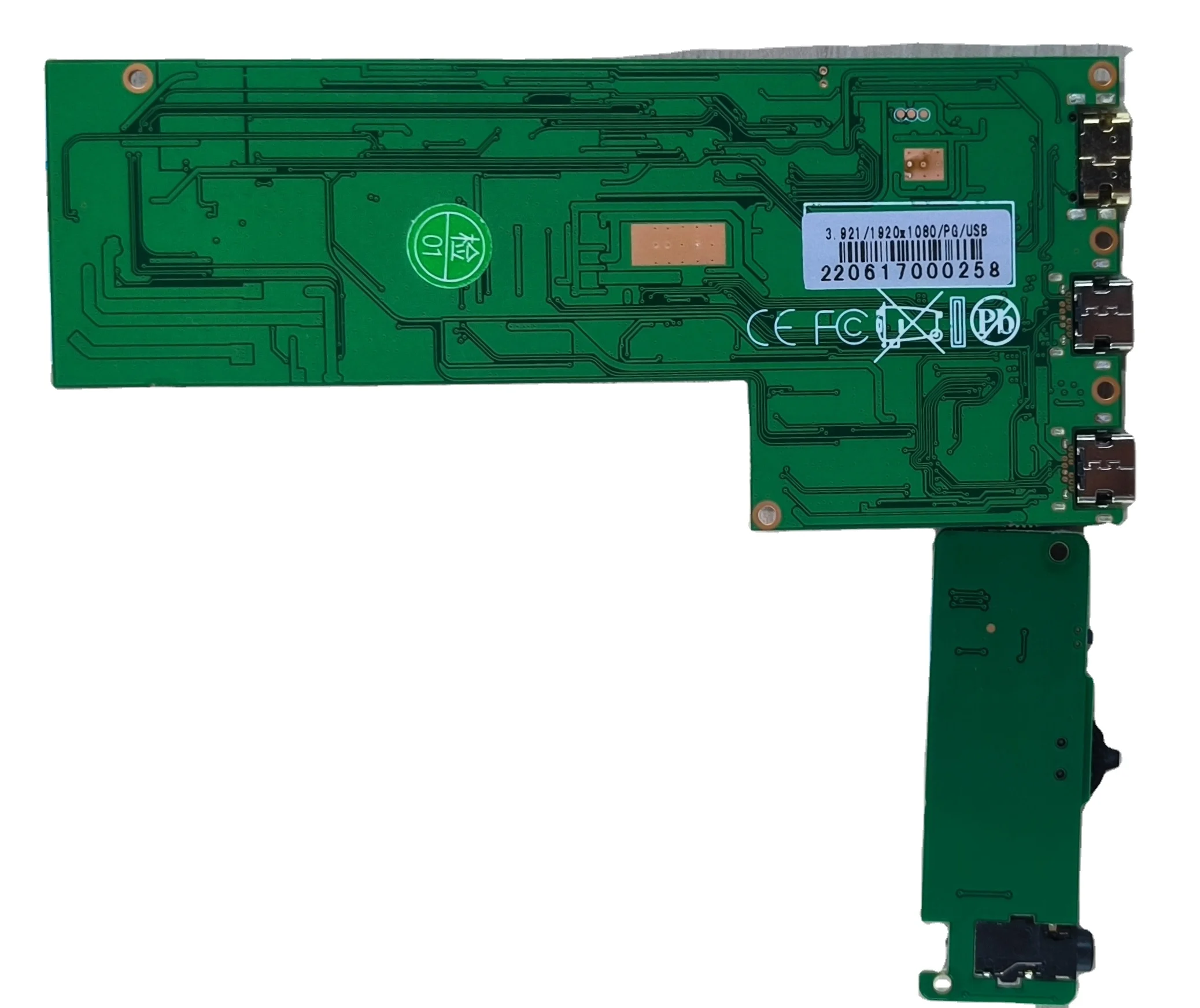

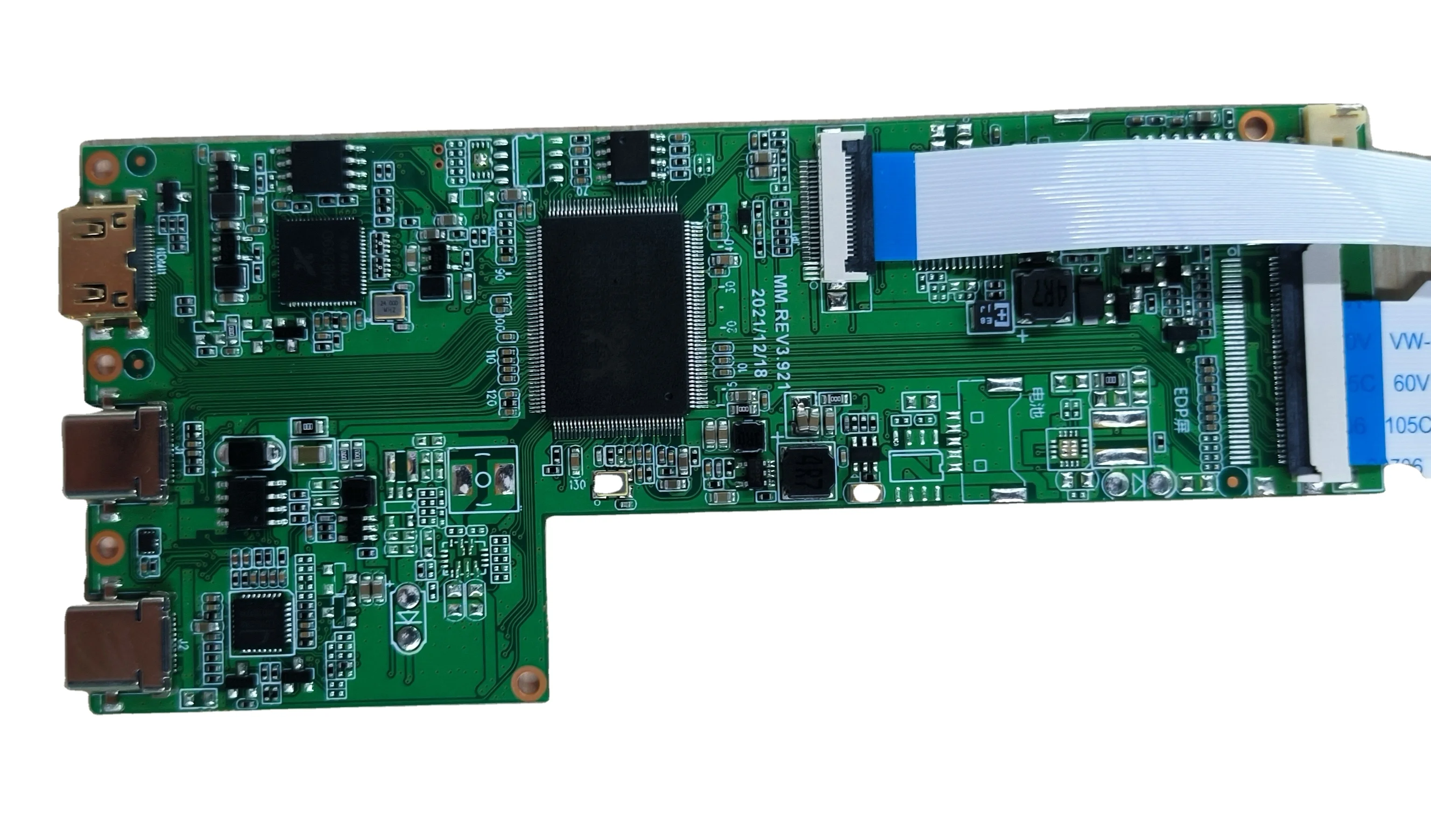

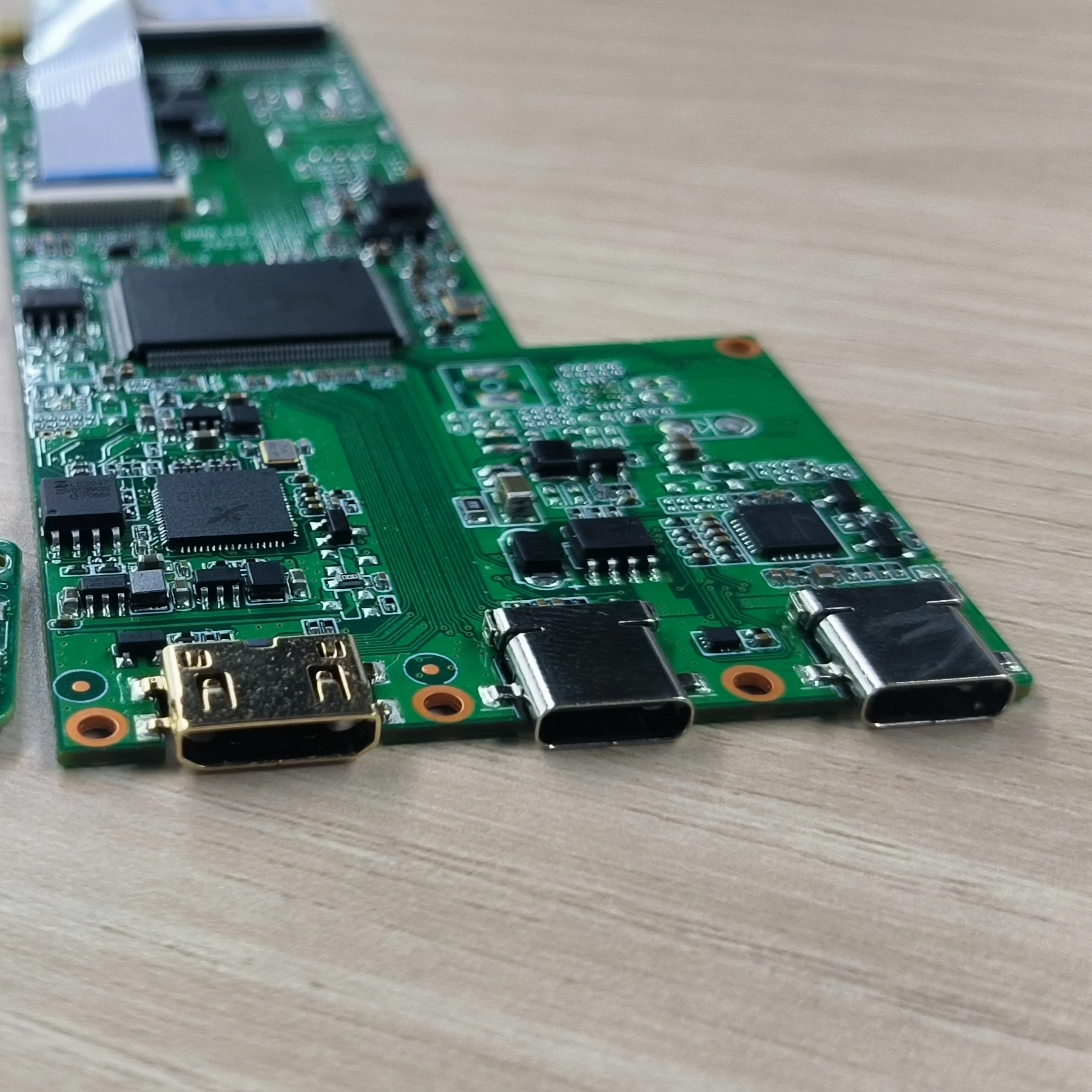

Signal Input with edp Audio signal Output support Resolution 2560*1440 panel LCD controller board
- Category: >>>
- Supplier: Shenzhen,Frida,LCD,Co.,Ltd.
Share on:
Product Overview
Description
Main features
Main chip RTD2556
TYPE-C input port supports data transmission, PD charging and image display functions
enter
miniHDMI input port standard HDMI1.4
interface
PANEL interface eDP
output
Amplifier, headphone output optional
Input power 5V-20V PD input (supplied through TYPE-C)
Drive screen voltage 3.3V
Power Operation Normal Operation Mode, Low Power Mode
power supply
Motherboard Standby
Power consumption <0.5W
Amplifier power 2*2.5W
OSD Menu Brightness, Contrast, Function Setting, Reset
Function OSD language Chinese/English and other languages
Keys POWER, LEFT, RIGHT, AUTO 4 keys
TYPE-C input port supports data transmission, PD charging and image display functions
enter
miniHDMI input port standard HDMI1.4
interface
PANEL interface eDP
output
Amplifier, headphone output optional
Input power 5V-20V PD input (supplied through TYPE-C)
Drive screen voltage 3.3V
Power Operation Normal Operation Mode, Low Power Mode
power supply
Motherboard Standby
Power consumption <0.5W
Amplifier power 2*2.5W
OSD Menu Brightness, Contrast, Function Setting, Reset
Function OSD language Chinese/English and other languages
Keys POWER, LEFT, RIGHT, AUTO 4 keys
model | Resolution | Line Frequency (KHz) | Field Frequency (Hz) |
QHD | 2560*1440 | 88.8 | 60 |
FHD | 1920*1080 | 162 | 144 |
WUXGA | 1920*1080 | 137.8 | 120 |
WUXGA | 1920*1080 | 67.5 | 60 |
UXGA | 1680*1050 | 133.4 | 120 |
UXGA | 1680*1050 | 59.8 | 60 |
WXGA+ | 1440*900 | 55.5 | 60 |
SXGA | 1280*1024 | 63.5 | 60 |
80.0 | 75 | ||
XGA | 1024*768 | 48.4 | 60 |
56.5 | 70 | ||
60.0 | 75 | ||
SVGA | 800*600 | 37.9 | 60 |
47.2 | 72 | ||
46.9 | 75 | ||
VGA | 640*480 | 31.5 | 60 |
37.9 | 72 | ||
37.5 | 75 | ||
DOS | 720*400 | 31.5 | 70 |
Product Description
Specification
item | value |
Type | LCD controller board, LCD controller board |
Display Size | 3.5-110 inch |
Place of Origin | China |
Guangdong | |
Brand Name | FRIDA |
interface type | edp |
Packing & Delivery
carton
Company Profile

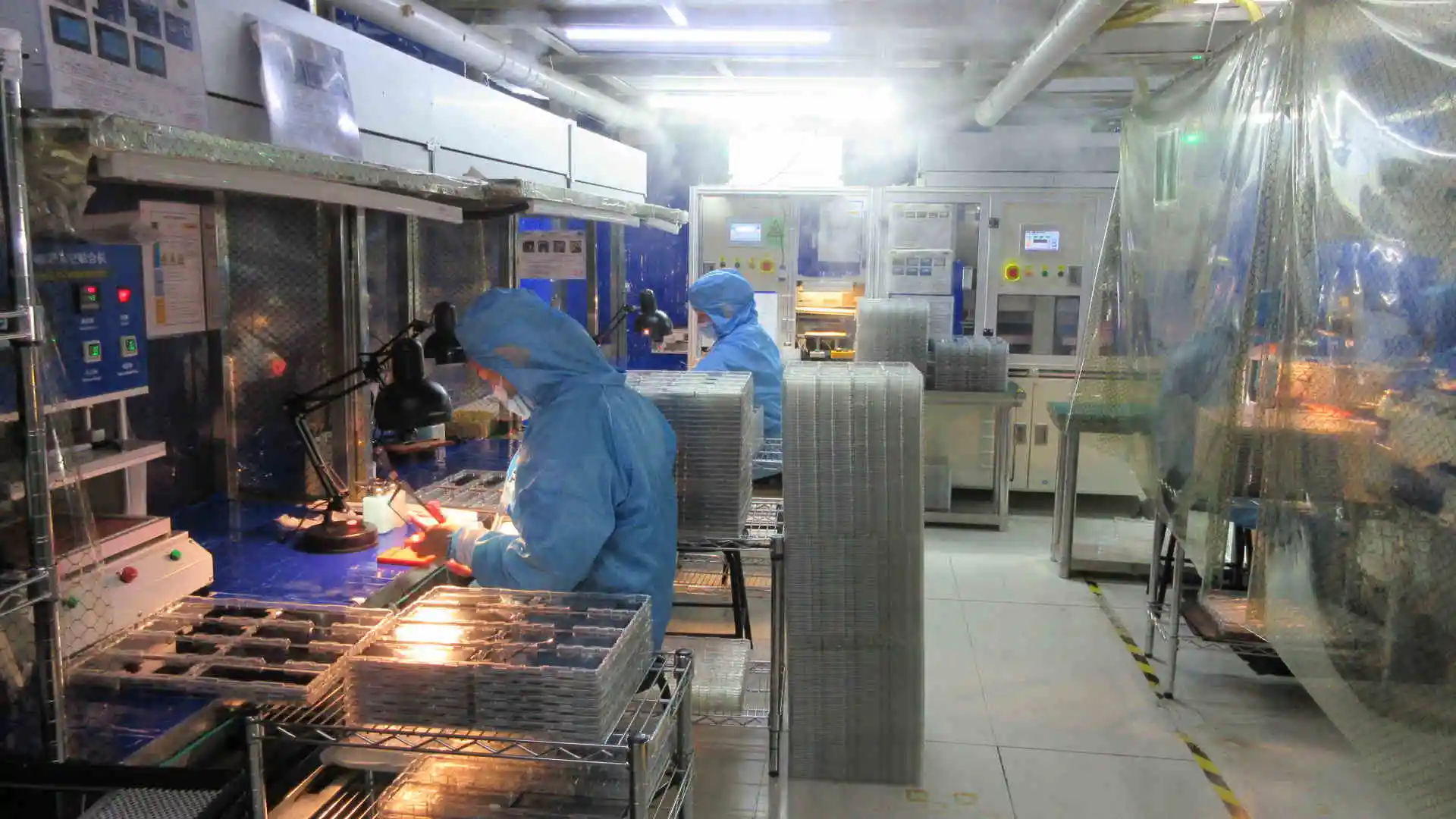

Shenzhen Frida LCD Co., Ltd was established in 2011 and is located in Guangming New District, Shenzhen. We are dedicated to the R&D and production of TFT LCD displays. We produce 1.44 inch, 1.54 inch, 1.77 inch, 2 inch, 2.2 inch, 2.4 inch, 2.7 inch, 2.8 inch, 3 inch, 3.2 inch, 3.5 inch, 3.97 inch, 4.3 inch, 5 inch, 7 inch, 8 inch, 9 inch, 9.7 inch and 10.1 inch TFT LCD displays. Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phones, video doorphones, E-book, MP5, tablet PC, GPS navigator and so on.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, North America, Eastern Asia, Australia, the Philippines, Singapore, India, Turkey, South Africa, Israel and so on. We also welcome OEM and ODM orders.
As a professional TFT LCD display supplier, we have excellent teams who focus on product development & design, quality control & inspection and company operations. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, North America, Eastern Asia, Australia, the Philippines, Singapore, India, Turkey, South Africa, Israel and so on. We also welcome OEM and ODM orders.
As a professional TFT LCD display supplier, we have excellent teams who focus on product development & design, quality control & inspection and company operations. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
