Product Overview
Description
Technical Data

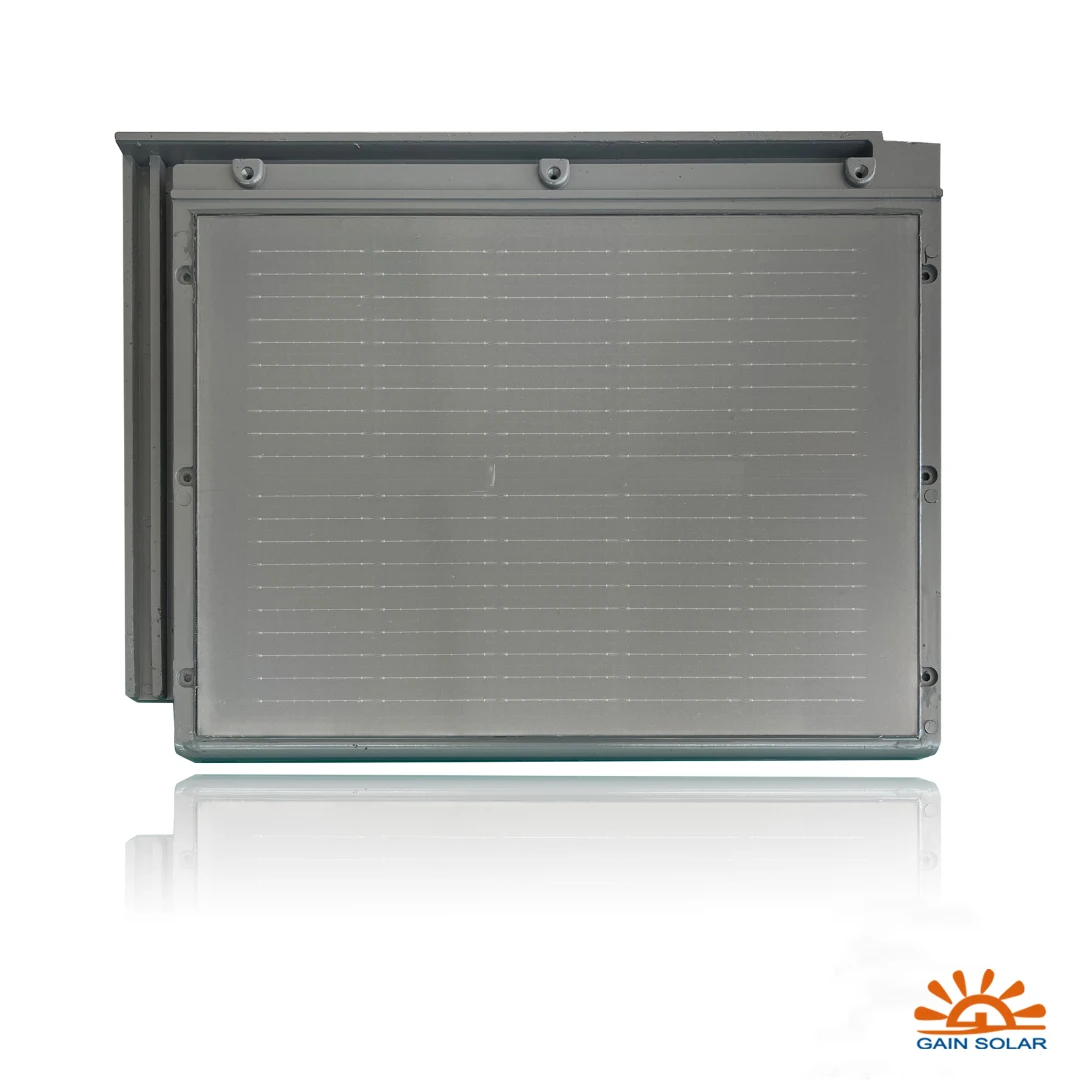

PHYSICAL FEATURES | ||||||
MODEL | JS87DG | TILE SIZE | 1260*480 MM | |||
TILE WEIGHT | 16.5 KG | GLASS | TEMPERED/3.2MM | |||

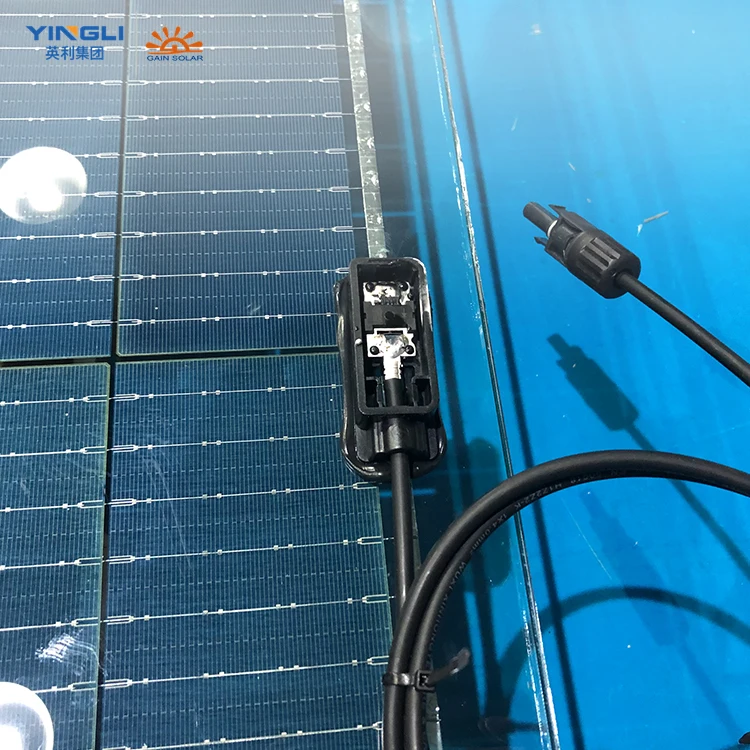

CELL SIZE | 182*91MM（5*12） | JUNCTION BOX | ≥ IP67 | |||
CABLE | PV 4 MM2 | CABLE CONNECTOR | MC4 | |||
ELECTRICAL PERFORMANCE PARAMETERS (IN STC) | ||||||
CELL TYPE | MONOCRYSTALLINE | CELL EFFICIENCY | 23.10% | |||
MAX POWER | 87W/PC | POWER DENSITY | 174W/SQM | |||
VOLTAGE | 13.7V | CURRENT | 6.35A | |||
OPEN-CIRCUIT VOLTAGE | 16.2V | SHORT-CIRCUIT CURRENT | 6.75A | |||
RATING FEATURES | ||||||
COLOR | BLACK + CUSTOMIZABLE | LOAD CLASS | 2400 PA | |||
FIRE-PROOF CLASS | CLASS A | HAIL-RESISTANT CLASS | 25MM/23M/S | |||
WORKING TEMP | -40℃ ~ 85℃ | WORKING HUMIDITY | 0-80% | |||
CERTIFICATIONS | ||||||
IEC61215, IEC61730, CE, CGC, MCS, UL, SII, BIS, INMETRO, SNI, CEC, JET, CARBON FOOTPRINT, etc. | ||||||

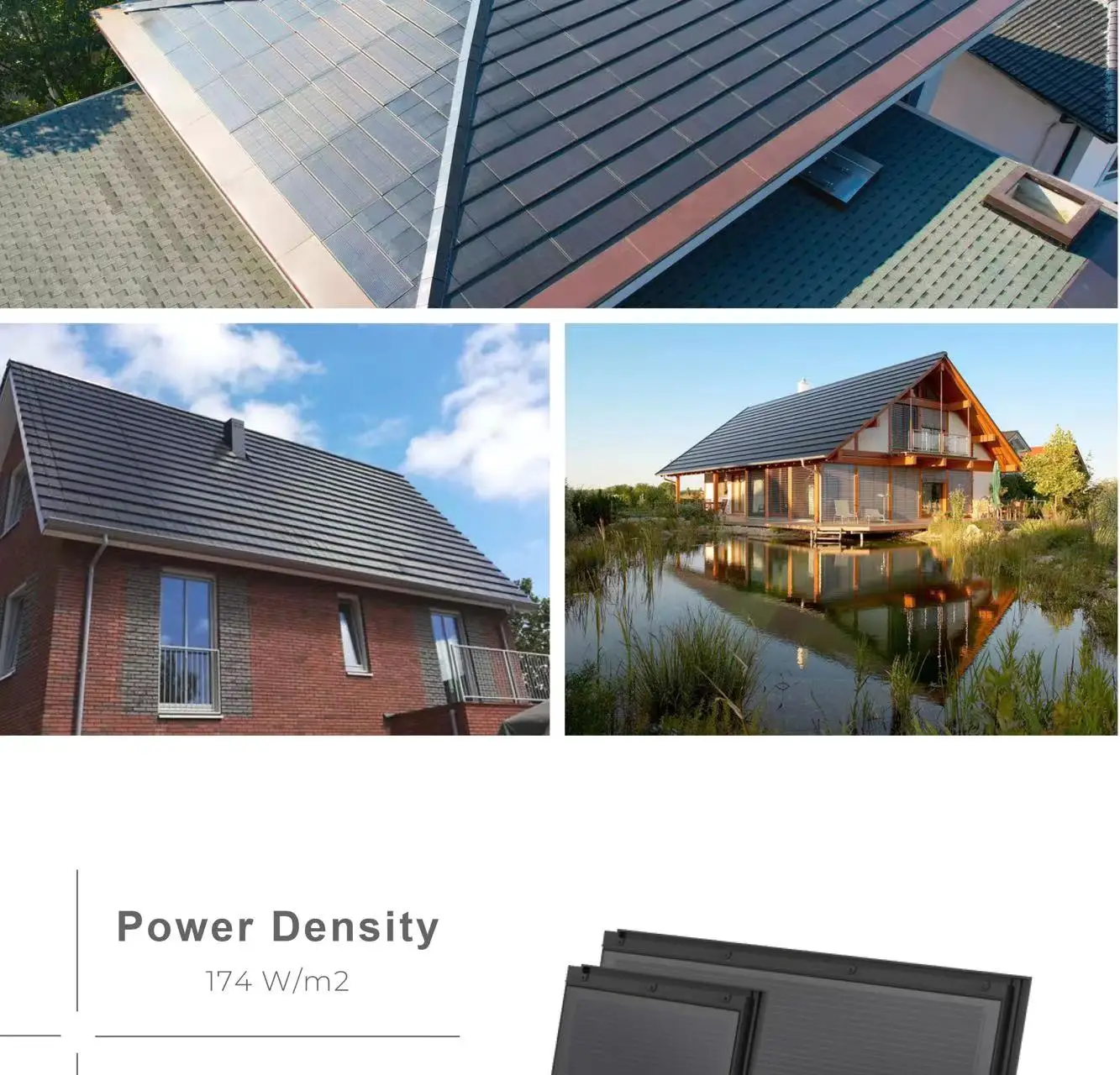

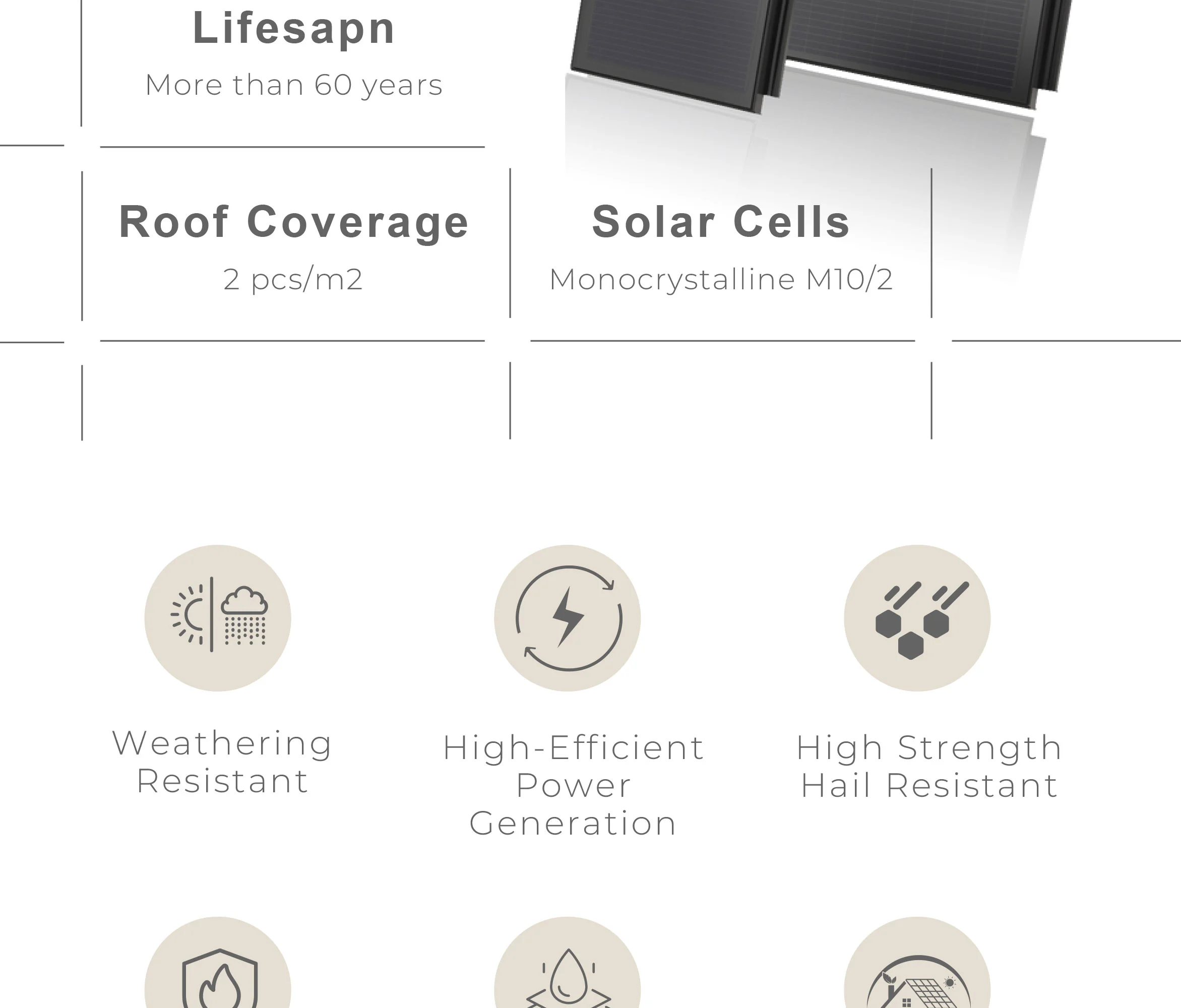

Solar Roof Advantages

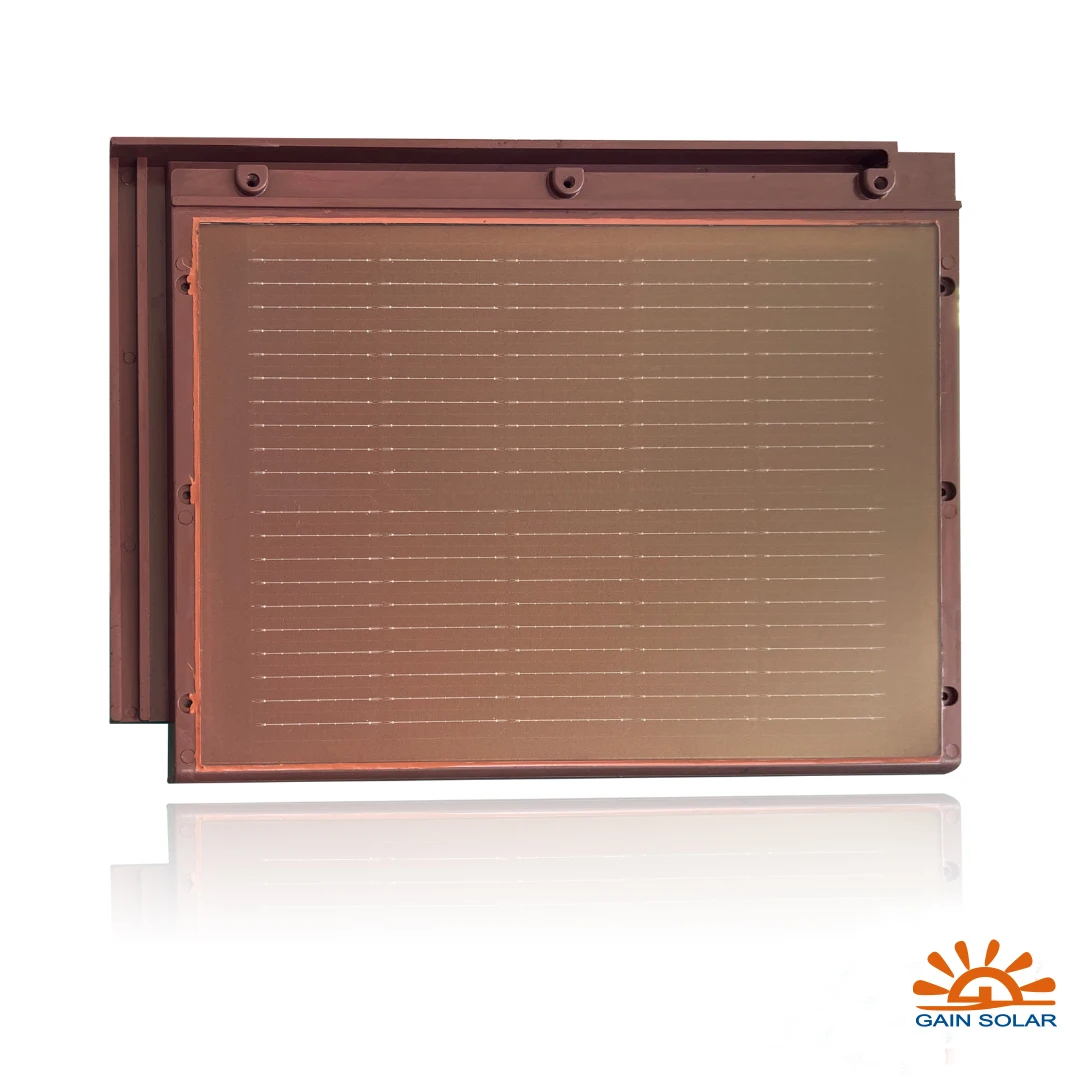

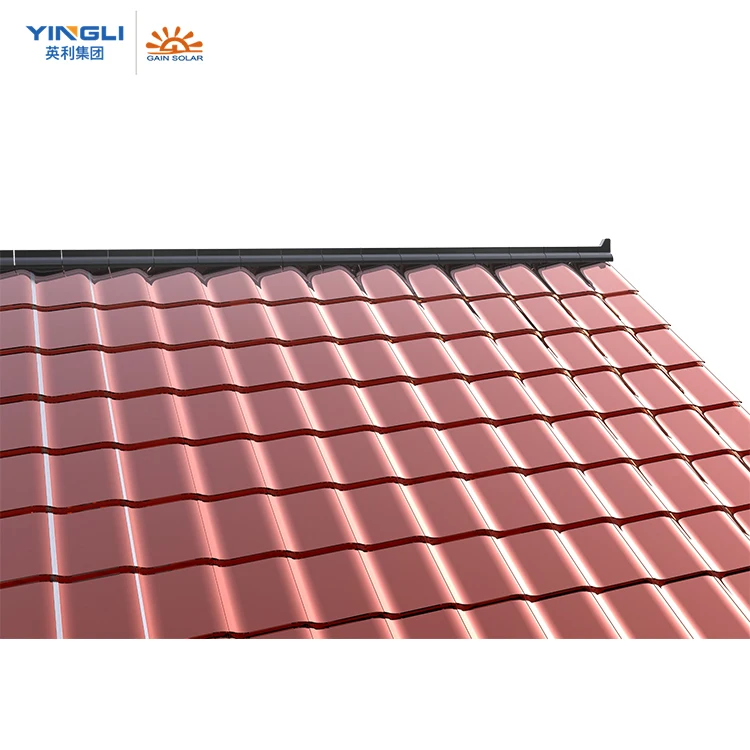

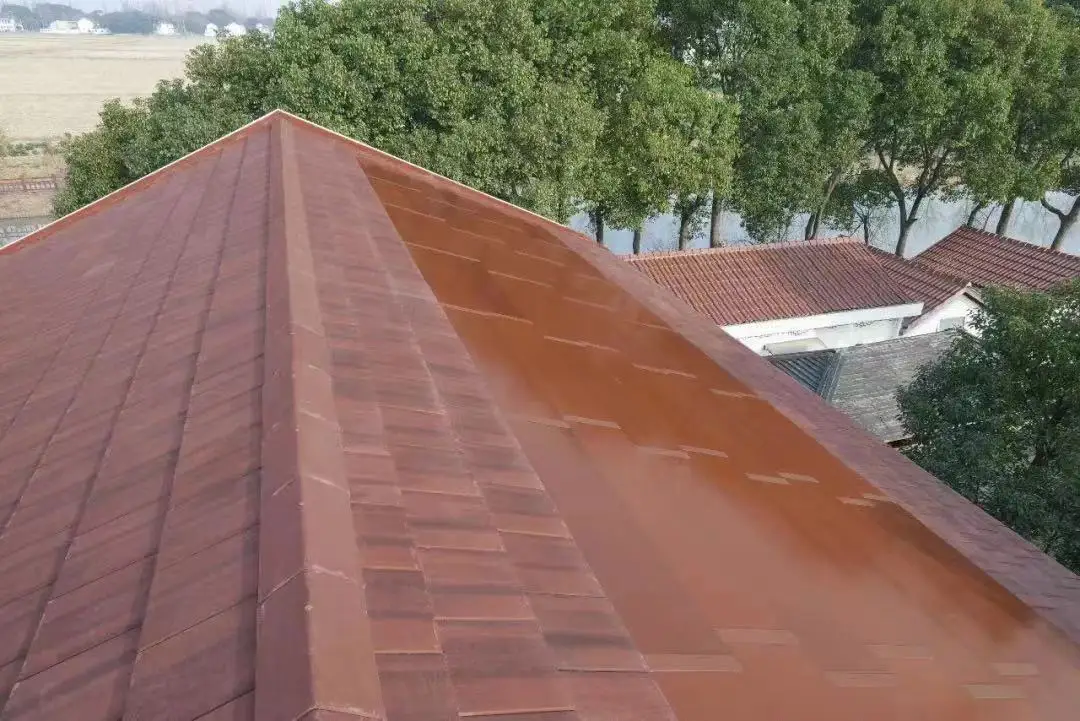

More Colors Available

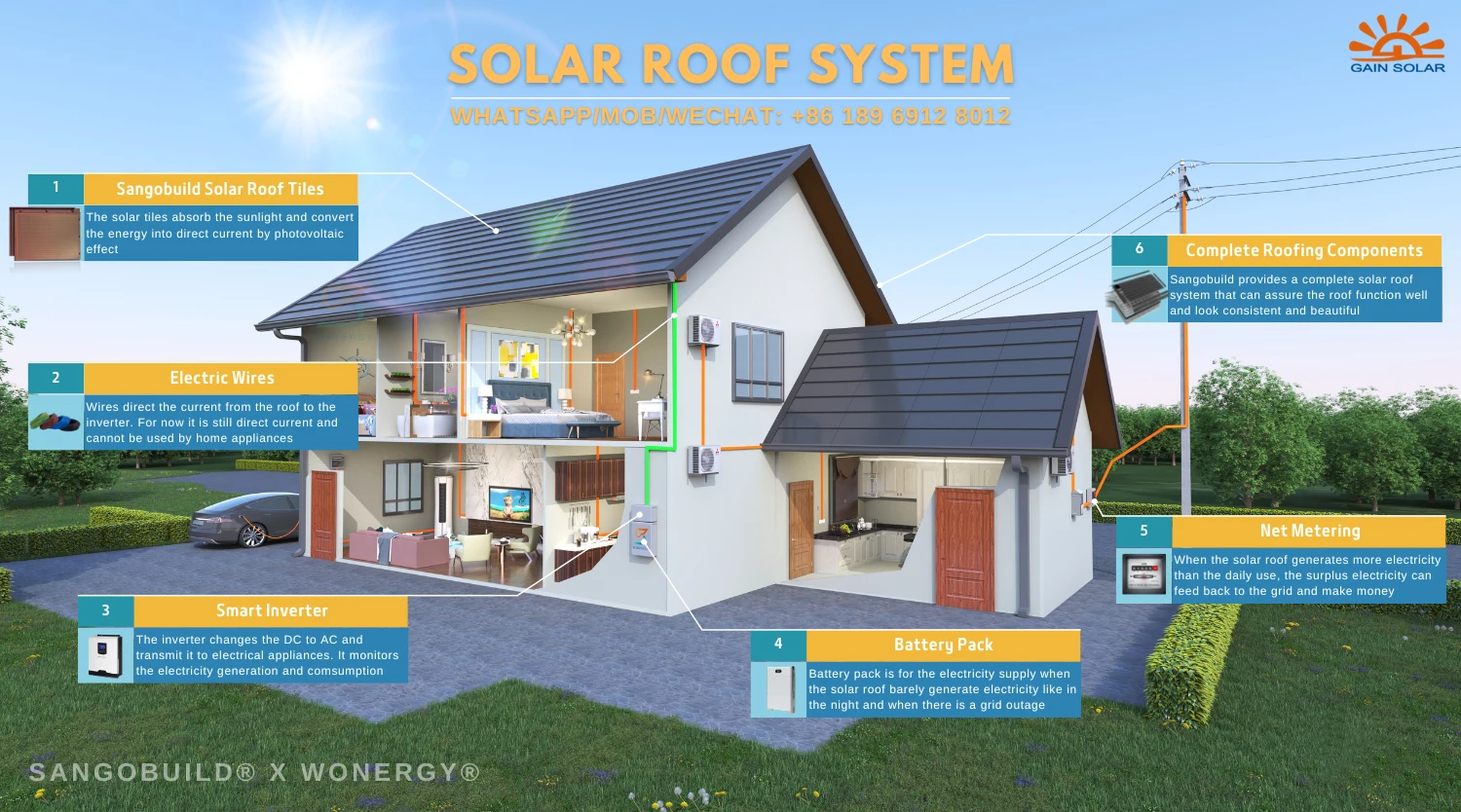

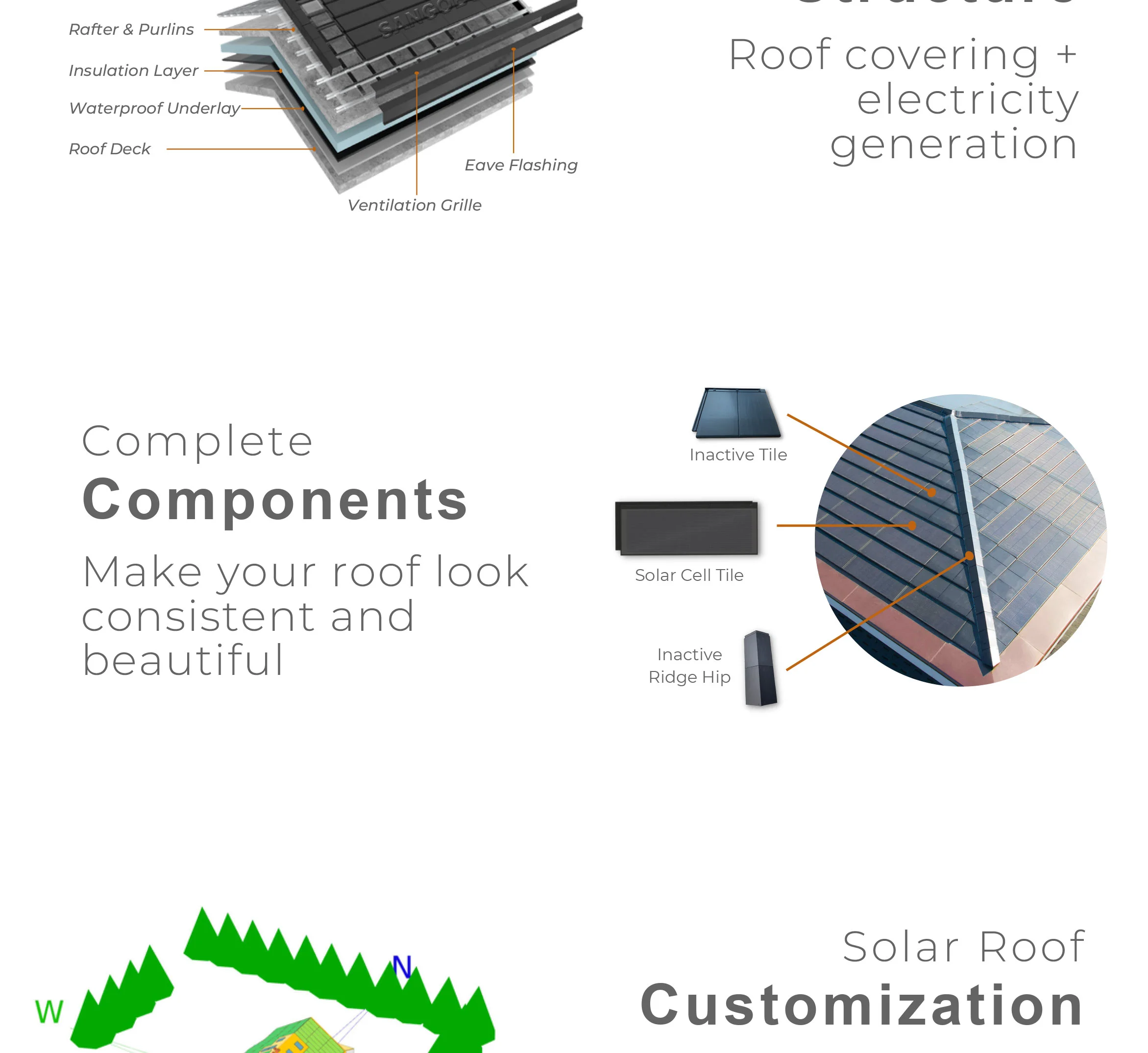

How Solar Roof Works
How Does A Solar Roof Work And How Can It Benefit Your Family?
Nowadays solar energy is becoming much more popular and common in our life, and you might have seen some of your neighbors’ houses covered with solar roof tiles.
Let us make a brief explanation of how it works to you here:
*1)* Sunlight hits the solar cells to get the power, then the energy is converted to DC electricity.
*2)* The electricity goes to the inverter and is converted into AC electricity that runs the home appliances.
*3)* The excess power produced can be sold to the utility through net metering to reduce bills or make money.
*4)* Also the excess electricity can flow through the inverter to change back into DC electricity that can be stored for later use.
*5)* If the house needs to use the energy stored in the battery, that electricity will flow through the inverter again to become AC electricity.
*6)* A mobile monitoring app will show how much electricity the solar roof system is creating and your home is using, and the savings you're generating.
In the coming years, solar roofs will become quite common with the urging need for clean energy. And people will not just be satisfied with the traditional solar panels that are mounted on the roof. What people will favor is a solar roof that combines the functions of power generation and home protection.
Let us make a brief explanation of how it works to you here:
*1)* Sunlight hits the solar cells to get the power, then the energy is converted to DC electricity.
*2)* The electricity goes to the inverter and is converted into AC electricity that runs the home appliances.
*3)* The excess power produced can be sold to the utility through net metering to reduce bills or make money.
*4)* Also the excess electricity can flow through the inverter to change back into DC electricity that can be stored for later use.
*5)* If the house needs to use the energy stored in the battery, that electricity will flow through the inverter again to become AC electricity.
*6)* A mobile monitoring app will show how much electricity the solar roof system is creating and your home is using, and the savings you're generating.
In the coming years, solar roofs will become quite common with the urging need for clean energy. And people will not just be satisfied with the traditional solar panels that are mounted on the roof. What people will favor is a solar roof that combines the functions of power generation and home protection.

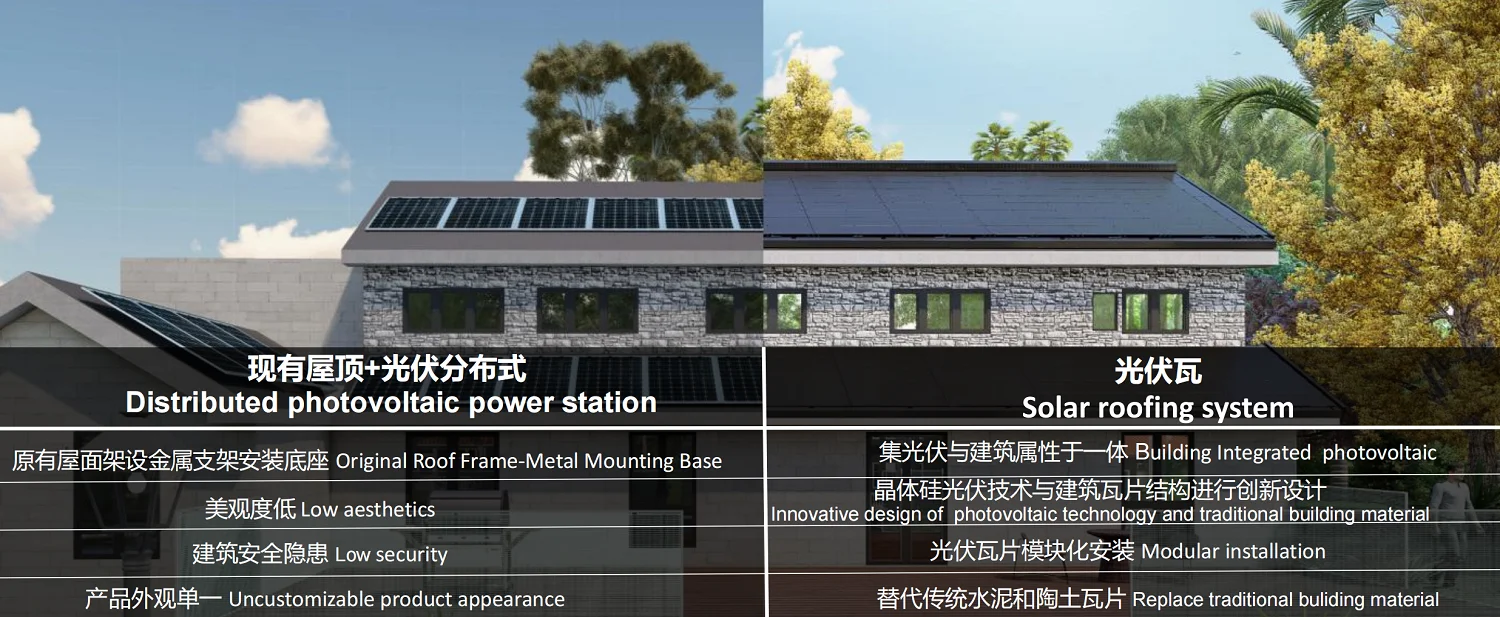

Solar Roof vs Solar Panel
It Is A Good Option
YOU ARE PASSIONATE ABOUT DESIGN
The appearance of your roof is important to you. You want to make use of solar energy but don't want regular solar panels on the roof. Sangobuild solar roof offers a neat, sleek look and the solar cells are almost invisible in a distance.
YOU ARE RENOVATING OR BUILDING A NEW ROOF
If you are renovating or about to change your roof, you may want save on material and labor costs. A Sangobuild solar roof gives you both roofing material and powerful solar panel in one.
IF YOUR BUILDING IS LISTED
If your building is listed as being of historical or architectural significance, you may not be able to install standard type of
solar panels on your roof. Sangobuild solar roof, on the other hand, is usually accepted by the authorities because it looks like a conventional roof.
solar panels on your roof. Sangobuild solar roof, on the other hand, is usually accepted by the authorities because it looks like a conventional roof.
Why Us?

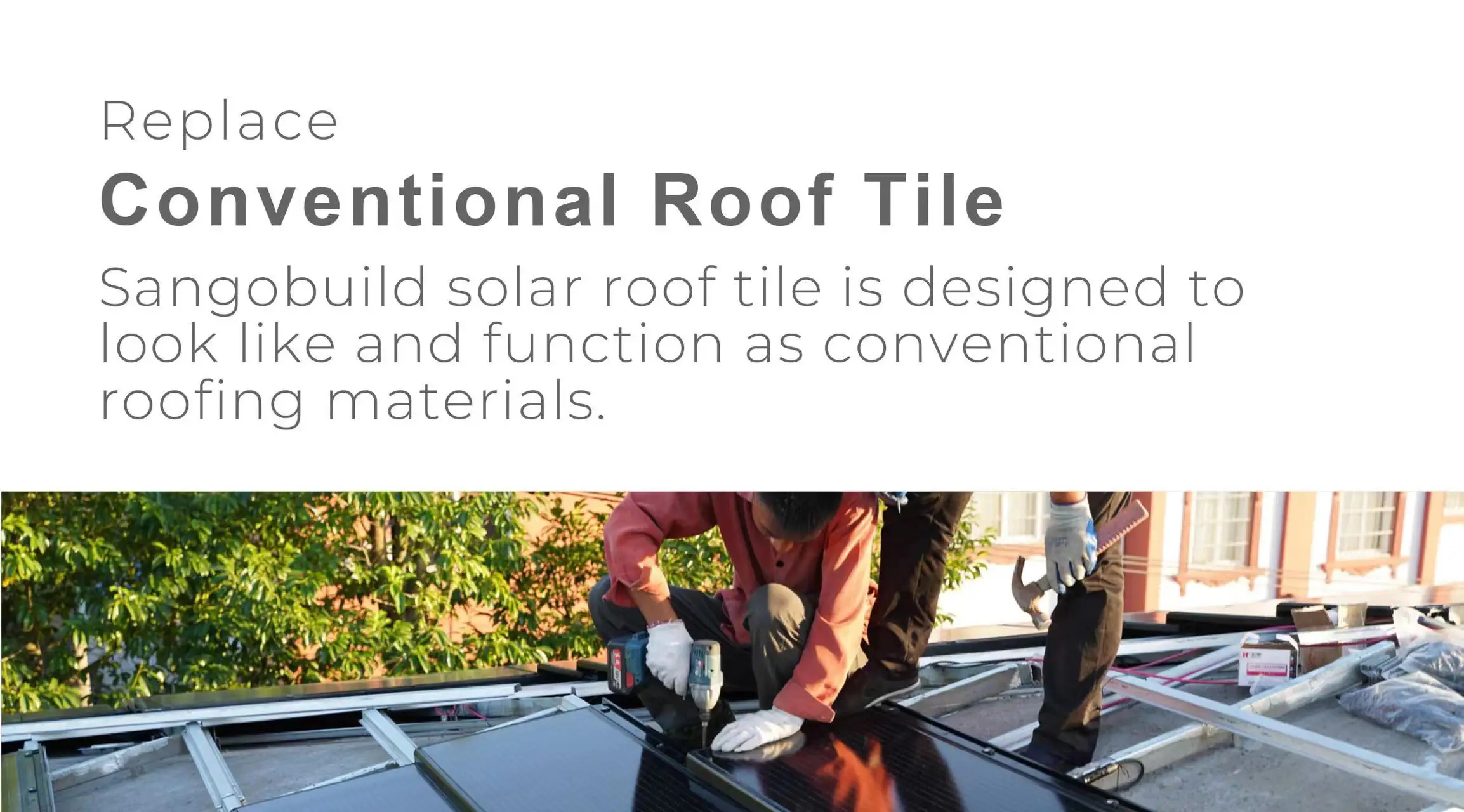

IT'S A ROOFING MATERIAL!
GAINSOLAR Solar Roof Tile is a kind of roofing material just like conventional roof tiles. It not only can generate electricity power, but also can work as your roof cover to protect your house from rain, wind, hail, etc.

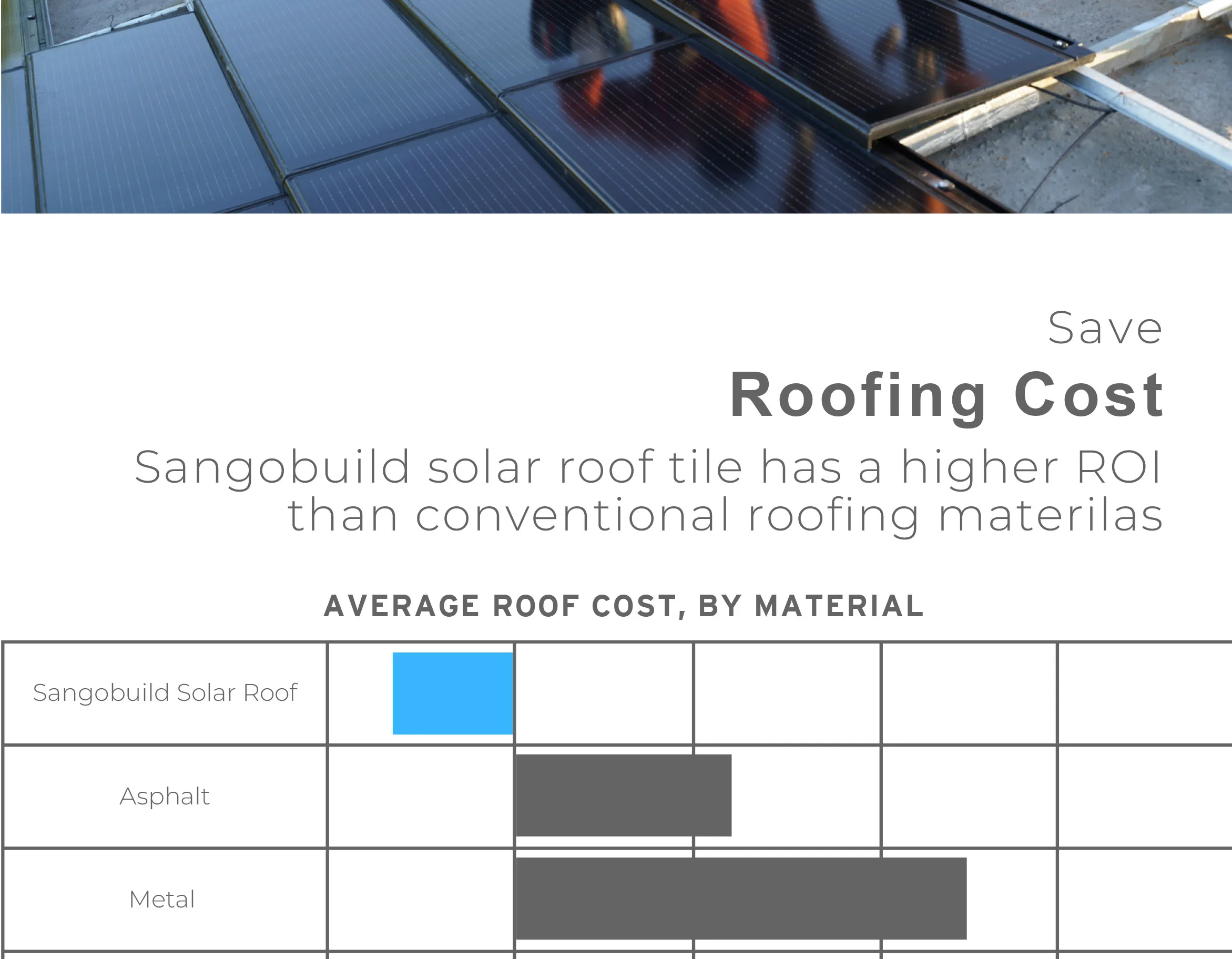

It saves your roofing cost. You don't need to install any traditional roofing materials. And you don't need to set up mounting
racks on the roof to install solar tiles, which could affect the roof beauty to some extent.
racks on the roof to install solar tiles, which could affect the roof beauty to some extent.
PROFESSIONAL TEAM
Our team started the business of Building-Integrated Photovoltaic in 2007, and is leading the technology in the industry. We not only has the most professional team for solar energy, but also has the most professional team for roofing.
We combines the solar panel and the roof tile and make it a new product to save the cost and make your roof more beautiful and functional!
We combines the solar panel and the roof tile and make it a new product to save the cost and make your roof more beautiful and functional!
