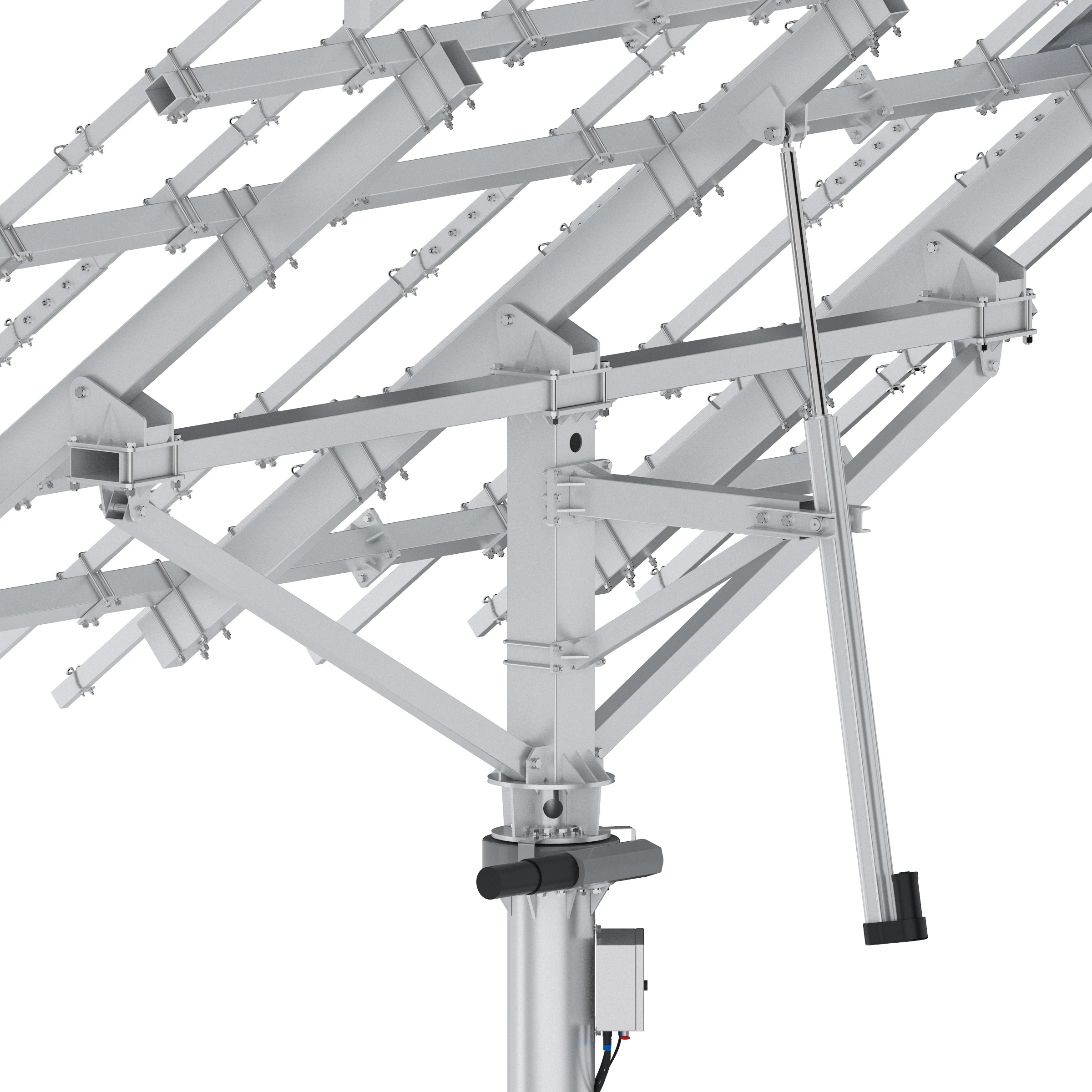

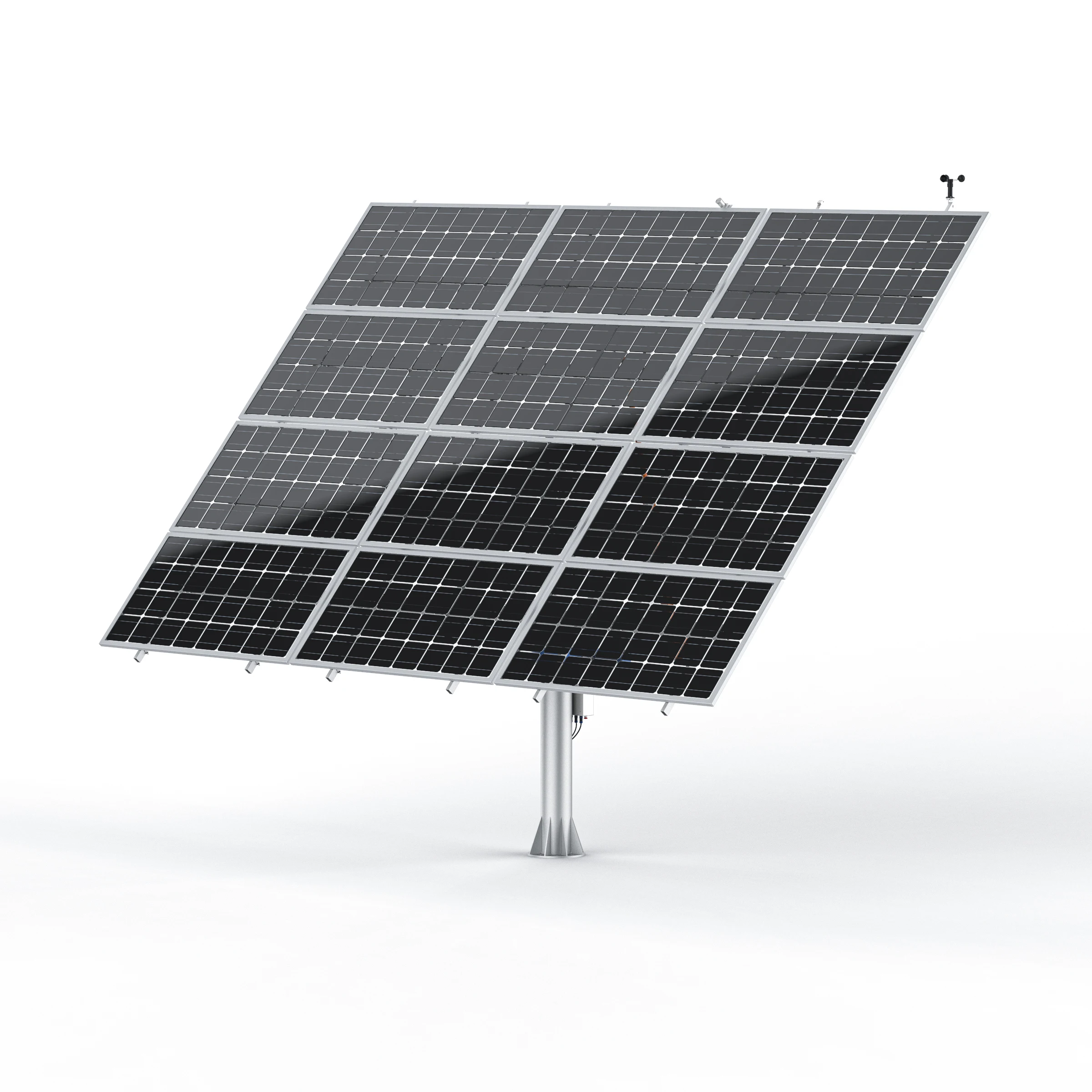

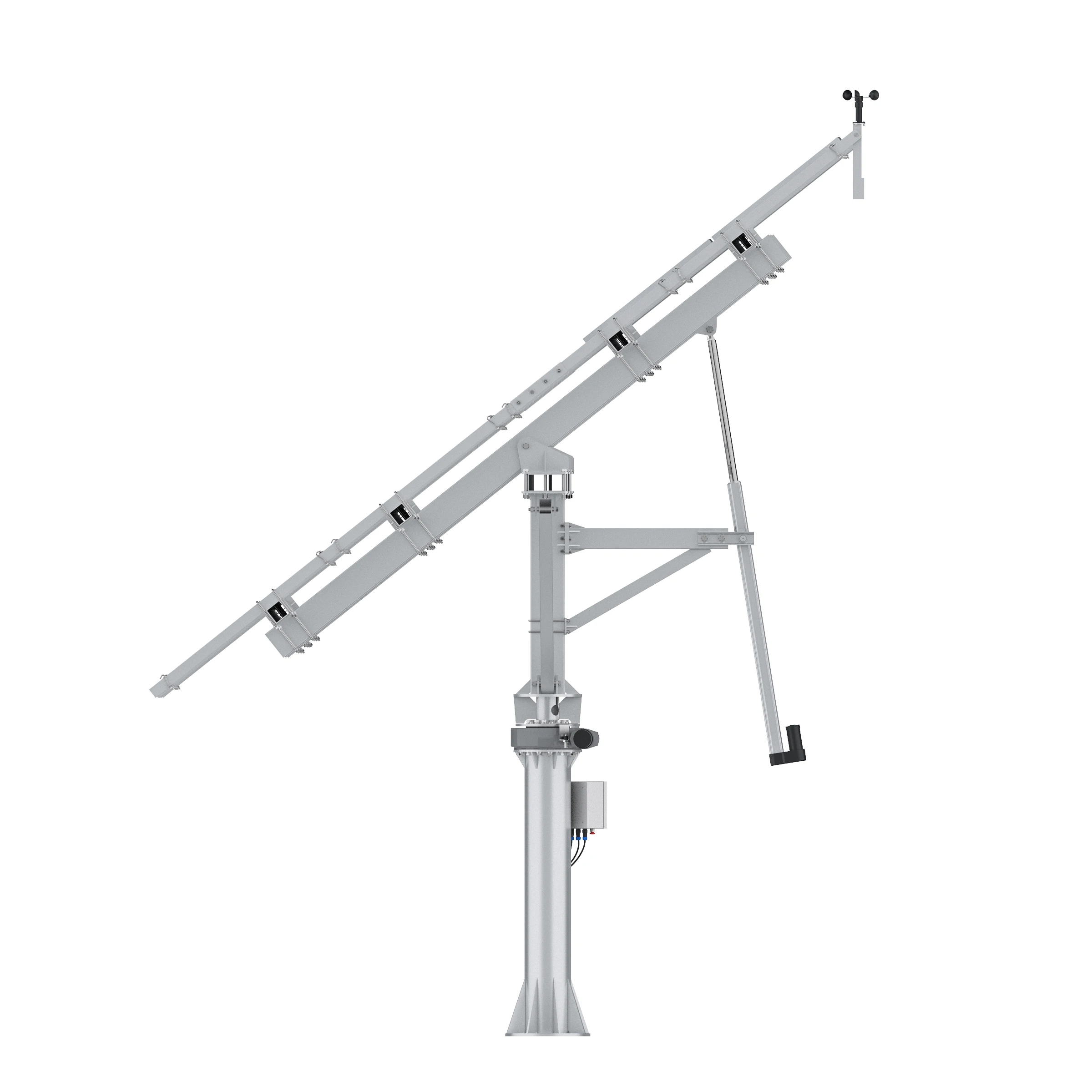

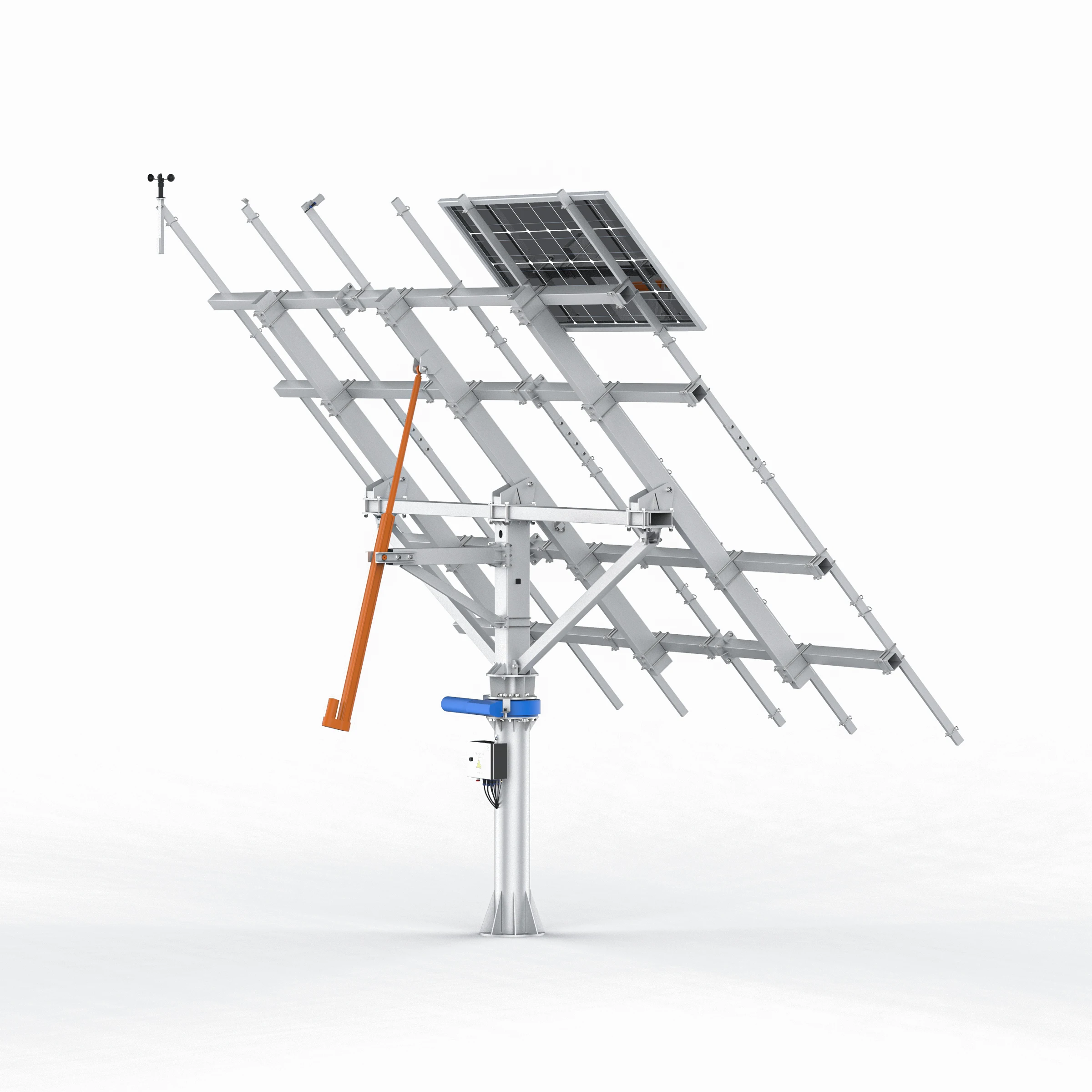

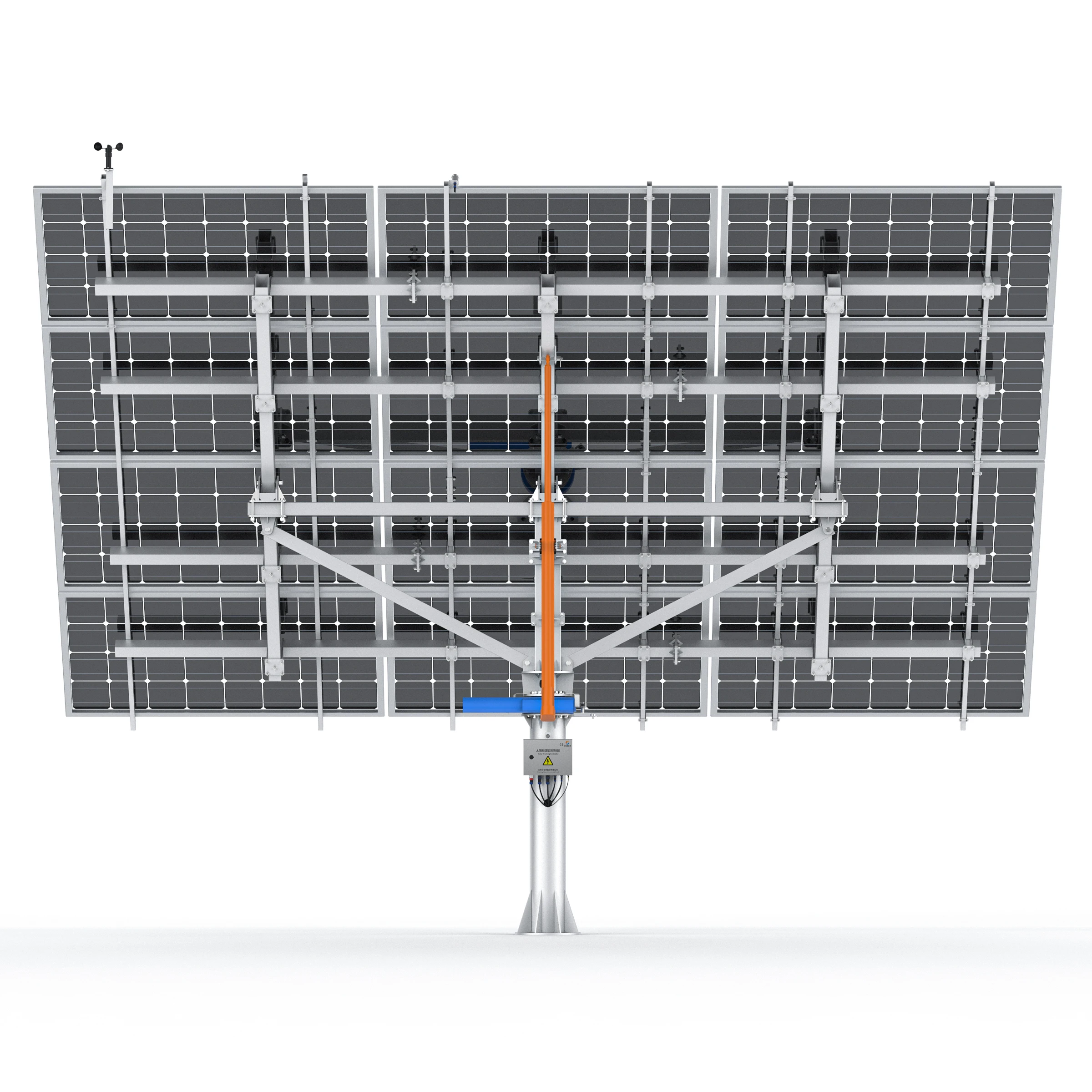

Huayue solar tracker 8KW HYS 15PV 78 LSD Reasonable design controller solar tracker dual axis slewing drive solar t
- Category: >>>
- Supplier: Shandong Huayue New Energy Co. Ltd.
Share on (1600601725925):
Product Overview
Description
Power generation comparison
Product features

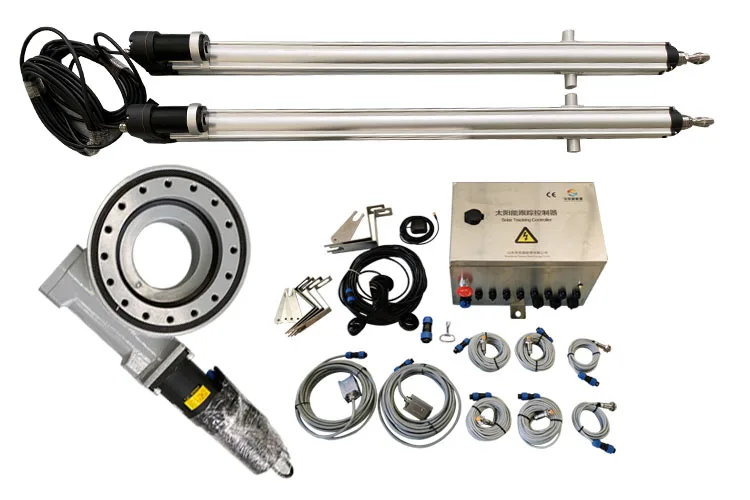

Optional accessories
Product Paramenters
Structure Parameters Of Multi Putter Two Axis Tracker | ||||||
Solar panel type | 2274*1134mm | Installed capacity | 8kw | |||
System weight | ≈990kg/sets | Number of solar panels | 15P | |||
Arrangement of solar panels | Horizontal arrangement | Ground clearance | 1000mm | |||
Area of grid structure (m²) | ≈34㎡ | Bracket material | Hot dip galvanized steel | |||
Protection of wind speed | 17 m/s | Snow load | 1.6KN/㎡ | |||
Main material | Q235B / Q355B | Galvanizing thickness | ＞70um | |||
Fastener material | 304 stainless steel | Mechanical design life (y) | ＞25 | |||
Design code | ASCE7 EN1991 AS1170 GB50009-2012 | |||||
Foundation form | Concrete (customizable all steel foundation) | |||||
Extreme wind speed | 37 ~ 50M / S (ASCE7-10,other wind speeds can be customized) | |||||
Quality assurance period | The whole machine is guaranteed for 3 years (except for man-made damage and force majeure) | |||||
Working temperature (℃) | General default configuration -30℃ ~ +70℃ special customized configuration -50℃ ~ +85℃ | |||||
Parameters Of Multi Push Rod Two Axis Controller | ||||||
Control algorithm | Closed loop control of astronomical algorithm and position sensor | |||||
Controller type | Single-Chip Microcomputer | Control core | MCU（32bit) | |||
Communication type | RS485 | Gale protection | have | |||
Night return mode | have | Backtracking algorithm | have | |||
Anemometer | have | Protection level | IP66 | |||
GPS | have | Heavy rain cleaning mode | Optional | |||
Drive protection | have | Snow removal mode | Optional | |||
System voltage | DC24 | Driving device | Rotary drive + Linear drive*2 | |||
Driving power (W) | 350W | Tracking accuracy (°) | ≤1° | |||
Power supply mode | Self powered / external power supply | Azimuth tracking range (°) | -135°~+135° (Any Range Within ±175°) | |||
Daily power consumption (KWH) | ≤0.75kWh | Altitude angle tracking range (°) | 0~60° | |||
System power supply | L+N(two-phase input) 100V~240V AC(wide voltage input) Customizable：PV group series self powered 1000~1500V | |||||
Network communication mode | RS485 | |||||
Network communication type | Bluetooth (customizable WiFi, 4G) | |||||
Rotating position protection mode | Sensor protection + software protection | |||||
Details Images
