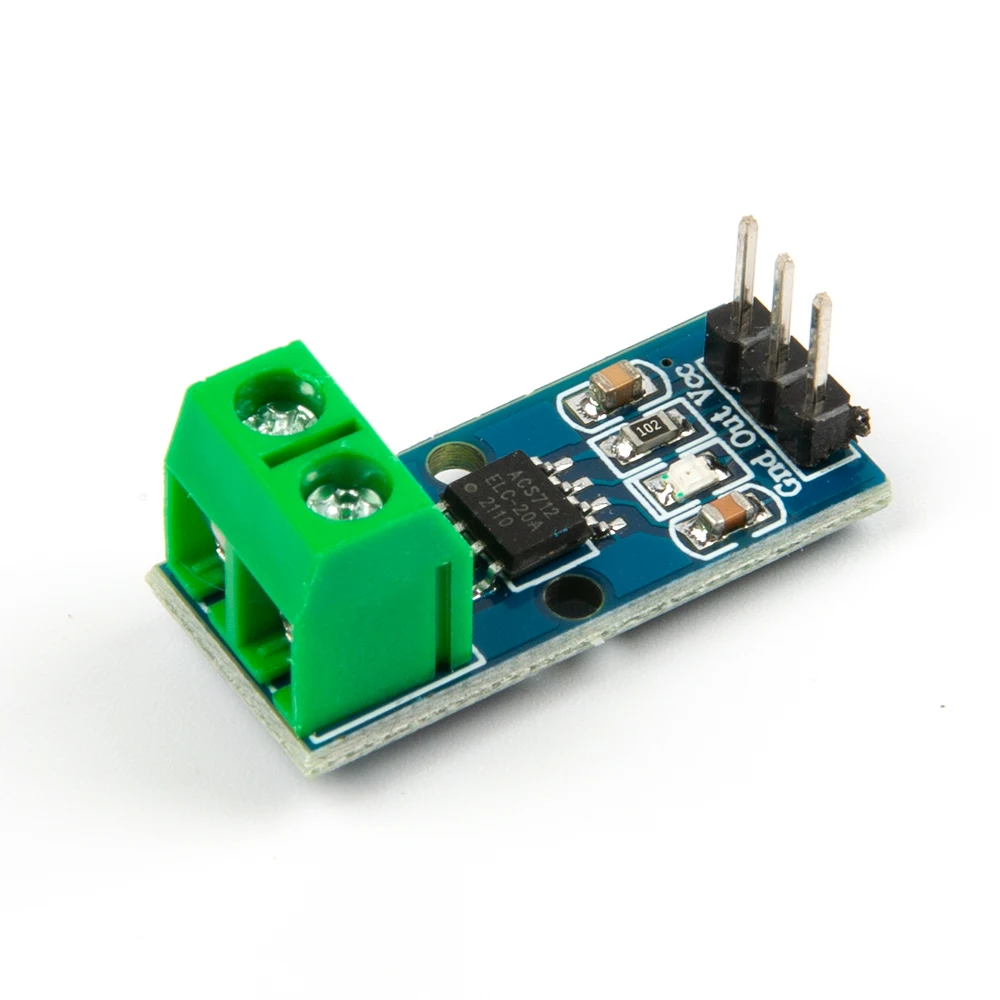

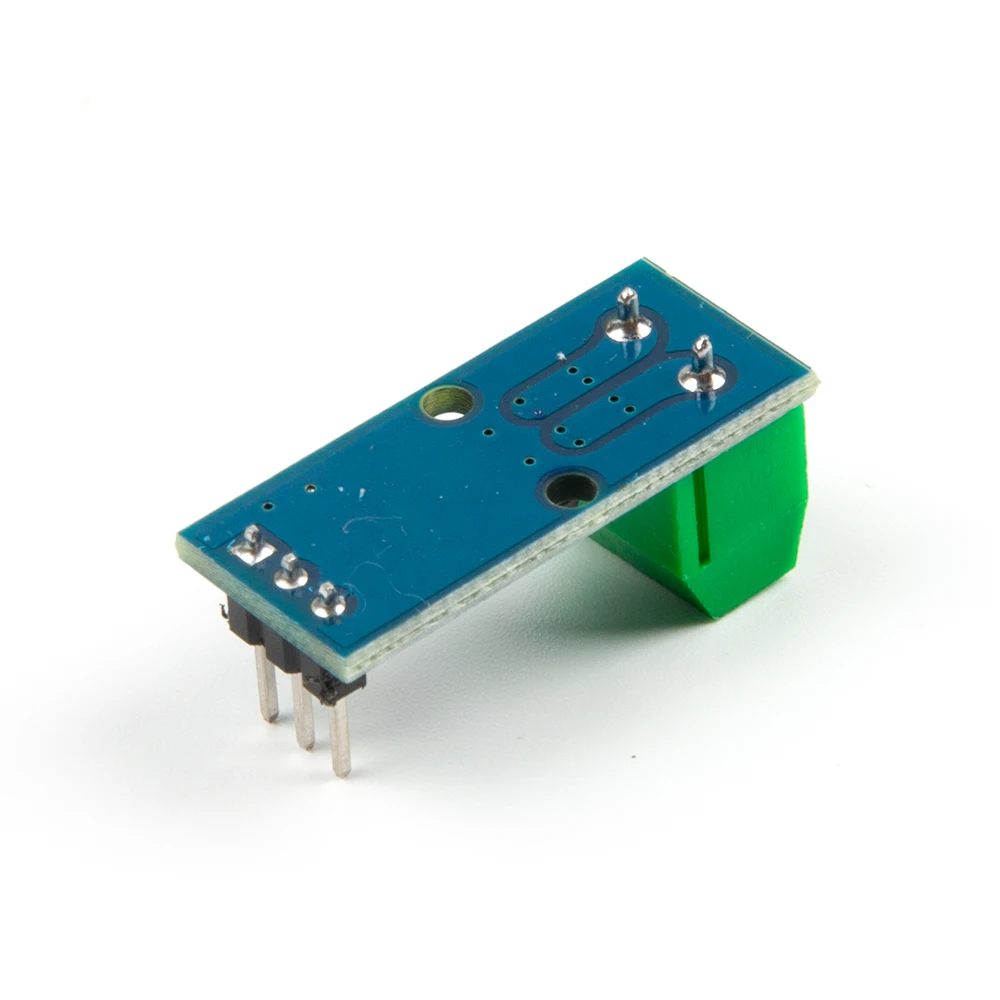

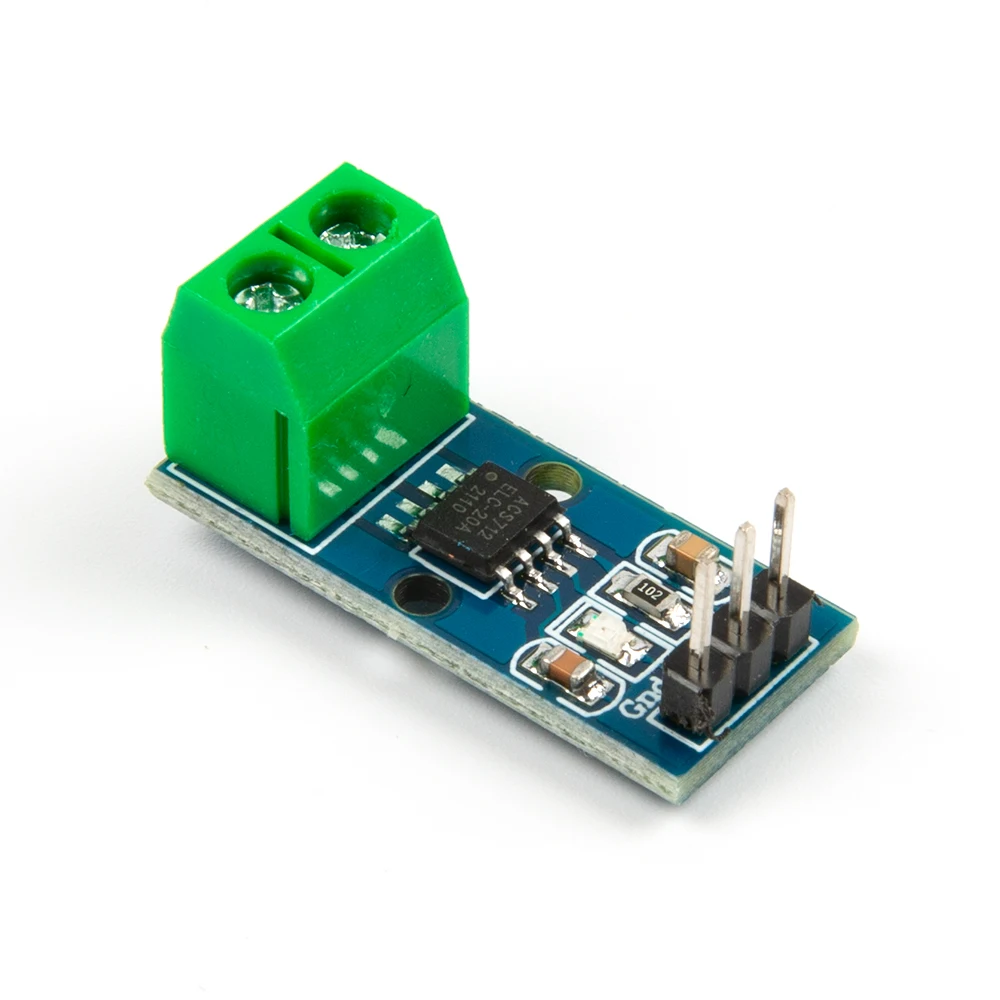

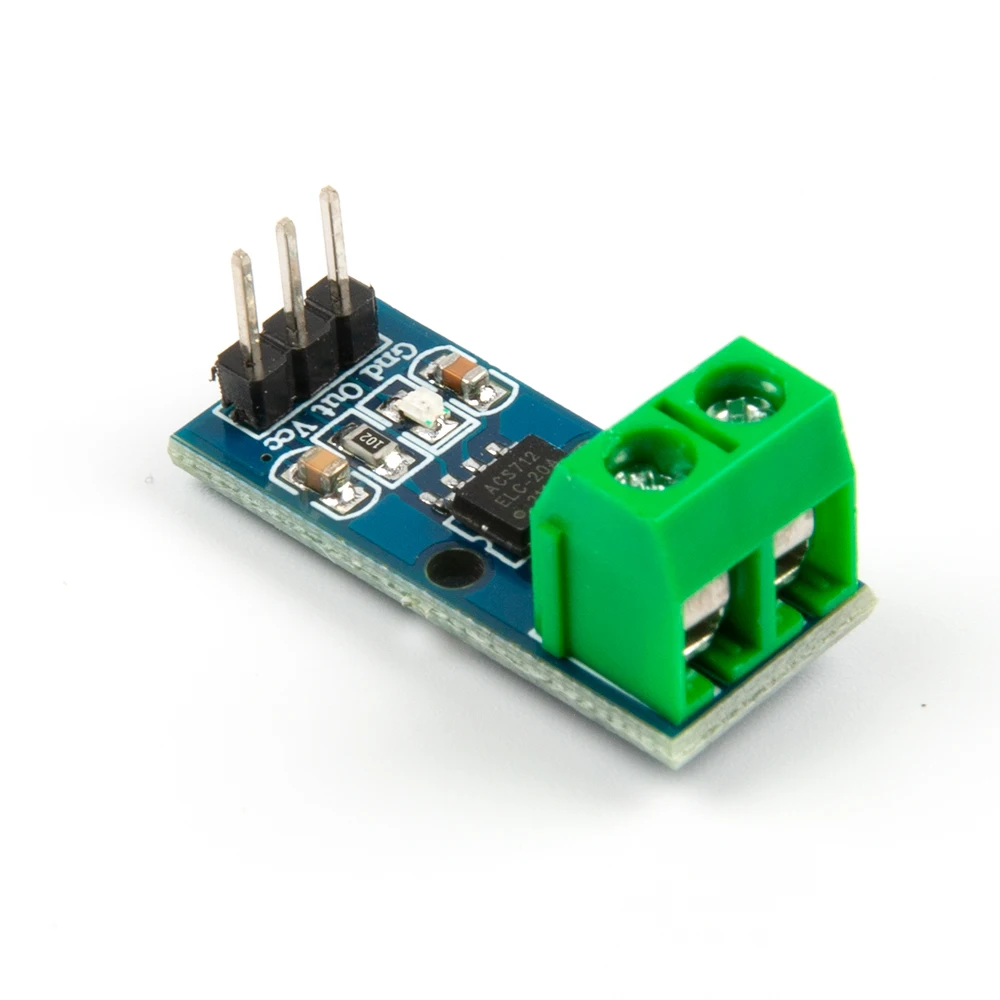

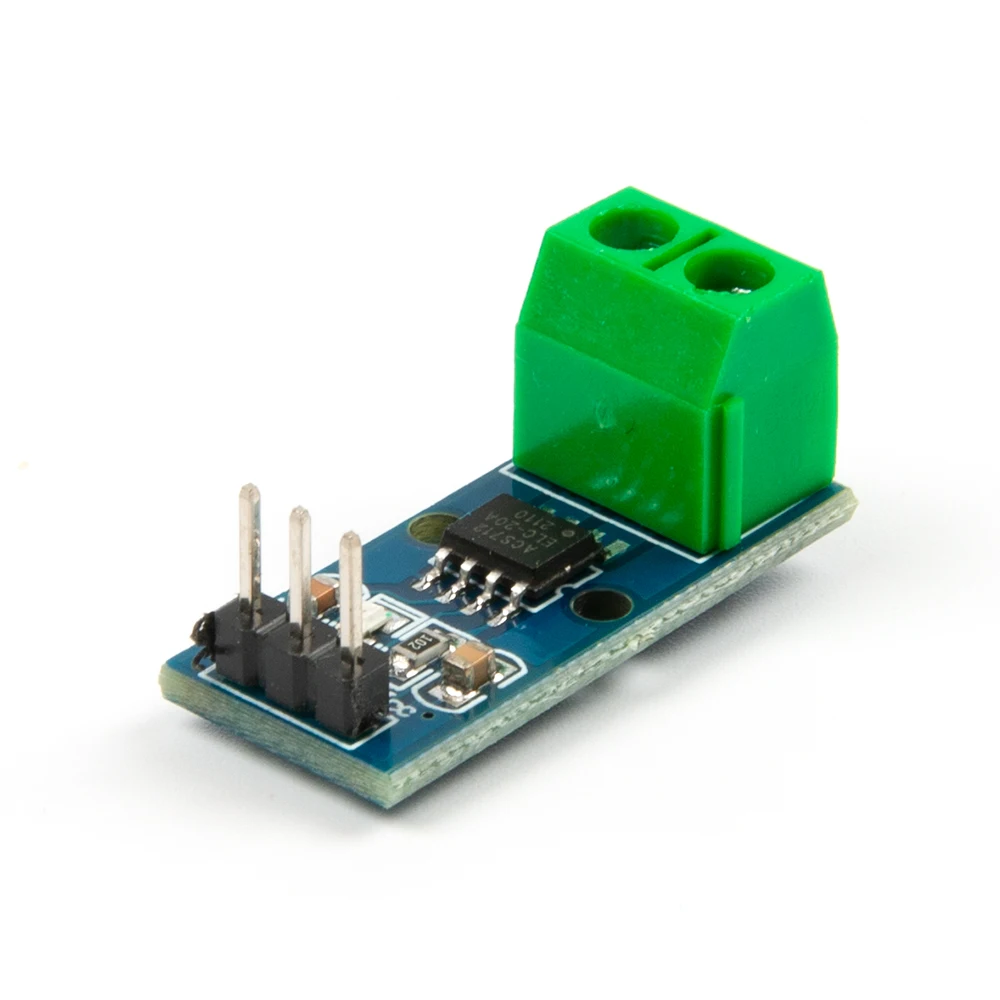

Current Sensors 5A DC Current ACS712 Sensor Module 5A Range ACS712
- Category: >>>
- Supplier: Shenzhen Robotlinking Technology Co. Ltd.
Share on (1600601775633):
Product Overview
Description
Current Sensors 5A DC Current ACS712 Sensor Module 5A Range ACS712
Deascription:
20A ACS712 Range Electric Current Sensor Module Board
1. Current sensor chip: ACS712ELC-20A;
2. Pin 5V power supply, on-board power indicator;
3. The module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A;
4. There is no the detection current through, the output voltage is VCC / 2;
30A ACS712 Range Electric Current Sensor Module Board
1. The current sensor chips: ACS712ELC-30A;
2. Pin 5V power supply, on-board power indicator;
3. The module can measure the positive and negative 30 amps, corresponding to the analog output 66mV / A;
4. No test current through the output voltage is VCC / 2;
5A range Current Sensor Module ACS712
1、The current sensor chips: ACS712ELC-05B;
2、Pin 5V power supply, on-board power indicator;
3、The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A;
4、No test current through the output voltage is VCC / 2;
1、The current sensor chips: ACS712ELC-05B;
2、Pin 5V power supply, on-board power indicator;
3、The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A;
4、No test current through the output voltage is VCC / 2;
20A ACS712 Range Electric Current Sensor Module Board
1. Current sensor chip: ACS712ELC-20A;
2. Pin 5V power supply, on-board power indicator;
3. The module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A;
4. There is no the detection current through, the output voltage is VCC / 2;
30A ACS712 Range Electric Current Sensor Module Board
1. The current sensor chips: ACS712ELC-30A;
2. Pin 5V power supply, on-board power indicator;
3. The module can measure the positive and negative 30 amps, corresponding to the analog output 66mV / A;
4. No test current through the output voltage is VCC / 2;
Note: ACS712 is based on the principle of the Hall test, please use this field to avoid an impact
Package content:
1x ACS712 5A/20A/30A Range Current Sensor Module
1. Industry market conditions and original factory prices fluctuate frequently, please confirm with the business for specific prices
2. The original package is packaged, the specific price involves unpacking and repacking according to the required quantity, please confirm with the business for the specific price
2. The original package is packaged, the specific price involves unpacking and repacking according to the required quantity, please confirm with the business for the specific price
