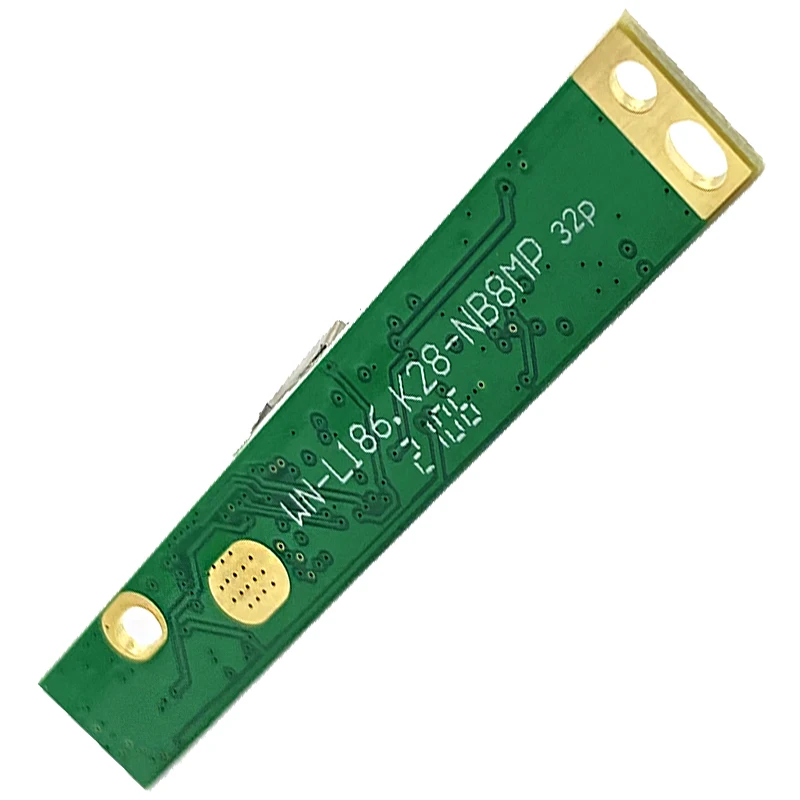

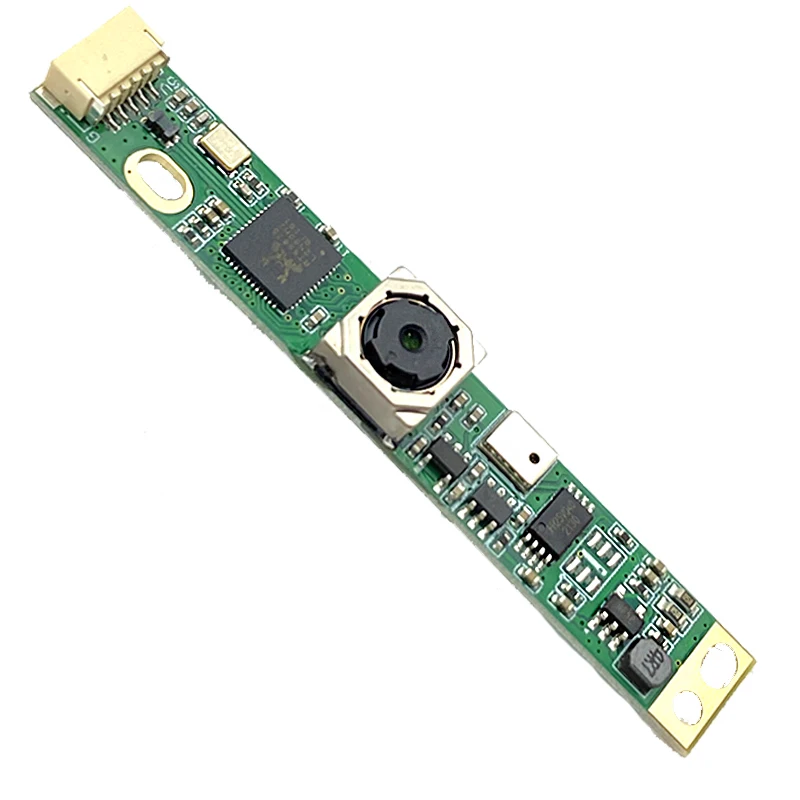

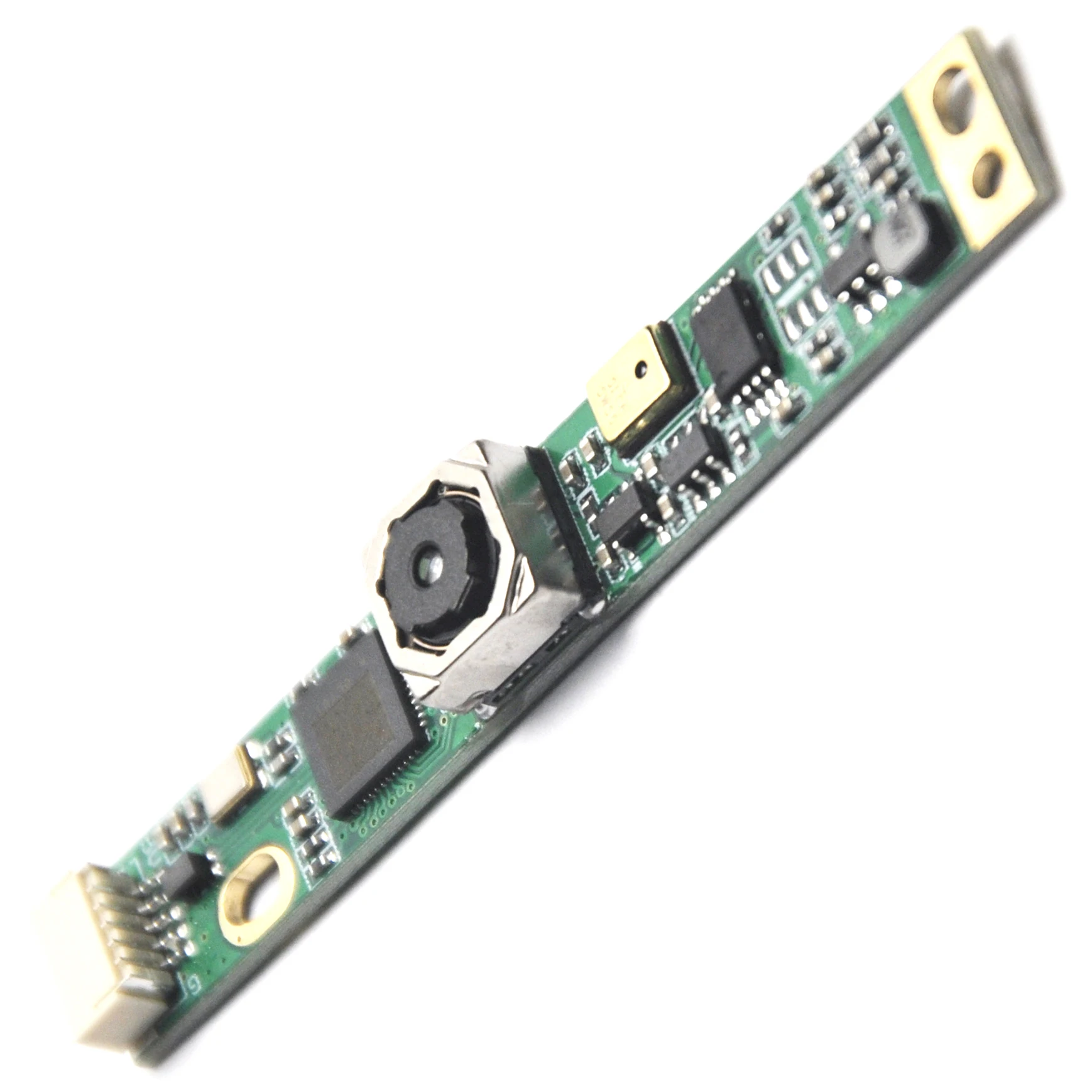

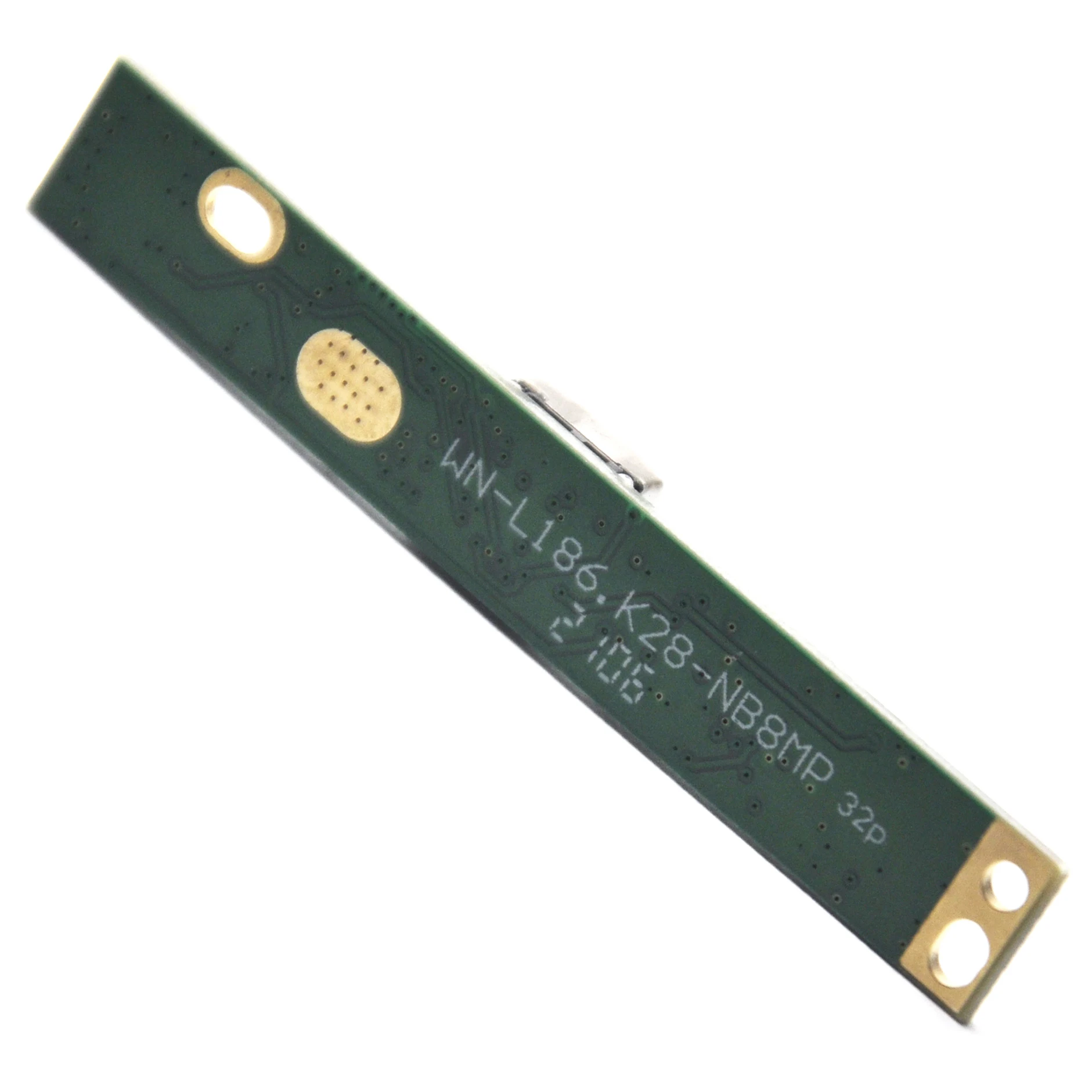

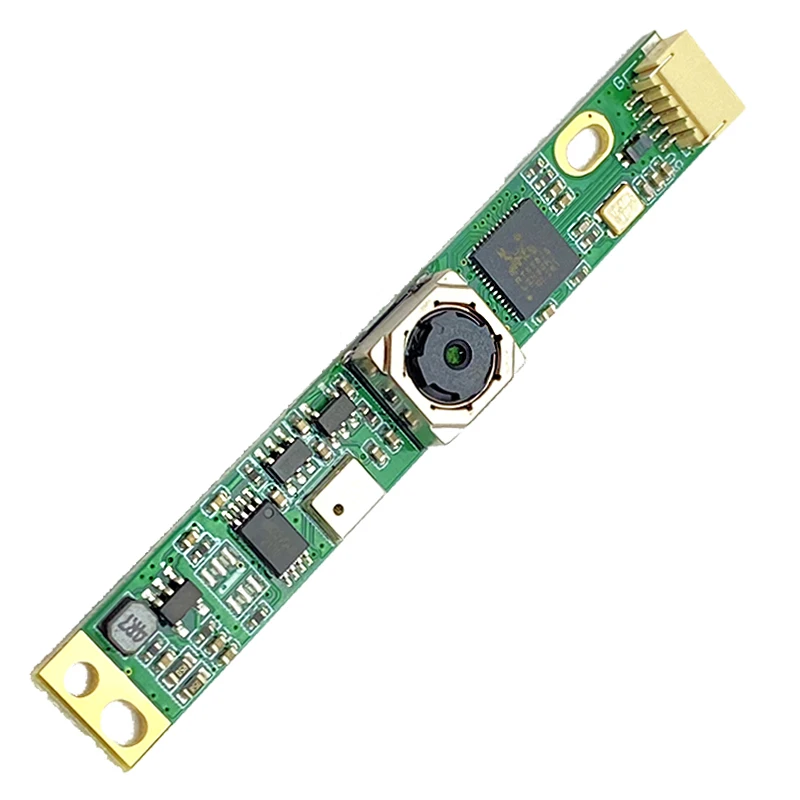

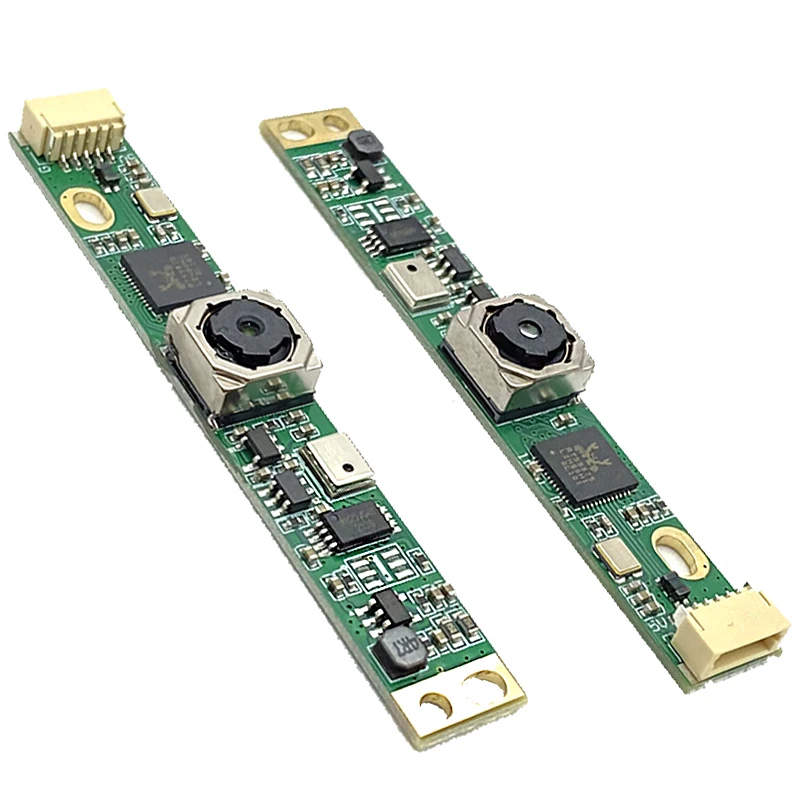

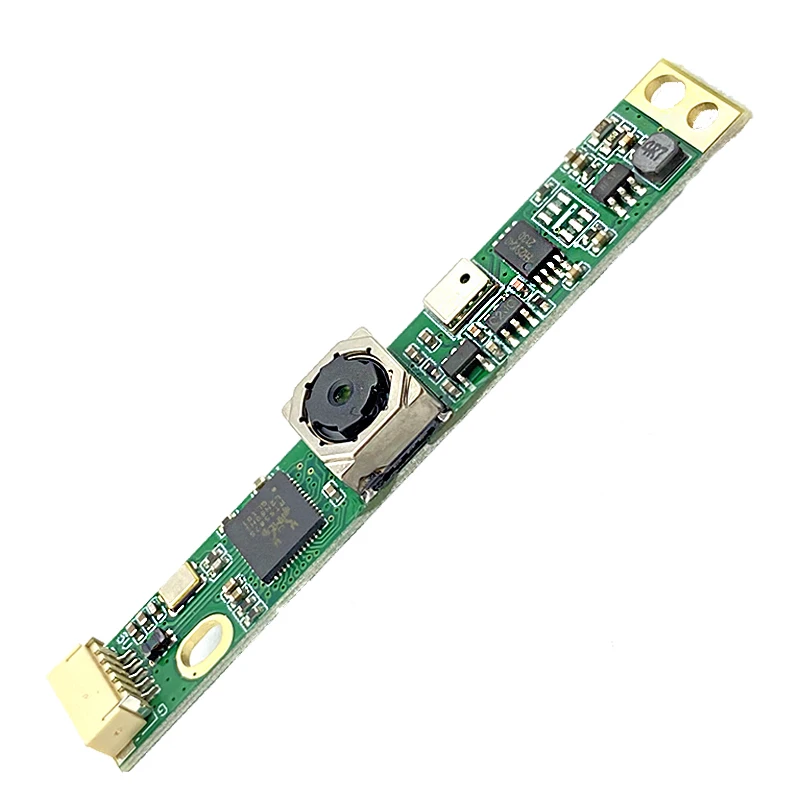

High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic
High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic
High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic
High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic
High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic
High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic
High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic

High Quality CMOS IMX179 8MP 15FPS AF FF MF USB Camera Modules with Digital Mic

Share on (1600601778380):


Price:$25.00 - $30.00

Quantity:


Product Overview

Description

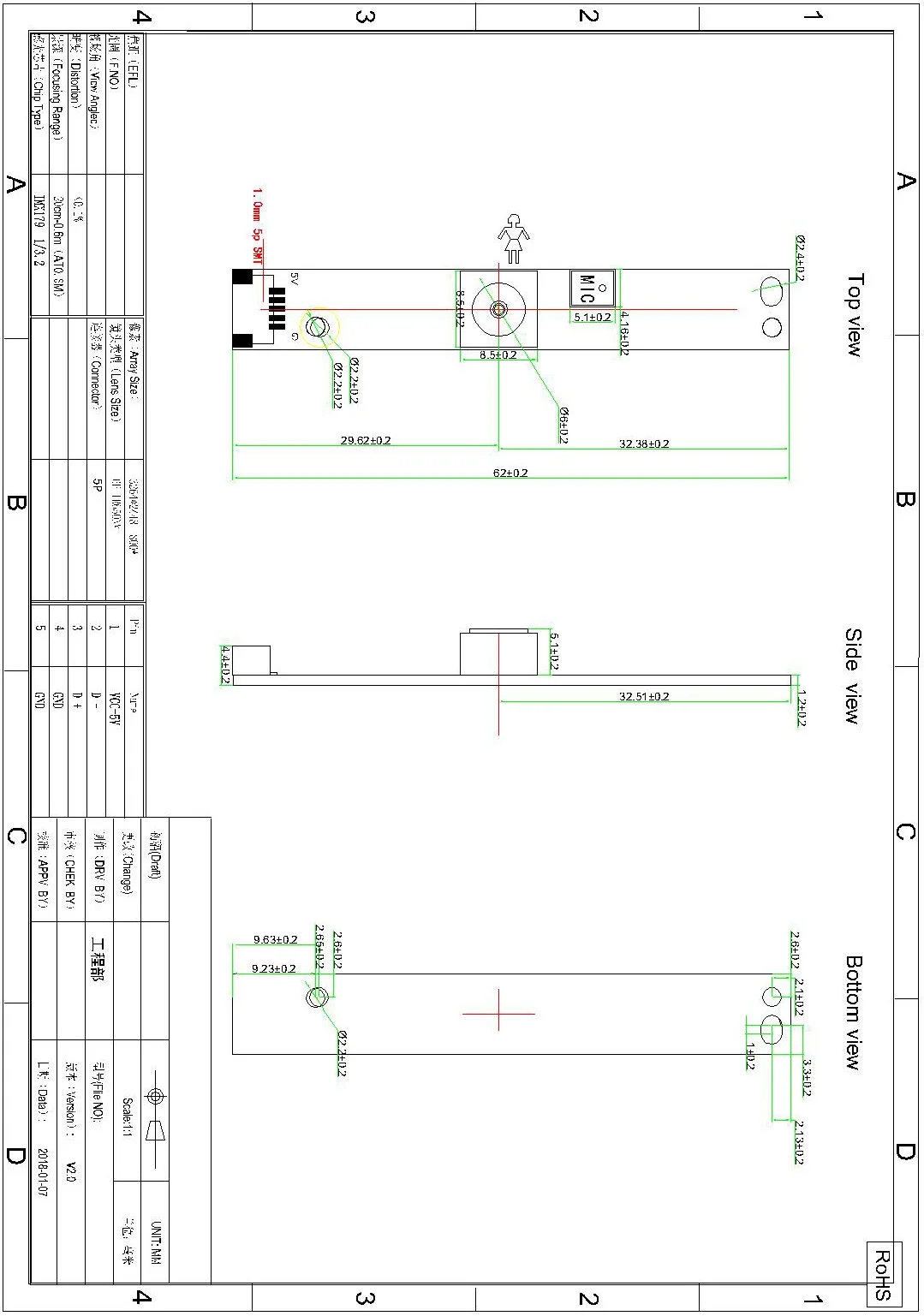

Module Size
62*9mm
Sensor
1/3.2-Inch CMOS IMX179
Pixel Size
1.4um x 1.4um
Resolution
3264 H x 2448 V
Output Format
MJPEG, YUV2
FOV
Auto Focus: 75 Degree or 90 Degree, Manual and Fixed: TBD
Dynamic Range
Up to 72.5dB
Focus Type
AF/ FF/ MF
Shutter Type
Electronic Rolling shutter
Audio Input
Digital One-way Audio
Output and Power Supply
High Speed USB2.0
Interface
5 PIN 1.0MM Socket
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
Windows, Android, Linux, Wince, Mac OS

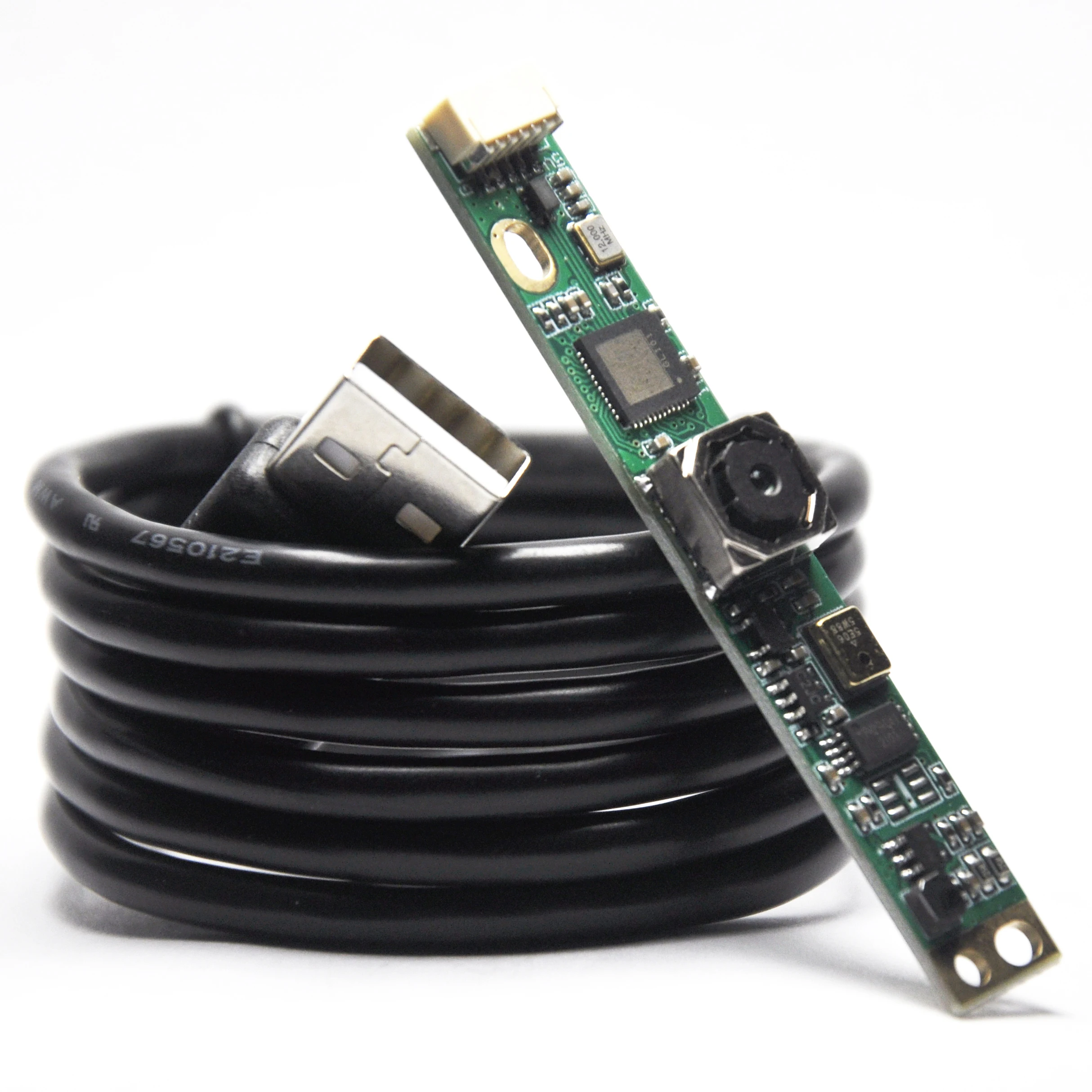

Cable Length
Default 1.0 Meter USB Cable


Format
Resolution
Frame Rate (USB2.0)






MJPEG
3264 x 2448 (8MP)
15FPS
2592 x 1944 (5MP)
15FPS
2048 x 1536 (2K)
15FPS
1920 x 1080 (1080P)
30FPS
1600 x 1200 (UXGA)
30FPS
1280 x 720 (720P)
30FPS
800 x 600 (WVGA)
30FPS
640 x 480 (VGA)
30FPS



YUY2
3264 x 2448 (8MP)
15FPS
2592X1944 (5MP)
15FPS
1920x1080 (1080P)
30FPS
1600x1200 (UXGA)
30FPS
640X480 (VGA)
30FPS


Pin No.
Signal Name
Description
1
VCC
5V Power
2
DM
USB2.0 Data+
3
DP
USB2.0 Data-
4
GND
GND
5
GND
GND


Operating Voltage
USB DC +5V Supply
Operating Current
110mA
Operating Temperature
-20℃ ~ 70℃
Storage Temperature
-20℃ ~ 85℃
Humidity
80 ~85%























Weinan Electronics camera modules have a wide range of applications like ATM Machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, POS equipment, smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, tablet external, on-the-spot law enforcement, recognition algorithm attendance machine, simple security system, teaching system, interactive system, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, driving learning system, industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, etc.







1. What are your production capabilities?
Typically around 400,000 units per month.(statistical data in 2019)

2. What are your R&D capabilities?
With our experienced team of engineers, we can assist with the entire hardware process, including design, prototyping, outsourcing and manufacturing.

3. How long does it take to develop a new camera module?
Typically around 2-3 weeks from start date.

4. What is the cost of developing a new camera module?
Developing fee range between $200 and $500 for the new product development. It can be varied depending on the complexity and requirements of your projects.

5. What customization service does Winideatech offer?
Full customization, including the module dimensions, lenses and other functions.

6. What lens options do you have?
We have the normal M12 lens and we can match the other lenses according to your requirements.

7. What operating system do your camera modules request?
Our camera modules support Windows, Mac, Android and Linux systems.

8. Which software do your USB camera modules support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS, AMCAP, Webcam Viewer, etc.
