Product Overview

Description




HBTS diesel /electric hydraulic mini
concrete pump for sale
The Concrete Pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on.
HBS/JBS series concrete pump adopt electric motor for power source, and HBTS/JBTS series pump adopt diesel engine for power source.
HBTS/JBTS type concrete pump was specially designed for the construction project which can't supply steady electric power source. Such as out of town, on the mountain, etc.


Product Description










Product Specification


Model
HBS/HBTS 40
HBS/HBTS50
HBS/HBTS60
HBS/HBTS80
Max. Theoretic capacity
m3/h
40
50
60
80
Max, Theoretic pressure
Mpa
10
12
12.5
15.7
Motor/Diesel engine power
kw
45/66
55/84
90/129
110/176
Max. Theoretic distance
Vertical
m
120
150
200
250
Horizontal
m
250
300
500
800
Disribution valve type
--
S valve
Hydraulic oil circuit type
--
Oper Circuit
Specification of concrete cylinder
mm
Ø160x1000
Ø180x1200
Ø200x1800
Ø200x1800
Specification of main oil cylinder
mm
Ø100x1000
Ø125x1200
Ø140x1800
Ø140x1800
Oil tank capacity
L
300
300
420
420
Hopper capacity
L
600
600
600
600
Max. Aggregate diameter
mm
Slick scree: 30、
Scree: 20
Slick scree: 40、
Scree: 30
Slick scree: 50、Scree: 40
Dimension (LxWxH)
mm
4500×1750×1600
4800×1800×1650
5800×2000×1750
5800×2000×1800
Overall weight
kg
3200
3500
5500
5800
pulling speed
km/h
≤8


Product Details










You May Like

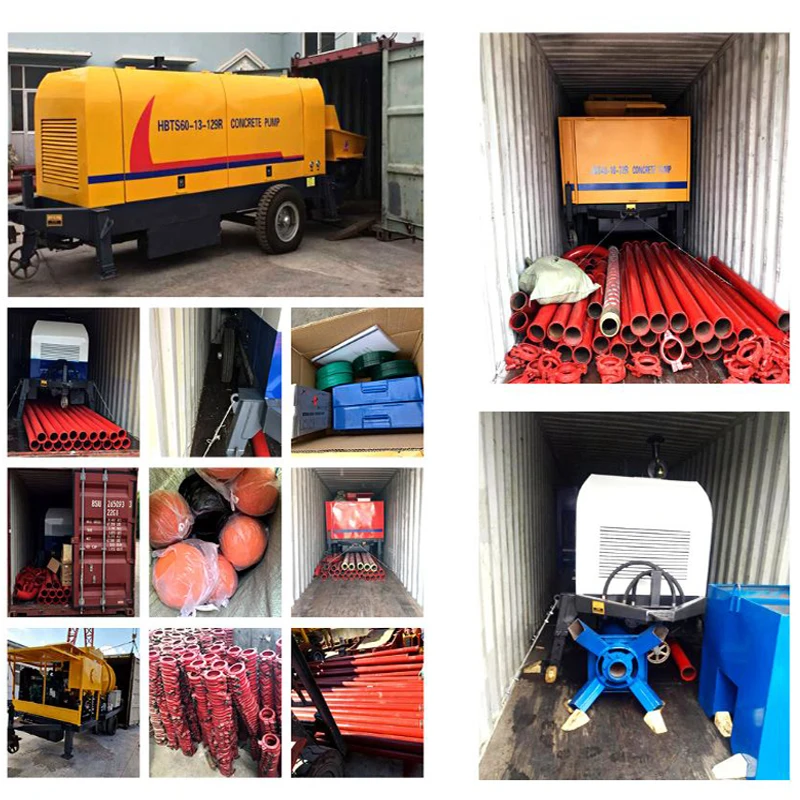

Successful Projict& Shipping




VR


Certifications


ISO9001
CE


Company Profile


HENAN HENGYUAN CO.,LTD
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete mixer, concrete batching plant, concrete pump,concrete mixer pump, concrete pump truck, asphalt mixing plant and the related spare parts.
We are located in zhengzhou city, henan province.Our Associated factory is also located in Xingyang, Zhengzhou city, which is founded in 1999.All our products are passed the ISO9001 and our concrete batching plant passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, our main market including Europe, Uzbekistan, Russia, Philippine, Malaysia, Brazil, Pakistan, Middle east and Africa. We are equipped with the CNC cutting machine, robot welding machine. Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.






FAQ


Q1:Are you original manufacture?
A:Yes, We are factory and a professional manufacture of concrete batching plant and concrete mixer and we have the whole series products you need.
Q2:What about the warranty time?
A:18 months.
Q3:What about the delivery time?
A:10-15 days after receving the deposit.
Q4:Do you supply after-sale service?
A: Yes,we have a professional service team that can solve problems ASAP on site or on line.
Q5:Can I visit your factory?
A:Yes. welcome to your visiting or on line any time when you are convenient.
