Aluminium Foil Container Manufacturing Machine
- Category: >>>
- Supplier: Dongguan Hongstar Intelligent Technology Co. Ltd.
Share on (1600601794380):
Product Overview
Description
Product Description
Product Paramenters
Components of Aluminum Foil Container Making Machine
1, Decoiler with tensioning device
2, Servo Feeder with Lubrication System
3, Pneumatic Punching Machine
4, Aluminum Foil Container Stamping mould
5, Finished Products Conveyor
6, Auto-Stacker
7, Scrap Collector with sound eliminator
8, Electrical Control System & Pneumatic System
Production Steps:

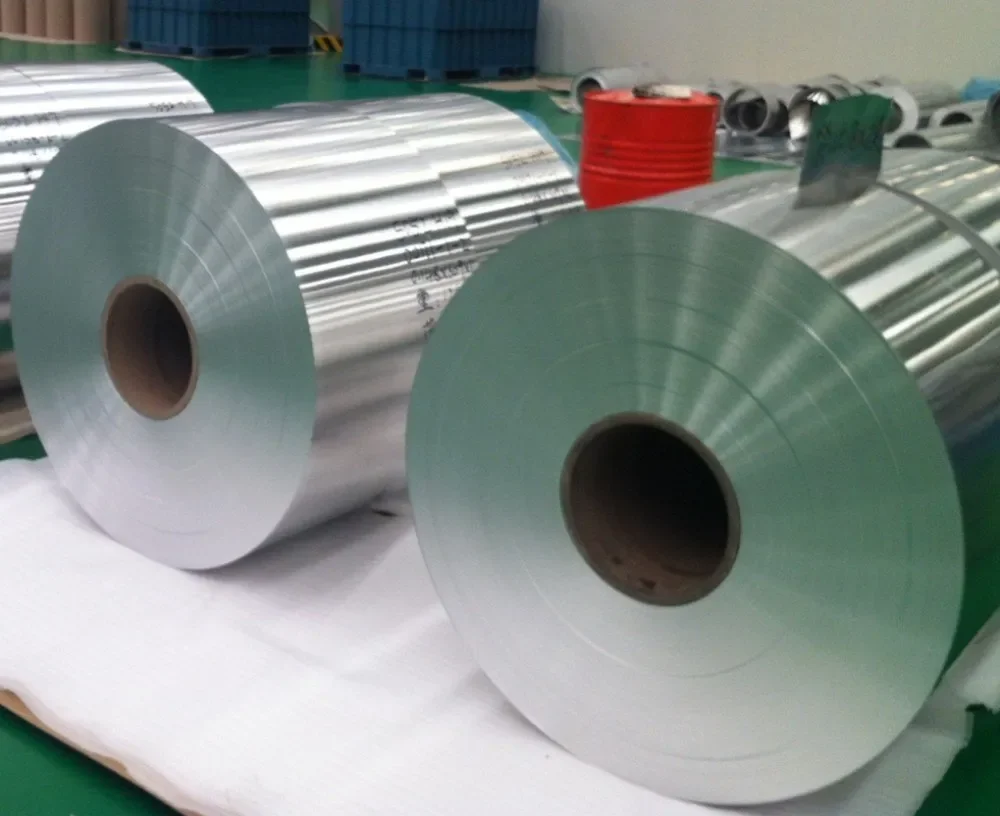

-Decoiling Aluminum Foil Coil
-Lubricating material
-Feeding material
-Punching by the press
-Transfer the finished product by conveyor
-Collecting finished product by the auto-stacker
-Collecting scrap by the scrap collector
Main Features:
1.The Aluminum Foil Container Making Machine is controlled by PLC system automatically and high precision, the feeding length, producing speed and other parameter are easily set, can save labor cost and with high production efficiency.
2, Decoiling, Lubricating, Feeding, punching, stacking, scrap collecting are integrated and controlled by PLC automatically.
2, Decoiling, Lubricating, Feeding, punching, stacking, scrap collecting are integrated and controlled by PLC automatically.
3,High accuracy and reliability press, the punching machine adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press.
3.Customization is available as per products size/production output/products design etc.
3.Customization is available as per products size/production output/products design etc.
Details Images

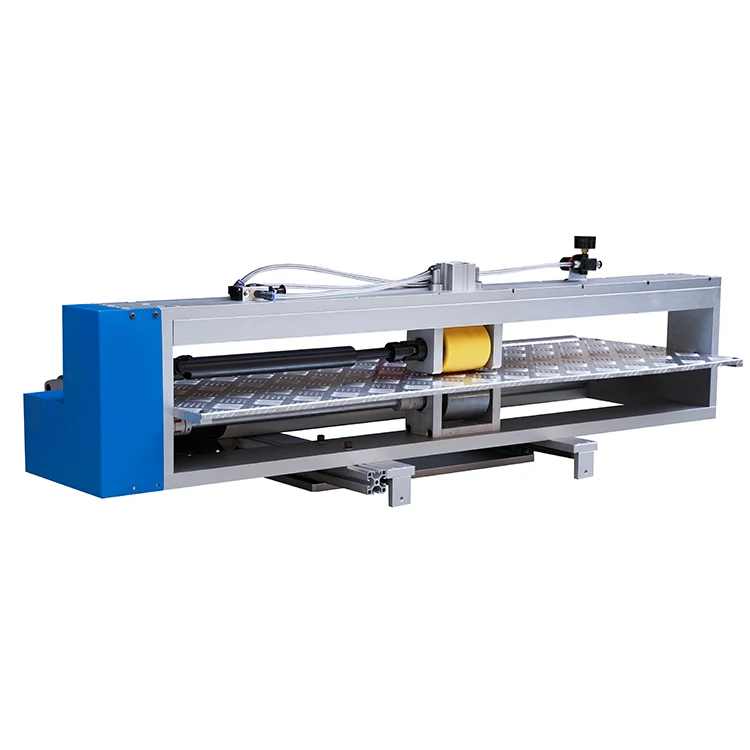

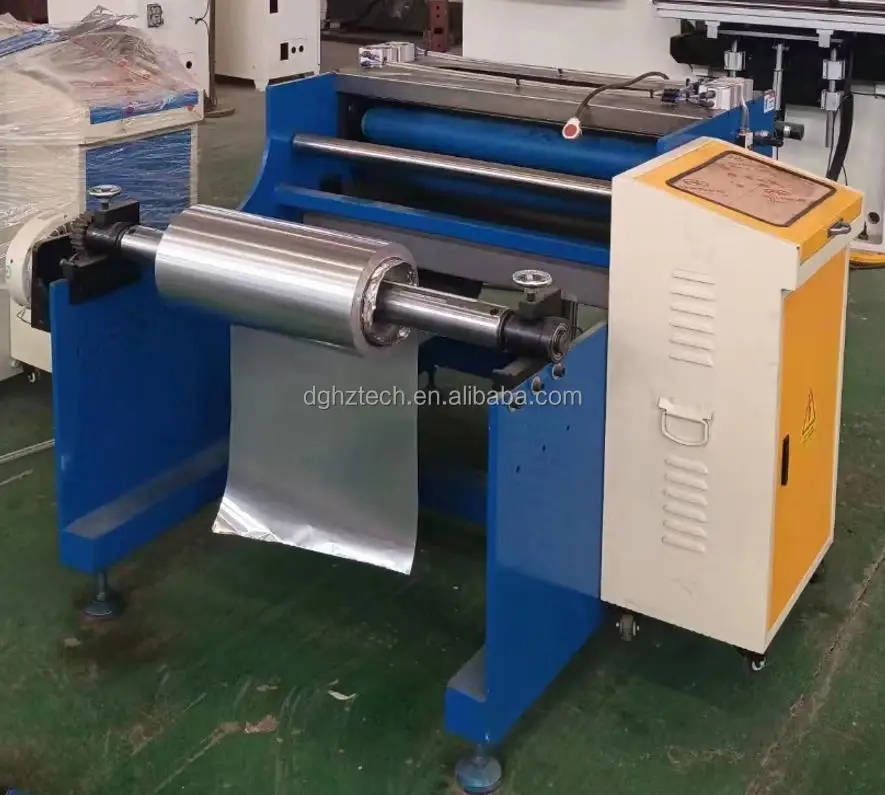

Decoiler with tensioning device

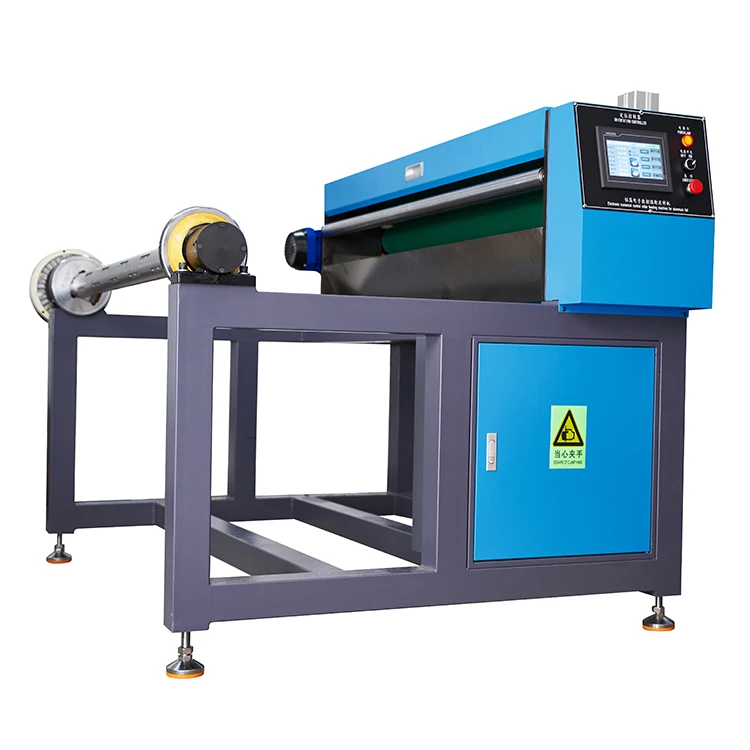

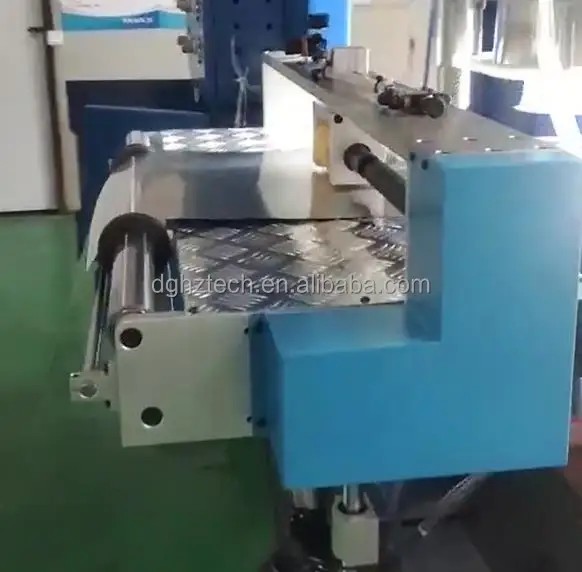

Servo Feeding with lubrication
1, Servo motor and driver to feeding material, feeding length can be fixed and adjusted.
2, PLC and HMI to control the feeding with high precision.
3, with lubrication for material oiling.
Model | HZC-600 | HZC-900 | HZC-1100 | HZC-1300 |
Max.Width of Roll (mm) | 600 | 900 | 1100 | 1300 |
Max.Unwind Roll Diameter(mm) | φ600 | φ600 | φ600 | φ600 |
Feeding Speed (m/min) | 0-35 | 0-35 | 0-35 | 0-35 |
Feeding Length (mm) | 20-999 | 20-999 | 20-999 | 20-999 |
Feeding Accuracy (mm) | ±0.3 | ±0.3 | ±0.3 | ±0.3 |

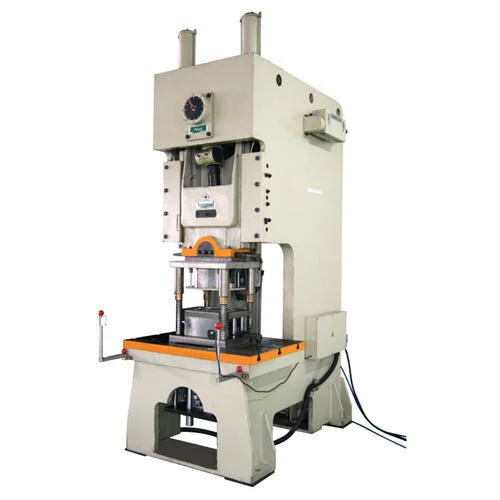

High Precision Pneumatic Punching Machine
1.Auto Lubrication
2.High Precision Rails
3.Air Brake Clutch
4.Mechanical Cam
5.Safe Light Curtain
2.High Precision Rails
3.Air Brake Clutch
4.Mechanical Cam
5.Safe Light Curtain
Model | JF21-45 | JF21-63 | JF21-80 | JF21-110 |
Nominal Pressure (KN) | 450 | 630 | 800 | 1100 |
Slide Block Strok (mm) | 100-260mm | 120-260mm | 140-260mm | 150-260mm |
Slide Stroke Per Minutes (/min) | 70-50 | 70-50 | 60-45 | 50-40 |
Maximum Die Set Height (mm) | 270-400 | 310-450 | 325-450 | 345-500 |

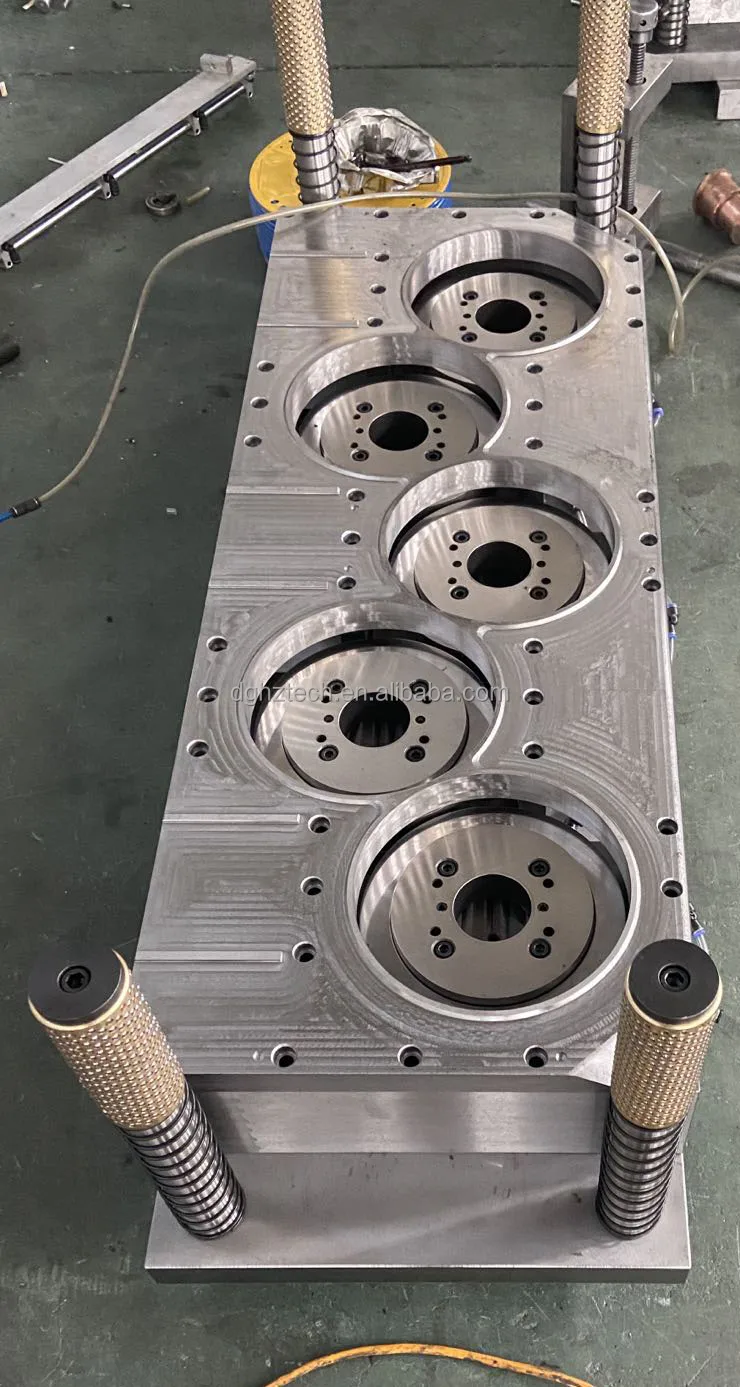

Aluminum Foil Container Stamping Mould
Mold Material mold carrier and mold core DC53#
steel pruning wound SKD -11
steel pruning wound SKD -11
Finished Products Conveyor
1.With frequency control speed adjustment
2, With auto-counting function
3, With anti-collision function
4, Can connect production line linkage or single use

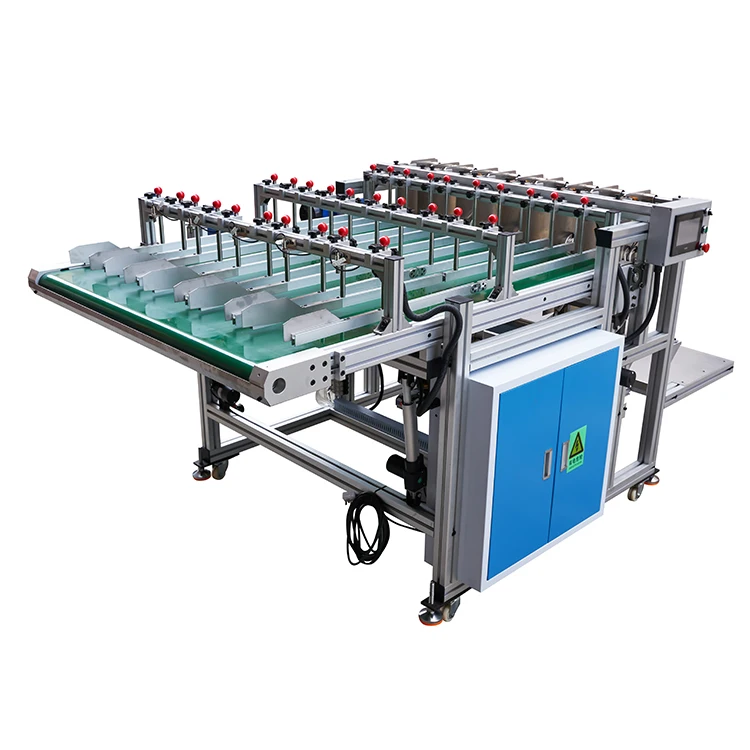

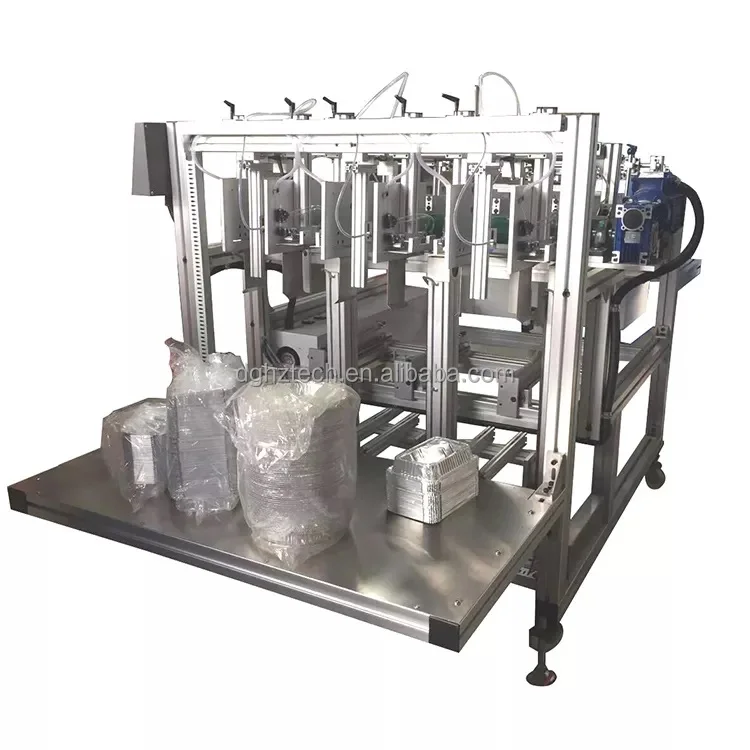

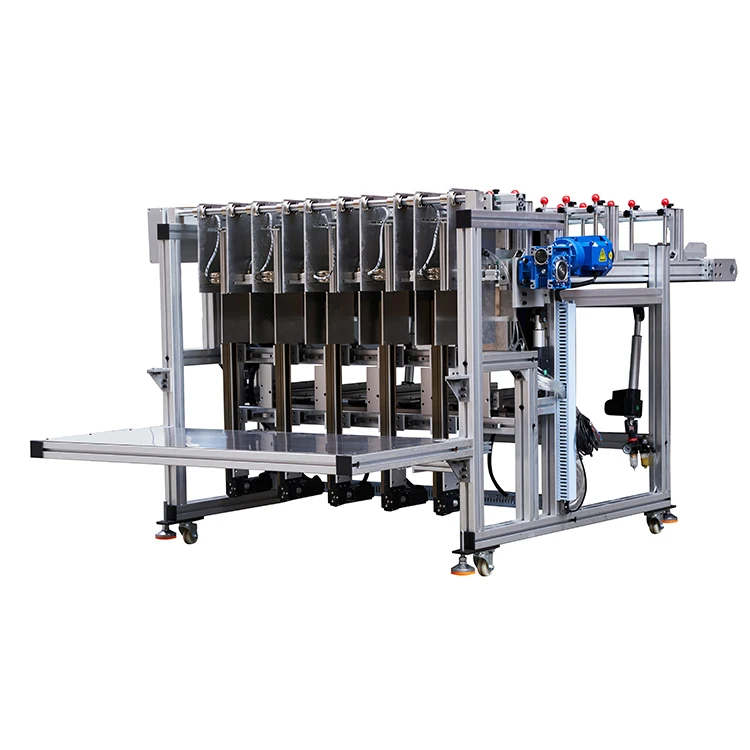

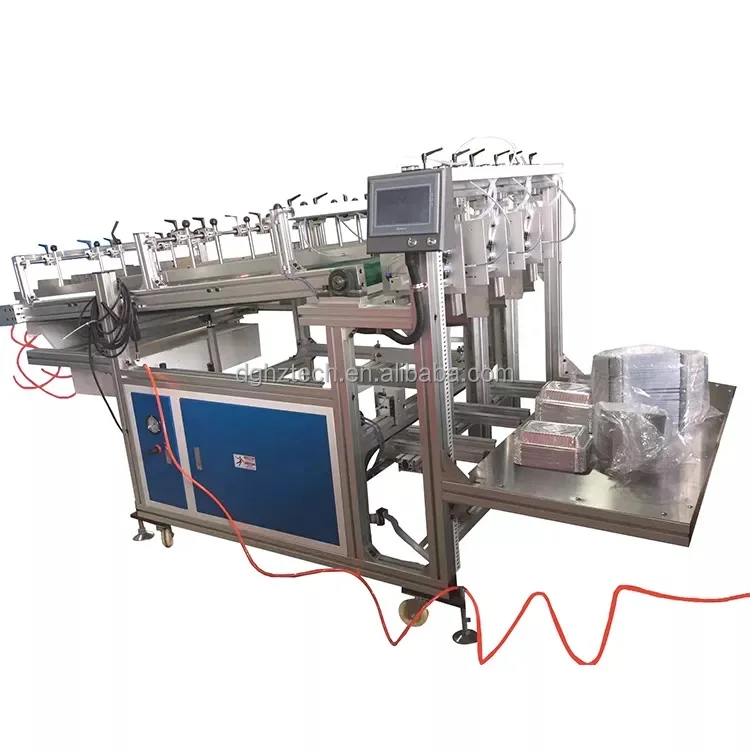

Auto-Stacker
1.Controlled by touch screen and PLC
2.Lifting Stacker adopt stepper and ball crew table
3.Stacking use PLC control quantity
4.Air operated control table cut off
2.Lifting Stacker adopt stepper and ball crew table
3.Stacking use PLC control quantity
4.Air operated control table cut off

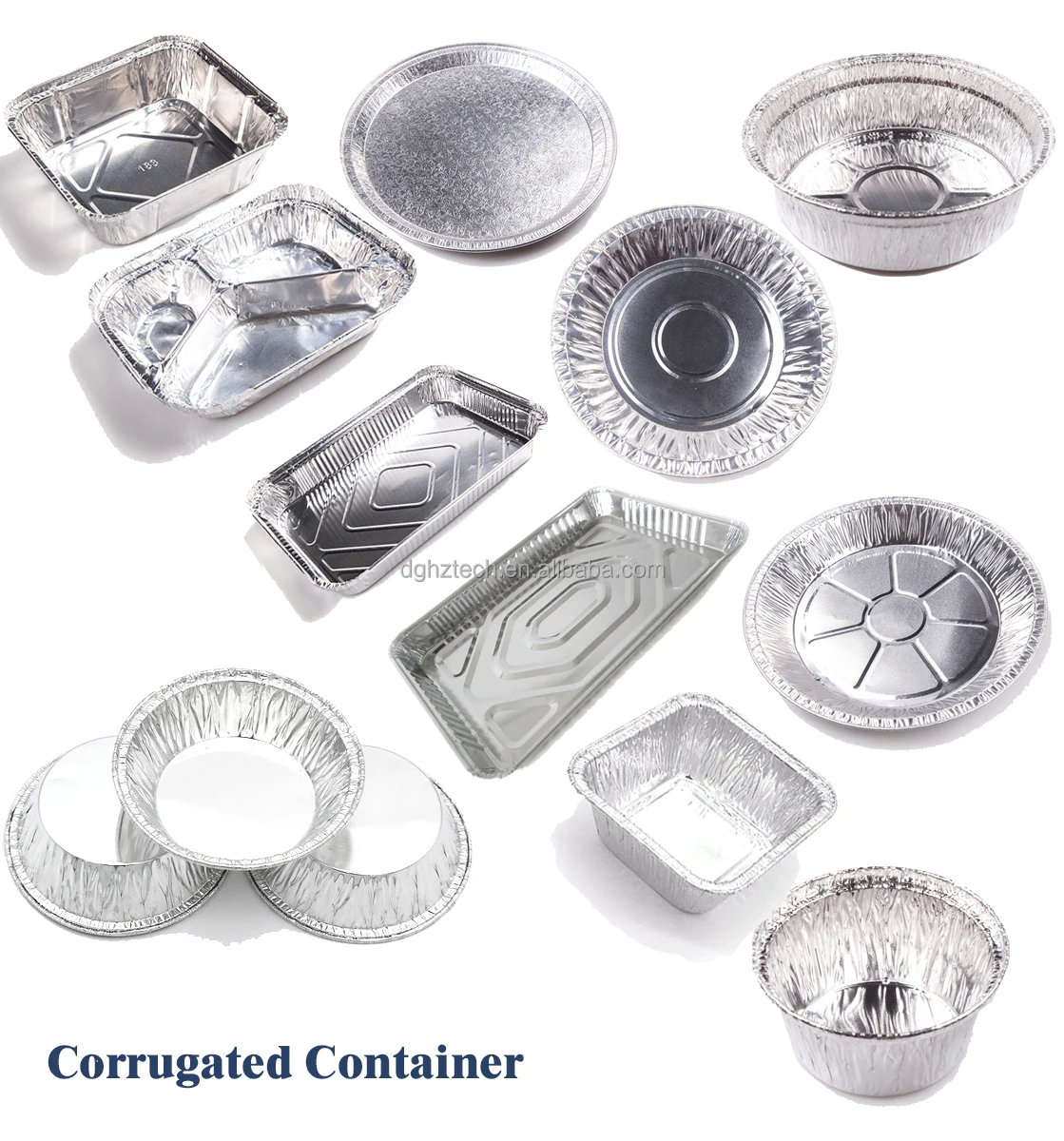

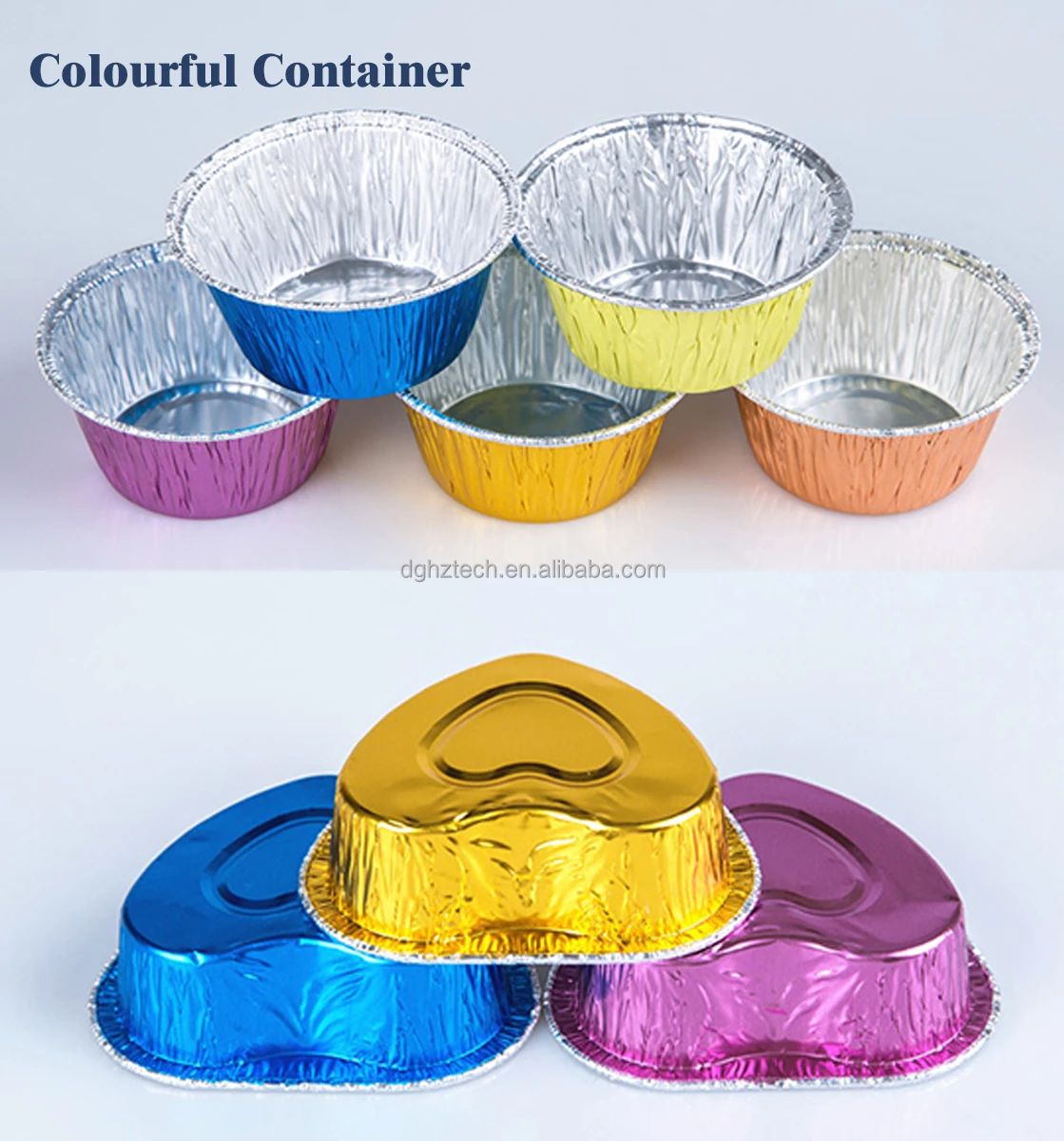

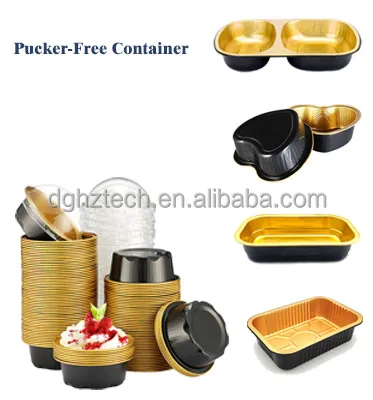

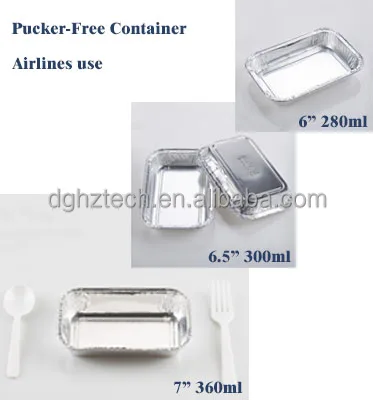

Finished Products
Packing & Delivery
The normal package is optionalwooden box(Size: L*W*H). If specially request,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q1: Are you trader or manufacturer?
A: We are manufacturer and have our own factory.
Q2: How many days do your delivery time?
A: It's usually 10-30 days.
Q3: What's your payment terms?
A: T/T,L/C ,Paypal,Western Union.
Q4: How to purchase the raw material!
A: We can help and order it in the beginning.
Q5: What's your warranty?
A: 1 years and have lifetime after-sales service.
Q6:How to install the machine!
A: We will send our engineers to your factory installing and adjusting it, and training your workers.
A: We are manufacturer and have our own factory.
Q2: How many days do your delivery time?
A: It's usually 10-30 days.
Q3: What's your payment terms?
A: T/T,L/C ,Paypal,Western Union.
Q4: How to purchase the raw material!
A: We can help and order it in the beginning.
Q5: What's your warranty?
A: 1 years and have lifetime after-sales service.
Q6:How to install the machine!
A: We will send our engineers to your factory installing and adjusting it, and training your workers.
