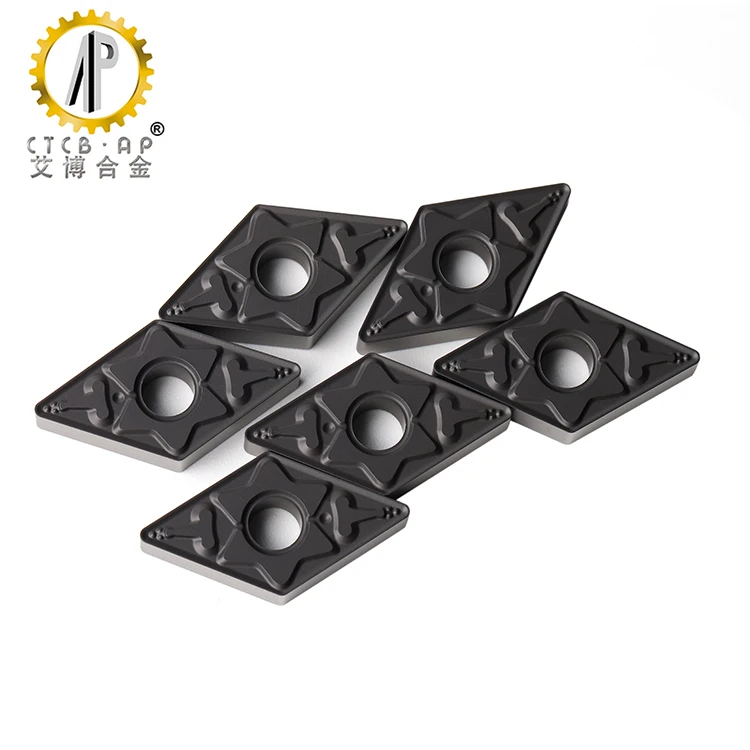

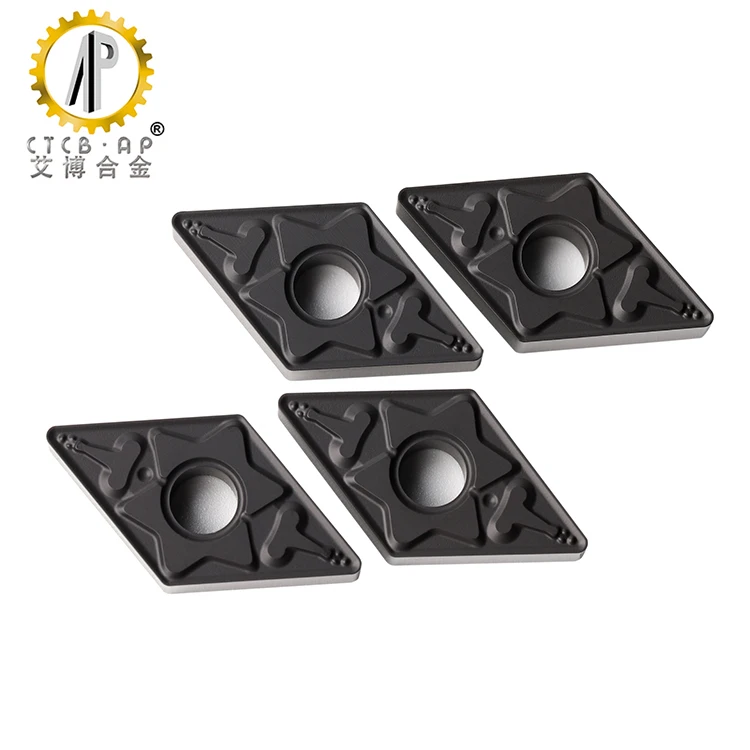

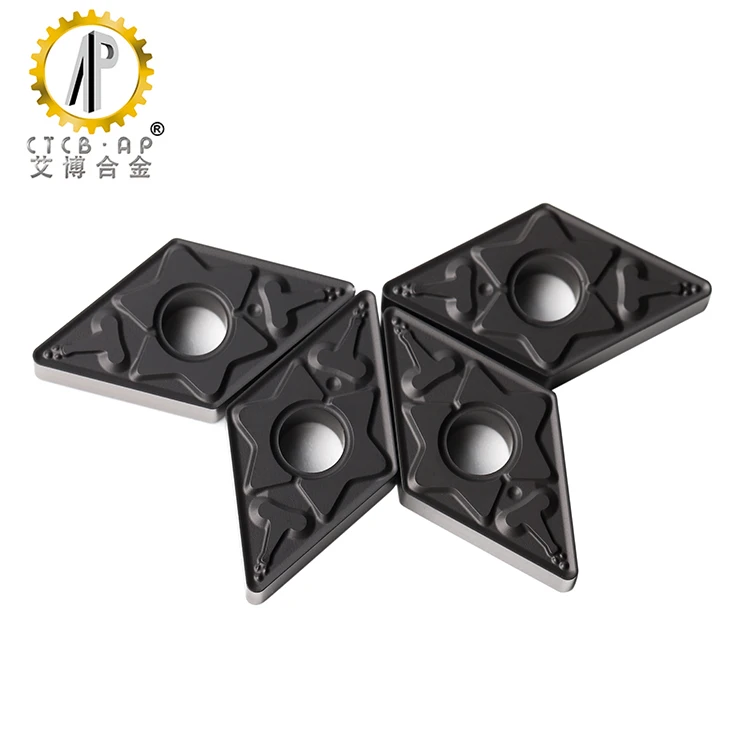

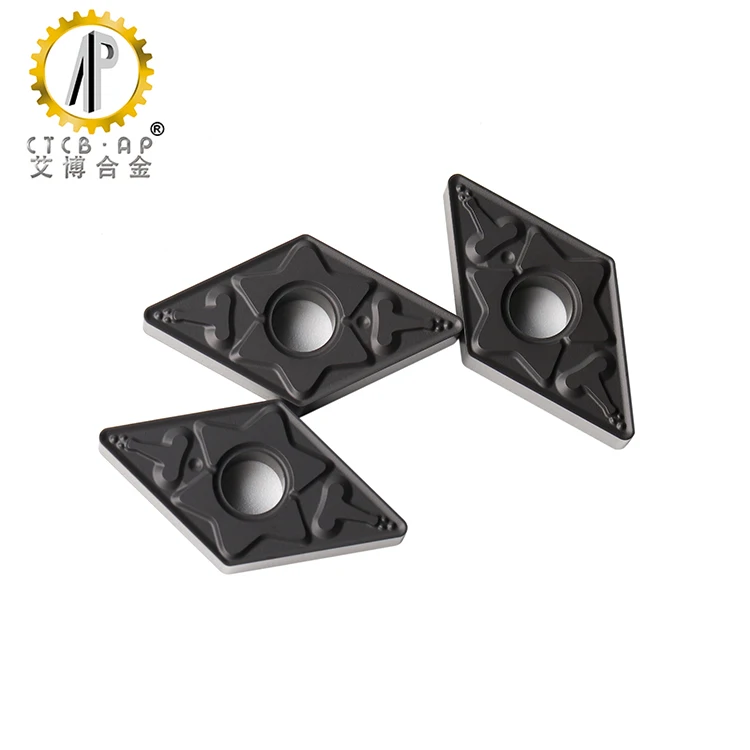

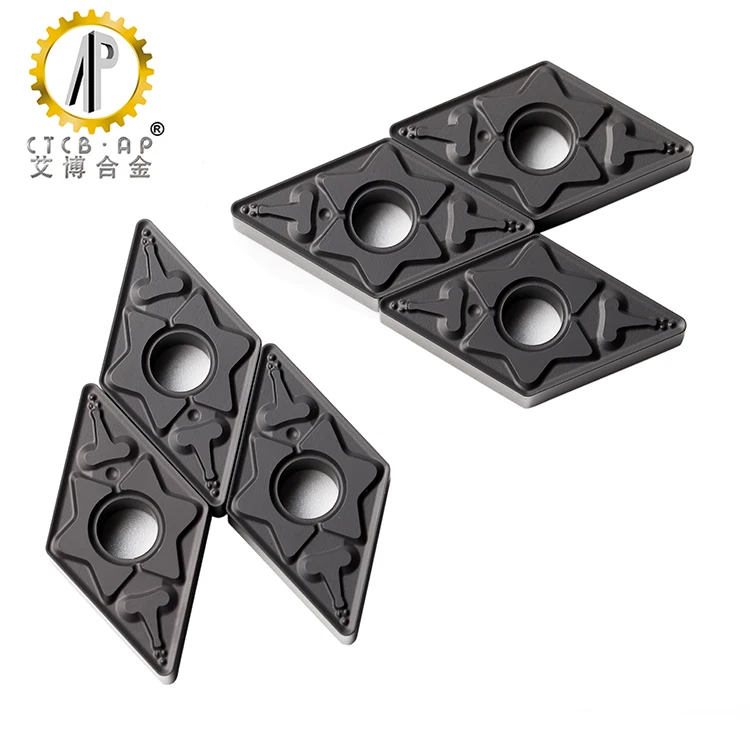

DNMG150412 Cemented Carbide Insert Manufacture Tungsten Carbide Insert Turning Tool Inserts
- Category: >>>
- Supplier: Zhuzhou Apple Carbide Tools Co. Ltd.
Share on (1600601824609):
Product Overview
Description
Product Overview
DNMG150412 Cemented Carbide Insert Manufacturer Tungsten Carbide Insert Turning Tool Inserts
FEATURES AT A GLANCE
1. CVD coating offers superior wear resistance.
2. WM chipbreaker has a good chip removal which offers long tool life at high cutting data.
3. Super high hardness and impact resistance.4. Less tool breakage.
Factory production video:
PRODUCT SPECIFICATIONS
DNMG150412-WM | ||||||||

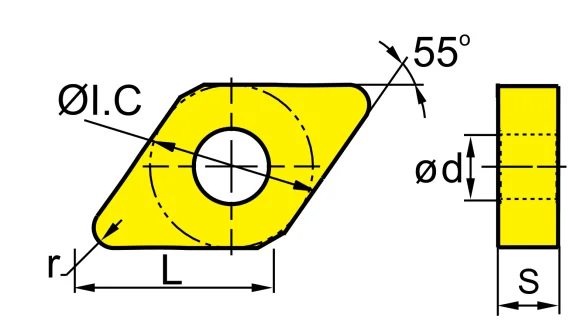

L | I.C | d | S | r | ||||
15.5 | 12.7 | 5.16 | 4.76 | 1.2 | ||||
Working parameters | ||||||||
Vc | 180(160-300)m/min | |||||||
Fn | 0.2(0.15-0.3)mm/r | |||||||
Ap | 2.0(1.0-3.0)mm | |||||||

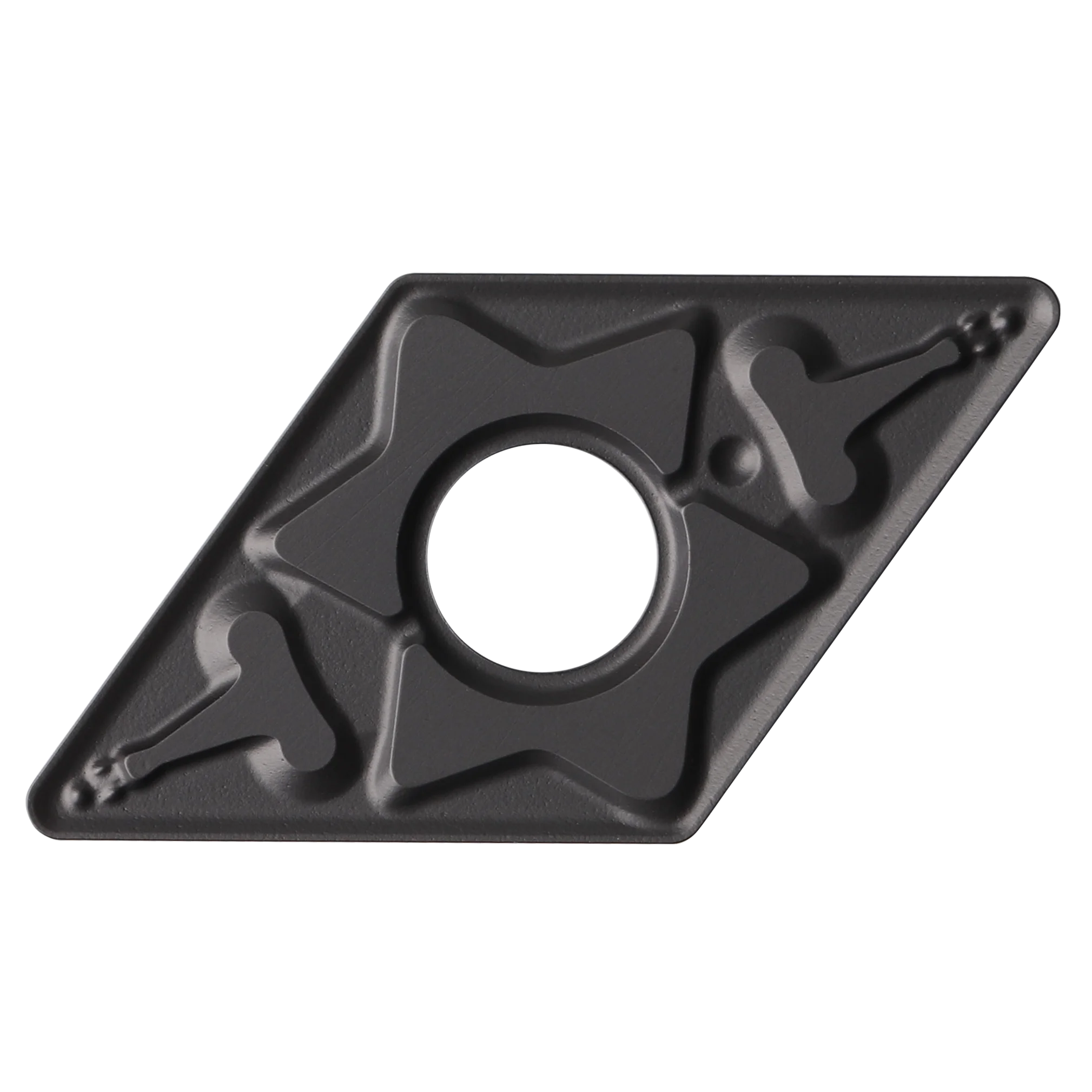

WM chipbreaker introduction
WM chipbreaker with small cutting force and has a large chip removing range, high efficiency for machining highly adhesive alloy steel.
Grade information
Grade | Coating type | Application | ||||
YC331 | CVD coating | The first choice for steel machining | ||||
SIMILAR PRODUCTS

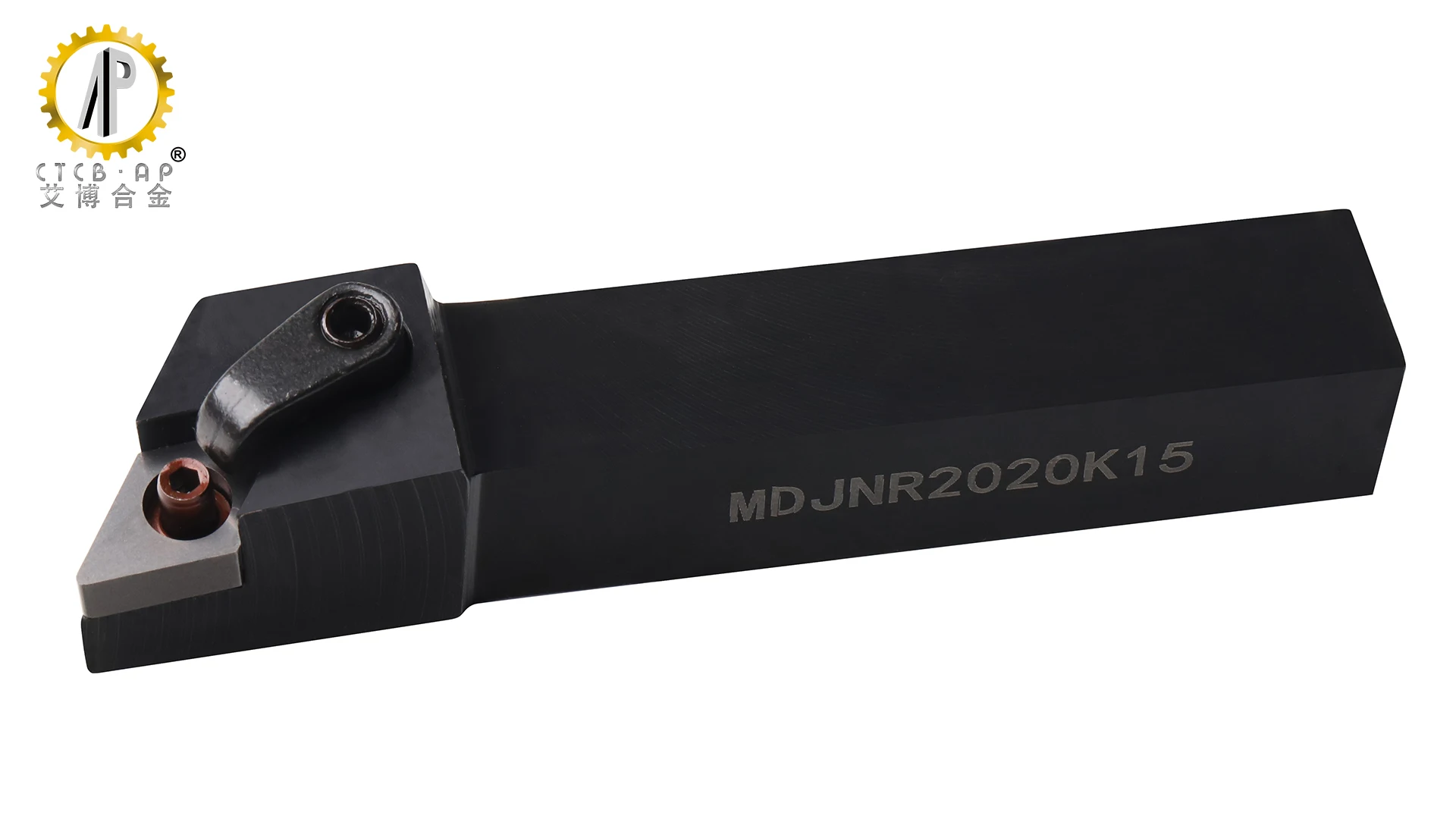

Tool holders for DNMG inserts are available, any models you need please feel free to contact us:
SALES AND SERVICE NETWORK

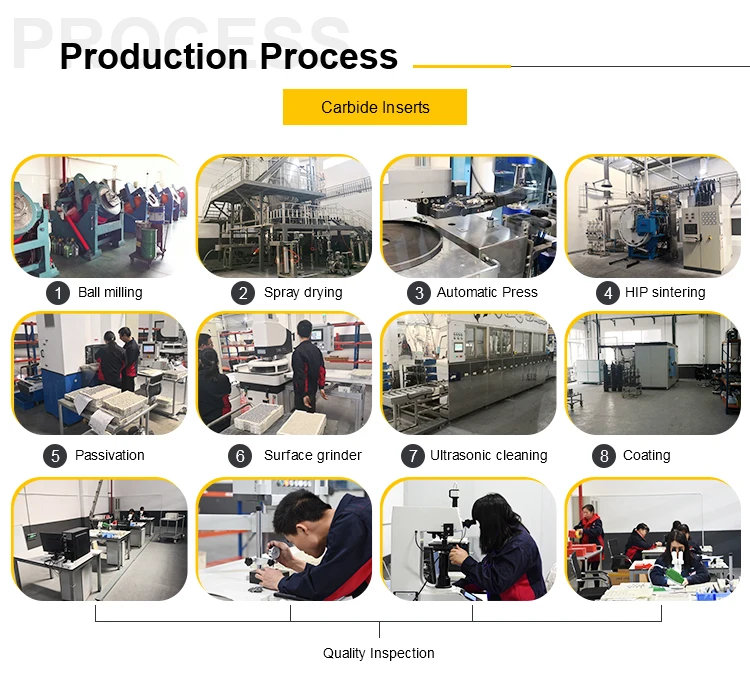

Production equipment
Certificates
