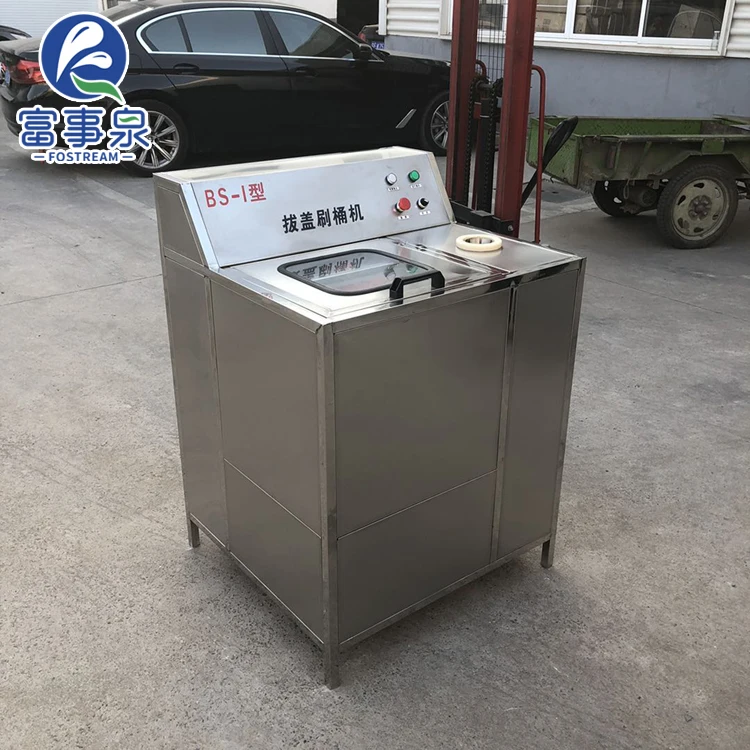

BS 1 Manual Type 5 Gallon Bottle Washer Barrel Rinser With Inner Brush
- Category: >>>
- Supplier: Guangdong First Intelligent Drinking Water Equipment Co. Ltd.
Share on (1600601896198):
Product Overview
Description
Products Description
5 Gallon Decapper and Waher Machine is used for pre-washing and cap removing of 5 gallon recovery plastic bottles. It is mainly used for 3 or 5 gallon bottle water filling line.
How to work？
1.put the empty bottle mouth into the cap remover,step the pedal then remove the cap.
2.put the empty bottle into the brush washing machine about 20 seconds,then get the bottle out.
2.put the empty bottle into the brush washing machine about 20 seconds,then get the bottle out.
Install instruction.
Before leaving factory,we already testing the machines,all the air circuit and partsare tested,you only need to connect the inlet air source pipe and the air source then it can be used.
Using this Dictionary
1.put the empty bottle mouth into the cap remover,use a little pressure to press this bottle then make it fix on the clamp.
2.use foot step the pedal,the cap will be removed by the clamp.
3.loose the pedal,the cylinder will goes up,and the clamp will also loose,the bottle can be get out by hand.
4.if the cap cannot be remove,u can step the pedal continuous.
5.put the empty bottle into the brush washing machine,then close the door,it can automatically working,after 10 seconds,you can open the door,and get out the bottle,no need to turn off the button.
2.use foot step the pedal,the cap will be removed by the clamp.
3.loose the pedal,the cylinder will goes up,and the clamp will also loose,the bottle can be get out by hand.
4.if the cap cannot be remove,u can step the pedal continuous.
5.put the empty bottle into the brush washing machine,then close the door,it can automatically working,after 10 seconds,you can open the door,and get out the bottle,no need to turn off the button.
How to maintain?
1.after a period of time ,the clamp will not as tension as before.so,you should use outside force to make the clamp open up.and let it recover the tension.(if necessary please get out the clamp )
2.if sometimes the cap not remove very well.most of the problem is the screw which fasten the screw stem on the cylinder become loosen.you should fasten the screw .
3.if the cylinder up and down and the clamp open and close function are correct but it’s hard to remove the cap, there are 2 reasons,first 1.maybe the neck of the bottle very small,secondly,maybe the inside of the bottle shaft abrasion too much,you should contact with us.
2.if sometimes the cap not remove very well.most of the problem is the screw which fasten the screw stem on the cylinder become loosen.you should fasten the screw .
3.if the cylinder up and down and the clamp open and close function are correct but it’s hard to remove the cap, there are 2 reasons,first 1.maybe the neck of the bottle very small,secondly,maybe the inside of the bottle shaft abrasion too much,you should contact with us.
Main Technical Parameters
Model | BS-1 |
Brushing Capacity | 80-100B/H |
Barrel Size | 3 to 5 Gallon |
Material | Stainless steel 304 |
Air Pressure | 0.5Mpa |
Water Consumption | 100LPH |
Voltage | 110V, 220V, 380V |
Power | 1.1KW |
Package Dimensions | 900*850*1200 mm |
Weight | 120KG |

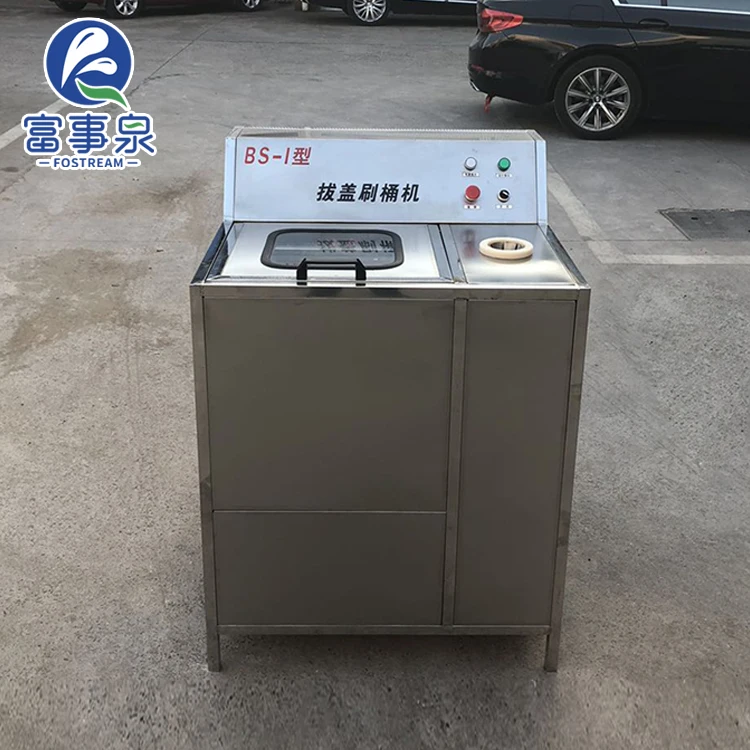

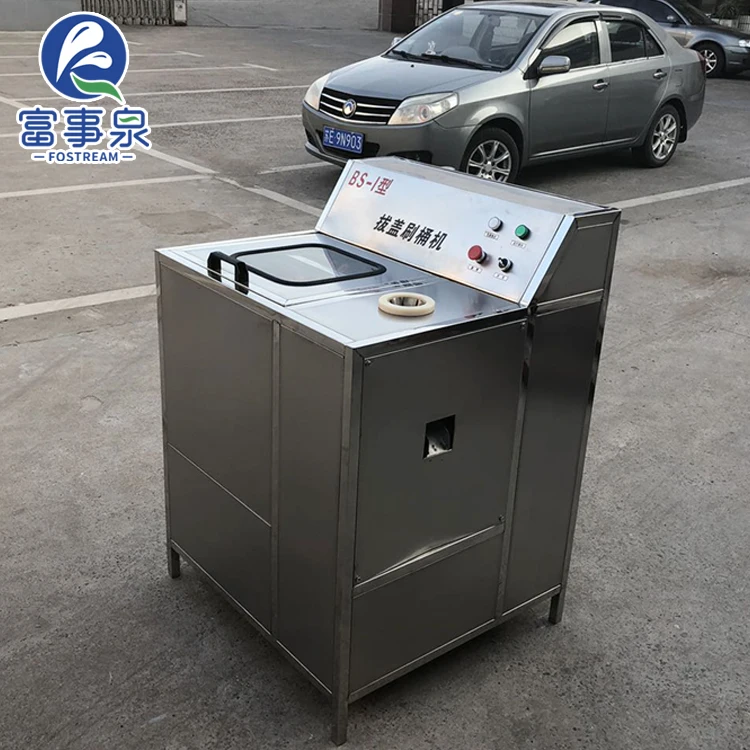

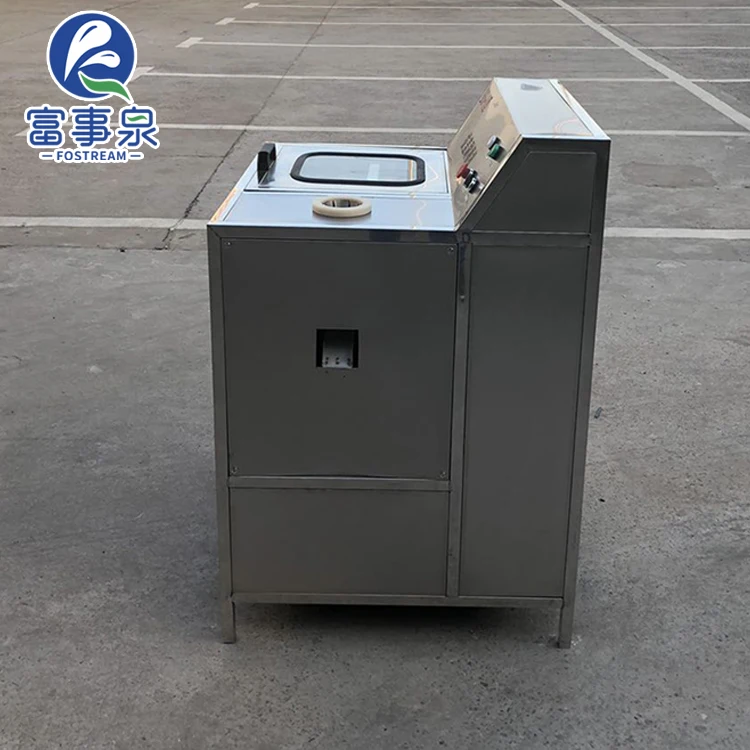

Details Images
Real Scene Shoots
18 Years Alibaba Verified Gold Supplier.
28 Years Production Experience.
28 Years Production Experience.
122 Online Transactions Completed.
12500 Square Meters Standard Factory.
304000 USD Alibaba Trade Assurance.
1304320 USD Online Transaction Volume.
304000 USD Alibaba Trade Assurance.
1304320 USD Online Transaction Volume.
7800000 Yuan RMB Registered Capital.
Transaction History Verified

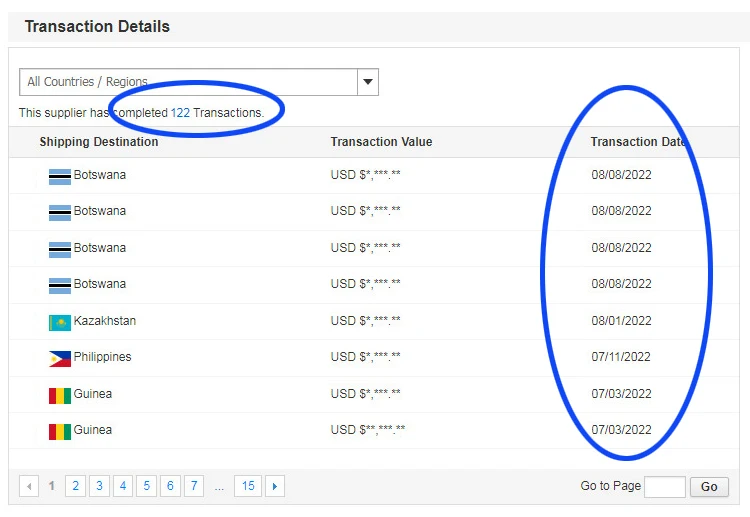

Transaction Details
Our products are sold well not only in domestic, but also in Chile,Venezuela,Egypt,Peru,Maldives,United States,Brunei
Darussalam,Saudi Arabia,Kenya,Panama,Cambodia,Bhutan,Bolivia,Bulgaria,Nicaragua,Dominican Republic,Somalia,Australia,Switzerland,Mozambique and other countries.
Darussalam,Saudi Arabia,Kenya,Panama,Cambodia,Bhutan,Bolivia,Bulgaria,Nicaragua,Dominican Republic,Somalia,Australia,Switzerland,Mozambique and other countries.
Certification Verified
FAQ
8 professional sales engineers and technicians are waiting for your inquiry.
Q1.Are you a factory or trading company?
A1.We are a professional water treatment equipment manufacturing factory that set up for 25 years.We always pay attention to the development of the industry !.We can give a discount according to the quantity of machine you purchase. (18 years Alibaba Gold supplier)
B1.At the same time,we take effective measures to control the production process for ensuring the quality of products.
Our products are certified.And we can supply SGS, BV, TUV, ISO9001, ISO14001, OHSAS18001, CE certification.
C1,Website: www.fostream.com and www.fostream.com.cn
Website on alibaba: https://jmangel.en.alibaba.com
Q2.Where is your factory located? How can I visit there?
A2:Our factory is located in No.141 plant, Qingnian Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China, All our clients, from home or abroad, are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in RO water treatment machines, small bottle filling machines and 5 gallon filling machines.
Q4: When can I get my machine after I paid?
A4: Normally production time is around 7-25 working days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.
Q5:How long of your warranty?
A5:Regarding warranty, normally we offer 1 year warranty, and we also offer lifetime maintenance.
Q6: Is this machine easy to install? Will you arrange engineer to help me install?
A6: This machine is very easy for install. The machine you received is assembled. You will only need to follow steps on our English instruction and video. If big capacity of machines, we can arrange engineer to help installation.
Q1.Are you a factory or trading company?
A1.We are a professional water treatment equipment manufacturing factory that set up for 25 years.We always pay attention to the development of the industry !.We can give a discount according to the quantity of machine you purchase. (18 years Alibaba Gold supplier)
B1.At the same time,we take effective measures to control the production process for ensuring the quality of products.
Our products are certified.And we can supply SGS, BV, TUV, ISO9001, ISO14001, OHSAS18001, CE certification.
C1,Website: www.fostream.com and www.fostream.com.cn
Website on alibaba: https://jmangel.en.alibaba.com
Q2.Where is your factory located? How can I visit there?
A2:Our factory is located in No.141 plant, Qingnian Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China, All our clients, from home or abroad, are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in RO water treatment machines, small bottle filling machines and 5 gallon filling machines.
Q4: When can I get my machine after I paid?
A4: Normally production time is around 7-25 working days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.
Q5:How long of your warranty?
A5:Regarding warranty, normally we offer 1 year warranty, and we also offer lifetime maintenance.
Q6: Is this machine easy to install? Will you arrange engineer to help me install?
A6: This machine is very easy for install. The machine you received is assembled. You will only need to follow steps on our English instruction and video. If big capacity of machines, we can arrange engineer to help installation.
