Product Overview
Description
Products Description
Product Description
1. By collecting the gas pedal position sensor signal, the rearranged throttle signal is transmitted to the computer to improve the response performance of the engine, thus improving the throttle sensitivity, accelerating the starting speed, improving the instantaneous speed performance of the vehicle, avoiding the sudden forward movement of the vehicle, and avoiding the accumulation of carbon in the engine.
2. With: P1 comfort mode / P2 sport mode / P3 racing mode / NOR original mode / EC fuel-saving mode, etc., except NOR original mode, the rest of the modes have 9 levels of fine-tuning function.
3. Slim 6mm, with iphone USB connector
Specially for car
2. With: P1 comfort mode / P2 sport mode / P3 racing mode / NOR original mode / EC fuel-saving mode, etc., except NOR original mode, the rest of the modes have 9 levels of fine-tuning function.
3. Slim 6mm, with iphone USB connector
Specially for car
Product Parameters

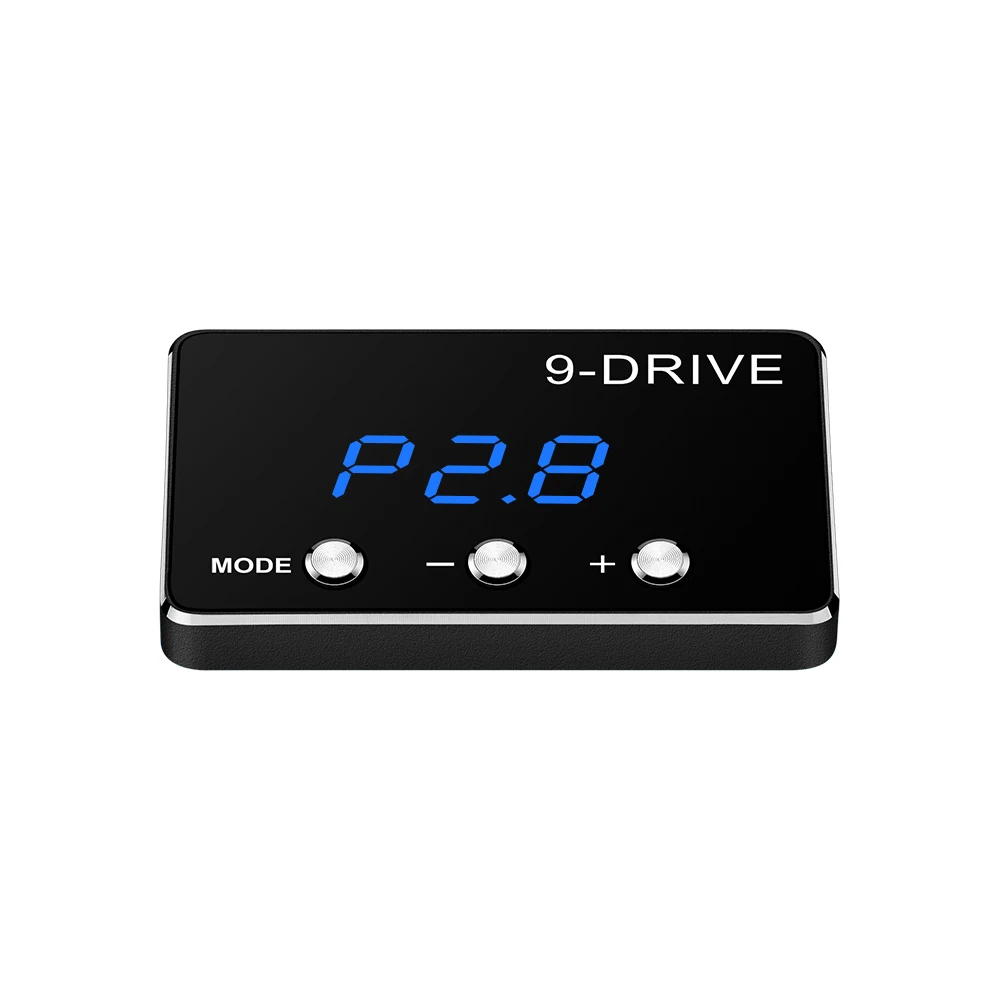

Model | F1 |
Screen size | 2Inch |
Product Size | 55x31x6mm |
Product Box size | 17x12x6cm |
Weight of the whole set | 300g |
Packing quantity | 50pcs |
Packing box size | 68x23x36cm |
Function And Specification
1.The product can improve the car handling ability by control the sensitivity of car throttle controller switch,and adapt to different driving habit and road conditions.

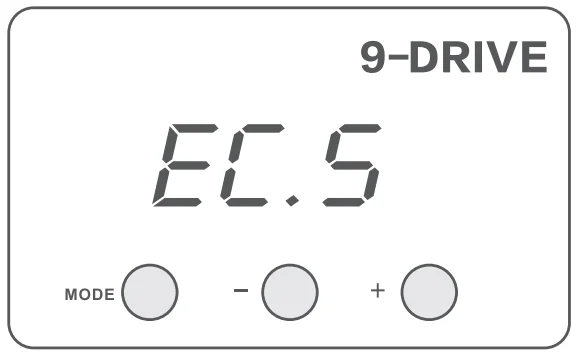

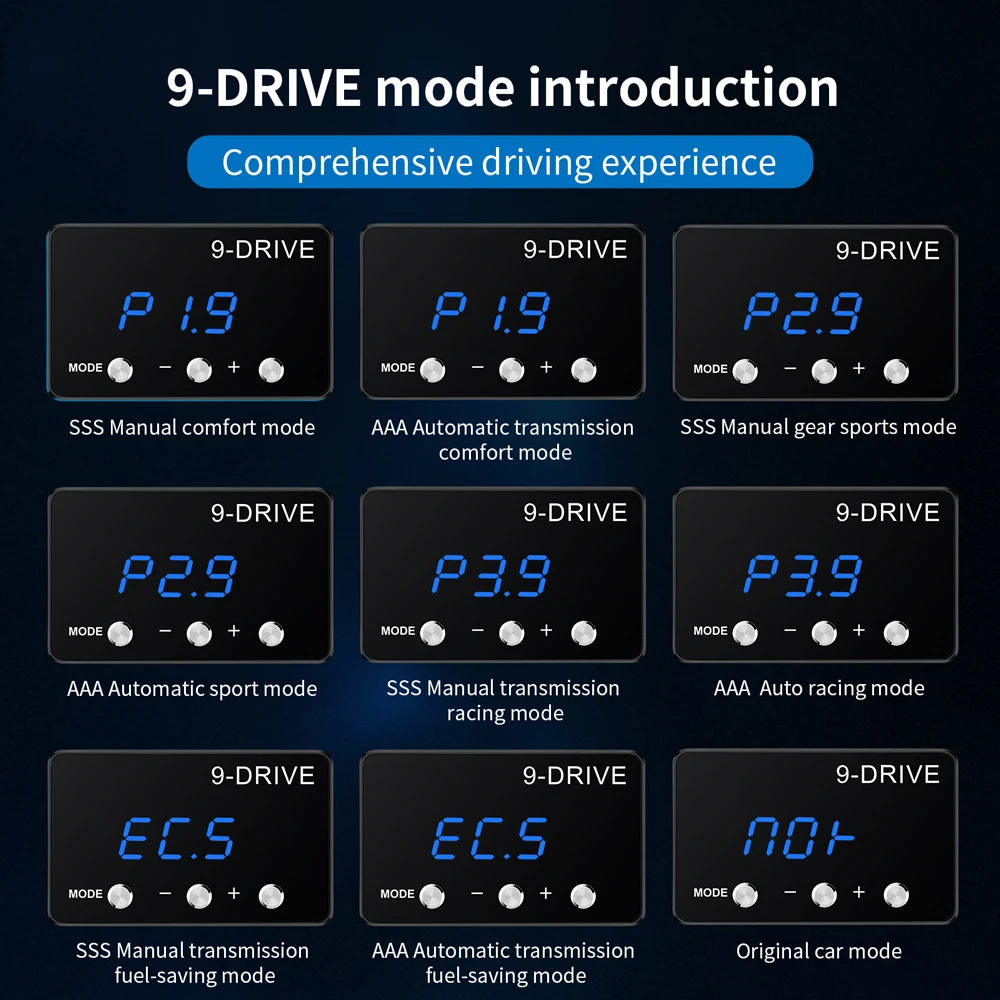

2.there are 5 Modes as below:
P1-Comfortable Mode
P2-Sports Mode
P3-Racing Mode
NOR-Normal Mode
EC-Fuel-efficient Mode
Except the Normal mode, all other modes have 9-level fine-tuning function
3.There are 9 levels ( 1-9) for the acceleration, the acceleration sense from weak to strong is very obvious, and not affect the throttle control capability.
Please note: The factory default setting mode is P2.6
4.This product is suitable for all car models, gasoline, diesel, hybrid oil and electricity, or pure electricity.
2.there are 5 Modes as below:
P1-Comfortable Mode
P2-Sports Mode
P3-Racing Mode
NOR-Normal Mode
EC-Fuel-efficient Mode
Except the Normal mode, all other modes have 9-level fine-tuning function
3.There are 9 levels ( 1-9) for the acceleration, the acceleration sense from weak to strong is very obvious, and not affect the throttle control capability.
Please note: The factory default setting mode is P2.6
4.This product is suitable for all car models, gasoline, diesel, hybrid oil and electricity, or pure electricity.
Installation Instruction

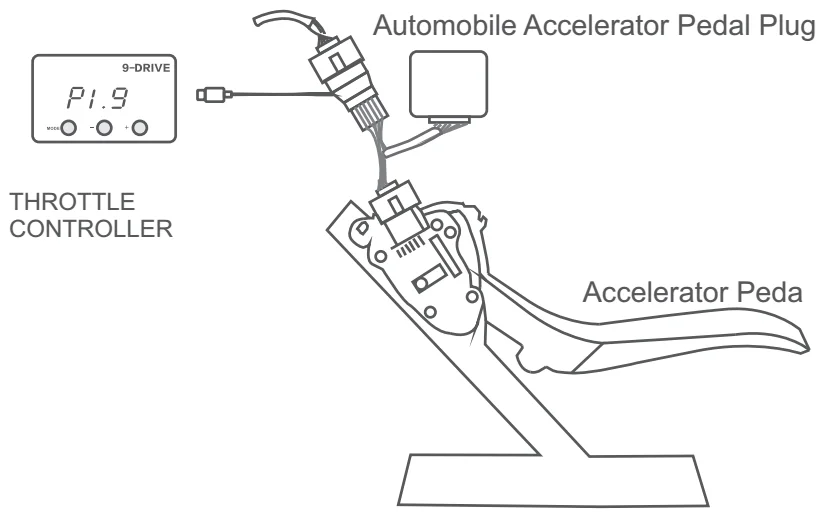

1.Connect the Throttle Controller with the accelerator Pedal interface

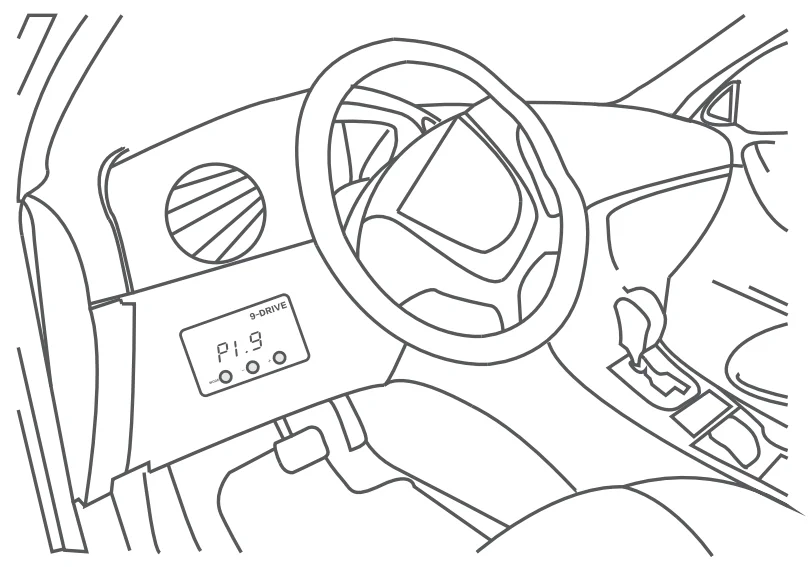

2.Stick the Throttle Controller on central console
3.Connect the plug with the Throttle Controller,bind the wire if necessary.
2.Stick the Throttle Controller on central console
3.Connect the plug with the Throttle Controller,bind the wire if necessary.
Step1:

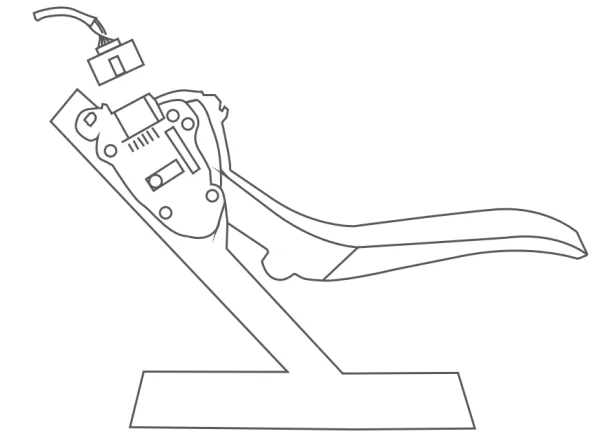

Pull away the interface of the accelerator pedal.Please refer to picture 1
Step2:

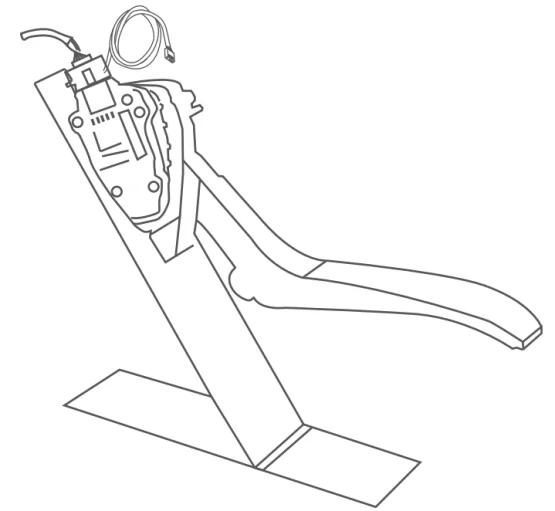

Connect the throttle controller cable plug with accelerator pedal interface .Please refer to picture 2
Step3:
Tear the protection paper on the back of Throttle Controller, and stick it on the central console
Safety Precautions：
1.Before the installation, user need to check the Electronic Throttle Controller plug and accelerator pedal interface, they should be connect properly.
2.After finish installation, please start engine under the Neutral Gear or P Gear,and check the accelerator pedal is work.
3.If install the wrong direction, it will cause the accelerator pedal invalid and the warning light of engine will be on. If in this situation, please don't worry, this products has the internal protection circuit, which will prevent harms to the vehicle parts. Please turn off the engine and disassemble this product.After 2 minutes, install this product in the correct way,then it can work.
2.After finish installation, please start engine under the Neutral Gear or P Gear,and check the accelerator pedal is work.
3.If install the wrong direction, it will cause the accelerator pedal invalid and the warning light of engine will be on. If in this situation, please don't worry, this products has the internal protection circuit, which will prevent harms to the vehicle parts. Please turn off the engine and disassemble this product.After 2 minutes, install this product in the correct way,then it can work.
Troubleshooting:
1.After the device is properly installed, the engine sound becomes loud and the accelerator pedal does not respond.
Turn off the car, remove the key, and start again
2. The power is not obvious or does not respond after normal installation
Device self-learning steps:
1). Connect the line when the car is powered off, and then power on the car but do not start it.
2). Long press the MODE button to enter the setting 8xx mode, and then adjust to 800 by the ‘-’ or ‘+’ button.
3). After the screen shows 800, then press the accelerator to the bottom and then release it
4). Long press the MODE button for more than 5 seconds. After the screen jumps out of the 800 mode, the learning is successful.
3.RPM increased than before, engine fault light also turned on
Remove the accelerator, then start the car seven or eight times. If the fault code has not been removed, it is recommended to use a diagnostic tester to eliminate it.
4.The accelerator cannot stop when the car runs at racing mode P3.1 to P3.9, and the accelerator pedal cannot be stopped.
The racing mode has a very strong effect. We recommend donnot use the racing mode, cause its effect is very strong, it also will increase the fuel consumption,and very hard to control.You must unplug it if out of control.
5.The feeling of engine shake in the 5th gearbox
Check the mode first, if using P2.8 sports mode. You can adjust to P2.1, the effect is too strong and the gearbox cannot respond. (If you don't feel the acceleration under P2.7, it is recommended to use P3.1)
6.After tried all modes, there will be a delay when the vehicle is accelerating rapidly, and if you change the mode during cruise, the RPM will not change.
When accelerating quickly, the gearbox didn’t respond, so it has been stuck there without shifting; this is the car's transmission reaction problem. Please adjust to comfortable mode, don't speed up suddenly.
7.The competitive mode is similar to the original car mode
Check the mode is wrong or not; remove it for a few days and re-install it. If the change is slow, you may get a fuel-saving mode. To avoid adjust wrong mode, it is recommended to read the letters on the manual and re-adjust
Turn off the car, remove the key, and start again
2. The power is not obvious or does not respond after normal installation
Device self-learning steps:
1). Connect the line when the car is powered off, and then power on the car but do not start it.
2). Long press the MODE button to enter the setting 8xx mode, and then adjust to 800 by the ‘-’ or ‘+’ button.
3). After the screen shows 800, then press the accelerator to the bottom and then release it
4). Long press the MODE button for more than 5 seconds. After the screen jumps out of the 800 mode, the learning is successful.
3.RPM increased than before, engine fault light also turned on
Remove the accelerator, then start the car seven or eight times. If the fault code has not been removed, it is recommended to use a diagnostic tester to eliminate it.
4.The accelerator cannot stop when the car runs at racing mode P3.1 to P3.9, and the accelerator pedal cannot be stopped.
The racing mode has a very strong effect. We recommend donnot use the racing mode, cause its effect is very strong, it also will increase the fuel consumption,and very hard to control.You must unplug it if out of control.
5.The feeling of engine shake in the 5th gearbox
Check the mode first, if using P2.8 sports mode. You can adjust to P2.1, the effect is too strong and the gearbox cannot respond. (If you don't feel the acceleration under P2.7, it is recommended to use P3.1)
6.After tried all modes, there will be a delay when the vehicle is accelerating rapidly, and if you change the mode during cruise, the RPM will not change.
When accelerating quickly, the gearbox didn’t respond, so it has been stuck there without shifting; this is the car's transmission reaction problem. Please adjust to comfortable mode, don't speed up suddenly.
7.The competitive mode is similar to the original car mode
Check the mode is wrong or not; remove it for a few days and re-install it. If the change is slow, you may get a fuel-saving mode. To avoid adjust wrong mode, it is recommended to read the letters on the manual and re-adjust

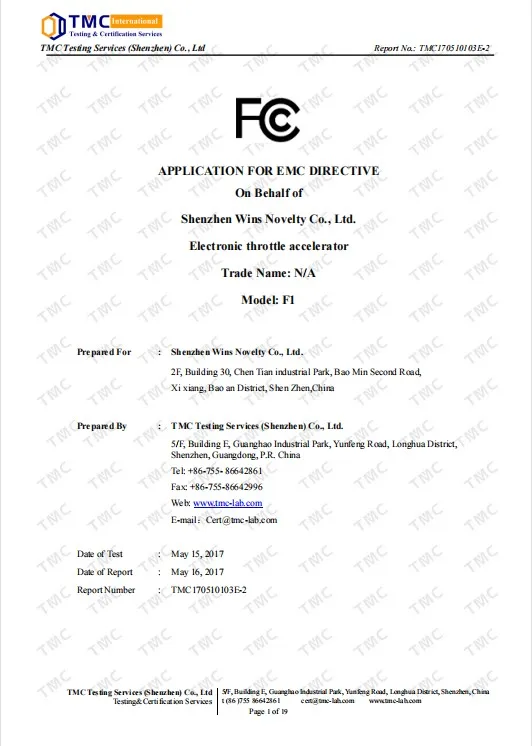

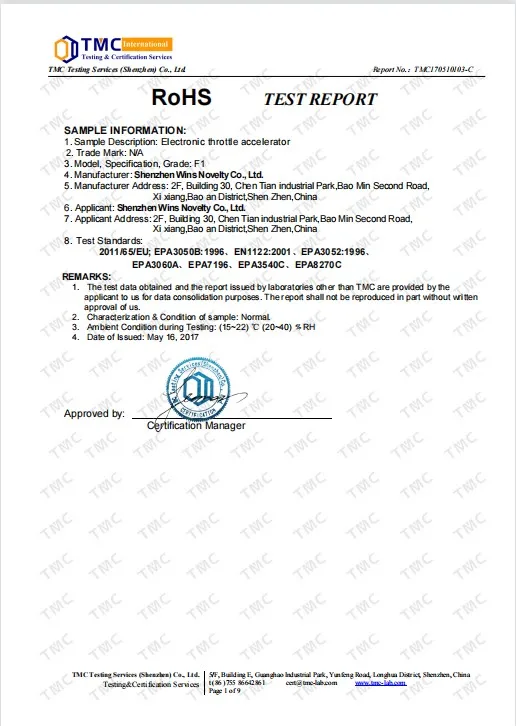

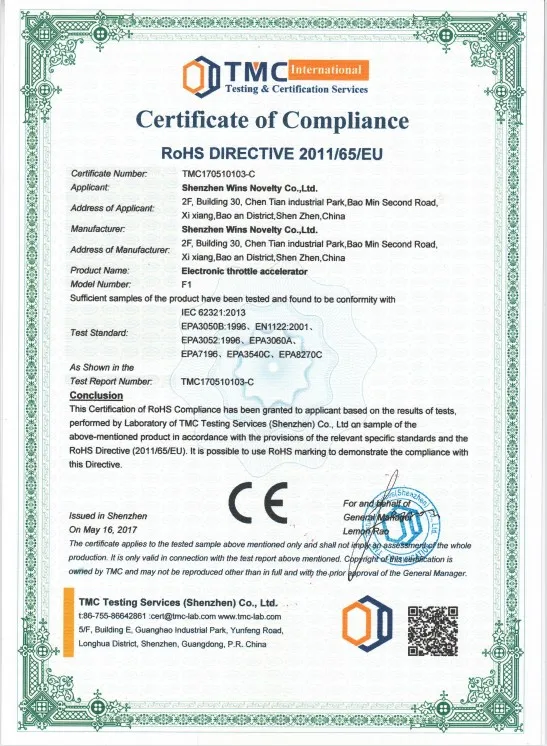

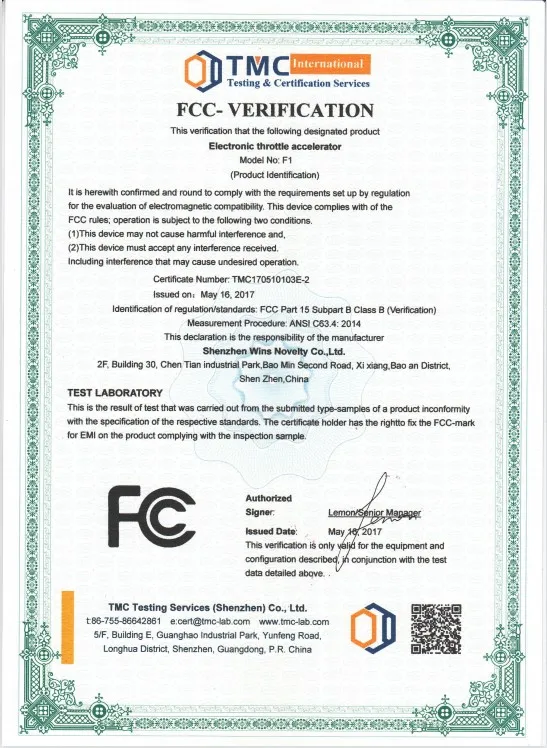

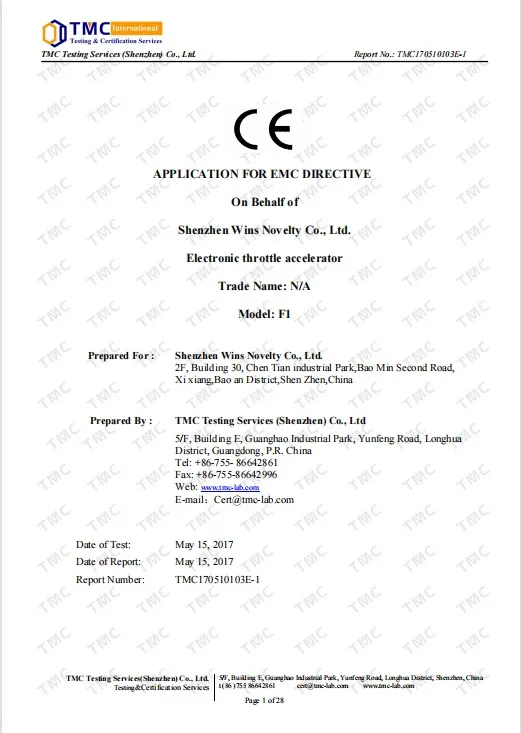

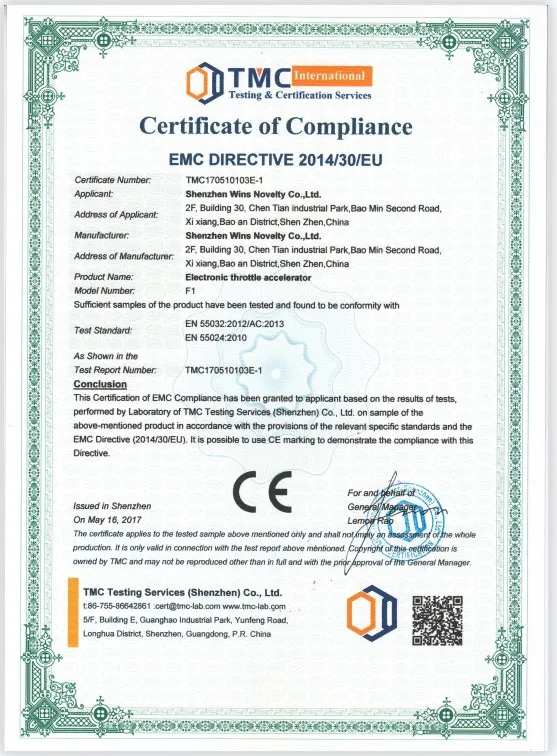

Product Certificate
