Product Overview
Description

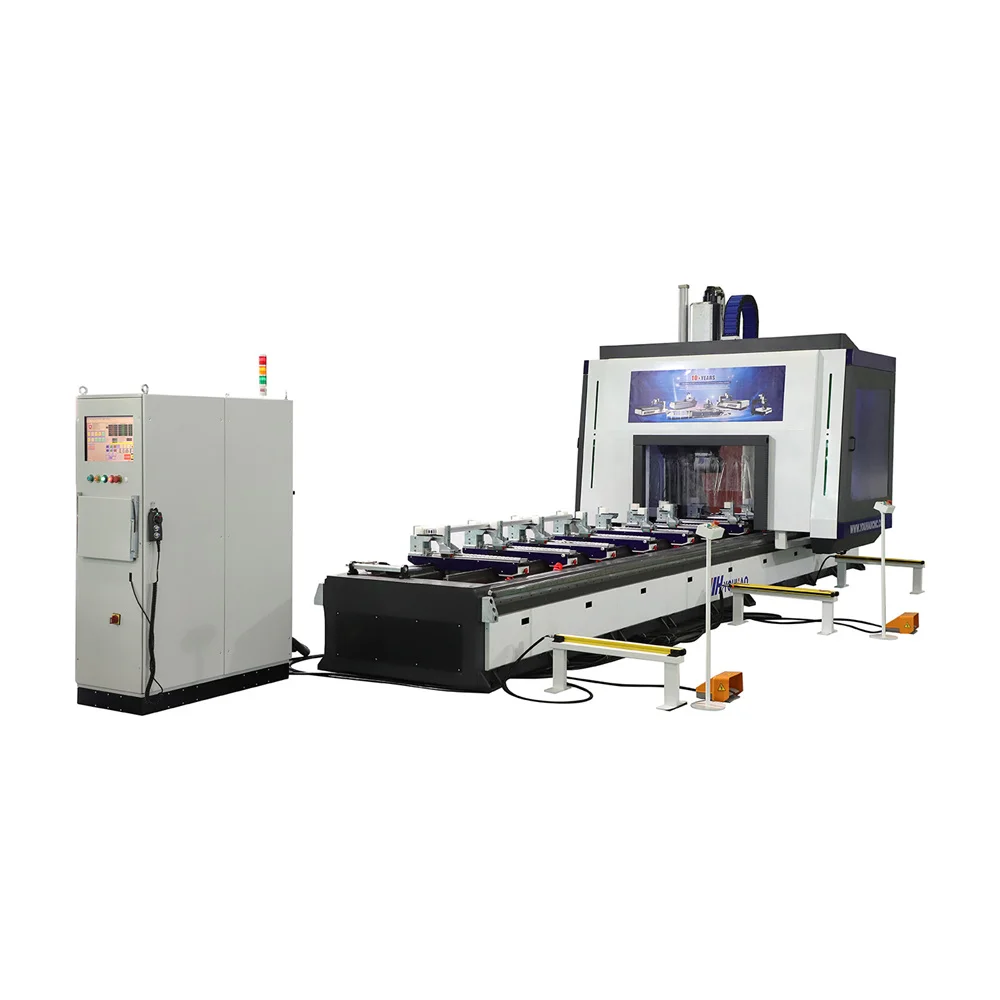

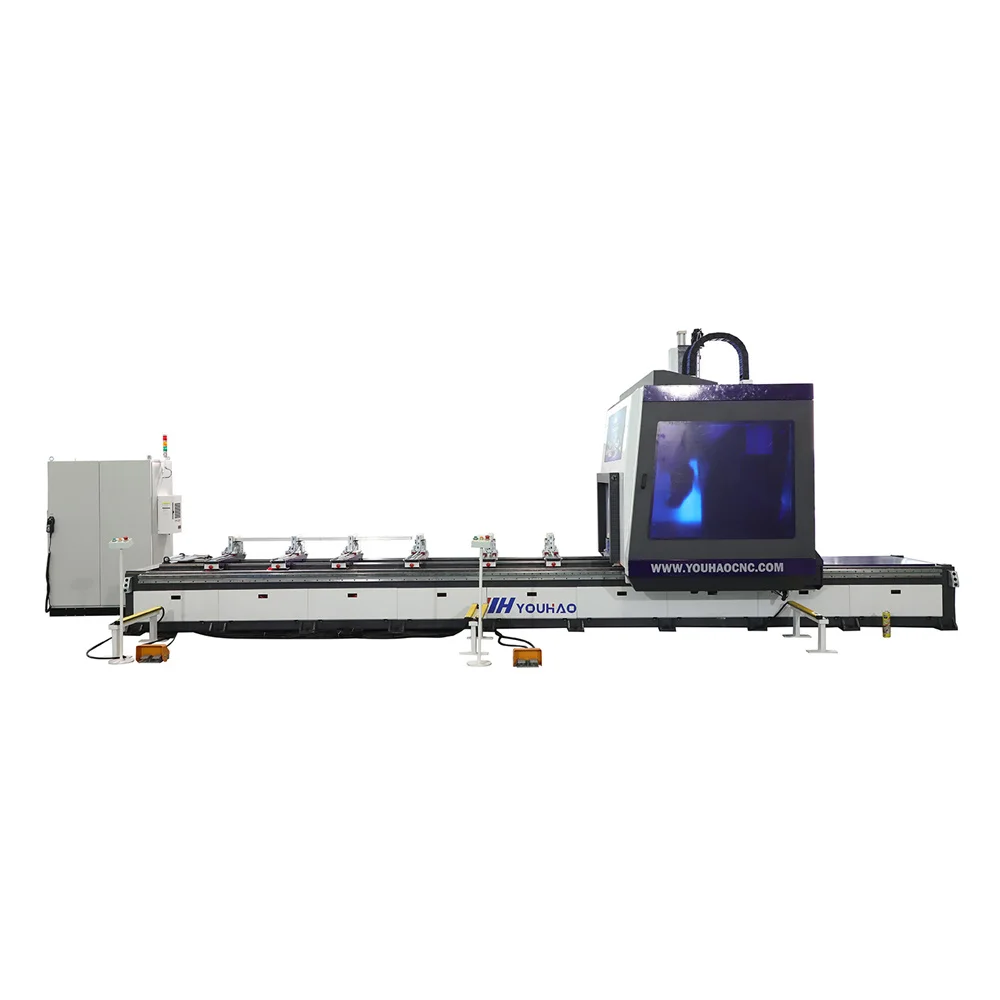

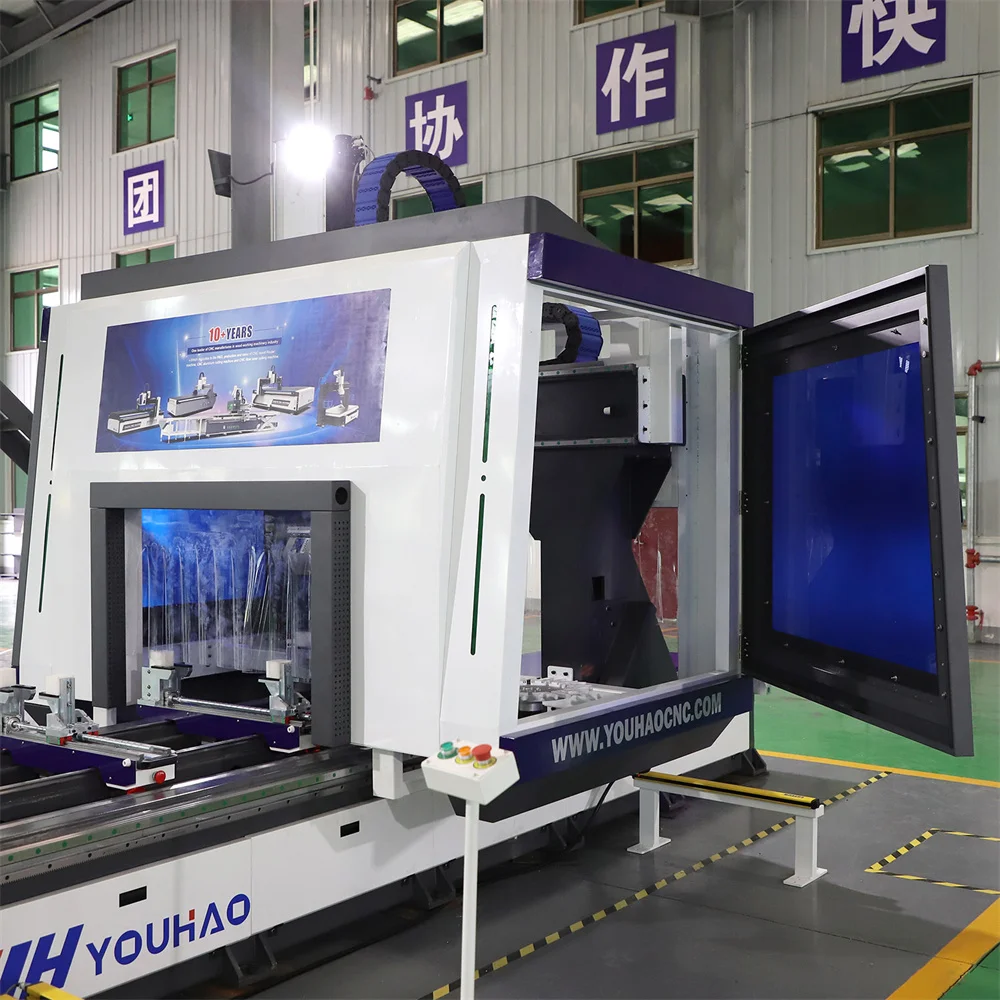

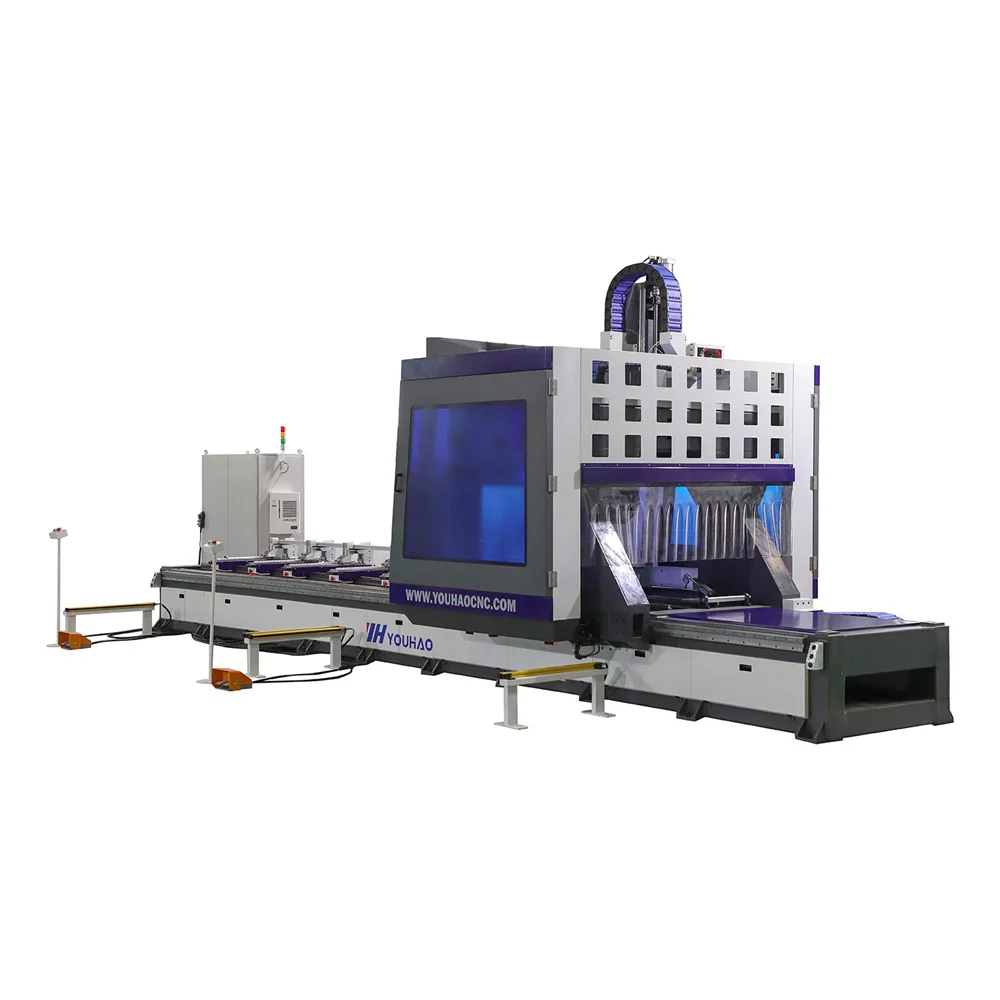

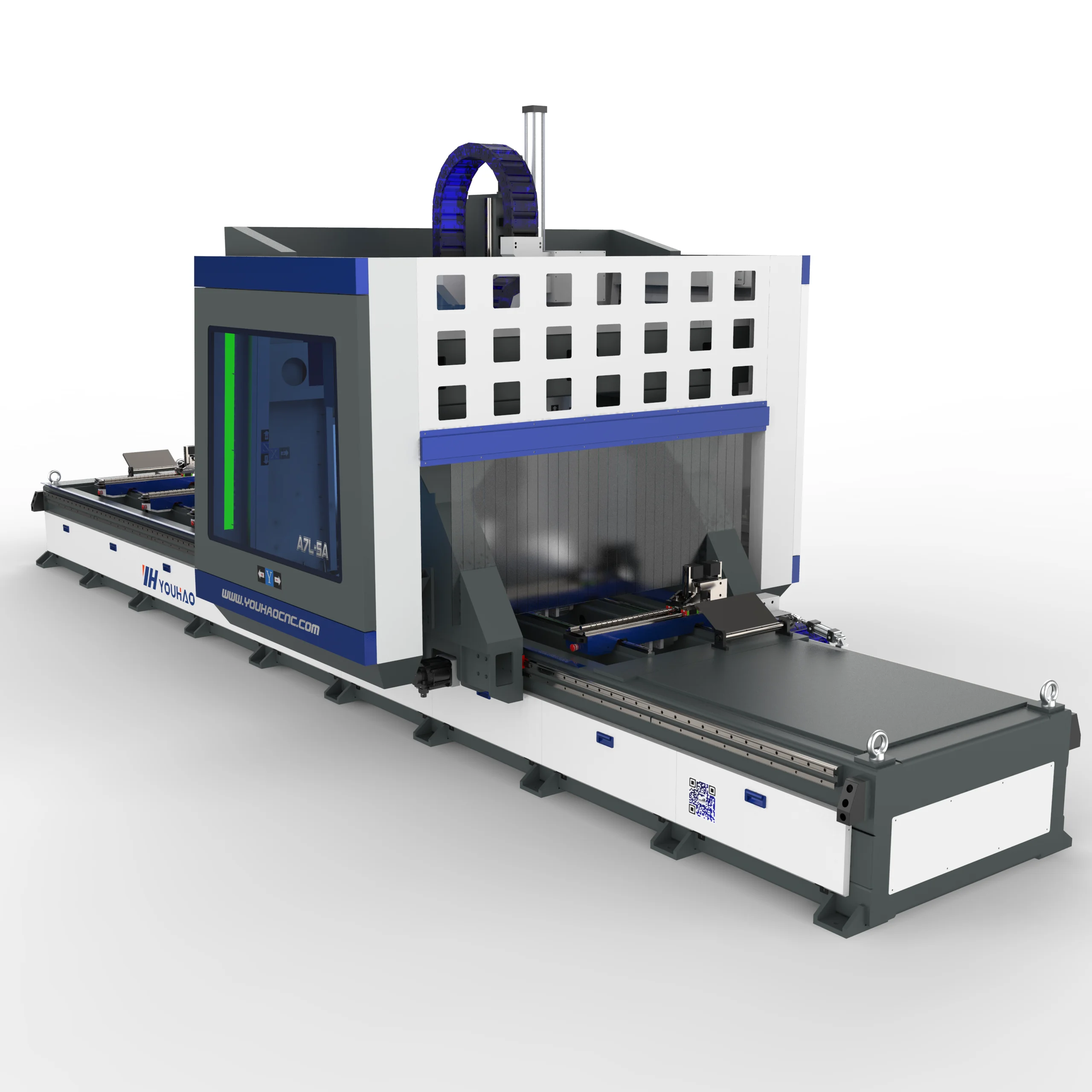

Multifunctional 5-axis CNC drilling milling and cutting machining center for aluminum alloy curtain wall
1. Equipment Features Multifunctional 5-axis CNC drilling milling and cutting machining center for aluminum alloy curtain wall
Used for drilling milling and cutting industry aluminum area and different shape aluminum profile, such as mould making, ship, rail traffic, car buffer beam, photovoltaic, aluminum window door and curtain wall industry, aluminum furniture, Sunroom making etc.
2. It adopts imported high-precision double swing head, and is equipped with a high-power, high-speed electric spindle. The inner taper hole of the spindle head is HSK63F interface, which has a high metal cutting amount per unit time.
3. It adopts the Italian Ousai CNC system, with a good user interface, which can complete complex five-axis linkage processing, and can realize the function of RTCP control (five-axis processing)
4. Adopt Japanese Yaskawa servo motor and imported high-precision planetary reducer to ensure machine accuracy

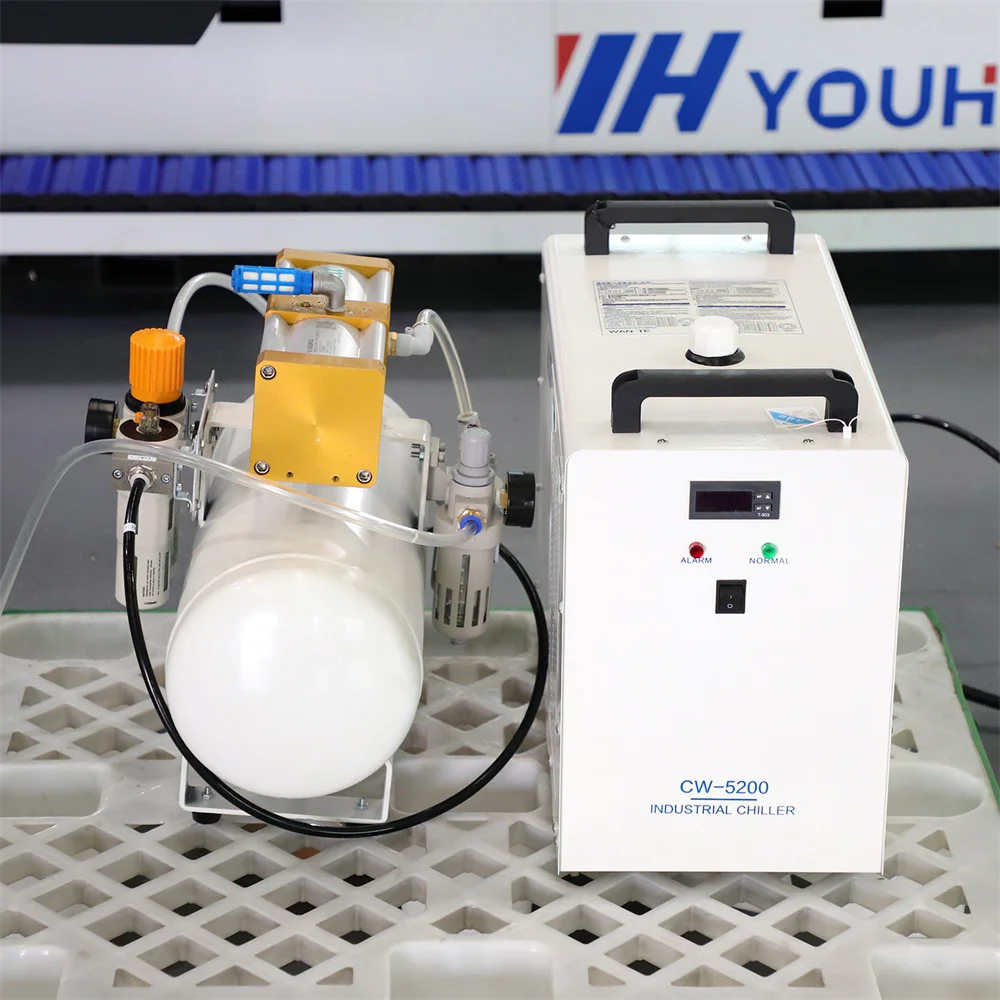

5. Equipped with the water circulation cooling system of the electric spindle, the automatic lubrication system of the feed transmission and the cooling spray system of the tool to ensure the reliable operation and precision stability of the machine tool
6. Equipped with safety protection devices to ensure the personal safety of the operator
Used for drilling milling and cutting industry aluminum area and different shape aluminum profile, such as mould making, ship, rail traffic, car buffer beam, photovoltaic, aluminum window door and curtain wall industry, aluminum furniture, Sunroom making etc.
1. Suitable for three-dimensional space five-axis linkage processing of various types of vehicles, rail transit, and various industrial aluminum materials
2. It adopts imported high-precision double swing head, and is equipped with a high-power, high-speed electric spindle. The inner taper hole of the spindle head is HSK63F interface, which has a high metal cutting amount per unit time.
3. It adopts the Italian Ousai CNC system, with a good user interface, which can complete complex five-axis linkage processing, and can realize the function of RTCP control (five-axis processing)

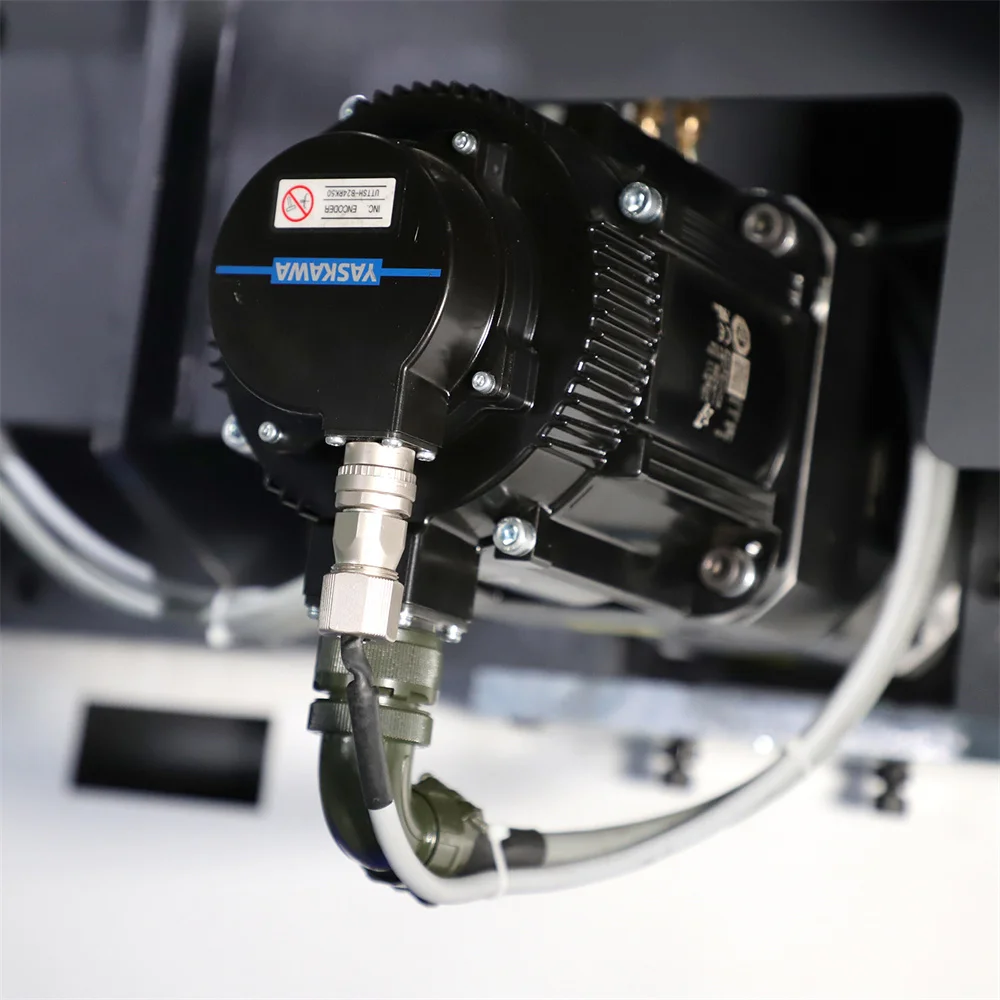

4. Adopt Japanese Yaskawa servo motor and imported high-precision planetary reducer to ensure machine accuracy
5. Equipped with the water circulation cooling system of the electric spindle, the automatic lubrication system of the feed transmission and the cooling spray system of the tool to ensure the reliable operation and precision stability of the machine tool
6. Equipped with safety protection devices to ensure the personal safety of the operator
Max. cutting aluminum profile size | 6500*600*500mm |
Max. cutting saw/blade diameter | Diameter 350mm |
Max. travelling speed | XYZ: 75/75/15m/min |
Repositioning accuracy | ±0.01mm |
Working Voltage | 380V 3Ph 50/60Hz |
Weight | 6587kg |
Total Power consumption | 20kw |
Dimension(L*W*H) | 8500*2500*2700mm |
Applicable Material | PVC, UPVC, Aluminum,ACP |
Operation controller | Italy OSAI |
Spindle motor | Italy HSD/HITECO 5 axis, 12kw, HSK-63F-ER32, 24000rpm |
Servo | Japan YASKAWA AC servo motor |
Rail | Taiwan HIWIN/PMI |
Transmission | German WMH/Taiwan HIWIN |
Air pressure | 0.7-1.0Mpa |
Software | Hexagon ALPHACAM |

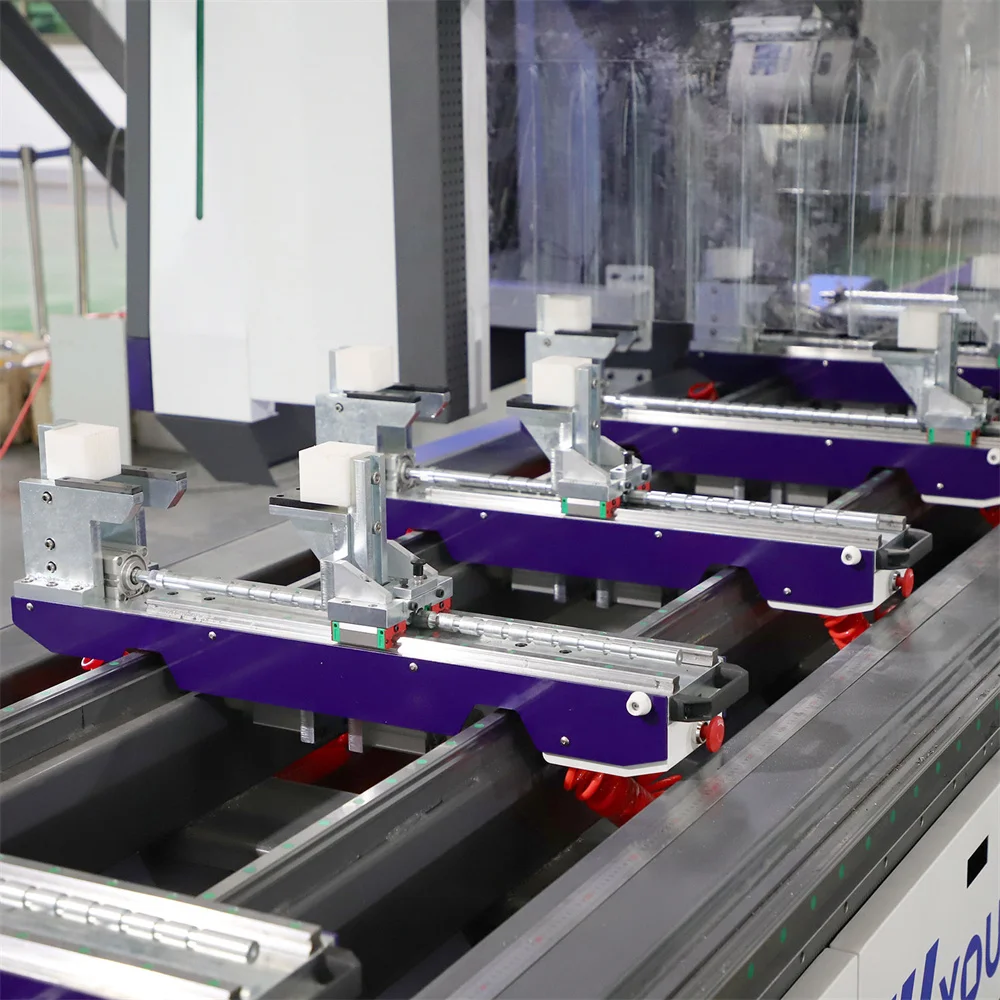

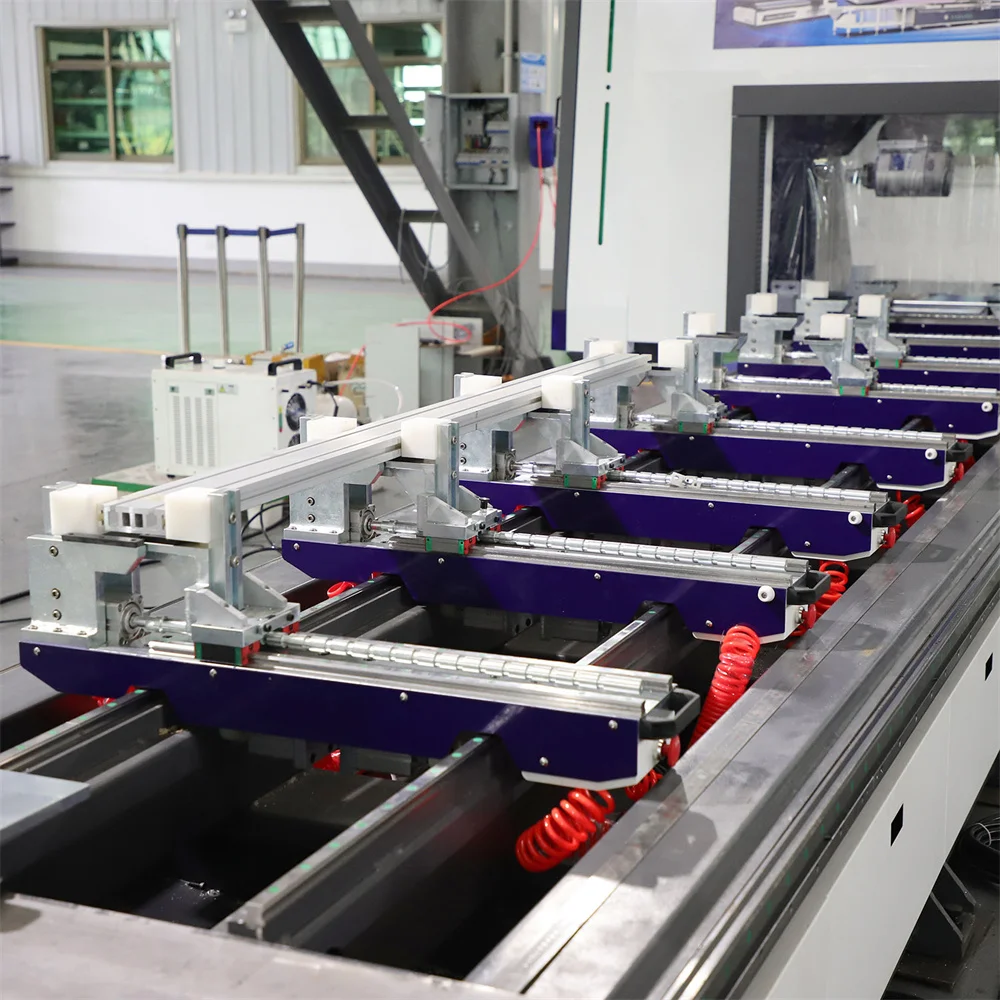

Clamps | 8 sets pneumatic |
Tool sensor | Automatic |

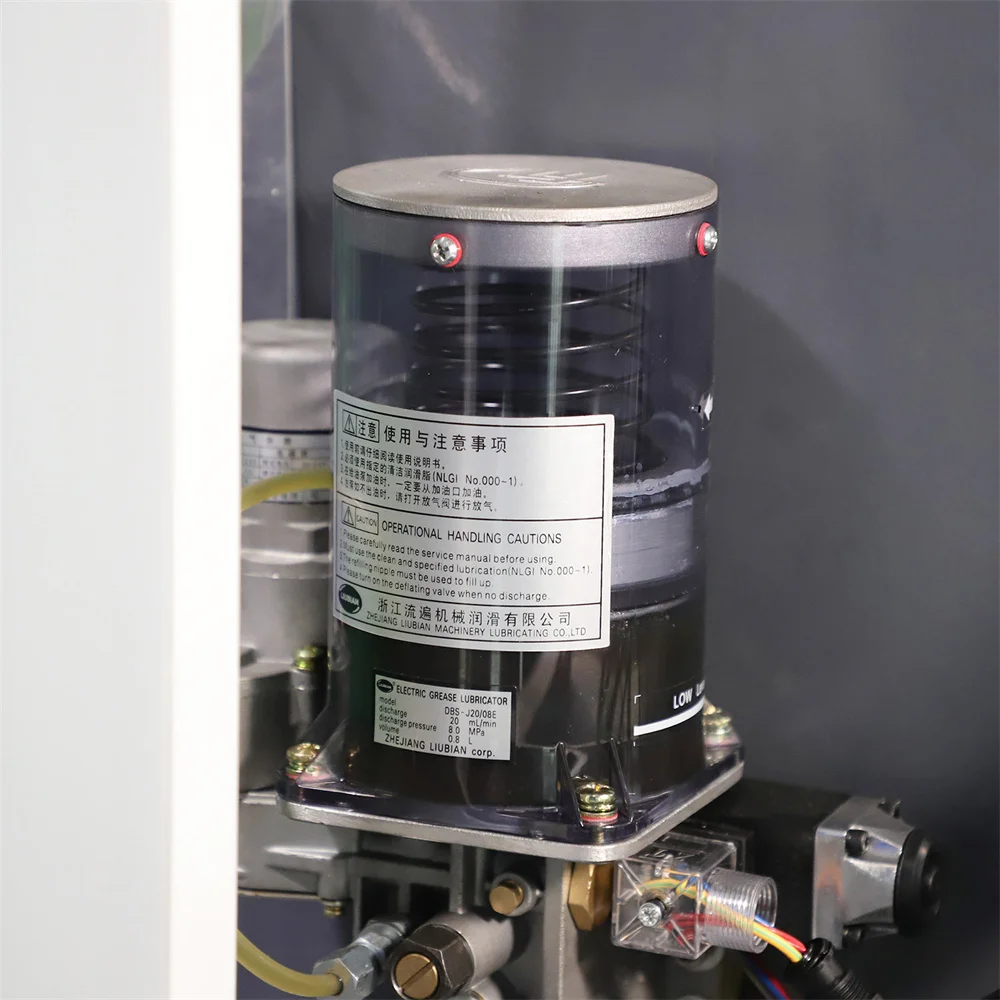

Lubrication | Auto grease 00# lubrication pump |
Sensor | Japan Omron |
Electronic components | Siemens/ABB/Schneider |

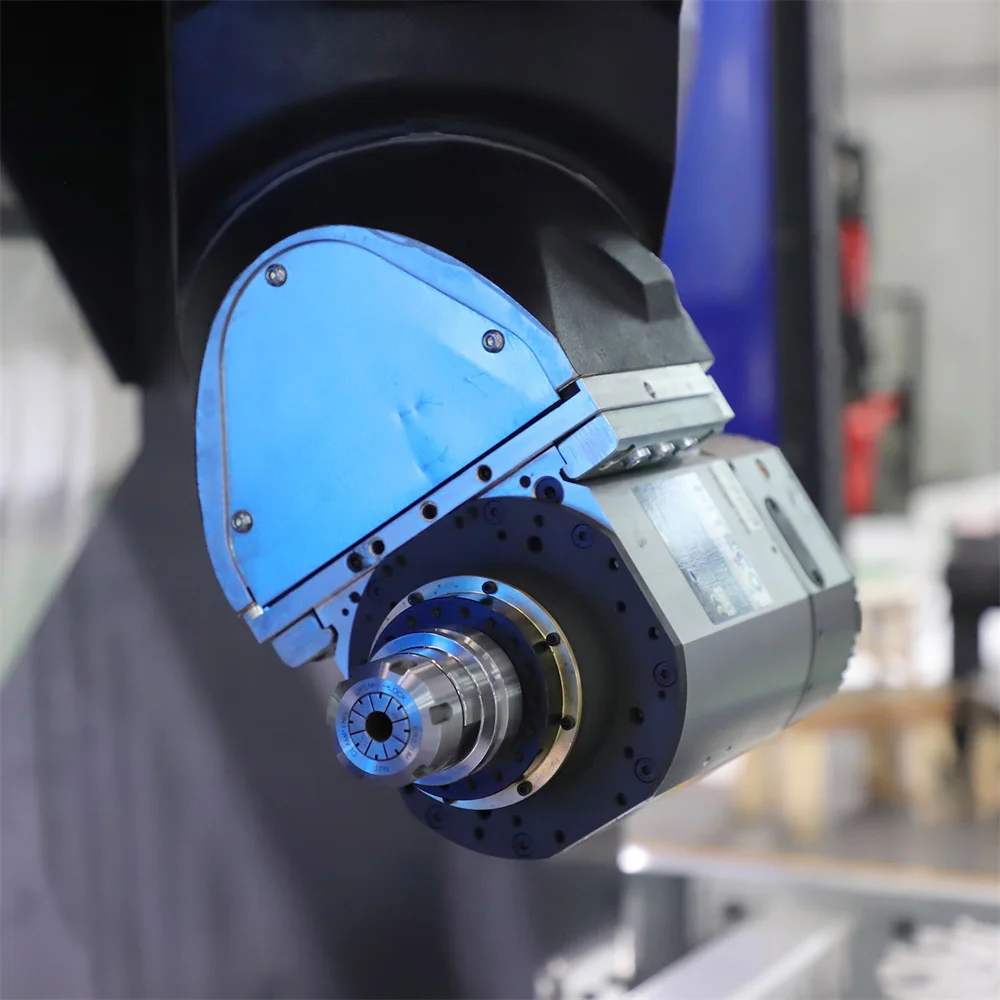

It adopts imported high-precision double swing head, and is equipped with a high-power, high-speed electric spindle. The inner taper hole of the spindle head is HSK63F interface, which has a high metal cutting amount per unit time.

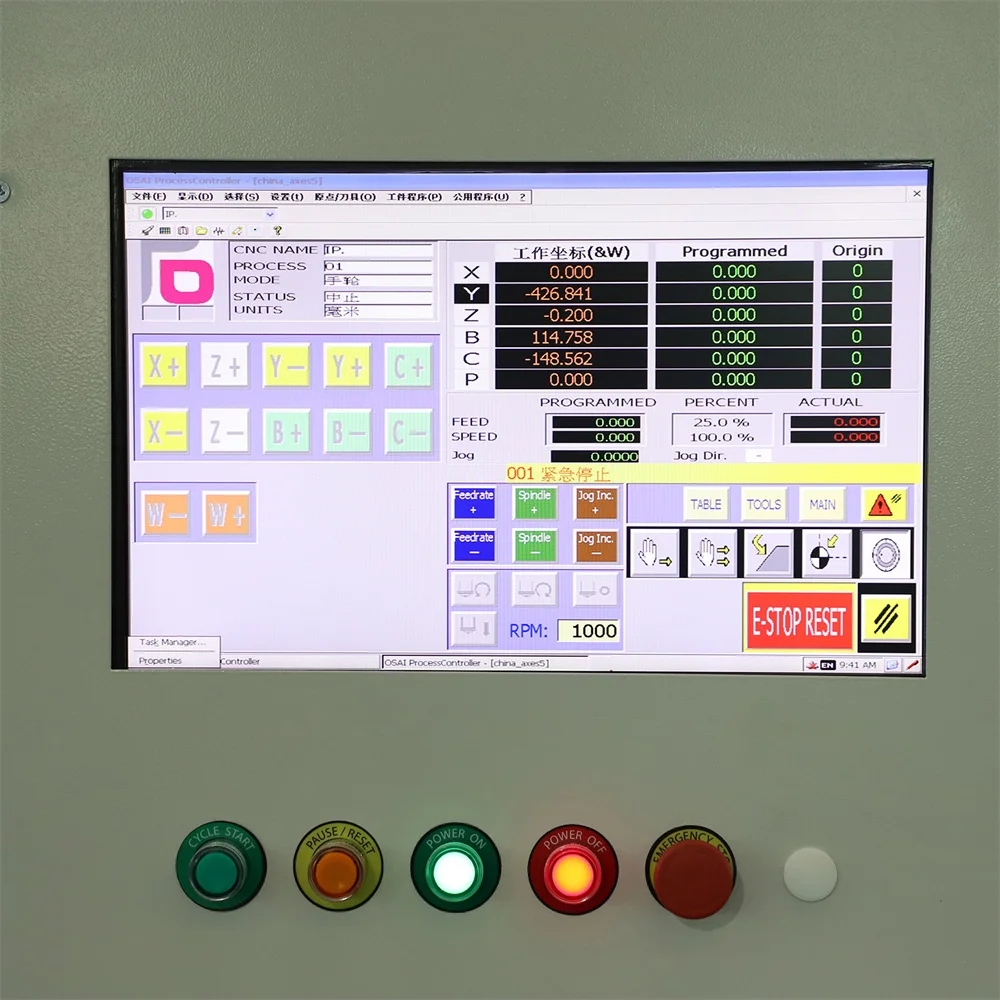

Italian Ousai CNC system, with a good user interface, which can complete complex five-axis linkage processing, and can realize the function of RTCP control (five-axis processing)
Applications
Used for drilling milling and cutting industry aluminum area and different shape aluminum profile, such as mould making, ship, rail traffic, car buffer beam, photovoltaic, aluminum window door and curtain wall industry, aluminum furniture, Sunroom making etc.
Packaging Details Multifunctional 5-axis CNC drilling milling and cutting machining center for aluminum alloy curtain wall:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1 Two years warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Company Profile
Shandong Youhao Energy Technology Co, Ltd, is a modern new private enterprise dedicated to
the R&D production and sales of numerical control automation equipment. Located in Rizhao
Economic Development Zone, Shandong Province, the company is adjacent to the beautiful Rizhao
Port in the East, with multiple high-speed links through the territory, closely connected with Qingdao
port, and convenient for import and export.The company was founded in Rizhao in April 2018 As a
provincial historical and cultural city, it has many places of interest. Relying on the profound historical
and cultural heritage, combined with the companys advanced management concept, the company has
been developing vigorously for a long time.
FAQ
What criteria are decisive when buying a YOUHAO CNC Router?
If you have decided to buy a YOUHAO CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?
* The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
* The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
* Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
* Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling
results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials
* The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
* The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
* Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
* Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling
results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials
