SSR 60DA Single Phase Solid State Relay 3 32VDC AC Solid State Relay with 24 480VAC

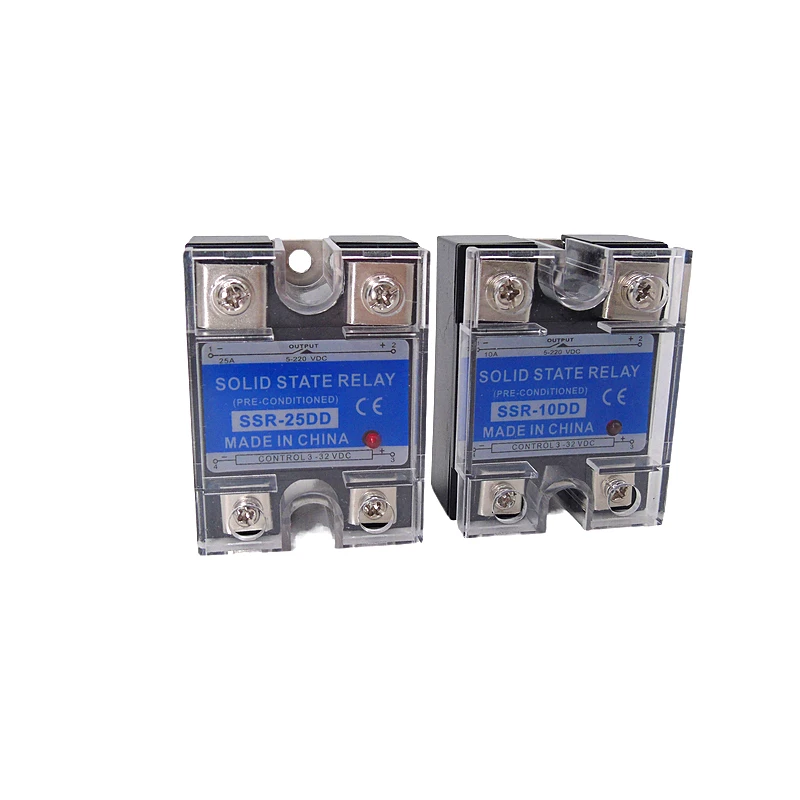

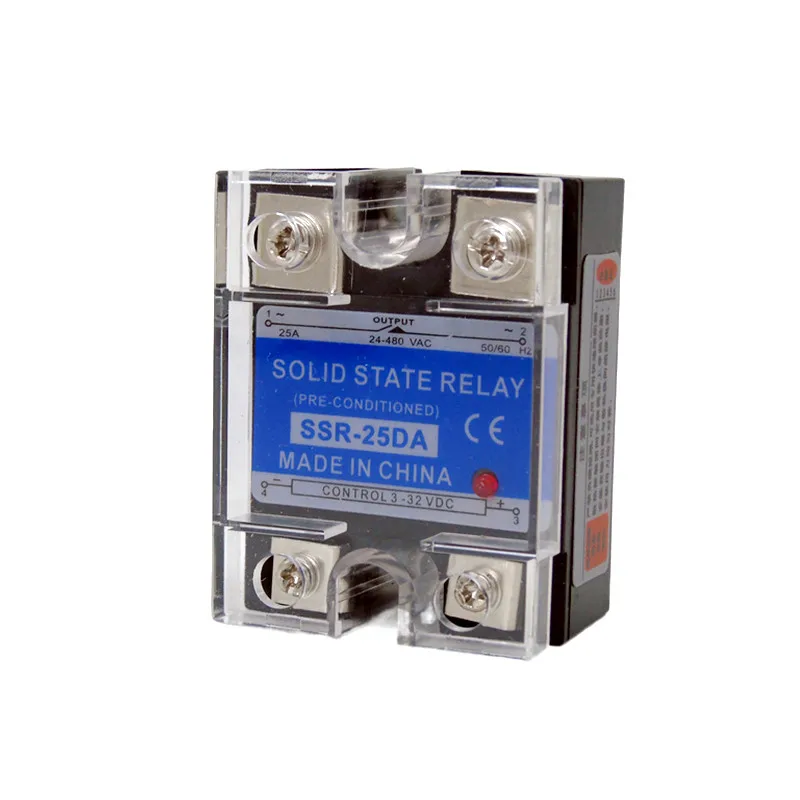

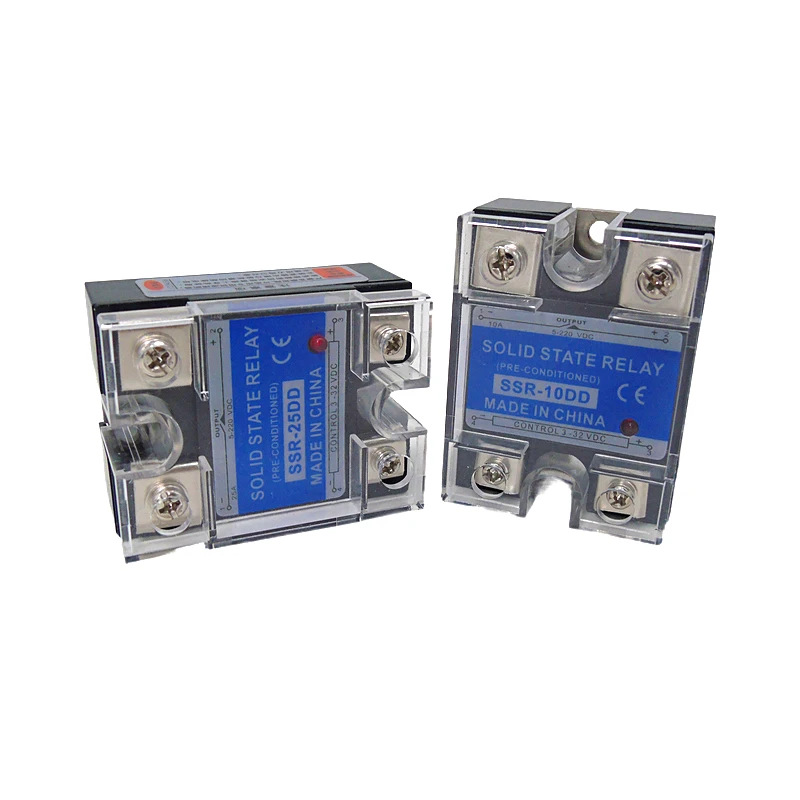

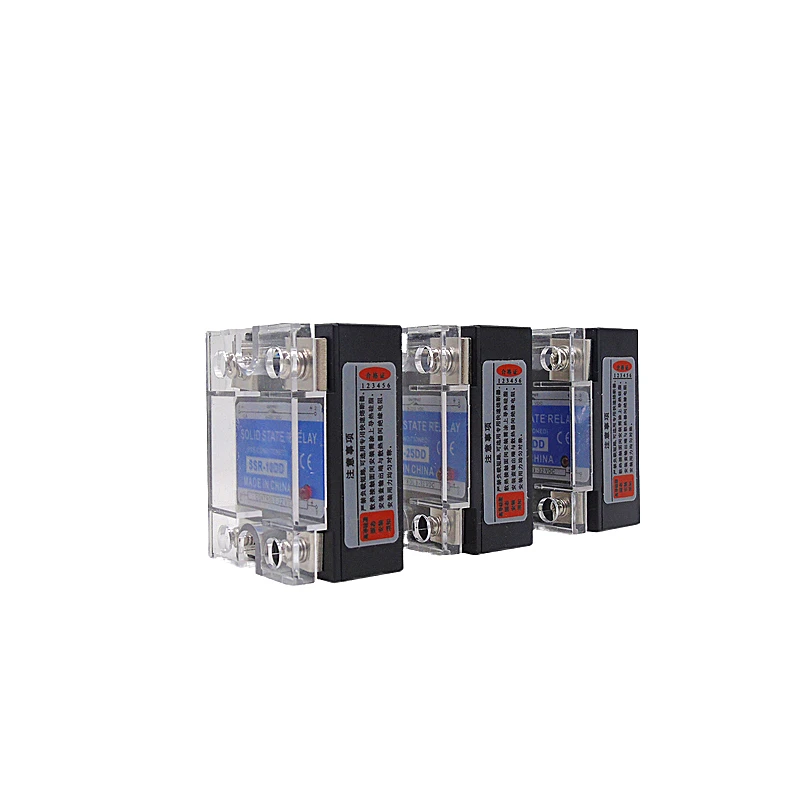

SSR-60DA Single Phase Solid State Relay 3-32VDC AC Solid State Relay with 24-480VAC
SSR-60DA Single Phase Solid State Relay 3-32VDC AC Solid State Relay with 24-480VAC
SSR-60DA Single Phase Solid State Relay 3-32VDC AC Solid State Relay with 24-480VAC
SSR-60DA Single Phase Solid State Relay 3-32VDC AC Solid State Relay with 24-480VAC
SSR-60DA Single Phase Solid State Relay 3-32VDC AC Solid State Relay with 24-480VAC
SSR-60DA Single Phase Solid State Relay 3-32VDC AC Solid State Relay with 24-480VAC

SSR 60DA Single Phase Solid State Relay 3 32VDC AC Solid State Relay with 24 480VAC

Share on (1600601940699):


Price:$5.00 - $7.00

Quantity:


Product Overview

Description





Products Description






SSR solid state relay

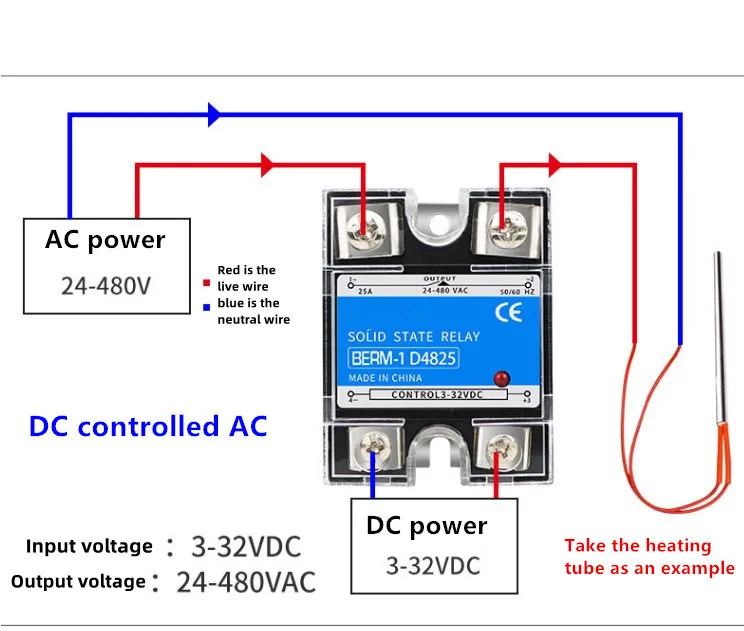

Ssr-da solid state relay, single-phase DC conversion AC relay, voltage 3-32vdc Control voltage 24-480vAC，
SSR-10DA，
SSR-25DA ，
SSR-40DA，
SSR-50DA，
SSR-60DA ,
SSR-80DA，
SSR-100DA

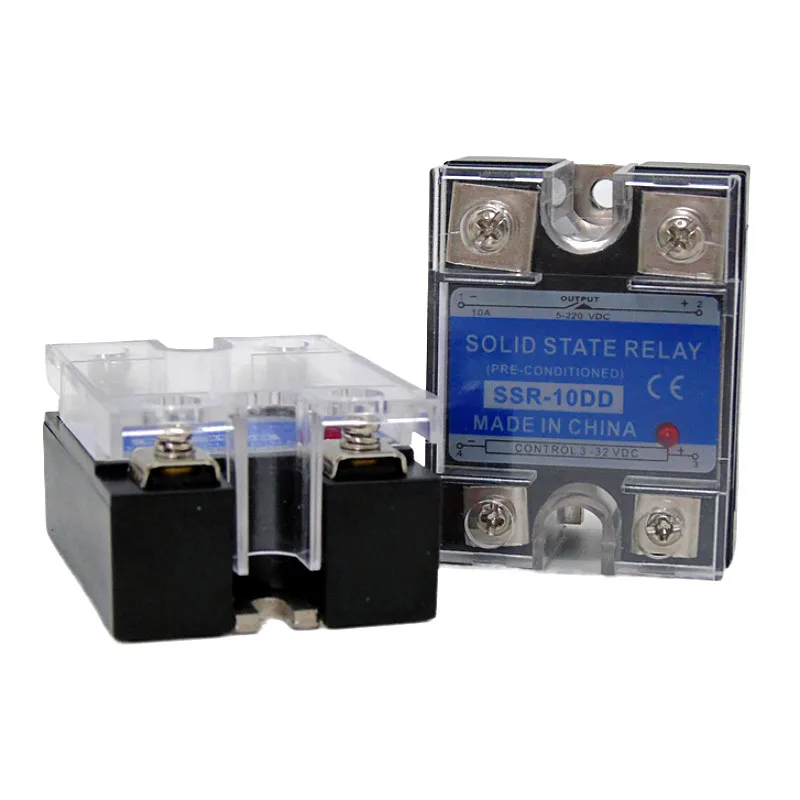

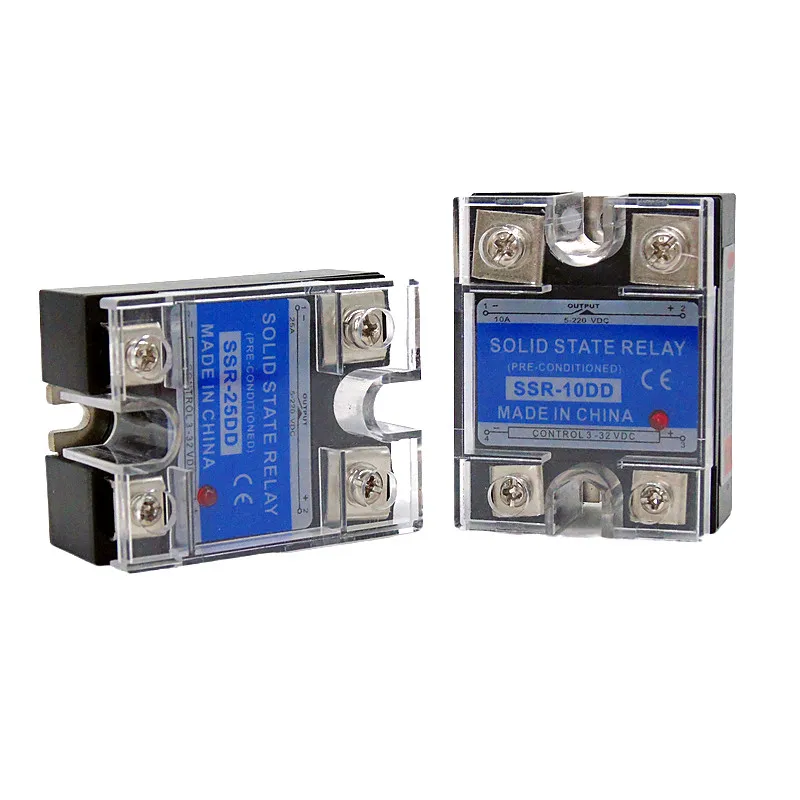

Back
Front
Flank

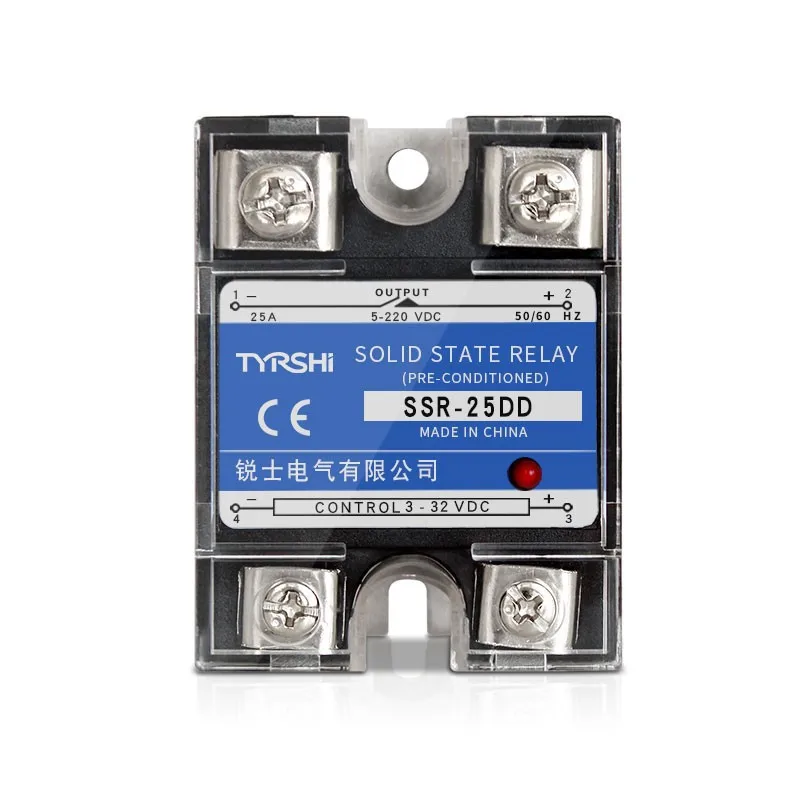

Details Images

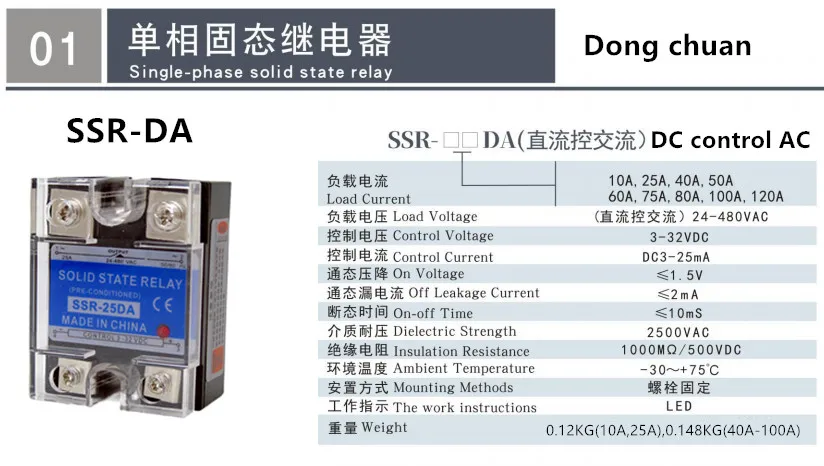

Product Paramenters


model
load current
control voltage
Load voltage

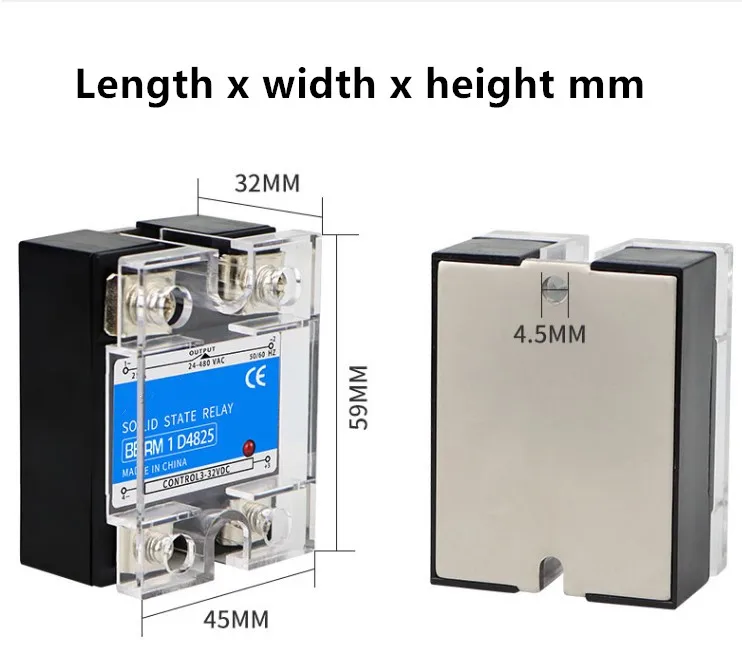

size
Other parameters
SSR-10DA
10A
3-32VDC
24-480 VAC
59X45X32mm
Off voltage: ≤ 1.5vdc
SSR-25DA
25A
3-32VDC
24-480 VAC
59X45X32mm
Control current: 25mA
SSR-40DA
40A
3-32VDC
24-480 VAC
59X45X32mm
Work indication: LED
SSR-50DA
50A
3-32VDC
24-480 VAC
59X45X32mm
Fixing method: screw
SSR-60DA
60A
3-32VDC
24-480 VAC
59X45X32mm
Fixing method: screw
SSR-75DA
75A
3-32VDC
24-480 VAC
59X45X32mm
working temperature：-30~ +75 ℃
SSR-80DA
80A
3-32VDC
24-480 VAC
59X45X32mm
Weight: 0.12kg
SSR-100DA
100A
3-32VDC
24-480 VAC
59X45X32mm










Product packaging carton






Company Profile




China Henan Dongchuan Electrical Equipment Co., Ltd., founded in 2015 and located in Zhengzhou, the capital of Henan Province, is a technology enterprise integrating the production and sales of industrial control automation instruments and meters.
It is one of the suppliers of industrial electrical automation instruments and meters in China. We focus on, professional, dedicated, integrated production and sales suppliers, and provide high-quality products and services to customers at home and abroad for a long time.




Sales and service network




FAQ


Question 1: Are you a factory?
We are a factory established for more than 6 years and exported for more than 5 years.

Question 2: When is the delivery date?
It usually takes 7-10 working days.

Question 3: Can you give me an offer?
Of course.

Question 4: How about after-sales service?
Three year warranty.

Question 5: How about transportation packaging?
Standard carton

Question 6: How long will you give me an answer?
We will contact you as soon as possible within 2 hours.

Question 7: Can I get samples for test orders?
Yes, we have stock in the warehouse. We can print the product name of your company.
