RTK integrated module High precision differential positioning four star dual frequency centimeter level F9P module
- Category: >>>
- Supplier: Shenzhen Zhishengtian Electronic Technology Co. Ltd.
Share on (1600601941990):
Product Overview
Description
Products Description 1
Product name | RTK Module |
Place of origin | China Guangdong |
Delivery date | 14 Days |
MOQ | 1 Pieces |
Details Images 2

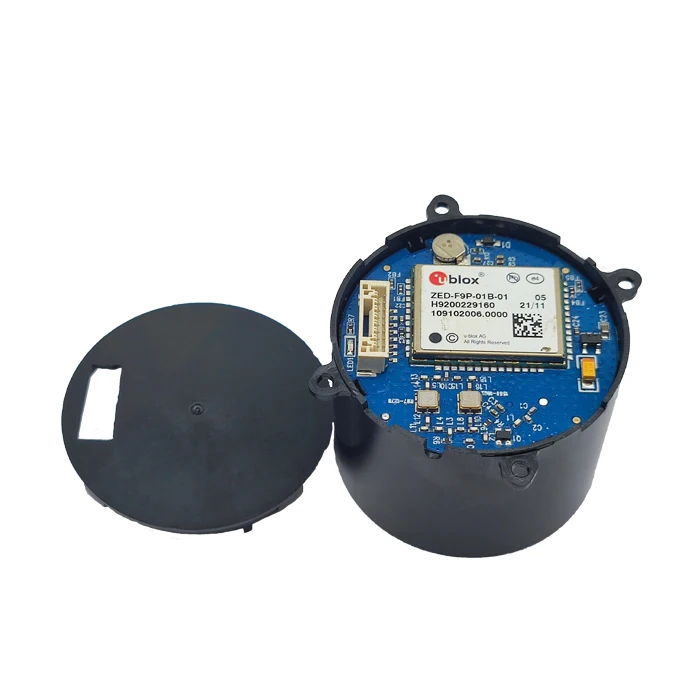

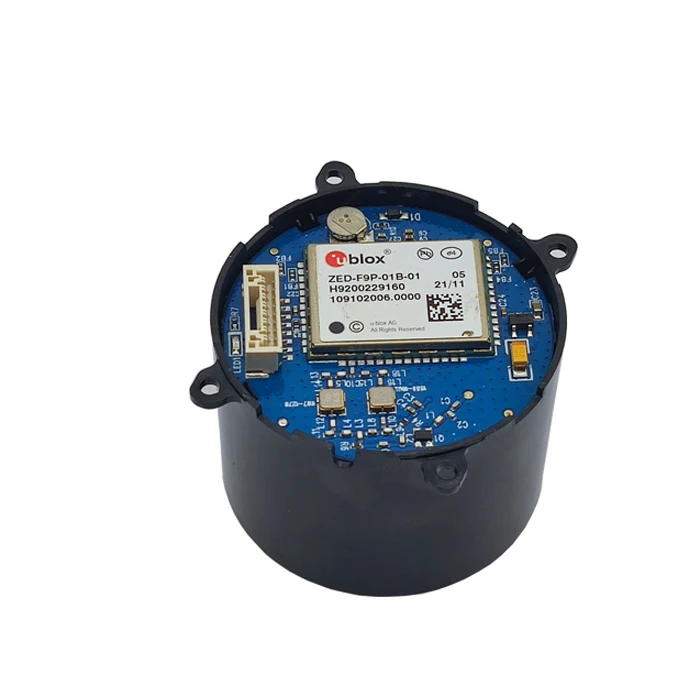

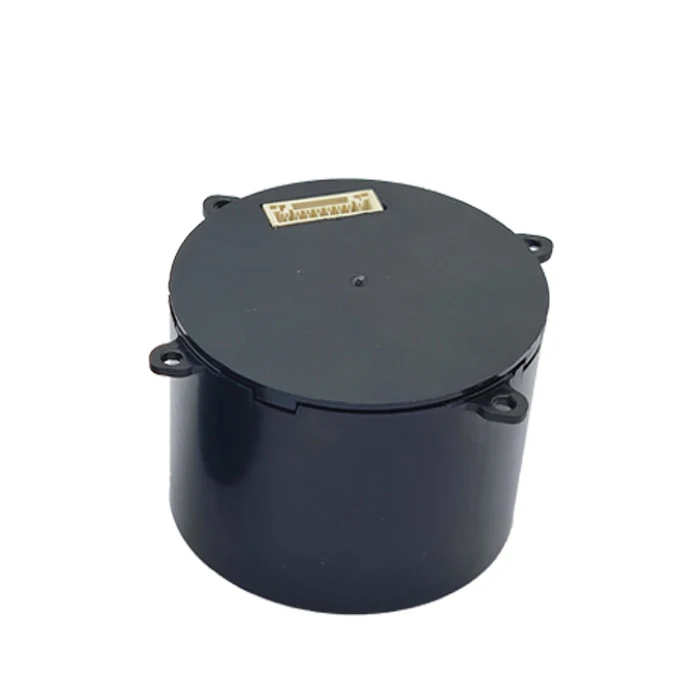

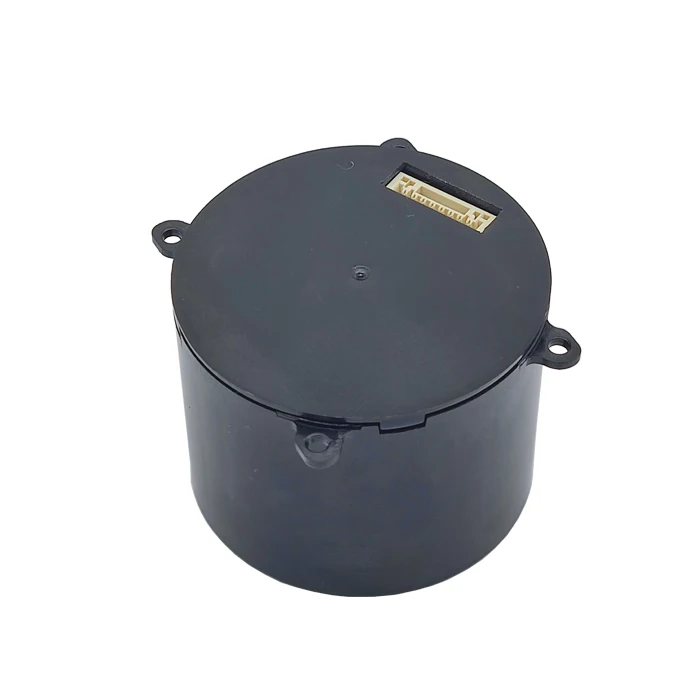

Product introduction
The company's AK712 Beidou/GPS/Galileo/GLONASS four-star dual-frequency RTK integrated module (hereinafter referred to as the module) is an ultra-low-cost, low-power, high-performance real-time dynamic differential positioning module. The module's highly reliable carrier phase difference technology can provide real-time centimeter-level positioning accuracy for drones, automobiles, and surveying and mapping users.
The module can be configured as "mobile station" or "base station" working mode, through the common view observation between "mobile station" and "base station", using carrier phase difference technology to eliminate ephemeris error, ionospheric error, troposphere error Errors, inter-satellite clock errors and other measurement errors, and finally obtain high-precision positioning results.
Configured as a "base station" module, the differential interface outputs RTCM2.x/3.x standard data streams, which are compatible with most commercial mobile stations on the market. At the same time, a reference design of network RTK is provided, which can distribute differential data streams to all mobile stations through the network.
The board configured as a "mobile station", the differential interface supports RTCM2.x/3.x differential data format, which can be connected to the user's existing base stations of other brands or access to the national Beidou ground-based enhancement system.
The static relative positioning accuracy of the module is <1cm, the medium dynamic relative positioning accuracy is <2cm, and the output rate is 1~10Hz. It can be used in a variety of scenarios and has a very high cost performance.
The module can be configured as "mobile station" or "base station" working mode, through the common view observation between "mobile station" and "base station", using carrier phase difference technology to eliminate ephemeris error, ionospheric error, troposphere error Errors, inter-satellite clock errors and other measurement errors, and finally obtain high-precision positioning results.
Configured as a "base station" module, the differential interface outputs RTCM2.x/3.x standard data streams, which are compatible with most commercial mobile stations on the market. At the same time, a reference design of network RTK is provided, which can distribute differential data streams to all mobile stations through the network.
The board configured as a "mobile station", the differential interface supports RTCM2.x/3.x differential data format, which can be connected to the user's existing base stations of other brands or access to the national Beidou ground-based enhancement system.
The static relative positioning accuracy of the module is <1cm, the medium dynamic relative positioning accuracy is <2cm, and the output rate is 1~10Hz. It can be used in a variety of scenarios and has a very high cost performance.
Product characteristics
1. Based on the U-blox F9P series product design, the module can obtain stable and high-precision positioning results even in harsh environments.
2. Support Beidou/GPS/Galileo/GLONASS four-mode joint RTK solution, with fast and reliable initialization capability.
3. Support up to 10Hz data output to meet the application in the dynamic situation of the drone.
4. The module can be flexibly configured as a base station or a mobile station.
5. It supports two modes of differential positioning and vector attitude measurement, and can output high-precision positioning and orientation results at the same time.
6. Fully compatible with other automatic flight control systems such as Pixhawk and APM.
7. Built-in four-arm helix antenna combination, with light weight, high gain, high precision and strong anti-interference ability.
8. Adopt industrial-grade low-noise radio frequency circuit, strong anti-multipath suppression.
2. Support Beidou/GPS/Galileo/GLONASS four-mode joint RTK solution, with fast and reliable initialization capability.
3. Support up to 10Hz data output to meet the application in the dynamic situation of the drone.
4. The module can be flexibly configured as a base station or a mobile station.
5. It supports two modes of differential positioning and vector attitude measurement, and can output high-precision positioning and orientation results at the same time.
6. Fully compatible with other automatic flight control systems such as Pixhawk and APM.
7. Built-in four-arm helix antenna combination, with light weight, high gain, high precision and strong anti-interference ability.
8. Adopt industrial-grade low-noise radio frequency circuit, strong anti-multipath suppression.
The main technical parameters | ||||
Chip characteristics | Chip | UBLOX F9P | ||
working frequency | GPS L1 L2 、BDS B1 B2、Galileo E1 E2、 GLONASS L1 L2 、QZSS L1 L2 SBAS: WASS, EGNOS, MSAS | |||
receive channel | 184 search channel | |||
Sensitivity | Tracking | -167 dBm | ||
Reacquisition | -160 dBm | |||
Cold start | -148 dBm | |||
Warm Start | -157 dBm | |||
Time to first fix TTFF | Cold start | 26s | ||
hot start | 2s | |||
Recapture | 2s | |||
Precision | Horizontal accuracy | Ordinary positioning: 1.5m CEP | ||
RTK positioning: 0.01 m + 1 ppm CEP | ||||
Height accuracy | 0.05m/s | |||
Second pulse accuracy | 30ns | |||
Output Data | baud rate | 38400bps (default) [Optional: 4800-921600] | ||
Output interface | TTL | |||
Output protocol | NMEA、RTCM 3.3、UBX | |||
Update frequency | Default 1Hz ( 0.25Hz-10Hz) | |||
Carrier phase output | Support, output RAWX statement | |||
FLASH | built-in | |||
Working conditions | Height | ＜5000m | ||
Speed | ＜500m/s | |||
Gravitational acceleration | <4g | |||
Surroundings | Working temperature | -40℃-85℃ | ||
Storage temperature | -40℃-105℃ | |||
Electrical indicators | Working voltage | 3V-5.5V DC | ||
Power consumption | <180mW @3.3V | |||
Physical parameters | Size | Φ40.2*25mm | ||
Weight | 13.2g | |||
Connector | GH1.25mm 8pin | |||

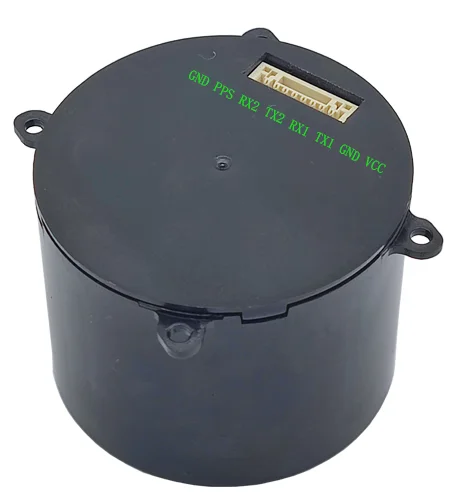

Interface diagram
Module pinout | ||||
Pin number | Signal name | Signal description | ||
1 | VCC | Mains power input | ||
2 | GND | Module ground | ||
3 | TX1 | The main serial port (com1) receives data and configures the command input port. | ||
4 | RX1 | The main serial port (com1) sends data. When it is configured as "rover station", it outputs the positioning result in NMEA0183 format, and when it is configured as "base station", it outputs the differential data stream in RTCM2.x/3.x format. | ||
5 | TX2 | The main serial port (com1) receives data and configures the command input port. | ||
6 | RX2 | The main serial port (com1) sends data. When it is configured as "rover station", it outputs the positioning result in NMEA0183 format, and when it is configured as "base station", it outputs the differential data stream in RTCM2.x/3.x format. | ||
7 | PPS | Time standard pulse output | ||
8 | GND | Module ground | ||
