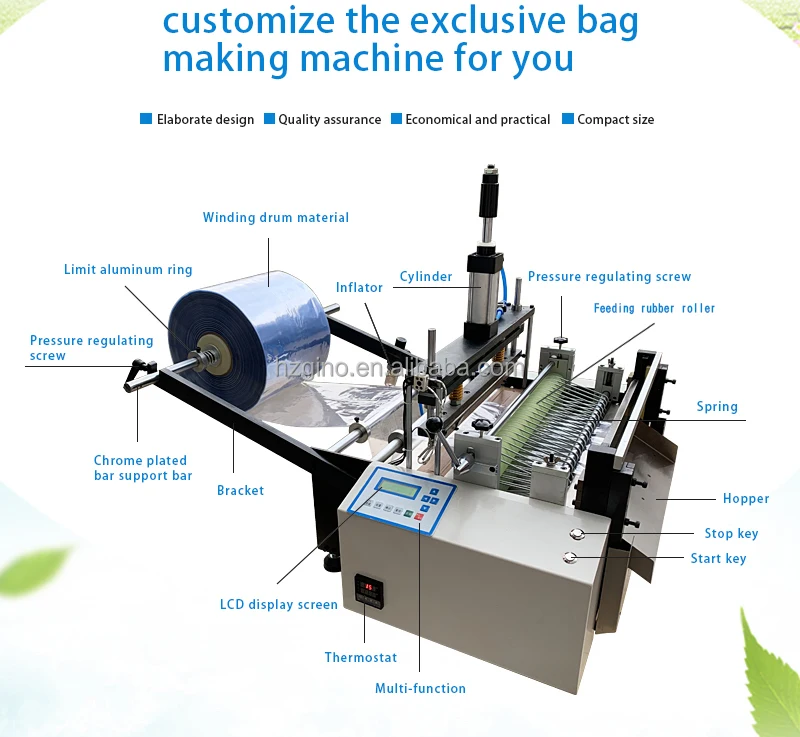

HD 400ZD Heat sealing and cold cutting automatic plastic bag making machine electrostatic bag cutter opp bag production machine

Share on (1600601972847):


Price:$1,899.00 - $1,999.00

Quantity:


Product Overview

Description



Product Description


Features

1.Controlled by microcomputer, the length, speed and quantity can be adjusted.
2.The overall structural design is reasonable and durable.
3.The operation is simple, and one machine equals to 3 to 5 works instead of manual work.
4.The application scope is wide, and all kinds of materials and other roll materials can be cut.
5.The blade with inlaid steel has higher hardness, wear resistance and long service life.
6.The heat sealing device can be disassembled and replaced, the temperature can be adjusted, suitable for sealing various
materials and thickness materials.


Product principle:
1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set
3. There are various manual operations for debugging
4.Fully automatic cutting of various plastic bags, flat bags, heat shrinkable films, electrostatic bags and other materials
5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and speed
7. Cutting time protection; total setting; sub-setting; adjustable timeout
8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the slit and the length
11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick
materials, high cutting precision and straight cut
12. The heat sealing device can be disassembled and replaced, and the temperature is adjustable, which is suitable for sealing various materials and thickness materials.



Pdoduct name
Heat Sealing Cold Cutting Bag Making Machine
Power supply
220V 50/60Hz
Cutting length(mm)
0.1-9999.9mm
Cutting speed
30-120pcs/min
Heat sealing width
1-380mm
Cutting precision
0.1mm
Weight
75kg
Size (L×W×H)
580*660*730(mm)
Feeding motor
Stepper motor
Cutter motor
AC motor
Cutter material
High-speed steel
Heat sealing method
Pneumatic
