Product Overview

Description

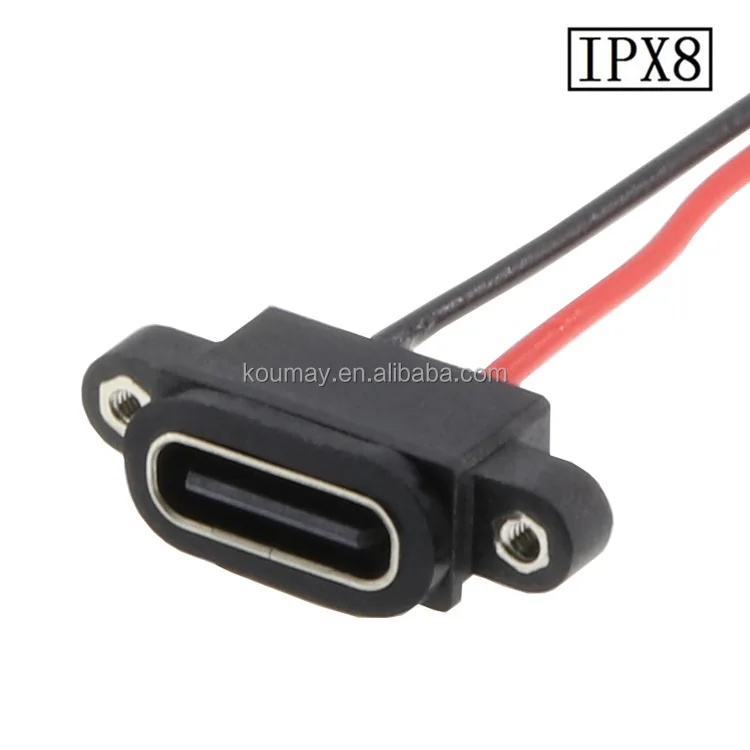

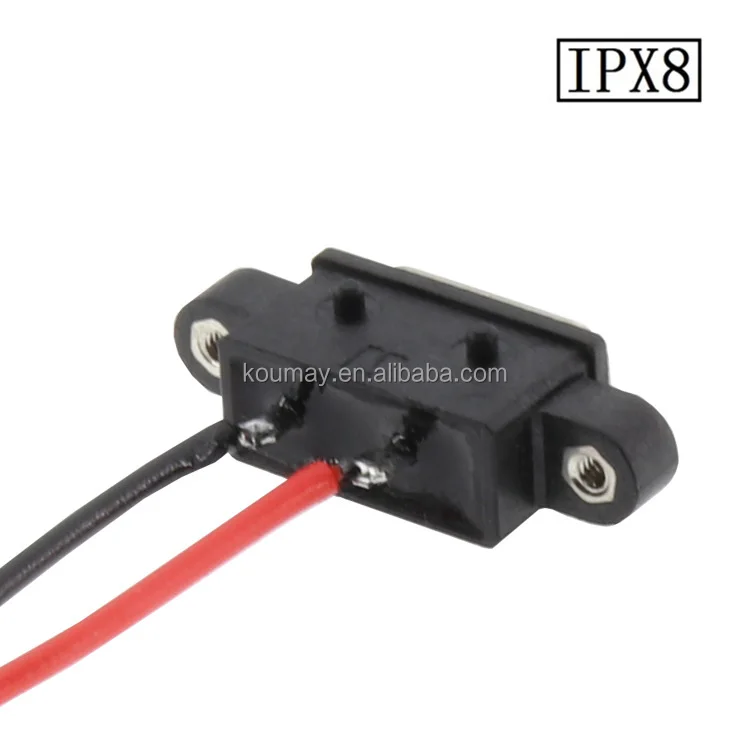

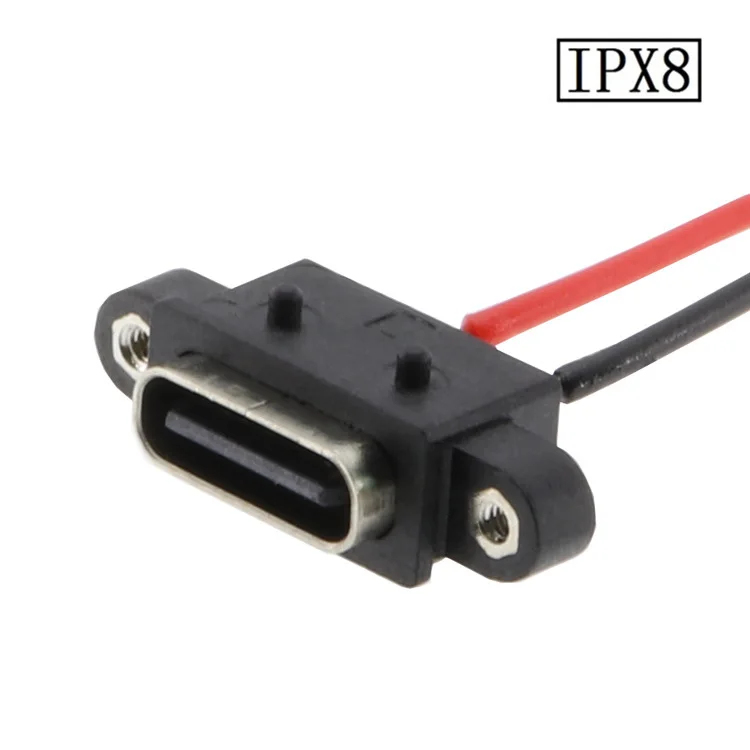

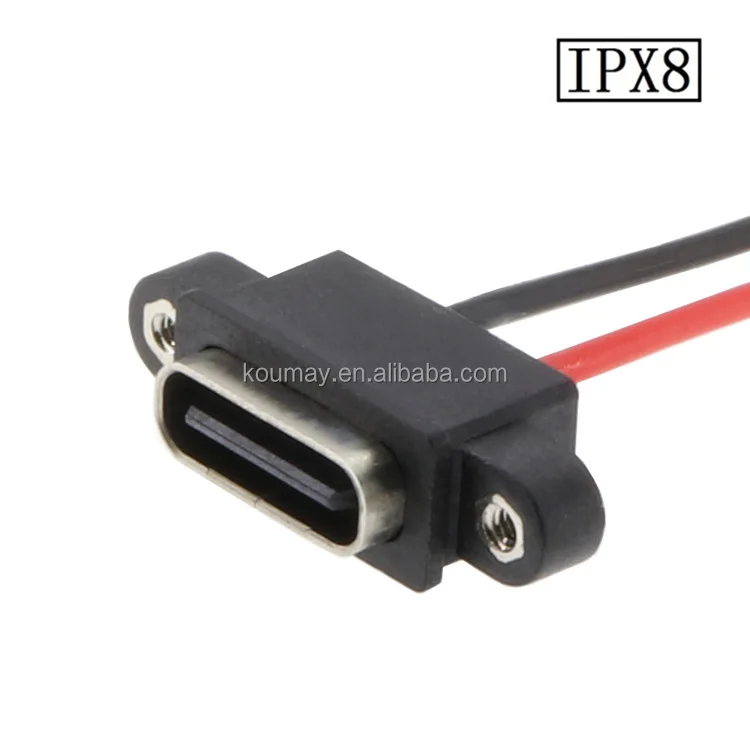

Take line 2 pin Waterproof Type-C socket Jack Straight lock type with nut Wire needs to be customized Waterproof grade IPX8


1129L 1.jpg1129L 2.jpg1129L 3.jpg1129L 4.jpg1129L 5.jpg

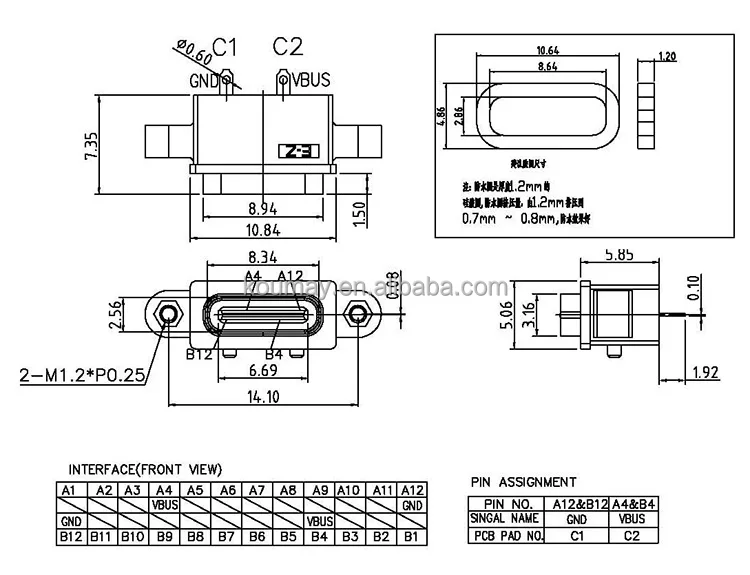

Type C jack



Specification



Rating



0.5-5A 12V-250V DC AC



Contact resistance



100mΩ max



Insulation resistance



100MΩ min at500V DC



Dielectric strength



AC 500V for 1 min



Lifespan



10,000 Cycles



Practical temperature range



-25 to 85 degrees Celsius



RoHS



Yes



[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification.
