Underwater Pelletizing System For Plastic Granulator Machine Extruder Underwater Pelletizer
- Category: Plastic Raw Material Machinery >>>
- Supplier: Zhangjiagang,Kooen,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Plastic pelletizing machine
We have two kinds of pelletizing machine.One is SJ series PE PP pelletizing machine.Another one is ZL series PE PP compactor pelletizing machine. It's suitable for PE PP LDPE HDPE BOPP ABS EVA etc.,such as Woven bags, printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc.
Cutting method:water ring cutting or pull strip cutting.
Size Information
SJ series single stage PP PE pelletizing machine | ||||||||||||
Model | SJ-65 | SJ-80 | SJ-100 | SJ-120 | SJ-150 | SJ-200 | ||||||
Screw Dia.(mm) | 65 | 80 | 100 | 120 | 150 | 200 | ||||||
L/D | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | ||||||
Capacity(kg/h) | 60-80 | 80-100 | 150 | 300 | 400 | 500 | ||||||
SJ series double stage PP PE pelletizing machine | ||||||||
Model | SJ-100/100 | SJ-120/120 | SJ-150/150 | SJ-200/200 | ||||
Screw Dia.(mm) | 100 | 120 | 150 | 200 | ||||
L/D | 28-30 10-15 | 28-30 10-15 | 28-30 10-15 | 28-30 10-15 | ||||
Capacity(kg/h) | 120-180 | 220-300 | 300-400 | 500-600 | ||||
ZL series single stage PP PE pelletizing machine | |||||||||
Model | ZL-85 | ZL-100 | ZL-130 | ZL-160 | ZL-180 | ||||
Screw Dia.(mm) | 85 | 100 | 130 | 160 | 180 | ||||
L/D | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 | ||||
Capacity(kg/h) | 120-180 | 250-350 | 400-500 | 550-700 | 800-1000 | ||||
ZL series double stage PP PE pelletizing machine | |||||||||
Model | ZL-85/100 | ZL-100/120 | ZL-130/130 | ZL-160/160 | ZL-180/200 | ||||
Screw Dia.(mm) | 85 | 100 | 130 | 160 | 180 | ||||
L/D | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 | ||||
Capacity(kg/h) | 150-200 | 300-350 | 500 | 650-700 | 800-1000 | ||||
1-Belt conveyor
Control method: frequency control
Metal detector for selection
Metal detector for selection
2-Compactor
Rotation knives/fix knives inside
Motor power: 45/55/75/90 KW
Cutter material: Cr12Mov
Motor power: 45/55/75/90 KW
Cutter material: Cr12Mov
3-Main extruder
Screw diameter: 85/100/130/160/180mm for option
Aluminum heater
crew/barrel material: 38CrMoAl, Nitrify processing
Equipped with vacuum pump
Aluminum heater
crew/barrel material: 38CrMoAl, Nitrify processing
Equipped with vacuum pump
4-Venting system
Quantity: 2 pieces, Vacuum pump: 1 pc
5-Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)
6-Sub extruder
Screw diameter: 100/130/160/180mm for option
Aluminum heater
Screw/barrel material: 38CrMoAl, Nitrify processing
Aluminum heater
Screw/barrel material: 38CrMoAl, Nitrify processing
7-Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)
8-Water-ring cutting system
Motor power: 2.2/3kw
Frequency control
Frequency control
9-Centrifugal dryer
Motor power:4/5.5/7.5KW for option
Rotation speed: 1200rpm
Made of SUS304 stainless steel
Rotation speed: 1200rpm
Made of SUS304 stainless steel
10-Fan blower
Motor power: 2.2/3/5.5Kw
11-Silo
Made of SUS304 stainless steel
12-Control cabinet
Word famous brand electric components
Related Products

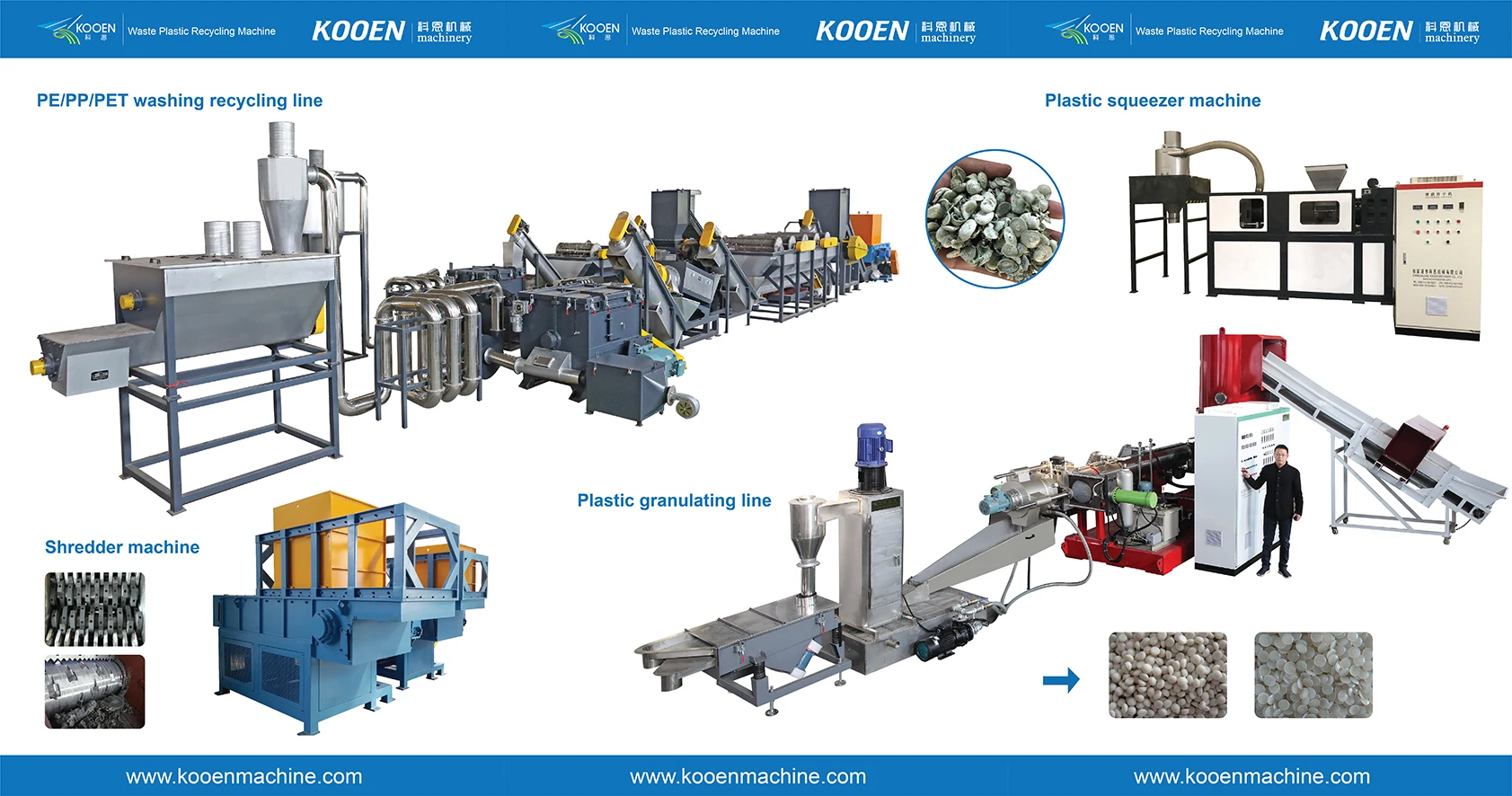

KOOEN company more plastic recycling machine for reference

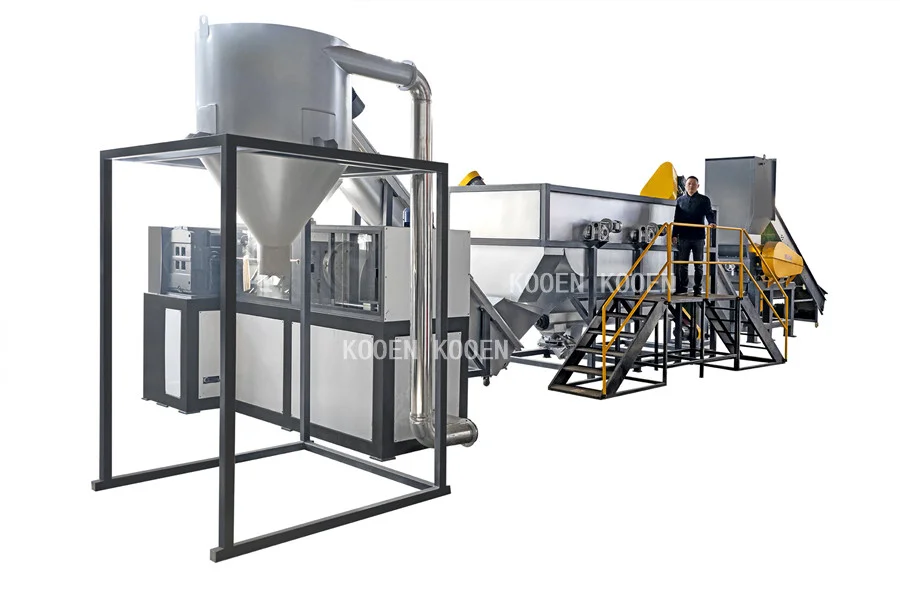

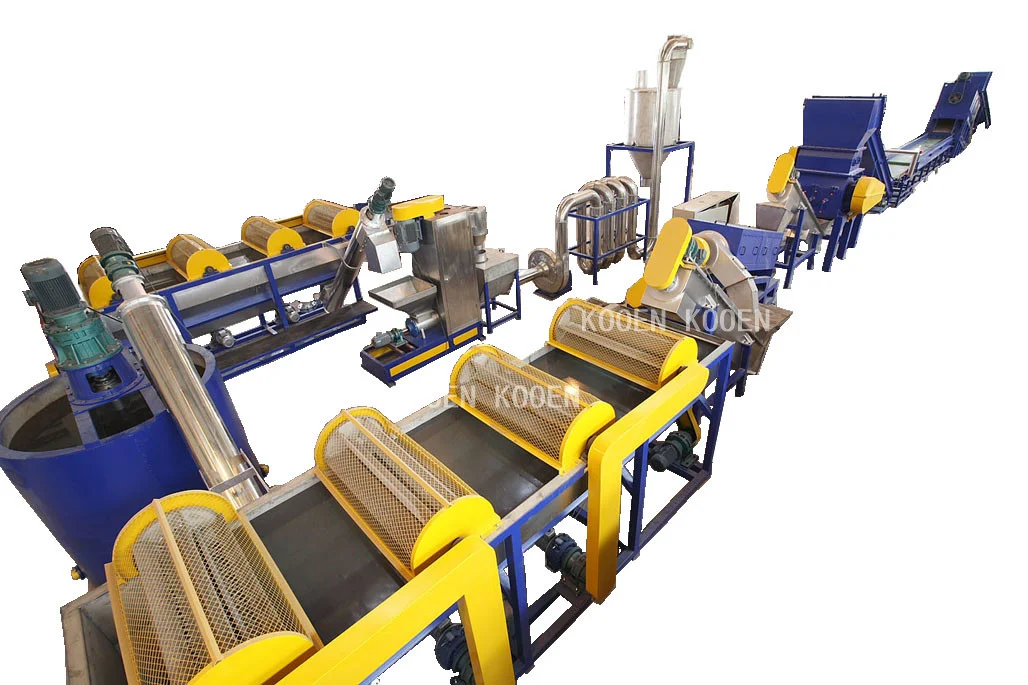

PE/PP film washing line (with squeezer machine)
http://www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
PE/PP film washing line (with centrifugal dryer)
http://www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）

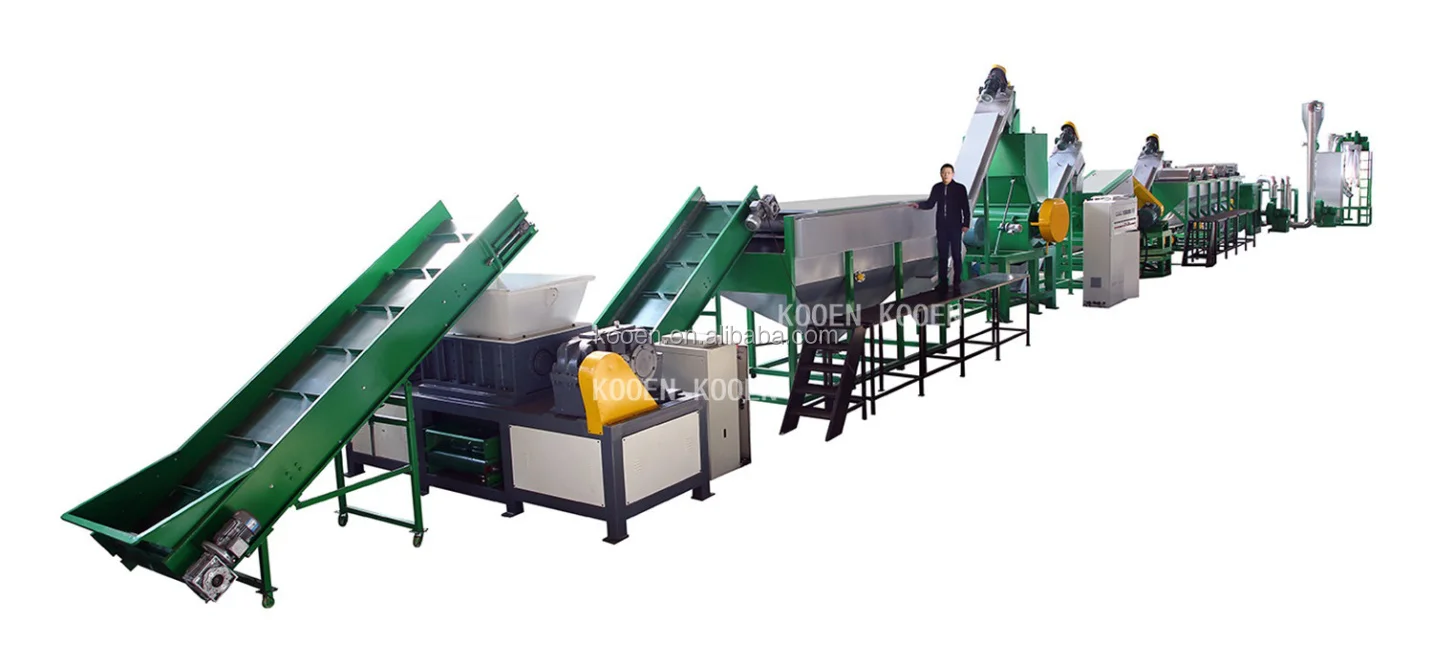

HDPE, PP bottle(hard plastic) washing line
http://www.kooenmachine.com/hdpe-pp-rigid-plastic-washing-line/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ （Video link）

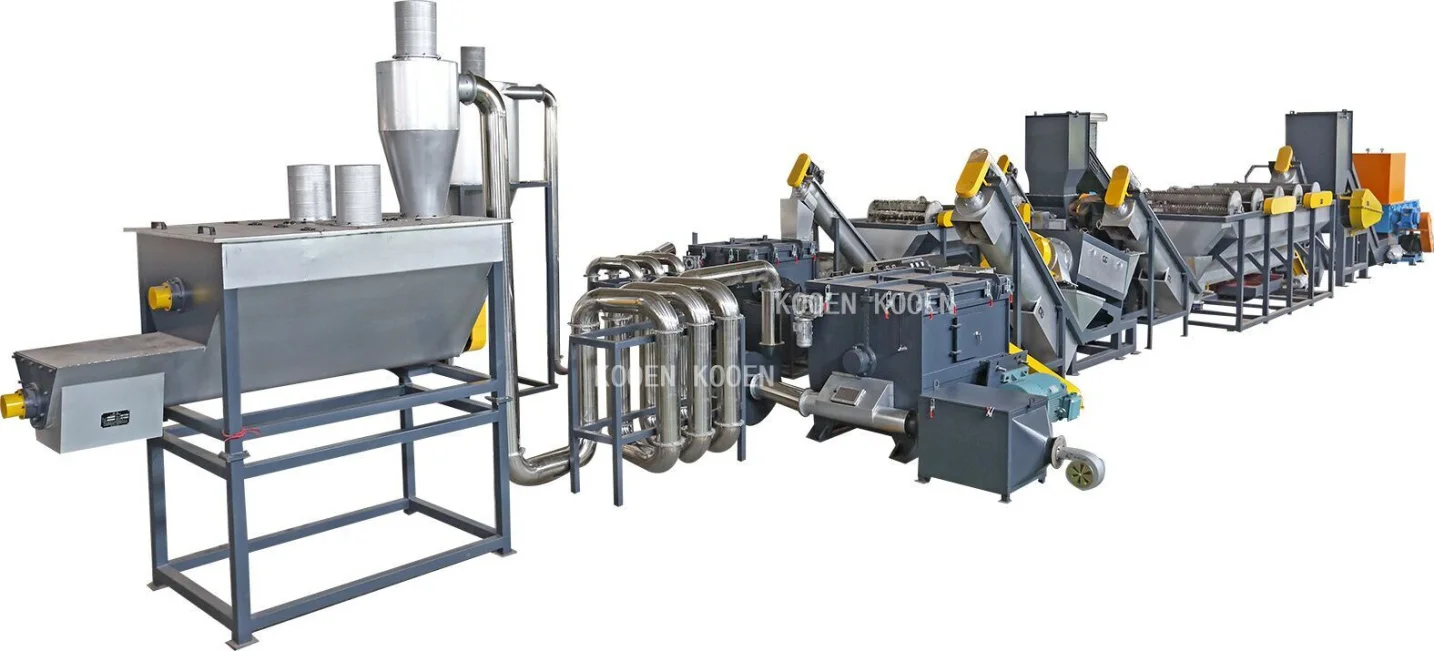

PET bottle washing line
http://www.kooenmachine.com/pet-bottle-washing-line/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ （Video link）

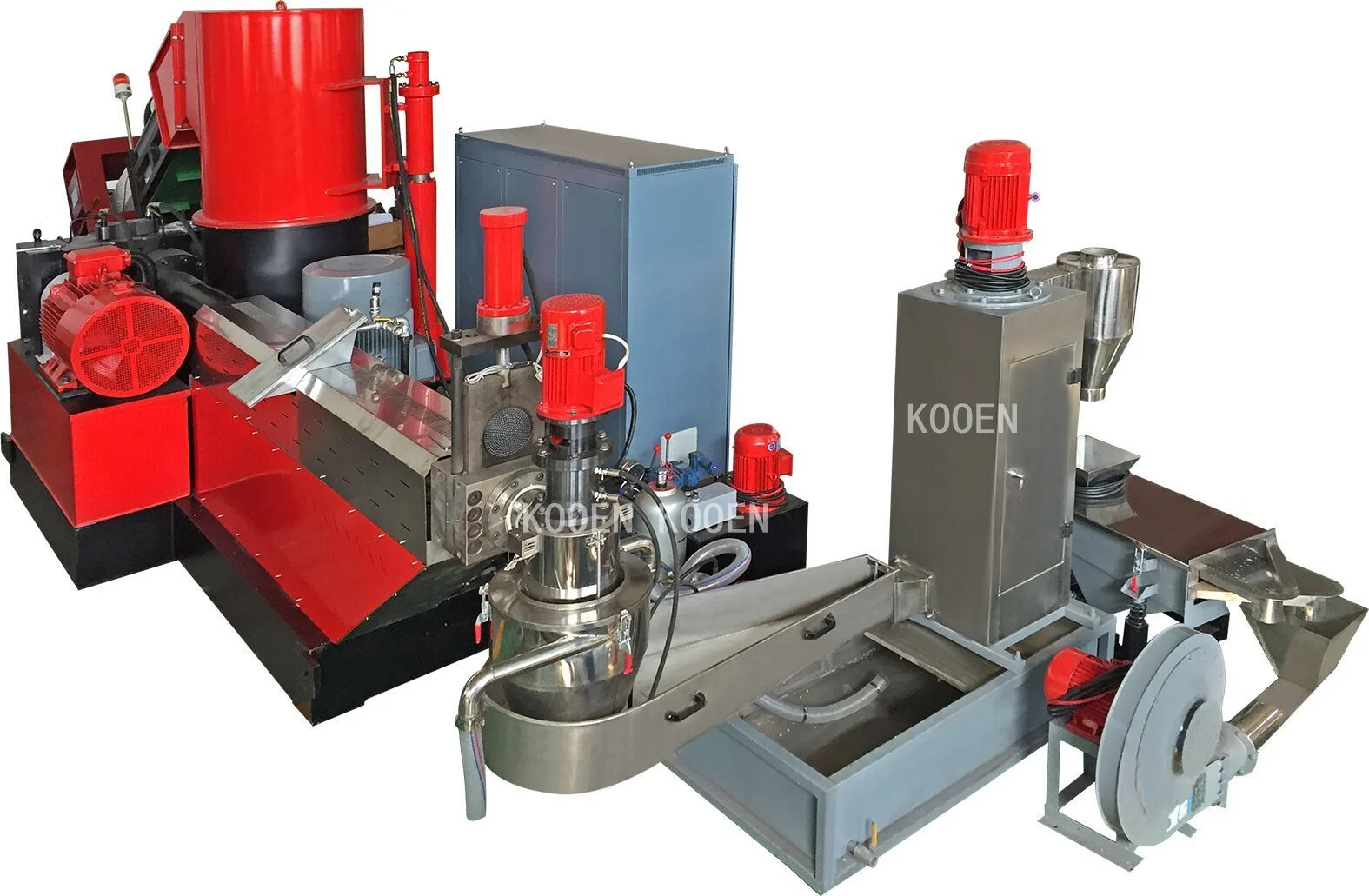

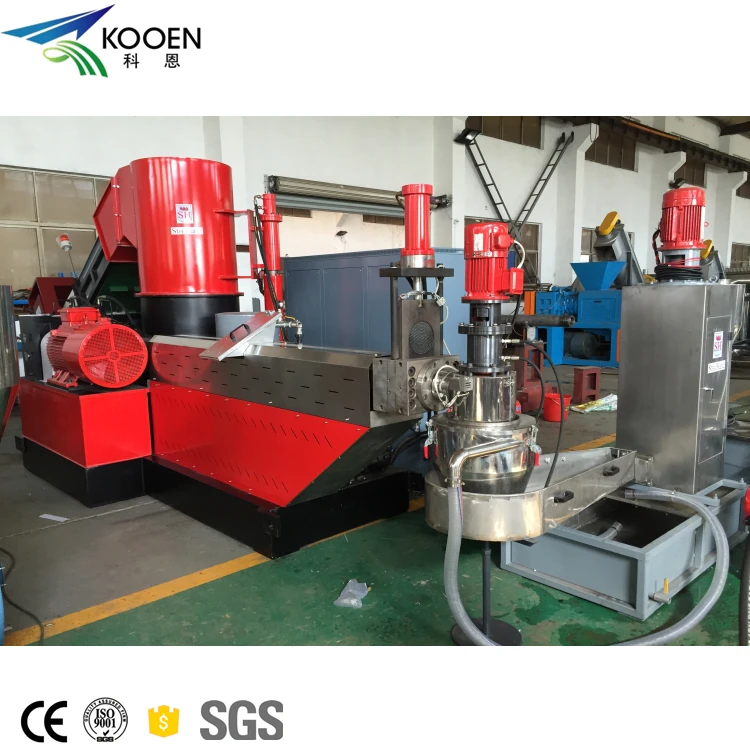

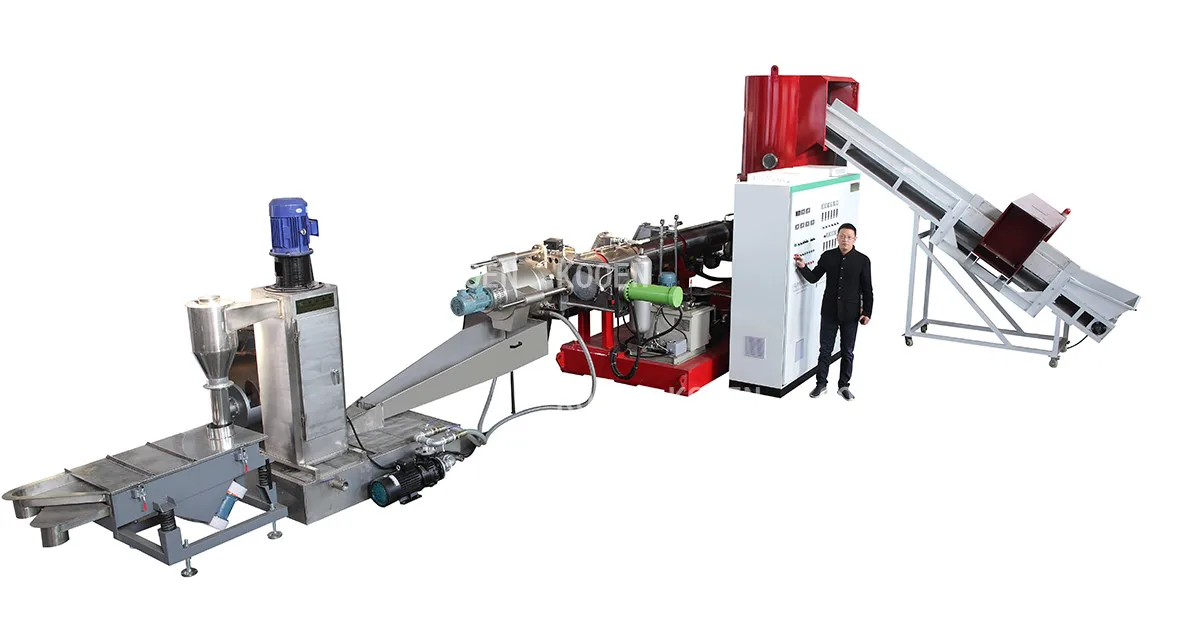

ZL series single stage compactor granulator
http://www.kooenmachine.com/zl-single-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）

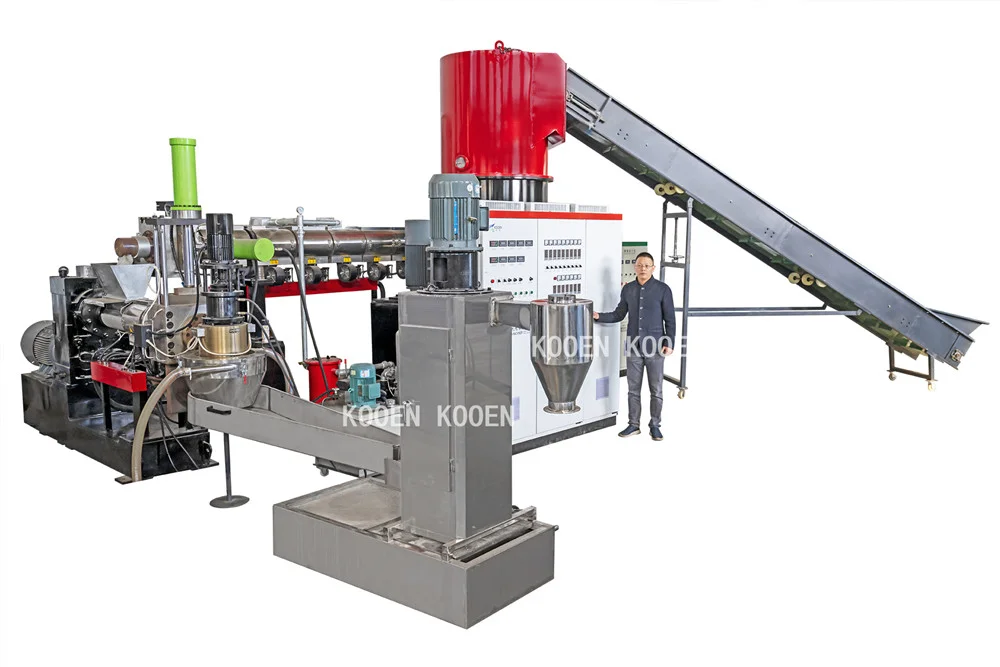

ZL series double stage compactor granulator
http://www.kooenmachine.com/zl-double-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）

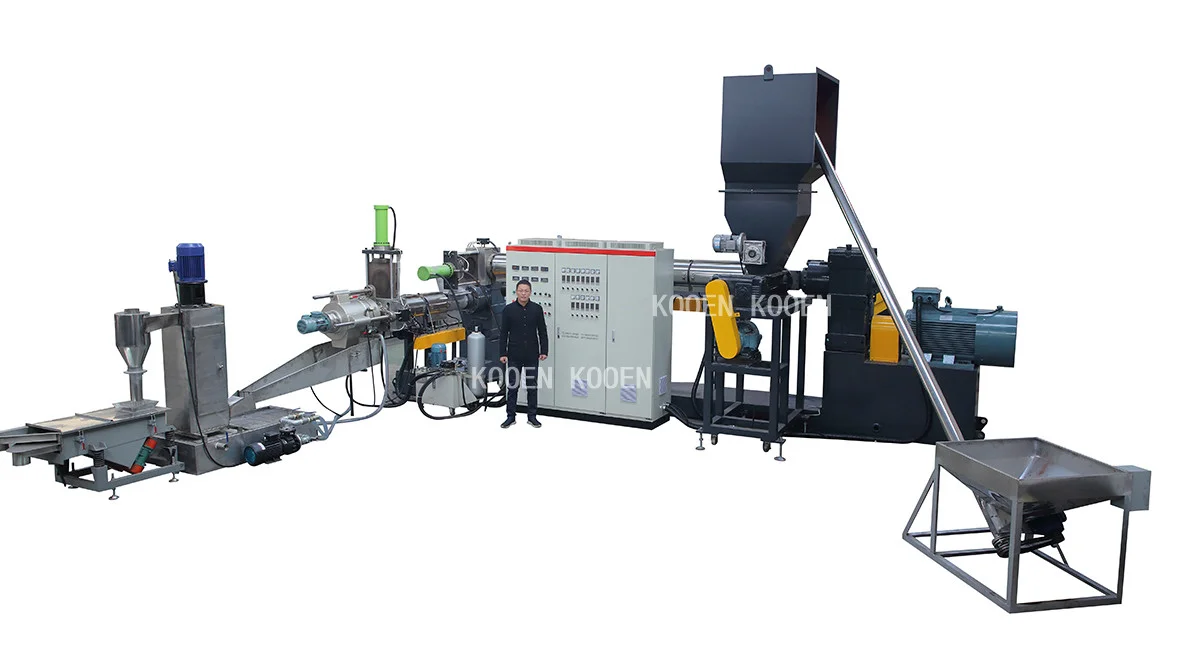

SJ series double stage granulator (water ring cutting)
http://www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ （Video link）

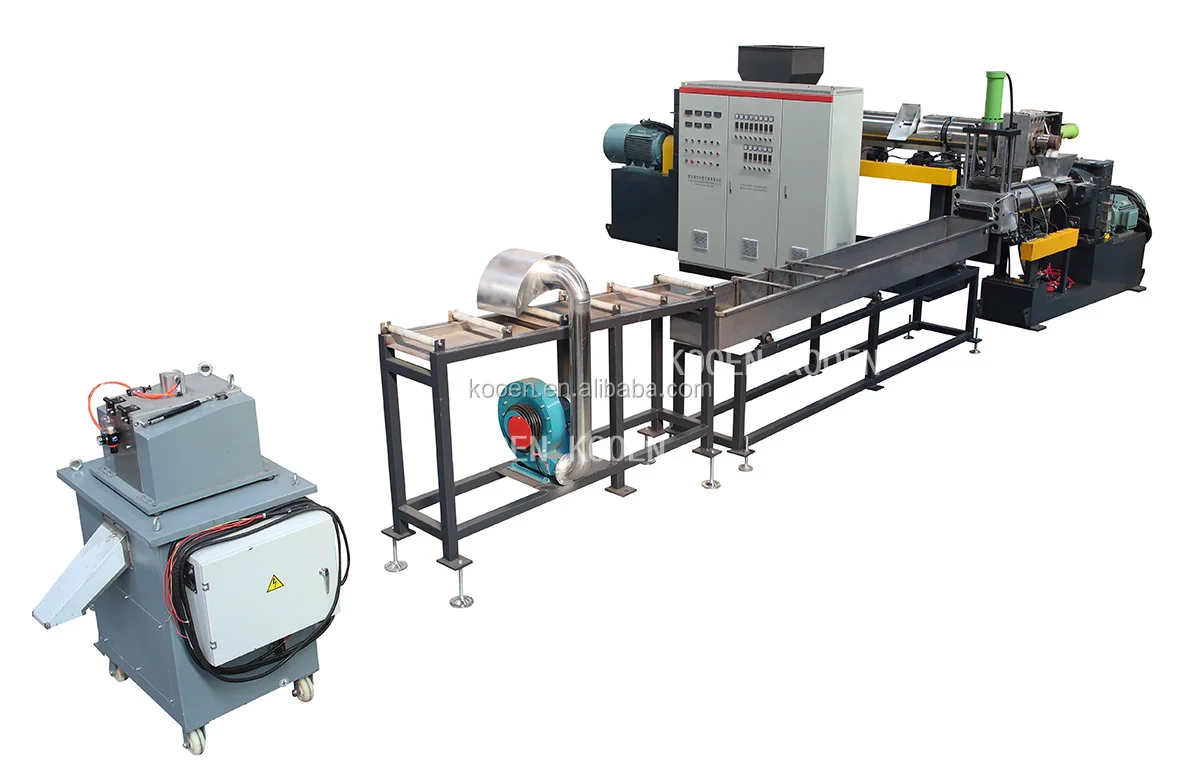

SJ series double stage granulator (pull strip cutting)
http://www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ （Video link）

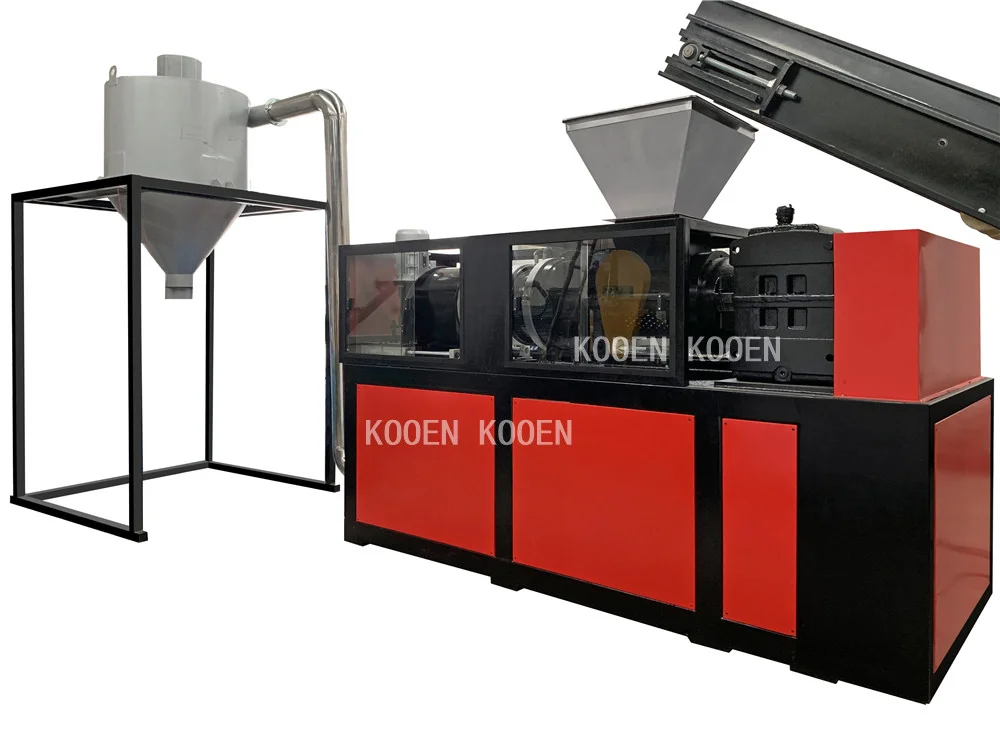

Squeezer machine
http://www.kooenmachine.com/squeezer-machine/ （Website link）
http://www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/（Video link）

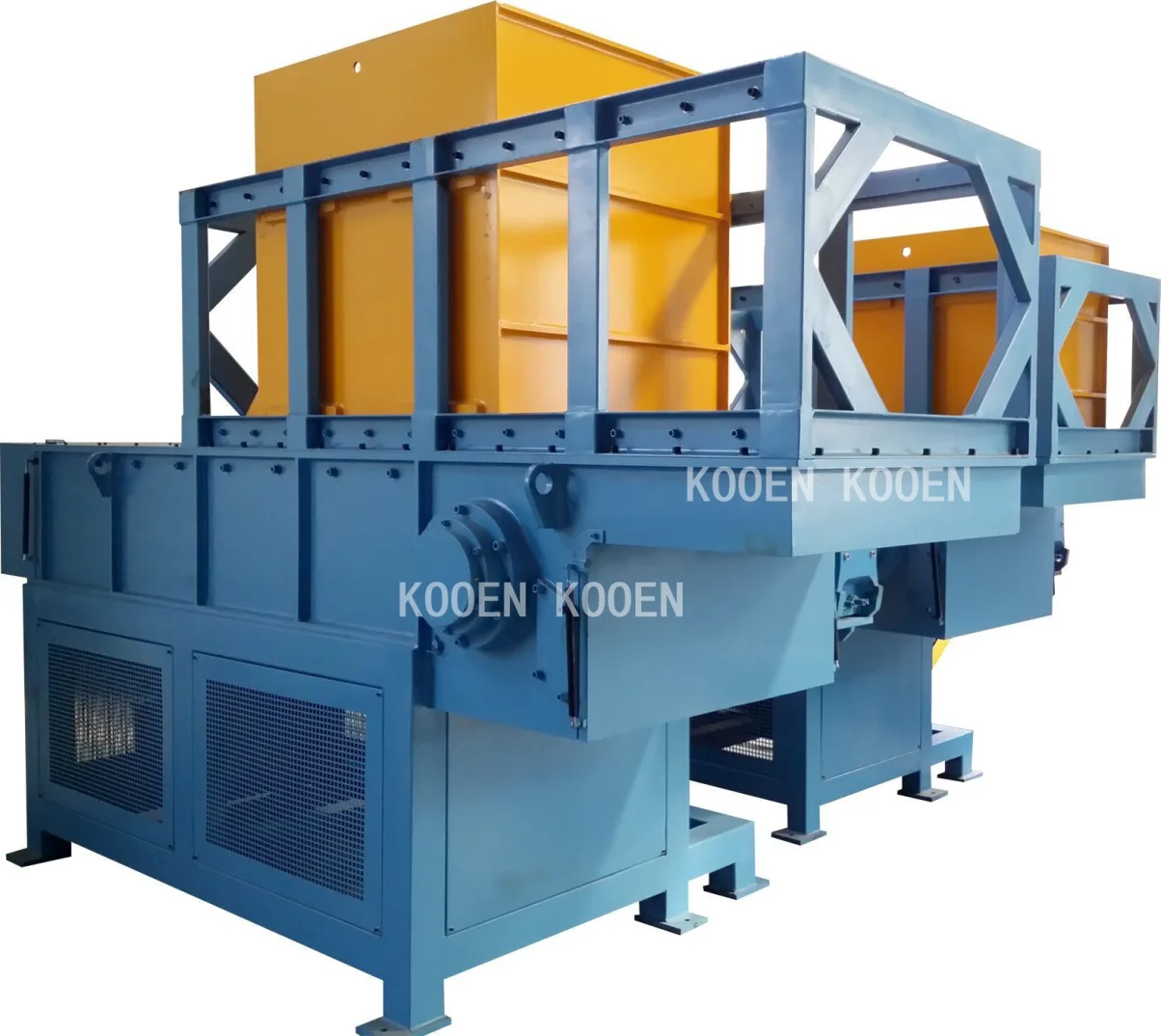

Shredder machine
