Automatic Electric Rolling Machine Shutter Door Motor Opener side motor
- Category: >>>
- Supplier: Zhangzhou Mingniao Electronic Machinery Co. Ltd.
Share on (1600602694619):
Product Overview
Description
Product Description

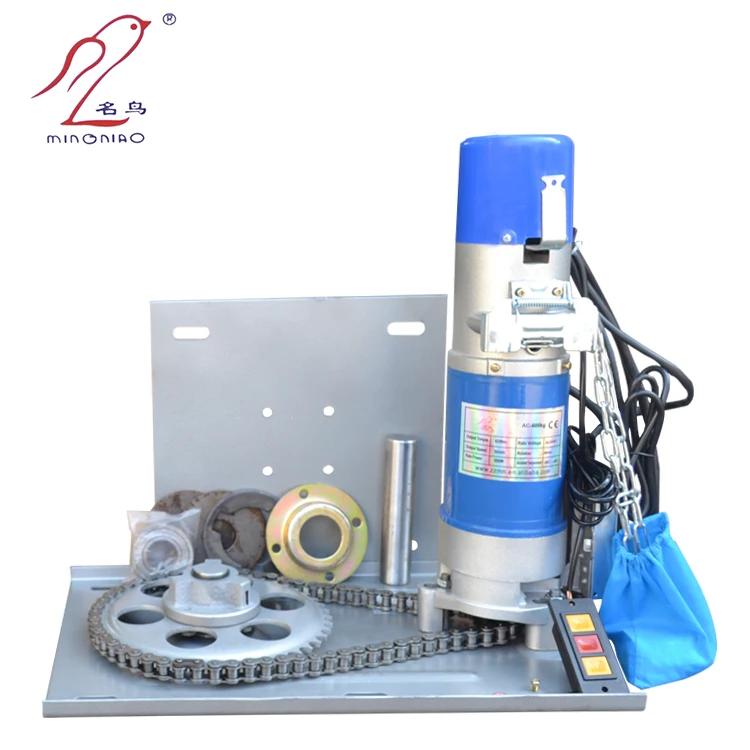

Automatic Electric Rolling Machine Shutter Door Motor Opener Motor
Product Features:
1.Rolling shutter opened and closed by the power-driven operation.
2.Limit switch unit enables precise adjustment of door in both up and down positin.
3.In case in the absence of powerm a release chain can be operated door manually.
4.Powerful strength,overheat protection whenoverloaded.
5.One-phase rolling door motor has the capacitance automatic discharge device for security overhaul.
6.Easy installation,low noise,small power consumotion.
Product Specification | |
Item Name | Automatic Electric Rolling Machine Shutter Door Motor Opener |
Type | AC300kg-1500kg |
Lifting Weight | 300kg-1500kg |
Color | OEM |
Place Of Origin | Fujian,China(Mainland) |
Voltage | 220v |
Motor Wire | Copper/Aluminum |
Brand Name | M |
Frequency | 50Hz |
Max Lifting Height | 6-9m |
MOQ | 50 set |
Supply Capacity | 10000 Sets Each Month |
Delivery | Within 15-30days After Received 30% Deposit |
Packing | Carton packed fill with foam,can be customized |
TECHNICAL PARAMENTERS | |||||||
MODEL | MAX.Lifting Force(kg.f) | Max.Elevating distance(m) | Power(w) | Rate Current(A) | Output torque(N.m) | Output yurn speed(r/min) | Chain |
220V,50Hz | |||||||
MN(Z)-1P-300 | 300 | 6 | 400 | 2.4 | 210 | 5.0 | 08B |
MN(Z)-1P-500 | 500 | 6 | 480 | 2.6 | 350 | 5.0 | 10A |
MN(Z)-1P-600 | 600 | 6 | 500 | 3.0 | 420 | 5.3 | 10A |
MN(Z)-1P-800 | 800 | 9 | 540 | 3.8 | 610 | 4.6 | 10A |
MN(Z)-1P-1000 | 1000 | 9 | 580 | 4.2 | 760 | 4.6 | 12A |
Convertible link
