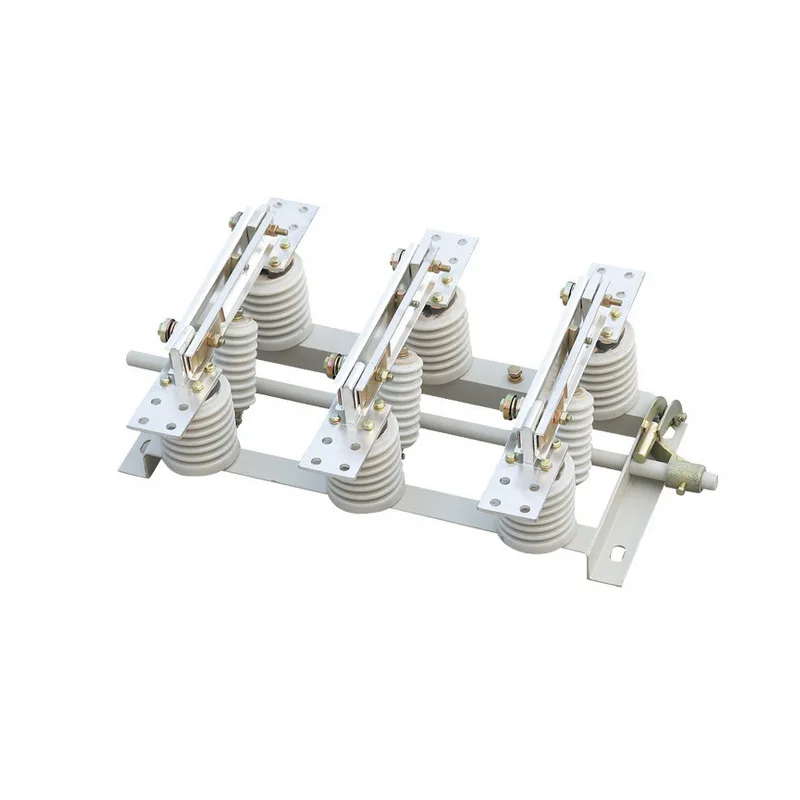

GN19 11KV 12KV Indoor High Voltage Disconnector isolating switch with earth switch
- Category: >>>
- Supplier: Zhejiang Zhegui Electric Co. Ltd.
Share on (1600602695580):
Product Overview
Description
Product Description
Customized products can consult online customer service!

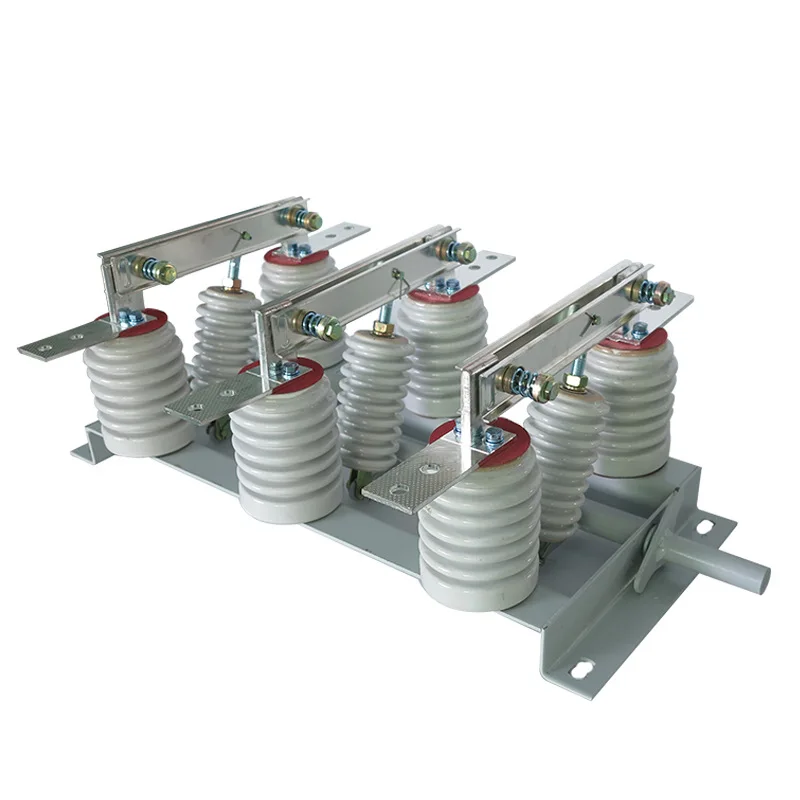

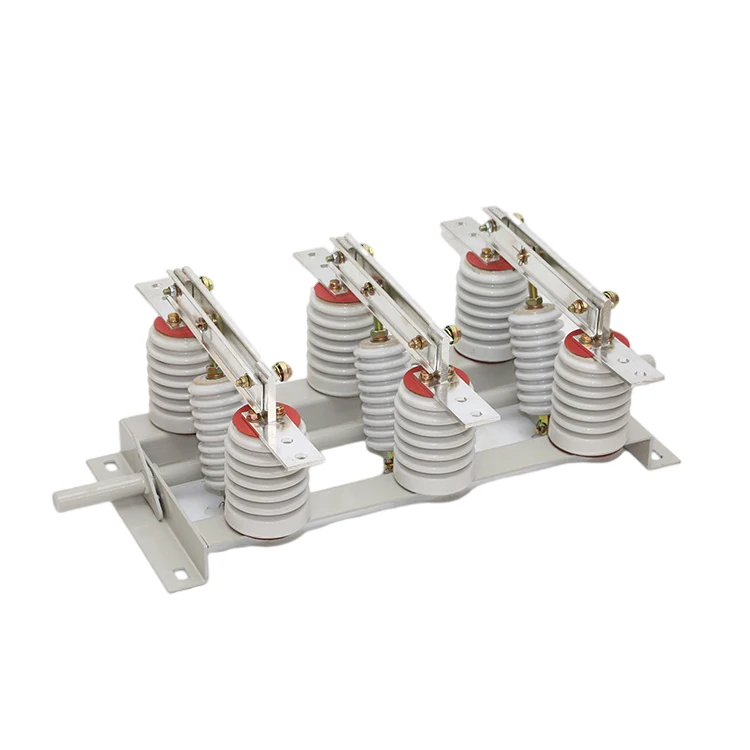

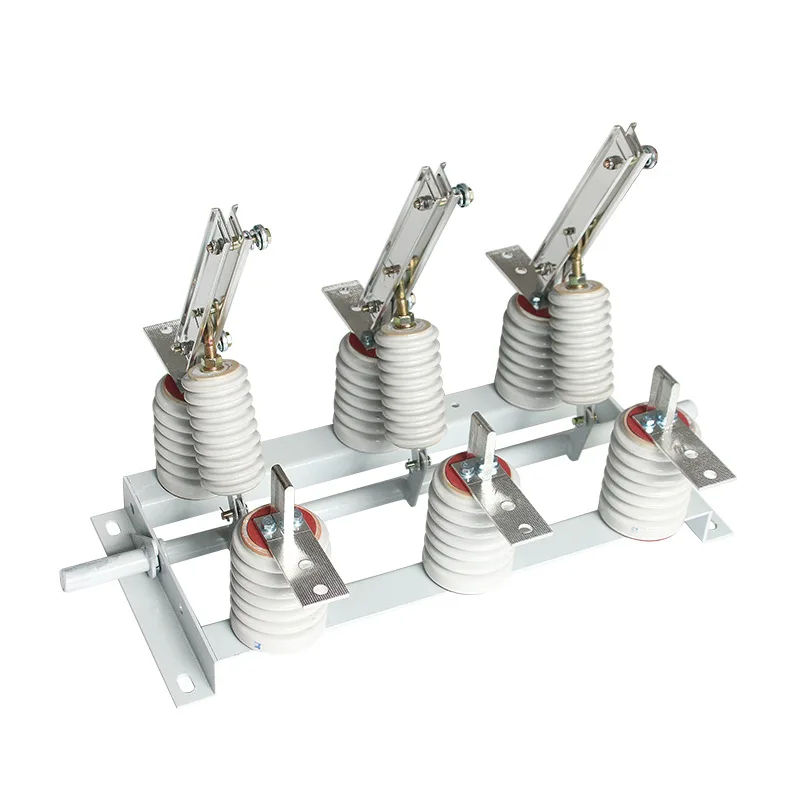

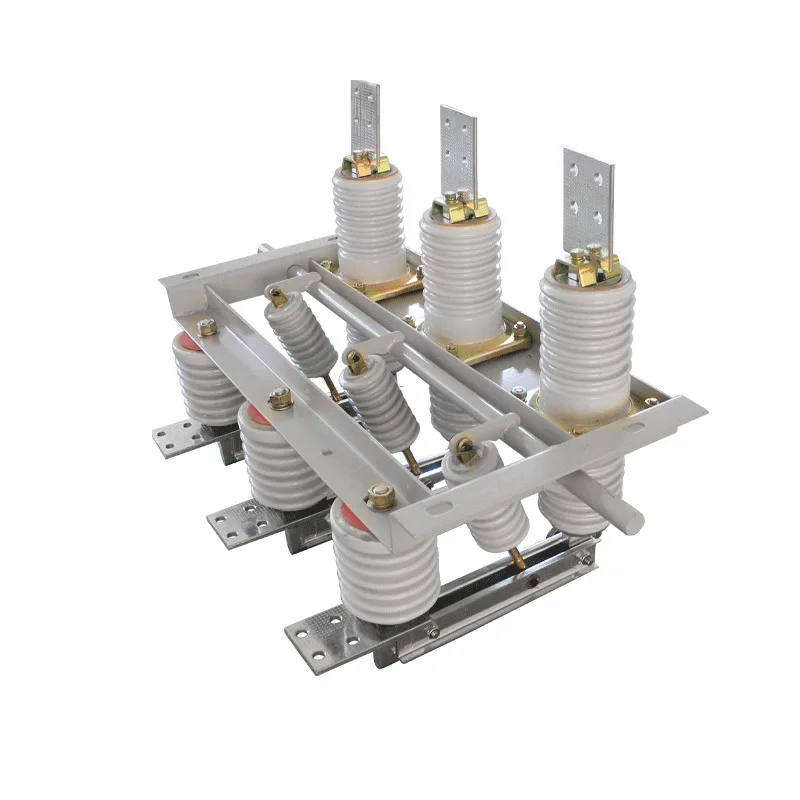

GN19-12 Disconnect Switch
Description:
GN19-12(C) indoor HV disconnect switch applies to power system of rated voltage below 12kV.AC 50/60Hz. It is. equipped with CS6-1 manual-operating mechanism and is used to break and make circuits under no-load. There are additional pollution types, high-altitude types and power indicating types, It is made as perlEC62271-102.
| Model | Rated voltage (kV) | Rated current (A) | Rated short-time withstand current(kA/4s) | Rated peak withstand current(kA) |
| GN 19-12/400-12.5 | 12 | 400 | 12.5 | 31.5 |
| GN 19-12/630-20 | 12 | 630 | 20 | 50 |
| GN19-12/1000-31.5 | 12 | 1000 | 31.5 | 80 |
| GN19-12/1250-31.5 | 12 | 1250 | 31.5 | 80 |
| GN19-12C/400-12.5 | 12 | 400 | 12.5 | 31.5 |
| GN19-12C/630-20 | 12 | 630 | 20 | 50 |
| GN19-12C/1000-31.5 | 12 | 1000 | 31.5 | 80 |
| GN19-1C2/1250-31.5 | 12 | 1250 | 31.5 | 80 |

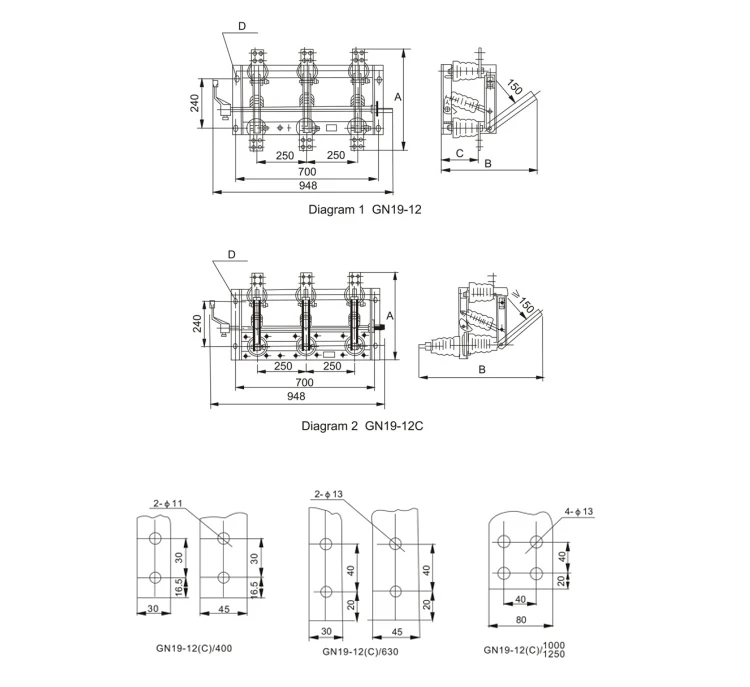

| Model | A | B | C | D |
| GN19-12/400 | 450 | 446 | 185 | 4-14x24 |
| GN19-12/630 | 470 | 446 | 185 | |
| GN19-12/1000/1250 | 510 | 500 | 196 | 4-18X28 |
| GN19-12C/400 | 420 | 690 | 185 | 4-14X24 |
| GN19-12C/630 | 430 | 690 | 185 | |
| GN19-12C/1000/1250 | 470 | 745 | 196 | 4-18X28 |
| 1. Altitude: 1000m |
| 2. Ambient temperature:-25~+40℃ |
| 3. Relative humidity: daily average 95℃, monthly average 90℃ |
| 4. Earthquake intensity: 8 degree |
| 5. Applicable occasions should free from inflammable explosives, corrosive, and severe vibration |
