Model configuration details | Model configuration details | |||||||||

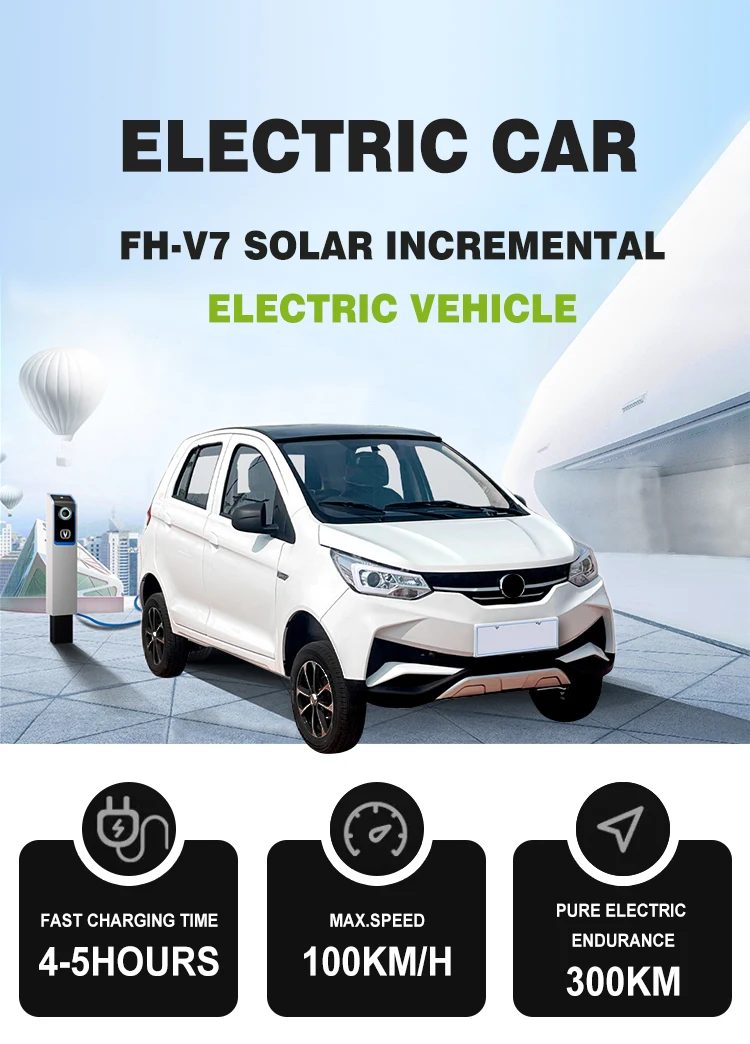

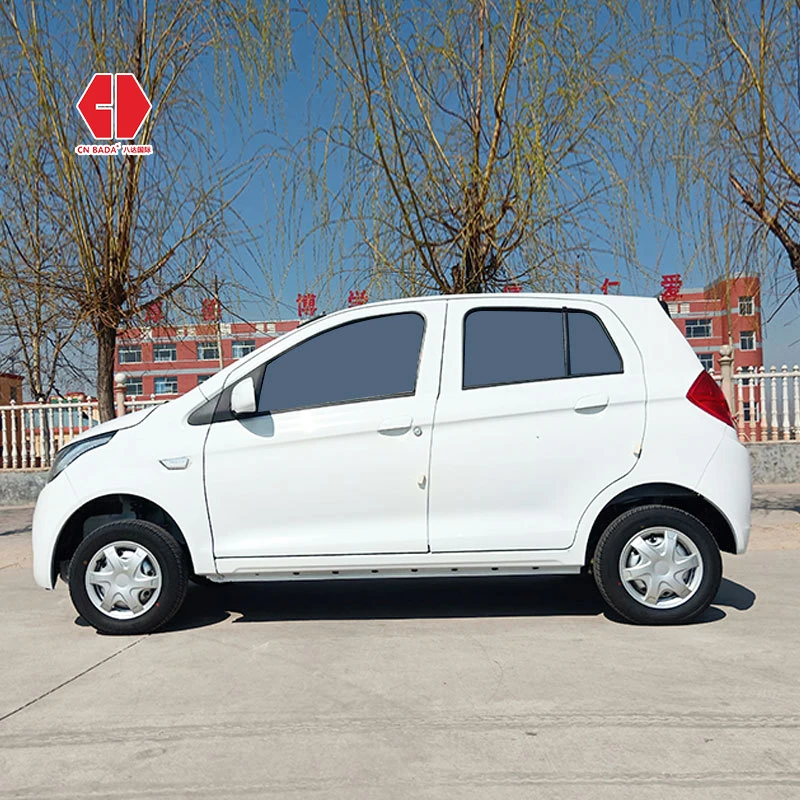

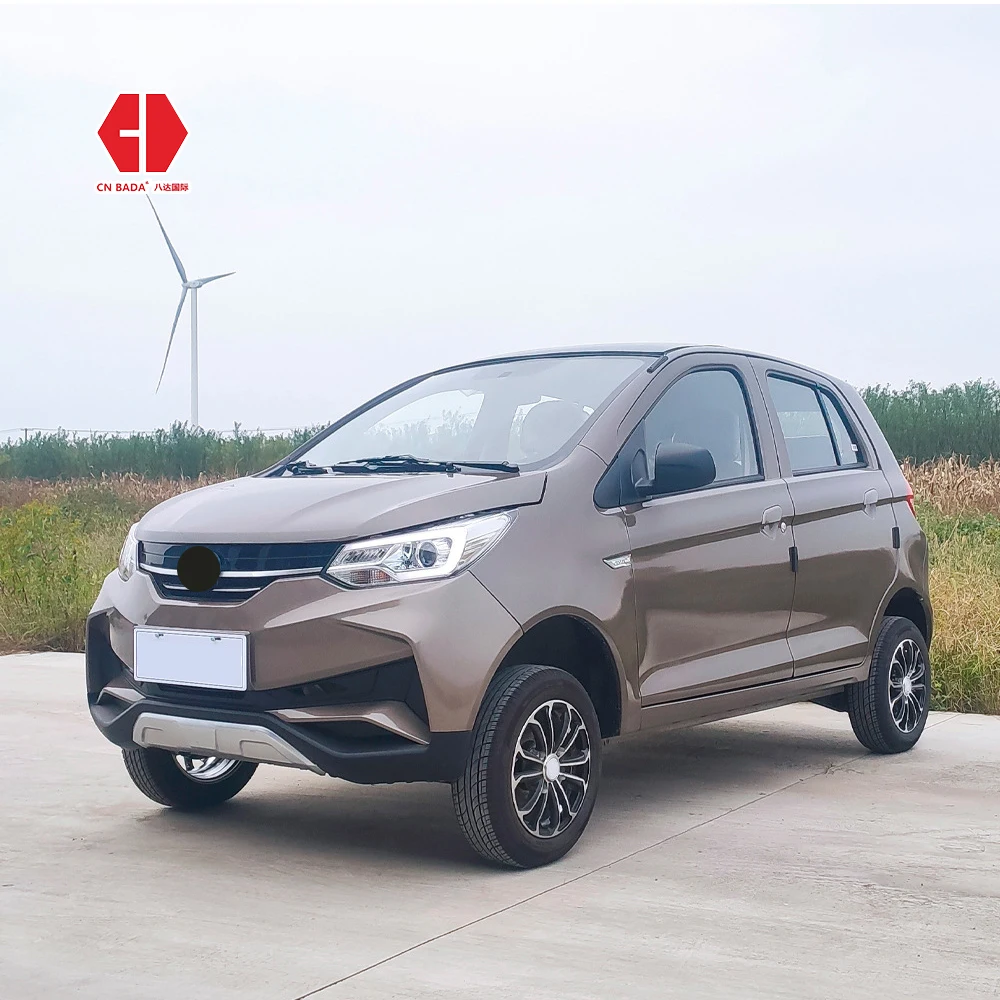

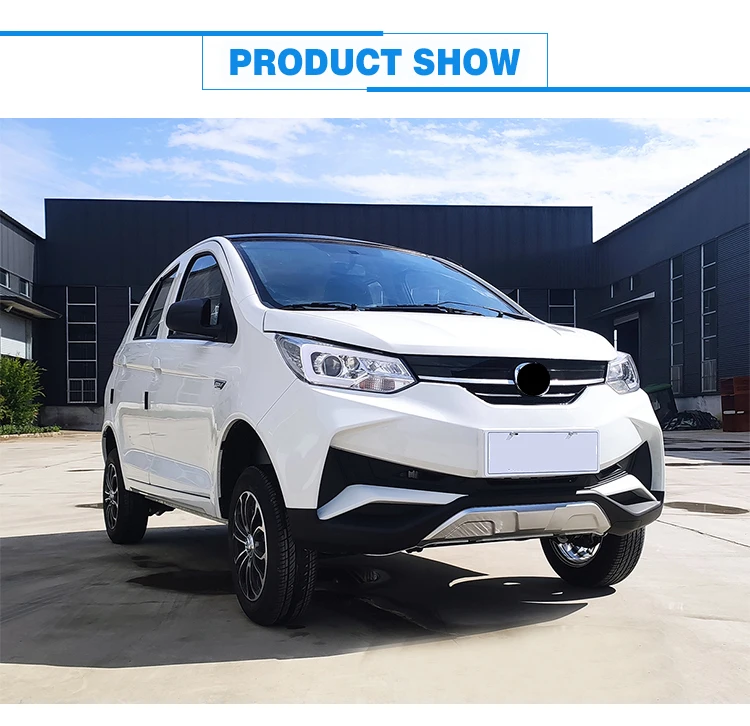

Vehicle Brand | BLAVAL | Vehicle Model | FH-V7 | |||||||
Vehicle Type | Solar Electric Car | Driver position | RHD/ LHD | |||||||
Body Structure | hatchback | Carrying number | 5 people | |||||||
Location of charging port | Front logo rear | |||||||||
tandard edition | Flagship version | |||||||||
Model NO.: | V7-A | V7-C | V7-E | V7-F | ||||||
Body size:L*W*H (mm) | 3480*1570*1550 | |||||||||
Wheel Base (mm) | 2300 | |||||||||
Wheel Track (mm) | 1360/1350 | |||||||||
Climbing angle(Degree) | ≤35 | ≤45 | ||||||||
Ground clearance (mm) | 230 | |||||||||
ECO speed | 40KM | |||||||||
ECO range(km) | 130-150 | 180-200 | 280-300 | 360-400 | ||||||
maximum speed(km/h) | 70KM | 90KM | ||||||||
Maximum range ( km ) | 110-130 | 140-150 | 220-240 | 220-300 | ||||||
Peak power (KW) | 10KW | 15KW | ||||||||
Motor type | AC | |||||||||
Driving type | RWD | |||||||||
Peak torque (N.m) | 108 | 132 | ||||||||
VCU (V) | 72V | |||||||||
Solar power system | Solar type | Flexible monocrystalline silicon | ||||||||
Solar panel power (W) | 300W | |||||||||
Controller type | MPPT | |||||||||
Output voltage (V) | 72V | |||||||||
Battery | Battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | |||||
Battery capacity | 120AH | 160AH | 240AH | 320AH | ||||||
8.64KWH | 11.52KWH | 17.28KWH | 23KWH | |||||||
Number of battery | 1 | 1 | 1 | 1 | ||||||
Battery Lift (DOD80%) | 1800-2000 | 1800-2000 | 1800-2000 | 1800-2000 | ||||||
Normal Charge Times(hr) | 4-5 | 4-5 | 4-5 | 4-5 | ||||||
Input Voltage (VAC) | 220±15% | |||||||||
Output current (ADC) | 20 | 30 | 40 | 50 | ||||||
Gear number | 4(E/D/N/R) | |||||||||
Gearbox type | Fixed gear ratio | |||||||||
Front suspension type | Mcpherson independent suspension | |||||||||
Rear suspension type | Rigid axle suspension | |||||||||
Body type | Unibody | |||||||||
Wheel& Brake | Front brake type | Disc brake | ||||||||
Rear brake type | Drum brake | |||||||||
Parking brake type | Hand brake | |||||||||
Tyre size | 165/65R14 | |||||||||
Wheel hub type | Aluminium alloy | |||||||||
& Driving Assistance | Hill-start Assist ControL | ● | ||||||||
Lock brake system | ABS | |||||||||
Brake assist system | Vacuum hydraulic type | |||||||||
EPS | ● | |||||||||

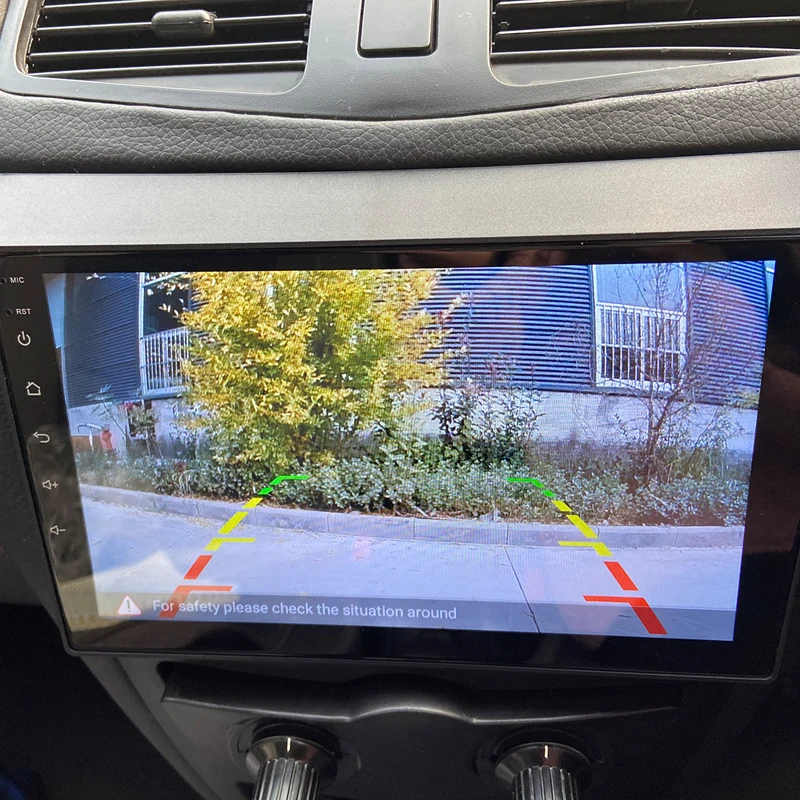

Rear View Camera | ● | ● | ● | |||||||
Safety Belt | Front/ Rear | Front/ Rear | Front/ Rear | |||||||
Anti-collision buffer | Front/ Rear | Front/ Rear | Front/ Rear | |||||||
Side impact beam | ● | ● | ● | |||||||
Bumper | Front/ Rear | Front/ Rear | Front/ Rear | |||||||
Danger alarm | ● | ● | ● | |||||||
Handbrake power off | ● | ● | ● | |||||||
Auto power off fully charge | ● | ● | ● | |||||||
Overvoltage protection | ● | ● | ● | |||||||
Undervoltage protection | ● | ● | ● | |||||||
Over current protection | ● | ● | ● | |||||||
overheat protection | ● | ● | ● | |||||||
Photoelectric complementary charging | ● | ● | ● | |||||||
Charging temperature compensation | ● | ● | ● | |||||||
Charging leakage protection | ● | ● | ● | |||||||
Output short circuit protection | ● | ● | ● | |||||||
Warning horn | ● | ● | ● | |||||||
Electric power window | ● | ● | ● | |||||||
Rearview mirror | can't folding | can't fold | can't fold | |||||||
Central lock | ● | ● | ● | |||||||
Remote key | ● | ● | ● | |||||||
Window lock | yes | |||||||||
Door lock | yes | |||||||||
Child lock | ● | ● | ● | |||||||
Keyless entry | Yes | |||||||||
One button start | Yes | |||||||||

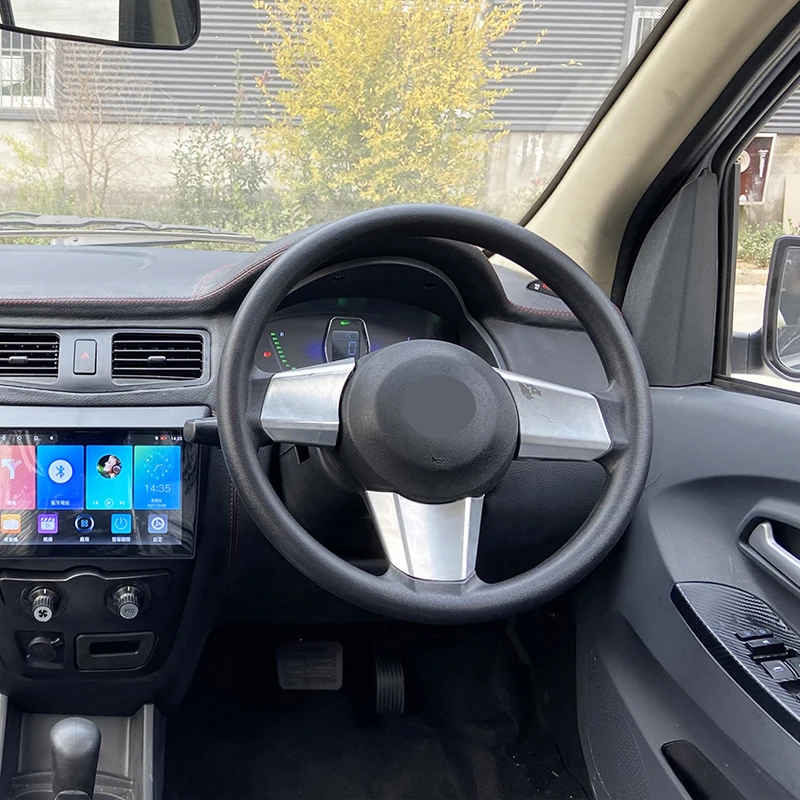

Interior Collocation | Multifuncion steering | Yes | ||||||||
Front seats headrest | ● | ● | ● | |||||||
Inner mirror | ● | ● | ● | |||||||
Room lamp | ● | ● | ● | |||||||
High/low speed mode | ● | ● | ● | |||||||
Steering wheel material | ABS | ABS | ABS | |||||||
LCD panel | ● | ● | ● | |||||||
Real-time status | ● | ● | ● | |||||||

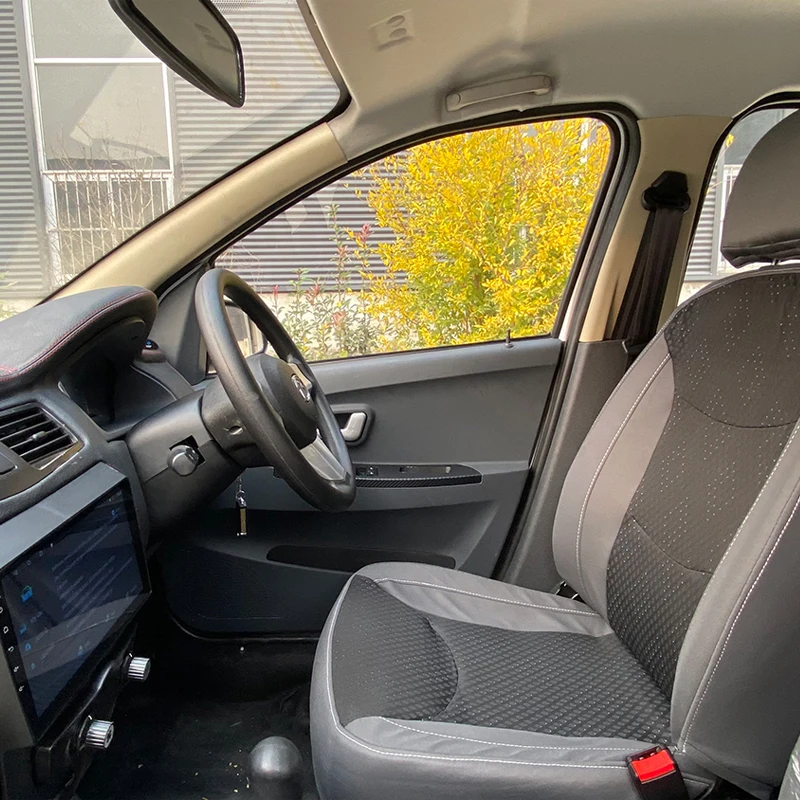

Seat material | Fabric seat | Fabric seat | Fabric seat | |||||||
Front seats adjustable | ● | ● | ● | |||||||

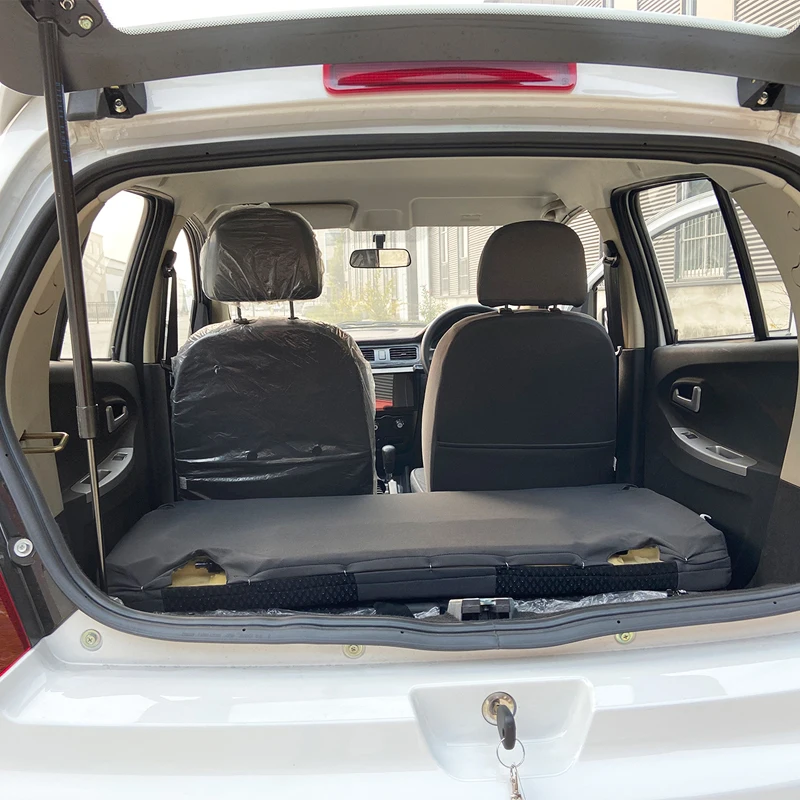

Rear seats removable | ● | ● | ● | |||||||
Big angle door open | ● | ● | ● | |||||||
Warm air glass defrosting | ● | ● | ● | |||||||
Sun shield | ● | ● | ● | |||||||
Cup holder | ● | ● | ● | |||||||
Lamp configuration | Daytime running lamps | ● | ● | ● | ||||||
Steering lamp | ● | ● | ● | |||||||
Clearance lamp | ● | ● | ● | |||||||
Foglight | ● | ● | ● | |||||||
Reversing light | ● | ● | ● | |||||||

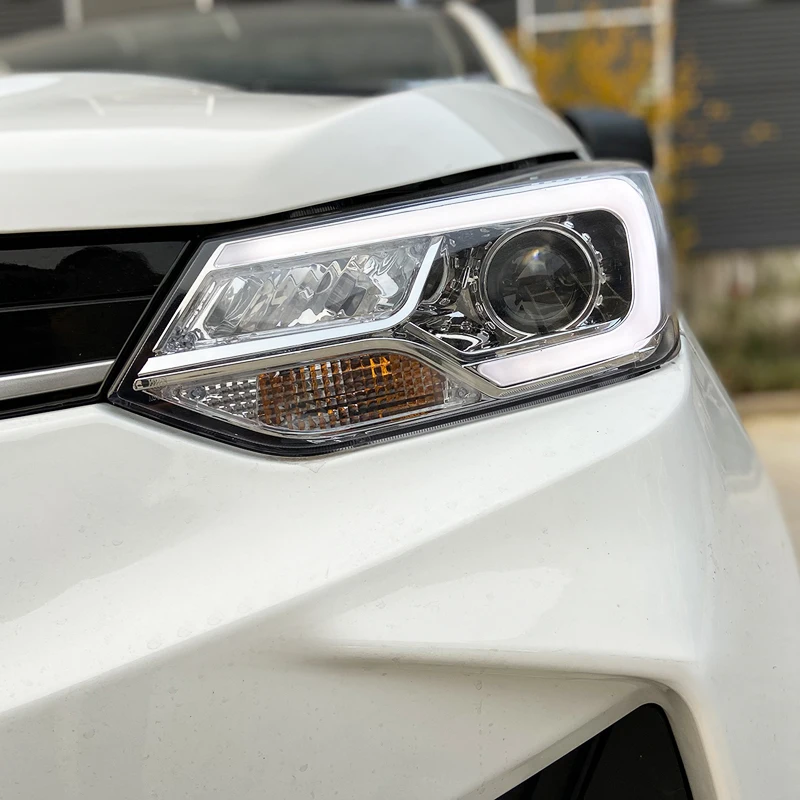

Combination headlight | ● | ● | ● | |||||||
Combination tail lamp | ● | ● | ● | |||||||
Light combination switch | ● | ● | ● | |||||||

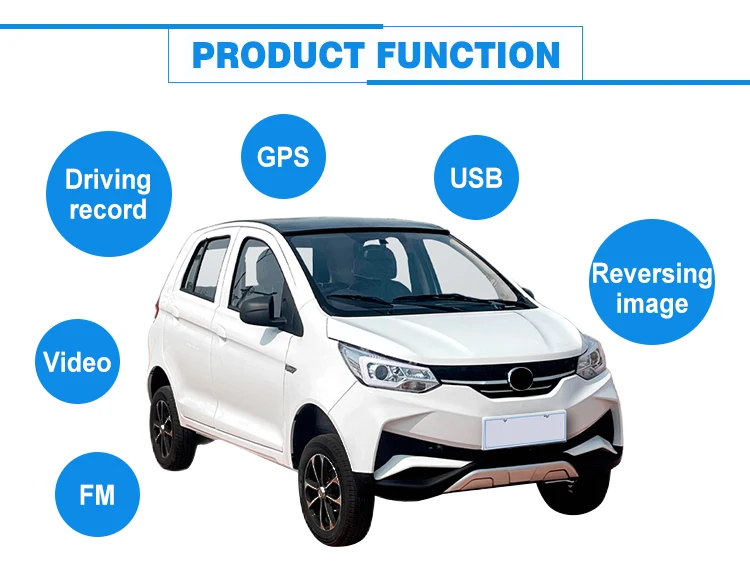

Multimedia & Air-conditioning | Color touch screen | ● | ● | ● | ||||||
Local Video player | ● | ● | ● | |||||||
Local music player | ● | ● | ● | |||||||
Radio | ● | ● | ● | |||||||
Phone charging interface | ● | ● | ● | |||||||
Bluetooth music/ phone | ● | ● | ● | |||||||
Mobile's wifi | ● | ● | ● | |||||||
12V External power supply | ● | ● | ● | |||||||
Sound condition | ● | ● | ● | |||||||
Ashtray | ● | ● | ● | |||||||
45 menu operating languages | ● | ● | ● | |||||||
Air-conditioning | ● | ● | ● | |||||||
Gasoline range extender | Gasoline range extender | option | ||||||||
COLOR SUPPORT CUSTOMIZATION | ||||||||||
