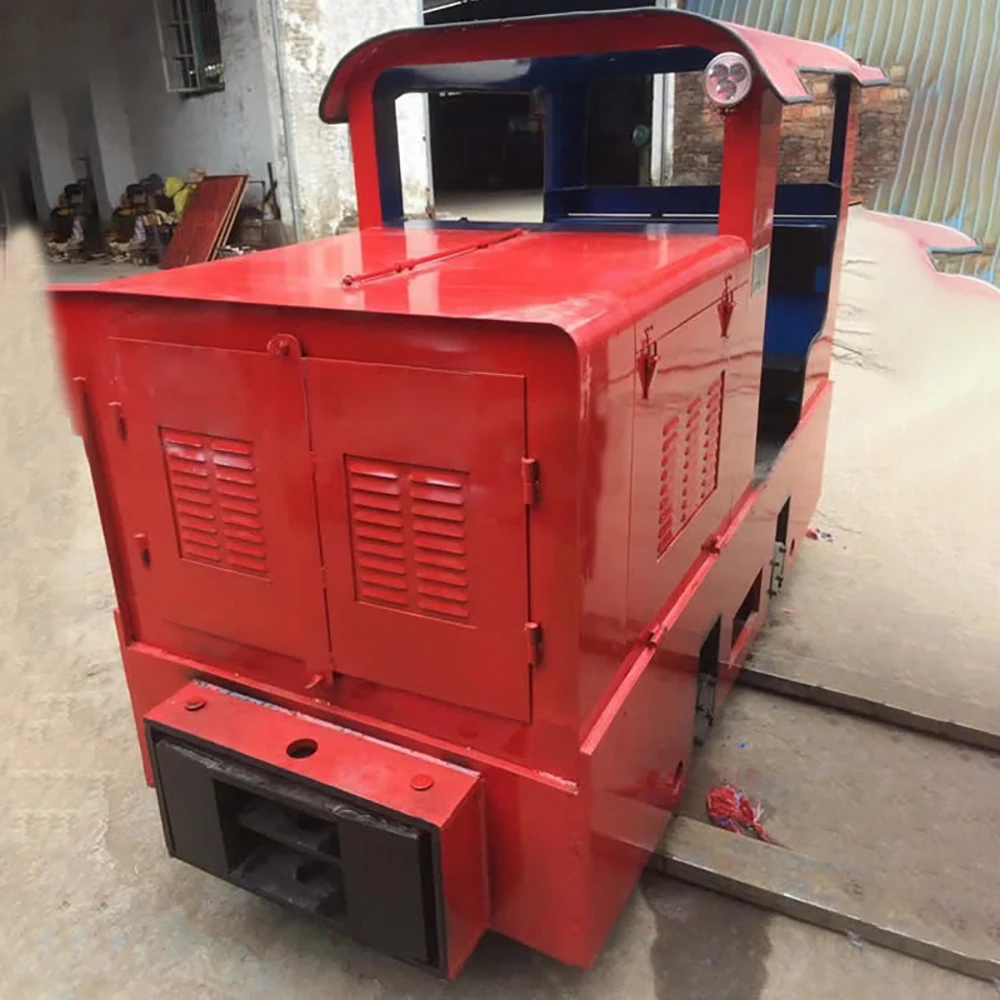

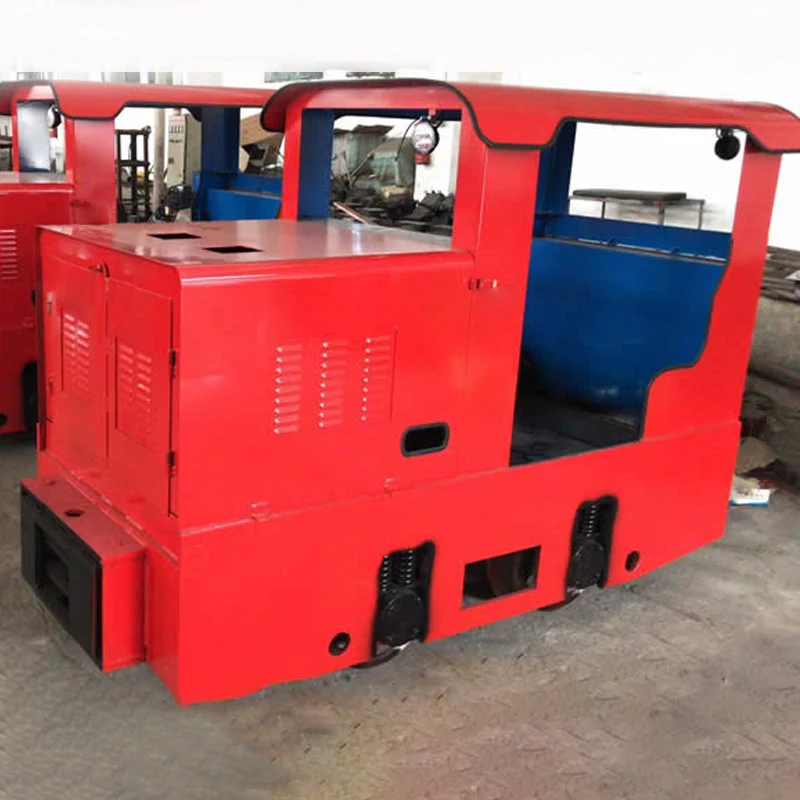

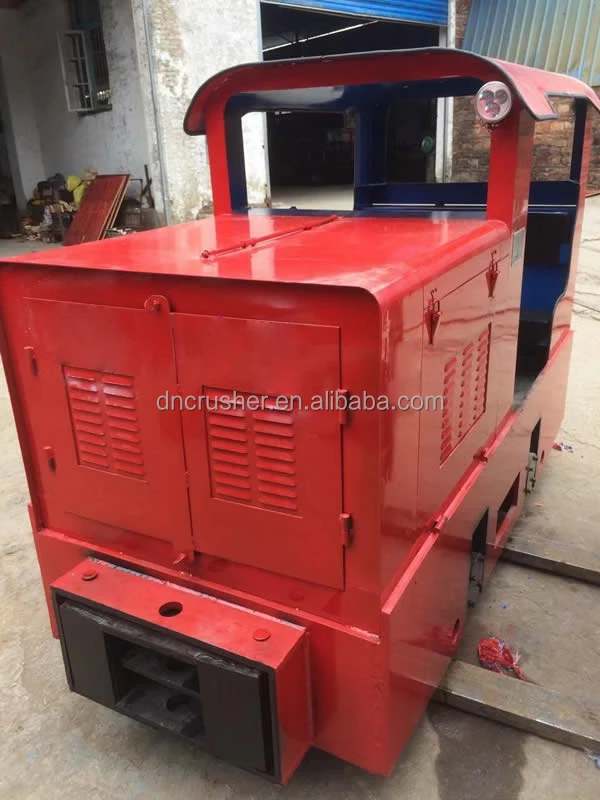

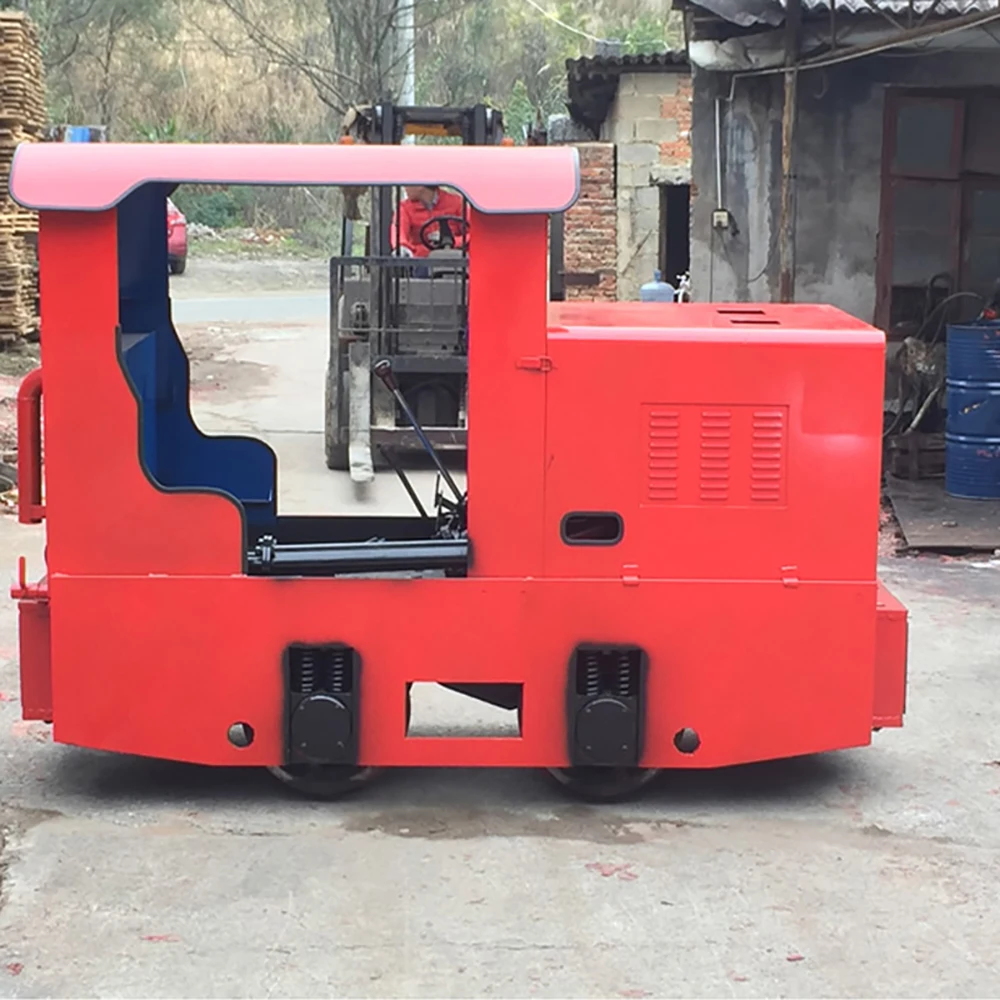

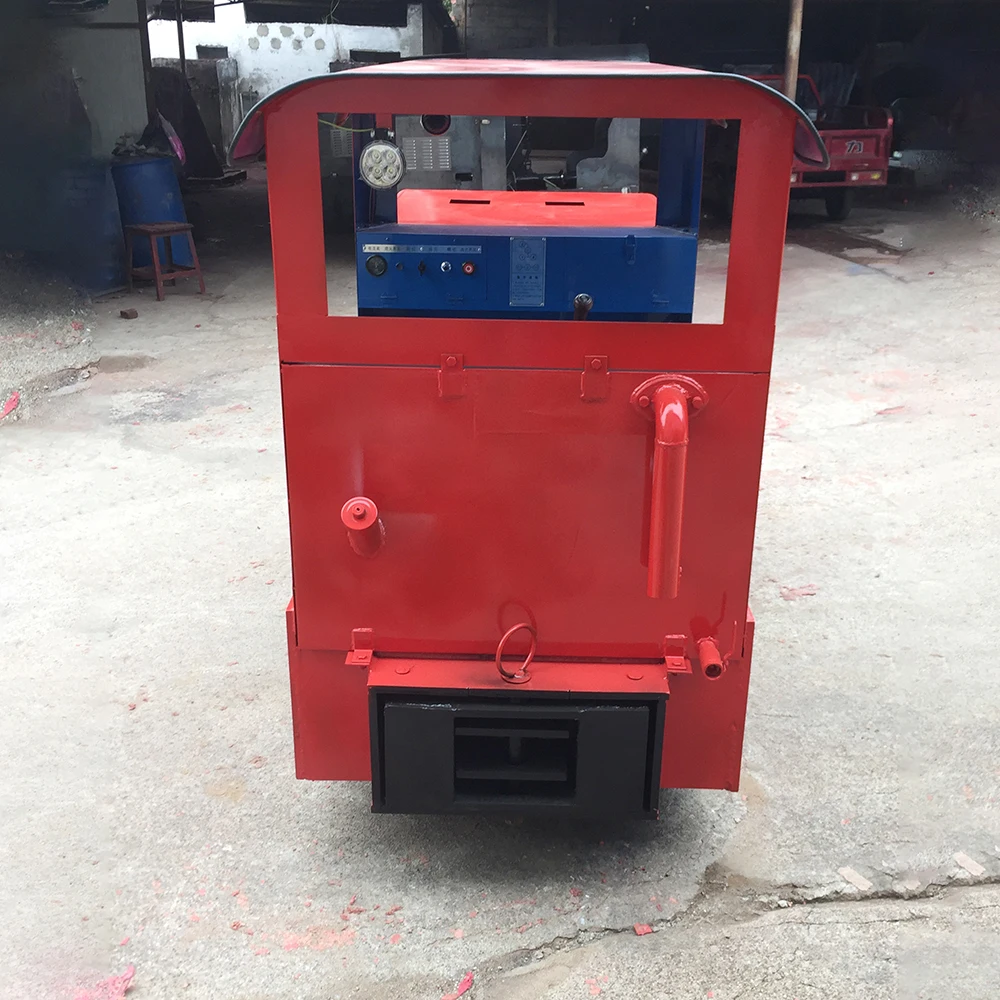

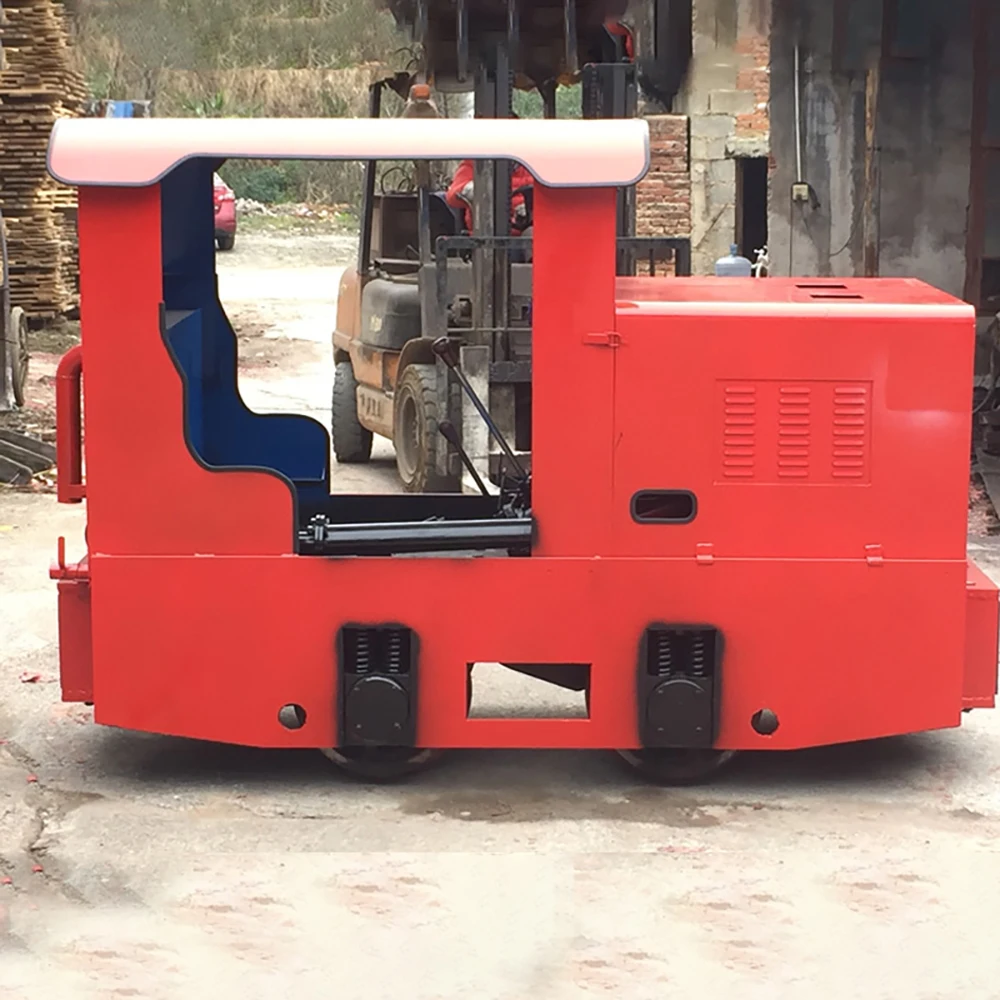

5 Ton Underground Tunnel Mine Battery Diesel Mining Locomotive For Sale
- Category: >>>
- Supplier: Ganzhou Eastman Technology Co. Ltd
Share on (1600602969769):
Product Overview
Description
Product Introduction
Overview
Mining electric locomotive is mainly used for long-distance transportation of underground transportation roadway and ground. It is equivalent to the electric locomotive head in railway transportation. It drives the train composed of mine car or man car on the track to complete the transportation of coal, gangue, materials, equipment, and personnel. There are surface locomotives and
underground mining locomotives.
underground mining locomotives.
JXSC Mine Machinery makes several basic types of locomotives, such as trolley/battery electric locomotives, flameproof mining battery/trolley locomotives, coal mine battery locomotive, diesel locomotives for mining, and so on. They are all can be customized. So if you need something that meets your individual requirements we are able to supply locomotive according to your wishes. Feel free to contact us!
The principal types of mine locomotive include diesel, battery, trolley, battery/trolley, and to a very small degree, the flywheel form, together with compressed air powered.
1. Mine Diesel Locomotives▼
Diesel Mine locomotives are designed as the prime mover for the horizontal rail track haulage of cargo and personnel in mines while the occurrence of coal dust and methane (CH4) in the ambient air (up to 1.5 %).
Application
The flameproof diesel locomotive is suitable for underground coal mines with gas and coal dust explosion hazards.
Main Features
● The diesel locomotive is flexible, easy to operate, comfortable to work, low cost, and low labor intensity.
● It is equipped with an exhaust gas purification device to eliminate pollution and ensure a good working environment.
Structure
The locomotive usually consists of 3 parts: two cabins and the center part(engine room). Both cabins are equipped with operating, control, and safety devices and might be removed during the transport of the locomotive to the underground. To be more specific, the mine locomotive with diesel engine is including diesel engine, body, Clutch, Gearbox, Working brake device, Cooling and purification device, and Circuit system.
Warning
1. The operating system and braking system of the locomotive is not normal and not allowed to drive;
2. The locomotive lights, signal lights, and horns are abnormal and not allowed to drive;
3. The instrument of the locomotive is abnormal, and the oil and water pipelines have seepage and leakage. Do not drive; 4. The diesel exhaust gas treatment box is cleaned every two days;
5. Check the fastening of the connecting bolts of the diesel engine and the gearbox before starting each shift.
5. Check the fastening of the connecting bolts of the diesel engine and the gearbox before starting each shift.
CCG3.0/600 Diesel Locamotive
CCG3.0/600 mining diesel locomotive is a small rail-type tractor powered by a diesel engine, which is suitable for mining areas with rail transportation, especially mining areas with a lack of electricity and few spots. It has the characteristics of flexibility, low use cost, convenient maintenance, and so on.
Model | CCG 3.0/600J (B) | CCG 5.0/600J (B) | CCG8.0/600J | ||
Matched Power Model | ZS1115FB | YH1125SFB | YH4108DFB(A) | ||
Dimension (L*W*H) mm | 2400*920(1000)*1600 | 3020*1000(1098)*1600 | 3700*1100*1600 | ||
Weight（kg） | 3000 | 5000 | 8000 | ||
Greatest Traction Force KN | 4.5 | 7.5 | 12 | ||
Pulling Tonnage (T) | 15 | 22 | 35 | ||
Gauge （mm) | 600(made to order) | ||||
Wheelbase （mm) | 706(712) | 880(860) | 980 | ||
Greatest Speed （km/h） | 15+1 | 17+1 | 20+2 | ||
Diesel Engine Power (kw)/ Rotating Speed (r/min) | 11/2200 | 14.7/2200 | 52/2400 | ||
Smallest Railway Orbit (m) | 5 | 6 | 7 | ||
Greatest Braking Force N | 5000 | 8000 | 12800 | ||
Traction Height (mm) | 270 320 | 320 430 | 320 430 | ||
Braking Distance (m) | 40 | ||||
Height Above Ground (mm) | 80 | 125 | 125 | ||
Braking Mode | foot and machine control | Air and hand wheel control | |||
Exhaust Quality | CO≤0.1% NOX≤0.08% | ||||

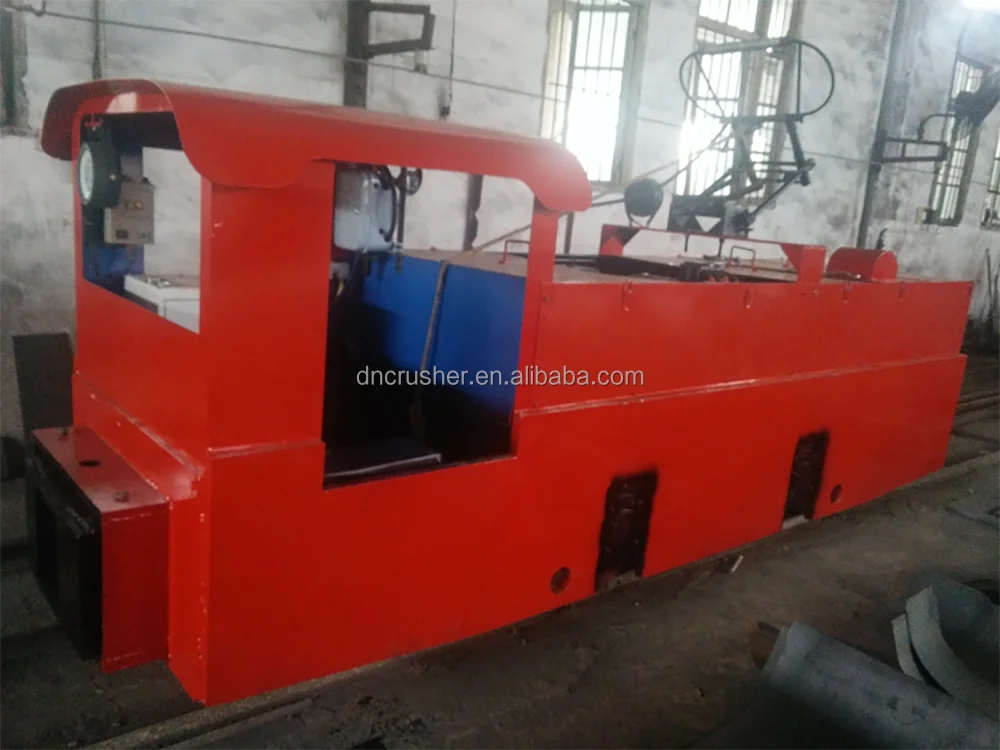

2. Trolley Electric Locomotive▼
Mine trolley locomotive is designed for the horizontal rail track haulage in mines, for the moist and dusty environment without explosion hazard of coal dust and natural gas.
Application
Transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Main Features
● Have good sticking and big traction.
● Reliable AC electrical motor, with a wide range of speed regulation.
● Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
Structure
The trolley electric locomotives are driven by two asynchronous electric motors with independent cooling and with speed regulation by frequency converter that guarantees both steady drive and braking. Braking is organized by two independent braking systems for both axles, electrodynamic brake – by electromotors and mechanical double-circuit brake, directly on the running wheel. The locomotive has one lockable cabin with a view and steering in both directions.
Type | CJY3/6GB | CJY7/6GB |
Adhesive Weight(T) | 3 | 7 |
DC Voltage(V) | 250 | 250 |
Current(A) | 63 | 50.5×2 |
Traction(kN/h) | 5.74 | 15.09 |
Max. Traction(kN) | 7.36 | 17.2 |
Speed(km/h) | 7.5 | 11 |
Structure Speed(km/h) | 15 | 25 |
Power(kW) | 6.5×2 | 18X2 |
Track Gauge(mm) | 600, 762, 900 | 600 |
Wheelbase (mm) | 730 | 1100 |
Min. Turning Radius | 5 | 7 |
Wheel rolling circle diameter mm | Φ 390 | Φ 680 |
Hook height mm | 320, 210 | 320, 210 |
Pantograph height mm | 1800-2200 | 1800-2200 |
Braking distance M | 10 | 10 |
Transmission mode | chain transmission | chain transmission |
Controller | Resistance or IGBT | Resistance or IGBT |
Brake Mode | Mechanical Brake, oil pump | Mechanical Brake, oil pump |
Dimensions(L*W*H)(mm) | 2950x1010x1580 | 4470x1050x1500 |

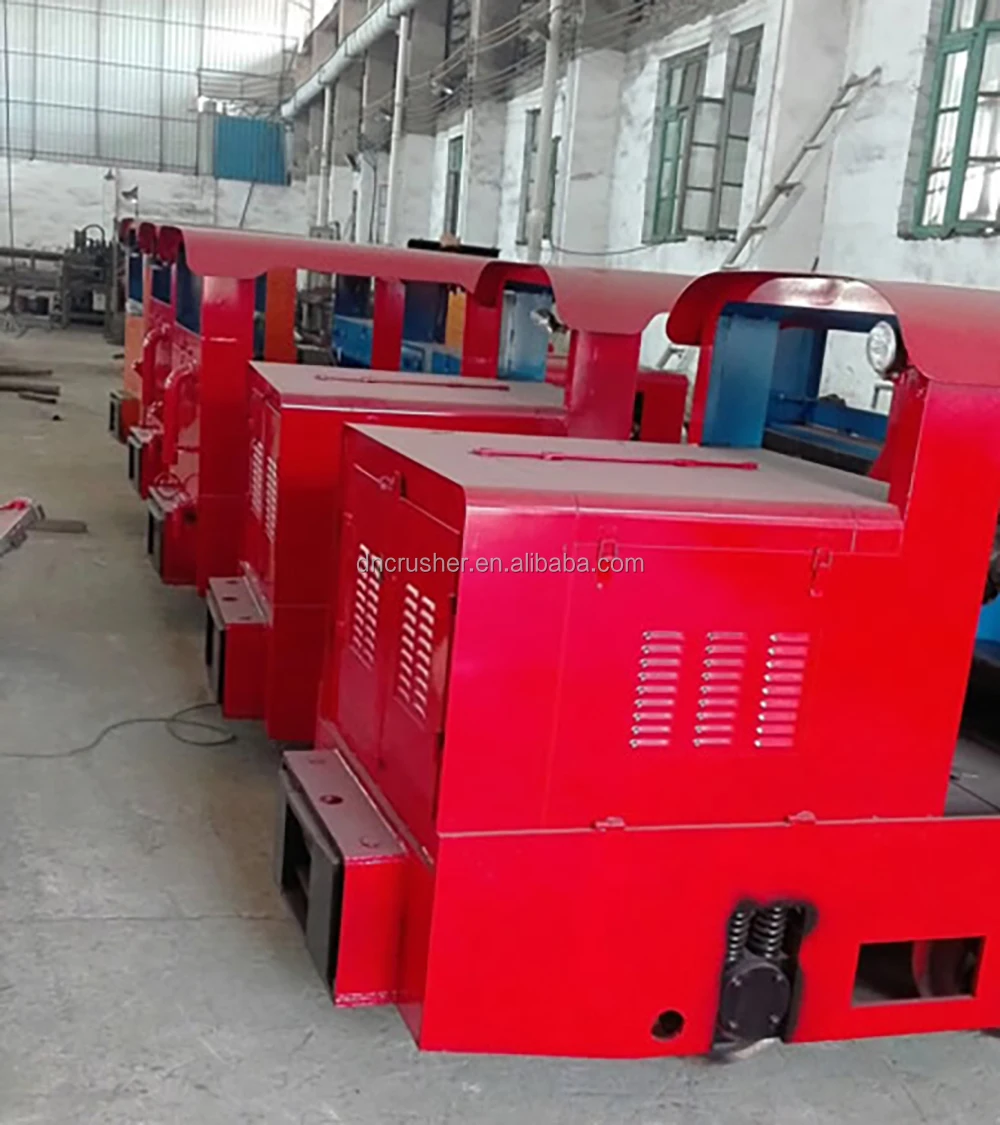

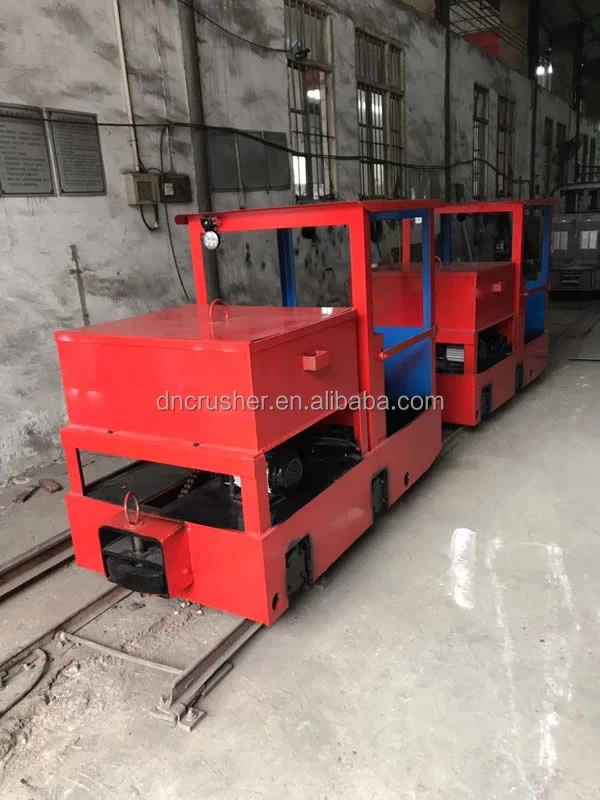

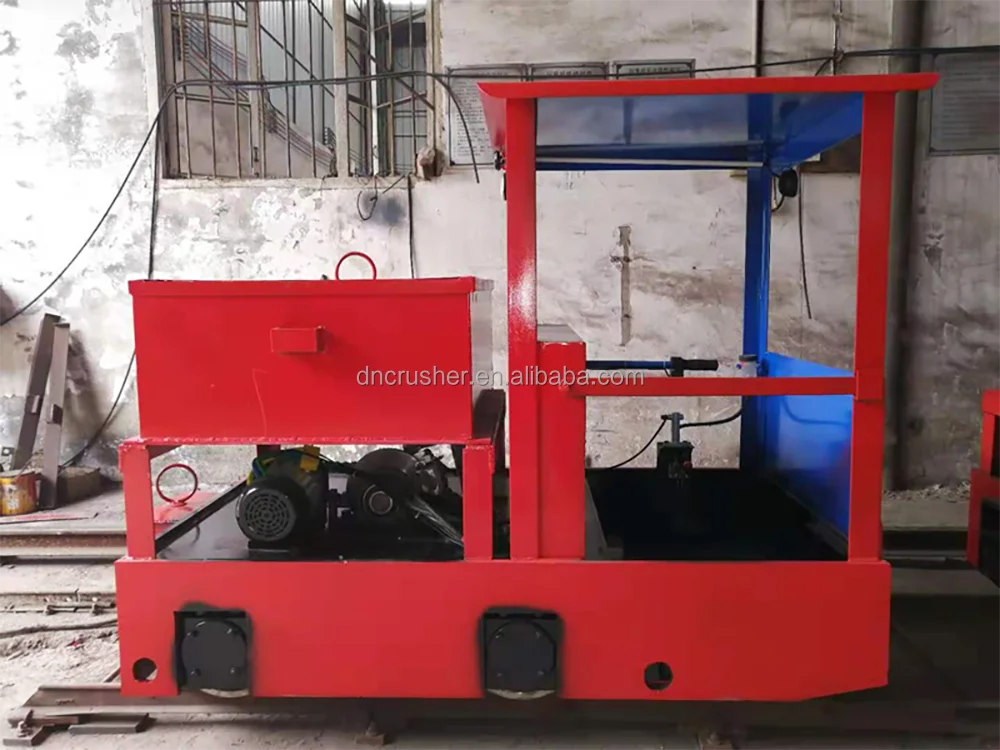

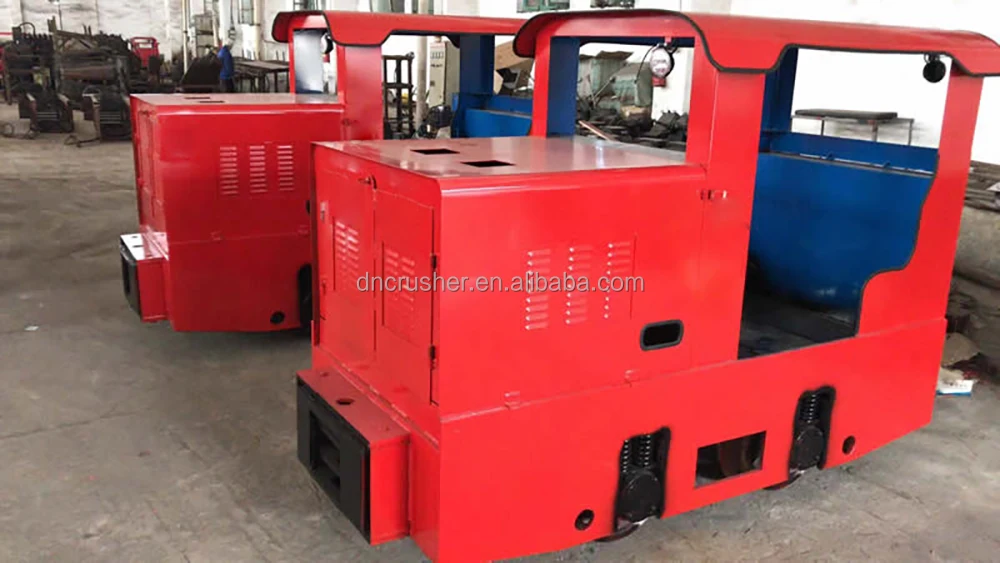

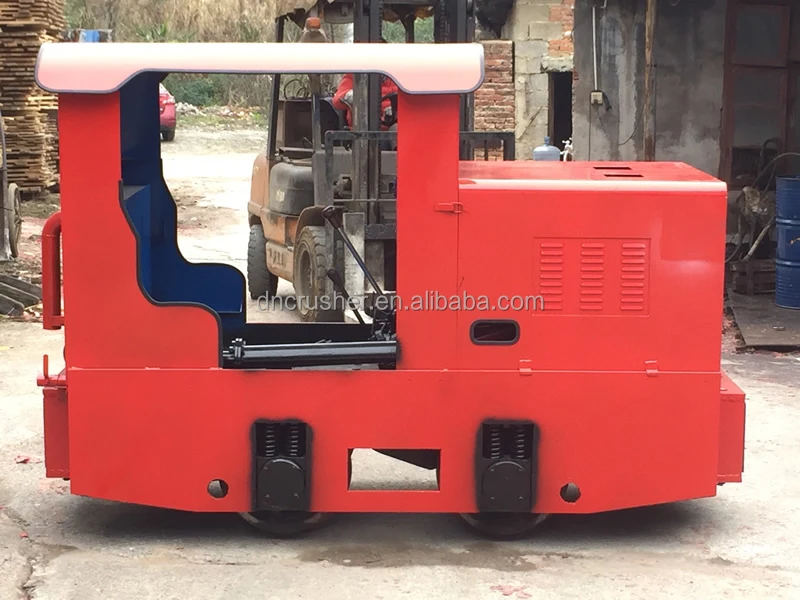

3. Battery Electric Locomotive▼
Battery electric locomotive is a kind of track traction equipment powered by batteries, which is generally used in mines. There are two types of battery electric locomotives, explosion-proof type(flameproof mining battery locomotive) and ordinary type mining battery locomotive. The flame proof mining battery locomotive is mainly used in coal mines. There are also many options in terms
of speed regulation and braking methods. Speed control methods include resistance speed control, chopping speed control, and frequency conversion speed control. Braking methods include pure mechanical braking, hydraulic braking, and compressed air braking. In addition, electric braking can also be selected as an auxiliary braking method.
of speed regulation and braking methods. Speed control methods include resistance speed control, chopping speed control, and frequency conversion speed control. Braking methods include pure mechanical braking, hydraulic braking, and compressed air braking. In addition, electric braking can also be selected as an auxiliary braking method.
Application
They are designed for the horizontal rail track haulage in mines, for dusty environments with explosion hazards of
coal dust and natural gas. And it can operate in a moist environment at ambient temperature from –10°C to +35°C.
coal dust and natural gas. And it can operate in a moist environment at ambient temperature from –10°C to +35°C.
Main Features
● Reasonable structure & reliable explosion-proof performance
● High efficiency and energy saving
● Large starting torque and stable operation
● Multiple protection devices are adopted with less maintenance
● With electric braking function, the locomotive performance is more safe and reliable and is deeply welcomed by users.
Structure
The battery-electric locomotives are driven by two asynchronous electric motors with independent cooling and with speed regulation by frequency converter that guarantees both steady drive and braking. Braking is organized by two independent braking systems for both axles, electrodynamic brake – by electromotors and mechanical double-circuit brake- directly on running wheels.
Locomotives have lockable cabins with view and steering in both directions.
Locomotives have lockable cabins with view and steering in both directions.
Model | CTY2.5/6,7,9G | CTY5/6,7,9G | CTY8/6,7,9G(B) | CTY(L)12/6, 7, 9G | CTY15/6,7,9G(B) | CTY18/6,7,9G(B) | ||||
Self Weight | 2.5 tons | 5t | 8 | 12 tons | 15t | 18t | ||||
Track Gauge | 600, 762 or 900mm | 60,762 or 900mm | 600,762,900 | 600, 762 or 900mm | 600,762900mm | 600,762900mm | ||||
Traction | 2.55kN | 7.06kN | 11.18 | 12.83 | 16.48kN | 18.47kN | 29.4kN | |||
Max Speed | 4.54km/h | 12.26kN | 19.62 | 29.43kN | 36.18kN | 44.15kN | ||||
Max. Traction | 6.13kN | 7km/h | 6.2 | 7.8 | 8.7km/h | 9.6km/h | 9.8km/h | |||
Power Supply Device | Voltage | 48V | 90V | 110,132 | 140,144 | 192V | 256V | 208V | ||
Capacity | 308 or 330Ah | 385Ah | 440 | 560Ah | 620Ah | 730Ah | ||||
Power | 3.5kw*1 | 7.5 kW*2 | 11×2 | 15×2 | 22kW*1 | 30Kw x 2 | 45Kw x 2 | |||
Size | Length | 2330mm | 2850mm | 44,704,490 | 5100mm | 5200mm | 5100mm | |||
Width | 914,1076 or 1212mm | 920,1082/1220mm | 1,062,119,012,121,350 | 1050, 1212 or 1350mm | 1500mm | 1500mm | ||||
Height | 1550mm | 1550mm | 1600 | 1600mm | 1920mm | 1900mm | ||||
Wheelbase | 650mm | 850mm | 1100 | 1150 | 1220mm | 1400mm | 2100mm | |||
Wheel Diameter | Φ460mm | Φ520mm | Φ680 | Φ600,Φ680 | Φ680mm | Φ680mm | Φ600mm | |||
Min. Turning Radius | 5m | 6m | 7 | 10m | 15m | 20m | ||||
Controller | Resistance or Pulsing speed regulation | Resistance or Chopped wave | Resistance,IGBT or Frequency conversion | Resistance, IGBT or AC Converter | Resistance, IGBT or AC Converter | Frequency conversion or chopper speed regulation | ||||
Brake Mode | Mechanical | Mechanism or hydraulic pressure | Mechanical | Mechanical and Pneumatic Brake | Mechanical and Pneumatic Brake | Mechanical, electrical, air brake | ||||
Packaging&Dilvery
1.Small parts packed in the wooden cases. |
2.Big parts packed by plastic membrane. |
3.The whole big machine is loaded in the container. |
Our Company
1.Inquiry and consulting support.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
