Product Overview
Description

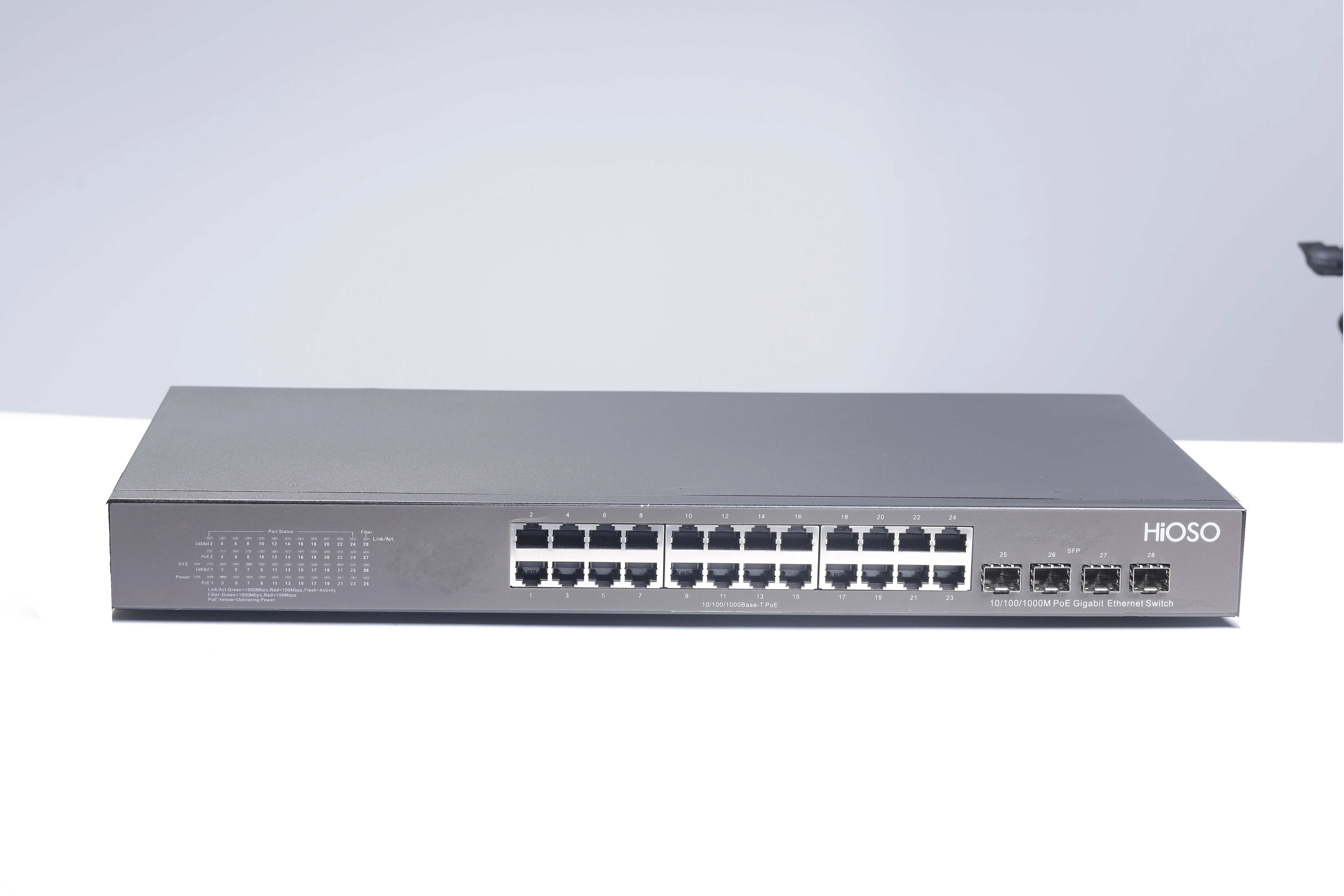

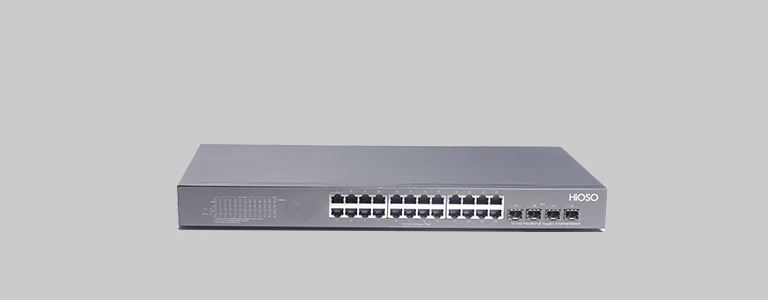

Foway2528PFSP 24 10/100/1000M PoE/PSE+4 1000M SFP PoE Switch
Overview
HiOSO Foway2528PFSP series 28 ports 1000M Security Industrial PoE Ethernet Switches, supply 24 10/100/1000M RJ45 PoE ports and 41000M SFP uplink ports; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Character
l Support 24 10/100/1000M RJ45 PoE ports and 4 1000M SFP Uplink ports (hot swap)
l Each PoE port supports auto detect the powered device
l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
l Support each port full rate, full-duplex non-blocking forwarding
l Support to establish fiber ring/cascaded network,support redundant ring protection (switch time<50ms),support RSTP/STP,VOIP transmission (optional)
l Support RSR (Rapid Super Ring) tech,Support WEB management and SNMP (optional)
l Support 16K MAC learning, 12Mbit cache space,125G back plane bandwidth
l 1U rack design, inside two fans, better for heat dissipating and installation
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree, IEEE802.1w RSTP, IEEE802.3ad Trunk, IEEE802.3af,IEEE802.3at |
PoE | 24 1000M PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W |
Wavelength | SFP: 850nm/1310nm/1490nm/1550nm/ |
Transmission distance | 1000M Fiber, multi-mode:220m(fiber size 62.5/125μm) /550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km; Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M |
Ports | 24 1000M RJ45 ports (POE/PSE);4 1000M SFP ports (support copper SFP) |
MAC | 8K |
Buffer memory space | 4Mbit |
Bit error rate | <1/1000000000 |
Power | AC110V/220V@50HZ/60HZ |
Power consumption | Whole device:24W POE/PSE: maximum370W |
Working temperature | Common:-10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Installation | 1U rack |
Dimension | 44mm (H)×440mm(W)×260mm (D) |
Order information
Type | NMS | Ports | PoE Output Power / Power supply |
Foway2528PFSP-24AF | NO | 24 1000M PoE +4 1000M SFP uplink | IEEE802.3af 15.4W, total 370w, AC220V |
Foway2528PFSP | NO | 24 1000M PoE +4 1000M SFP uplink | IEEE802.3af/at 15.4W/30W, total 370w |
Foway2528PFSPM-24AF | YES | 24 1000M PoE +4 1000M SFP uplink | IEEE802.3af 15.4W, total 370w, AC220V |
Foway2528PFSPM | YES | 24 1000M PoE +4 1000M SFP uplink | IEEE802.3af/at 15.4W/30W, total 370w |
