High Flow Rate Digital Laser Air Particle Counter Airborne Particle Counter Price

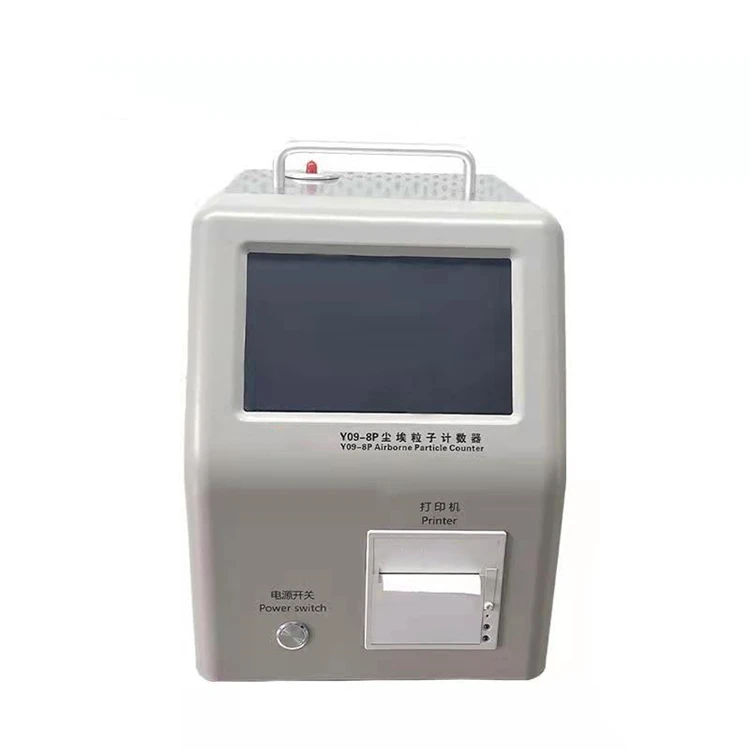

    Y09-8P laser dust particle counter is used to measure and analyze the size and number of dust particles in a unit volume of air in a clean environment, and to determine the cleanliness level of the environment according to standards.

    The sampling flow of the instrument reaches 28.3LPM. It can display the particle data of six channels of 0.3μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm and 10μm in real time, and can also choose to switch to display the actual particle number or particle concentration value.

Product use

    It is widely used in clean workshop testing of medical and health, optics, chemistry, food, cosmetics, electronics, biological products, aerospace and other enterprises.

Principle

    Particles in the air will scatter when illuminated by light, a phenomenon called light scattering. Light scattering is related to particle size, wavelength of light waves, refractive index of particles, absorption properties of light by particles and other factors. But in terms of the intensity of the scattered light and the size of the particle, there is a basic rule: the intensity of the light scattered by the particle increases as the surface area of the particle increases. Therefore, the size of the particle can be known by measuring the intensity of the scattered light, which is the basic principle of the light scattering particle counter.

Product Parameter

Particle counting channels: 0.3, 0.5, 1.0, 3.0, 5.0, 10μm six channels;

Maximum counting range: 35000/L;

Sampling period: 1 second - 99 minutes and 99 seconds;

Sampling delay: 0-9 seconds;

Sampling frequency: 1 second - 99 hours 99 minutes 99 seconds;

Sampling flow: 28.3LPM;

Confidence level (UCL): 0.5, 5.0 μm UCL;

Alarm setting: 0.3, 0.5, 1.0, 5.0 channel arbitrary value setting;

Data storage: 6000 groups;

Self-cleaning time: ≤10min;

Accuracy: ±10% aerosol;

Light source: 760nm laser diode;

Power supply: 14.8V lithium battery;

Power adapter: 16.8V;

Communication: DB9, USB data export;

Display: 800X400, 65K touch screen;

Size: 210*270*280mm;

Weight: 8.6kg;

1. How long is the delivery time?
Normally goods will be shipped out within 3 - 7 days after payment.

2. Is it possible to make our own brand/logo on your product?
Yes, but depends on MOQ.

3. What's your MOQ?
This depends on different types of products. If it is a large machine, the MOQ is usually 1 set.

4. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.

5. How to install and use the product?
The product is shipped with an operating instructions of English version. We also can provide installation video with English subtitles.
