Popular used best quality aramid meta filter bag

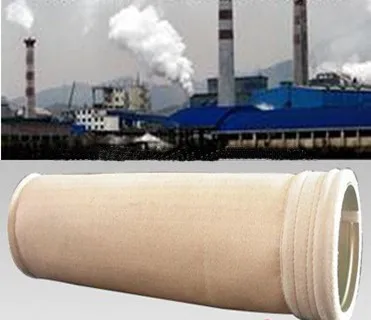

Best quality aramid filter bag made by HT,can be widely used in Detergent,waste incineration,asphalt,spray dryer,coal mill and power plant(desufurization part) industries and so on.With our Huayu filter's more than 20 years experience in filteration media and more than 15 years experience in export business,Huayu is bringing production lines from German to reach market requirement.Speaked highly of the quality and servise,Huayu devoted to offer best solutions in air filteration and water filteration.Join hands with Huayu,join hands with environment protection,join hands with success now!

Specification:

Aramid has excellent heat resistance, flame resistance, high temperature dimensional stability.

Particularly conspicuous is its excellent mechanical properties, strength and polyester similar to, wear resistance,

good resistance to bending and has excellent characteristics of textile processing, can acupuncture into spun lace

non-woven fabric. Aramid fiber 1313 at different temperatures, strong retention rates at different times,

including in the dry heat temperature of 250 C for 1000 hours under the conditions of its strength retention up to 60%.

Aramid fiber 1313 as a functional fiber in high temperature dust filtration industry has an irreplaceable status,

but because of the characteristics of molecular structure determines, it has some defects. Such as poor resistance to

strong acid, high temperature hydrolysis is poor, not in the coal-fired boilers, waste incineration and other industry

applications.

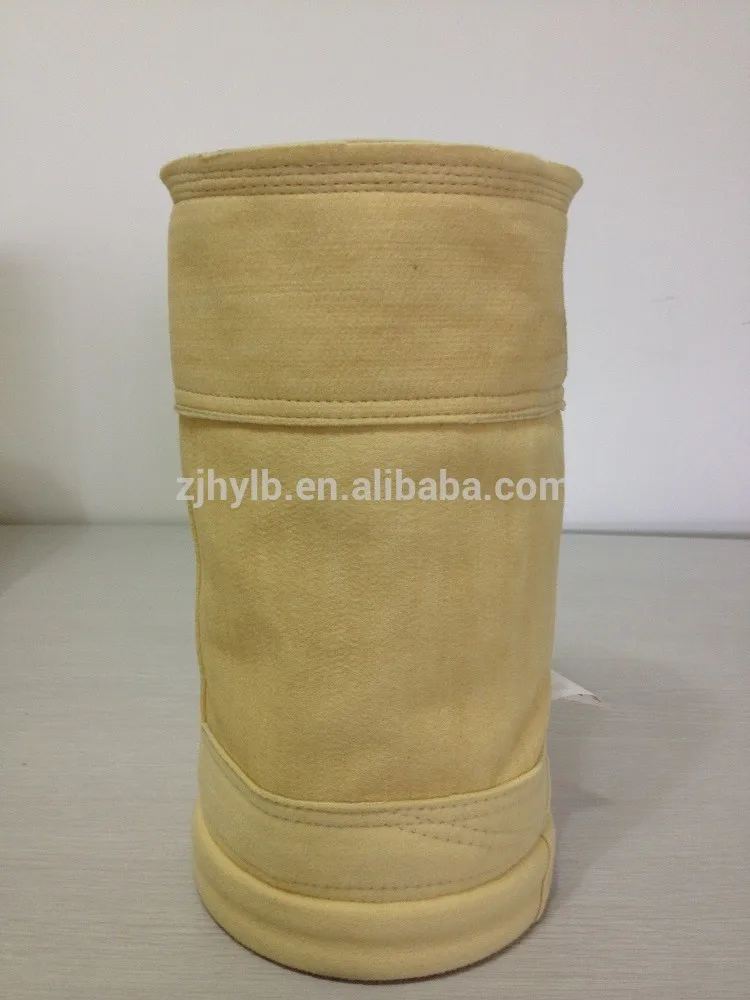

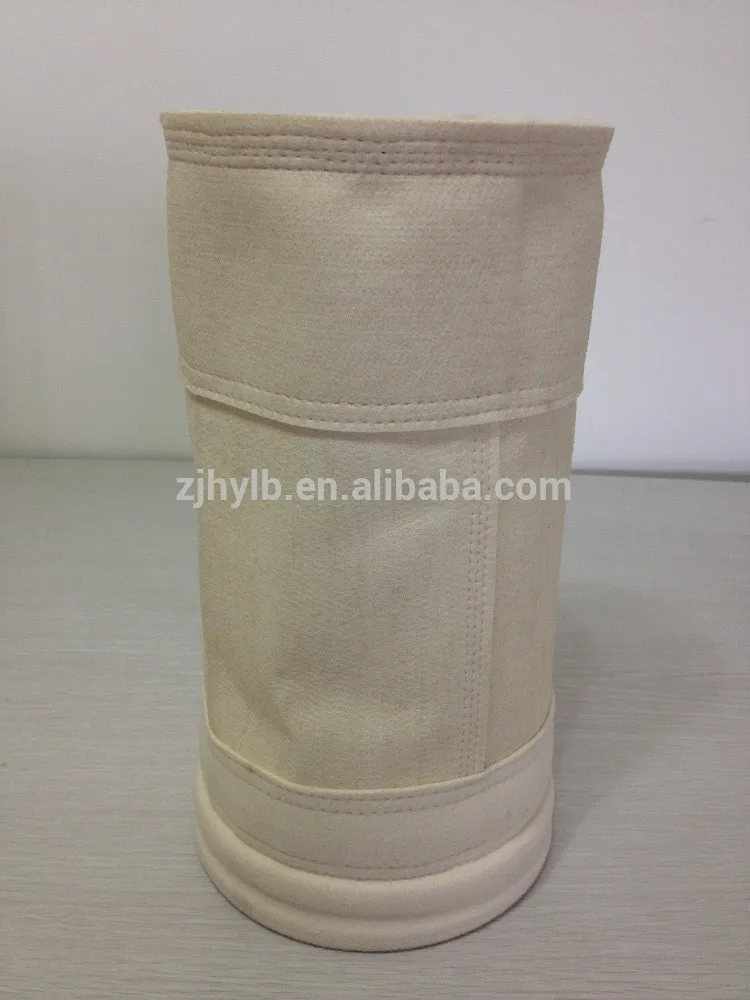

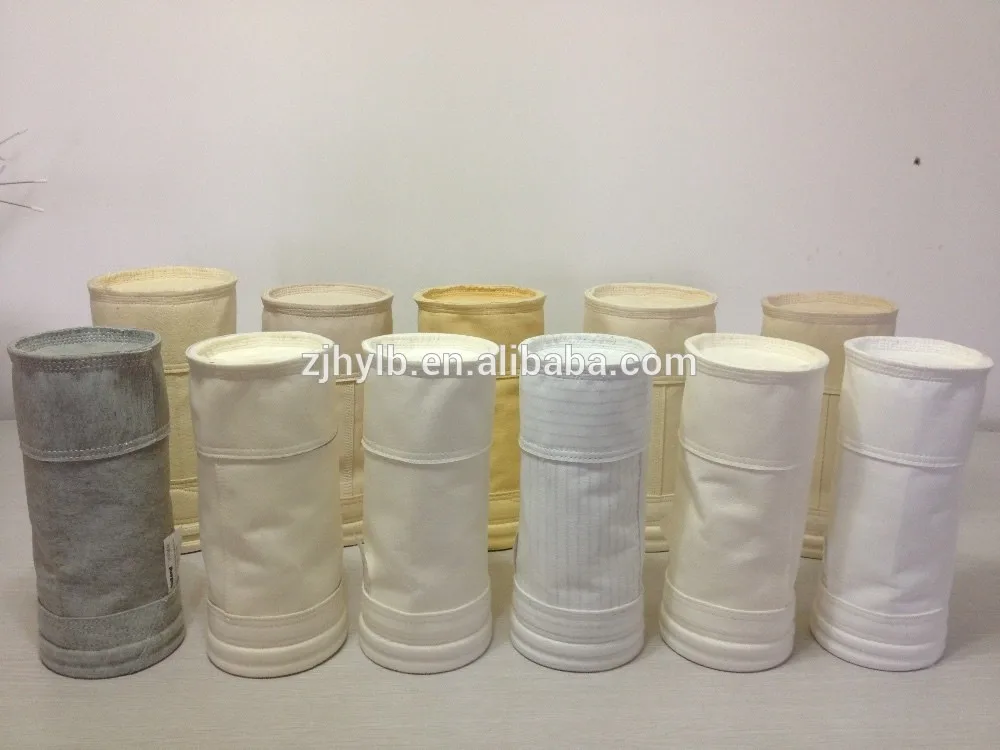

1) The length of dust filter bags: can be customized

Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

2) Process Method: sewing or welded

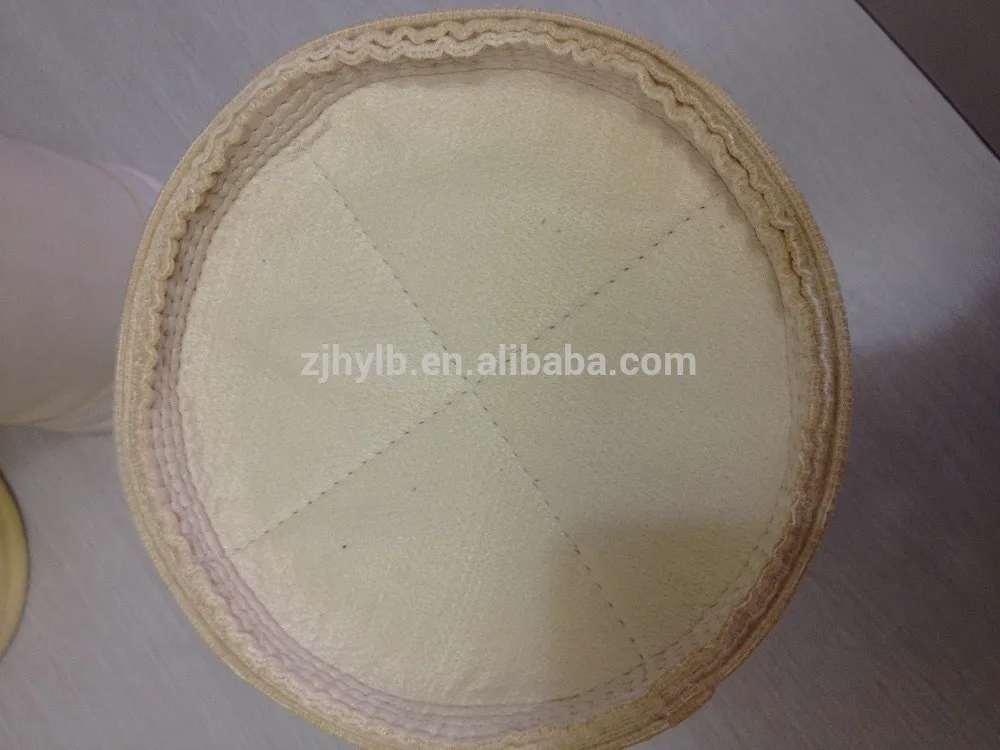

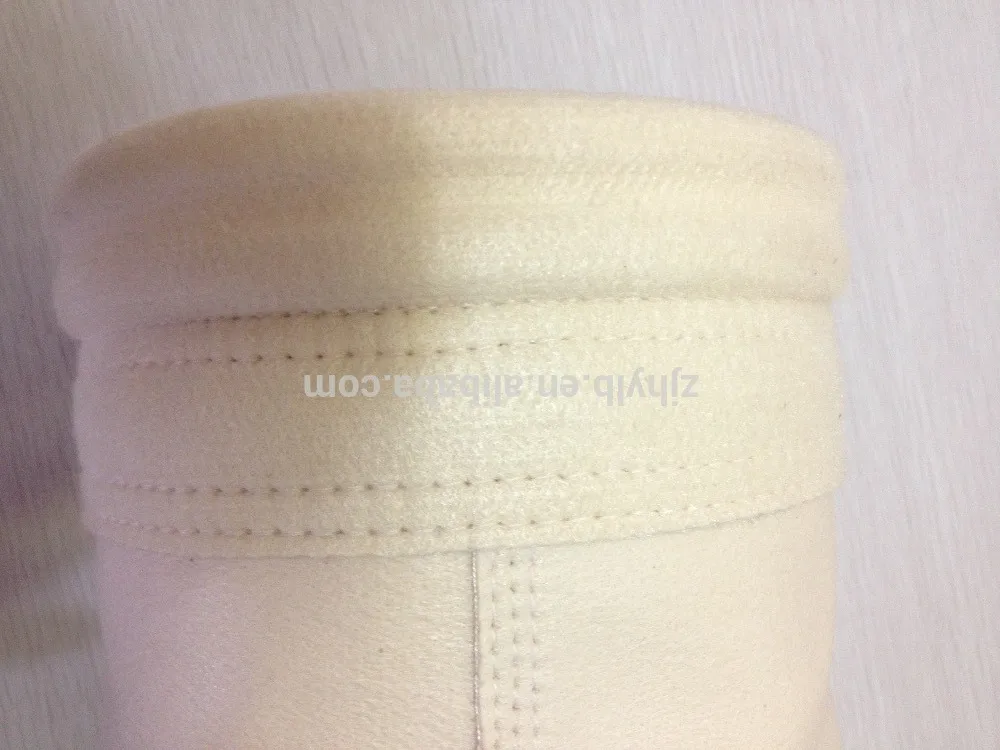

3) Bag top and bottom types:

Raw top(Fold in top)

Flange top

Double beaded snap band top
Double bottom

4)Sewing thread:

PTFE thread, fiberglass thread, polyester thread.

5) If your required filter bag is different from our usual one, then please send us your drawing picture and

choose the material you need since we also produce the nonstandard filter bag.

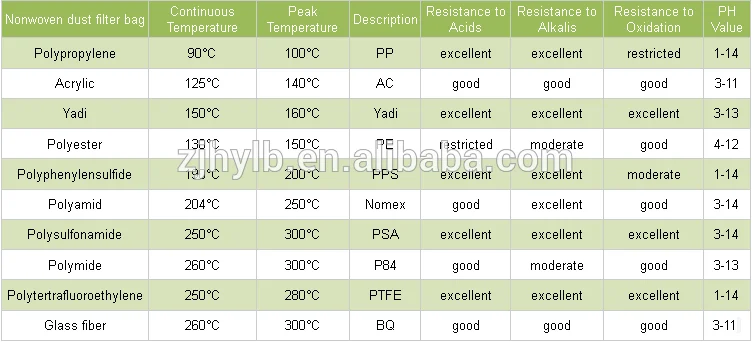

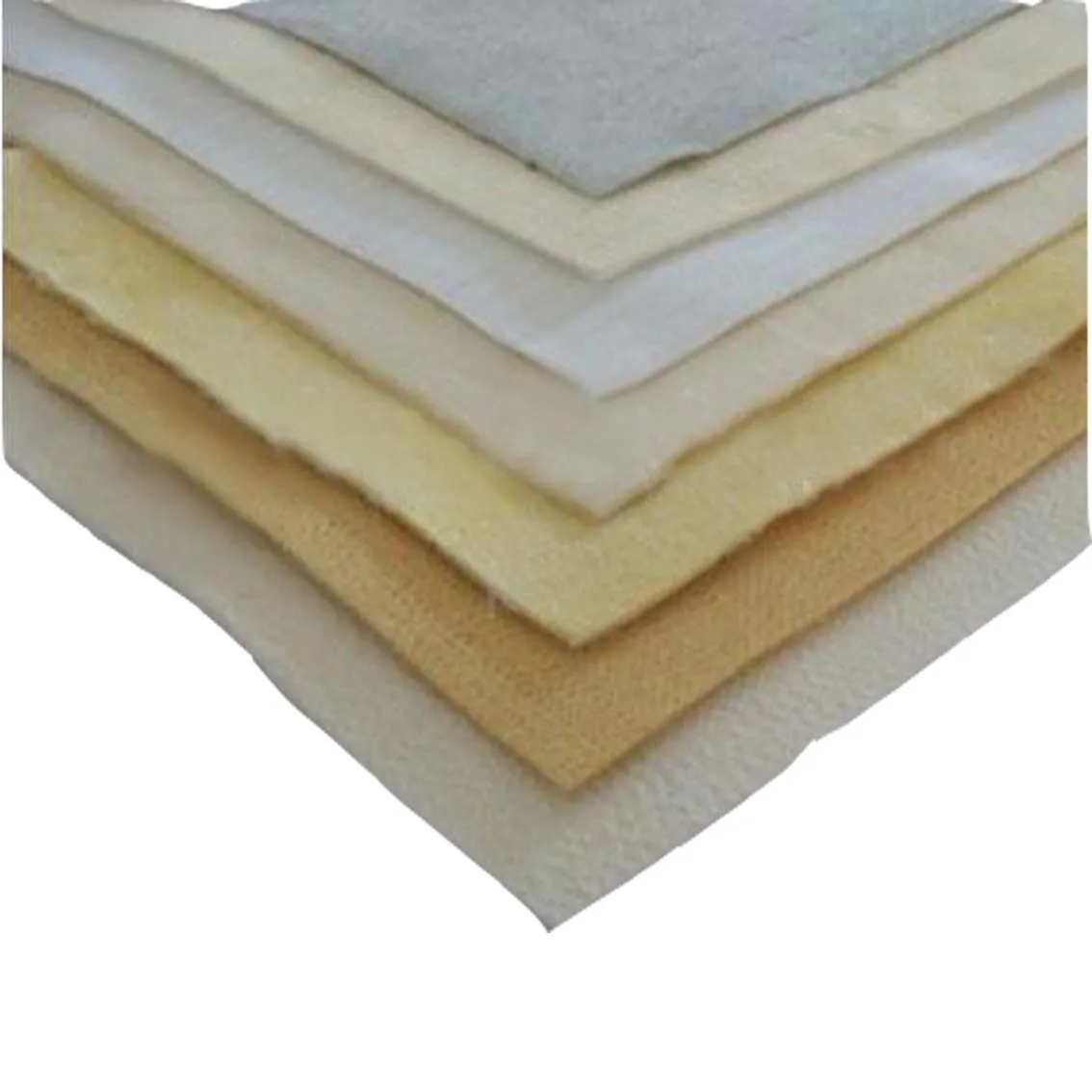

Polyester(PET), Polypropylene(PP), PPS,Polyimide(P84),Anti-static polyester, water and oil repellent, PET membrane,



FMS, PTFE, fiberglass, P84 fiber.

Huayu Leading products:

-Model Van vertical frame filter cloth and bag

-Belt filter cloth and bag

-Pulse filter dust and other high temperature needle felt dust bag

-Provide professional accessories ,cloth or bag selection and other professional services

1. How to choose the right filter cloth for your company?



Cause every filter has its own characteristics and parameters, so when we choose filter material for filter cloth , we have to know the following parameters:



(1) Working enviroment



temperature ( Continuous / Peak)



filtering ingredient



(2) Measurement and design (need the drawing)



(3) Material (or we offer the solution).









2. How to assure the filter cloth quality?



All the products we produce are strictly based on international standards. Before the production, you will receive a sample from us for your confirmation.









3.How many times can I clean and reuse a filter cloth?



Filter cloth are designed for one time use. We supply high quality cloth to increase the service time of the filter bag.









4.Sample rule



Usually, we offer the sample free, but you should pay the freight.
