Plotter Paper Roll Thermal Paper Cutting Machine
- Category: >>>
- Supplier: Jota Machinery Industrial (Kunshan) Co. Ltd.
Share on (1600603821095):
Product Overview
Description
Product Description

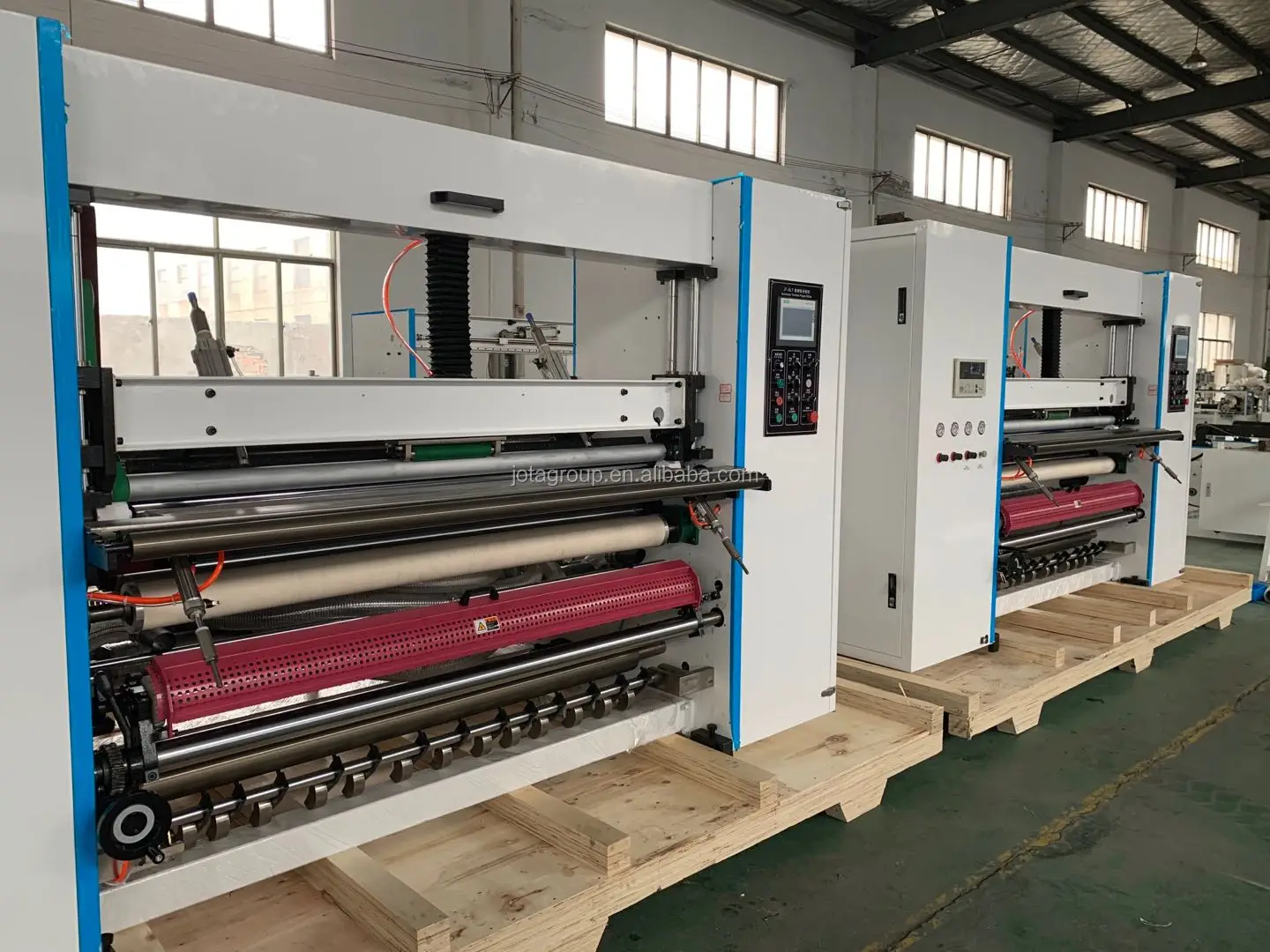

Plotter Paper Roll Thermal Paper Cutting Machine
SPECIFICATIONS:
JT-SLT-900C Plotter Paper Roll Thermal Paper Cutting Machine is suitable for producing ATM Paper, Cash Register Paper, ECG Paper, POS Paper, NCR Paper, Plotter Paper, Plotter Paper, CAD Paper, SMT Non-Woven, Thin Paper etc.
1.SIEMENS PLC control system and touch screen, all the parameters are displayed on the monitor. Just setup the roll diameter, material thickness, initial tension, the machine runs automatically. | ||
2. SIEMENS inverter motor driven by YASKAWA AC drive. | ||
3. Shaftless hydraulic loading system, Max. load capacity is 3 tons. | ||
4. 20Kg/m2 electromagnetic brake for unwinding tension control. | ||
5. CNC processed & heat-treatment foothold wall panel, no deformation. | ||
6. Unwinding section equips with direction adjustable balancing roller, ensures roller itself keeping tight touch with whole web. | ||
7. Full body paint baking process, wearable & beautiful. | ||
8. Dynamic / static balancing transmission rollers. | ||
9. Red-line marking system, printing red-line at the end of paper rolls. | ||

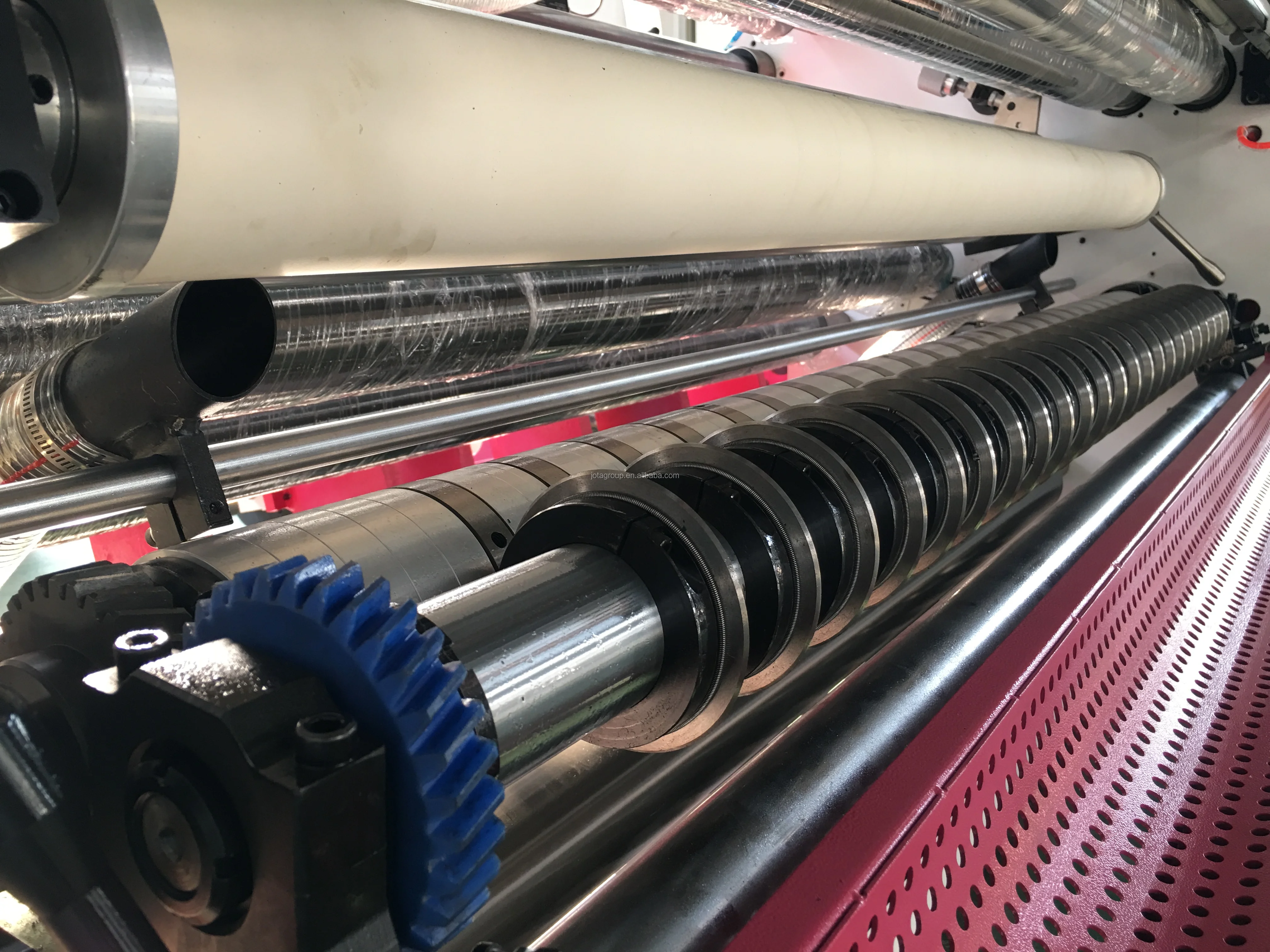

10 The upper circular knives are fixed by screws, and the lower circular knives are fixed by aluminum spacer, cutting precision could be guaranteed. | ||
11. Automatic tucker tucks the tail, convenient for quickly trigger rewinding. | ||
12. Load cell sensor & automatic tension controller ensures constant tension. | ||
13. Automatic meter counter, when reaches preset length, machine stops automatically. | ||
14. Overlapping problem could be avoided with banana roller. | ||
15. Equipped with emergency switch. | ||
16. CCD digital camera sensor or photocell for web guiding. | ||
Parameters
Parameters | ||
Model | JT-SLT-900C | |
Max. Rewinding Diameter | 300mm | |
Min. Slitting Width | 30mm | |
Max. Unwinding Diameter | 900mm | |
Max. Unwinding Width | 1000mm | |
Max. Speed | 300m/min | |
Unwinding Shaft | 3″ (76mm) air expanding shaft | |
Rewinding Shaft | 0.5’’, 1’’ or as your request | |
Total Power | 7.5Kw | |
Voltage | 380V/50Hz | |
Detailed Images
Packing&Shipping

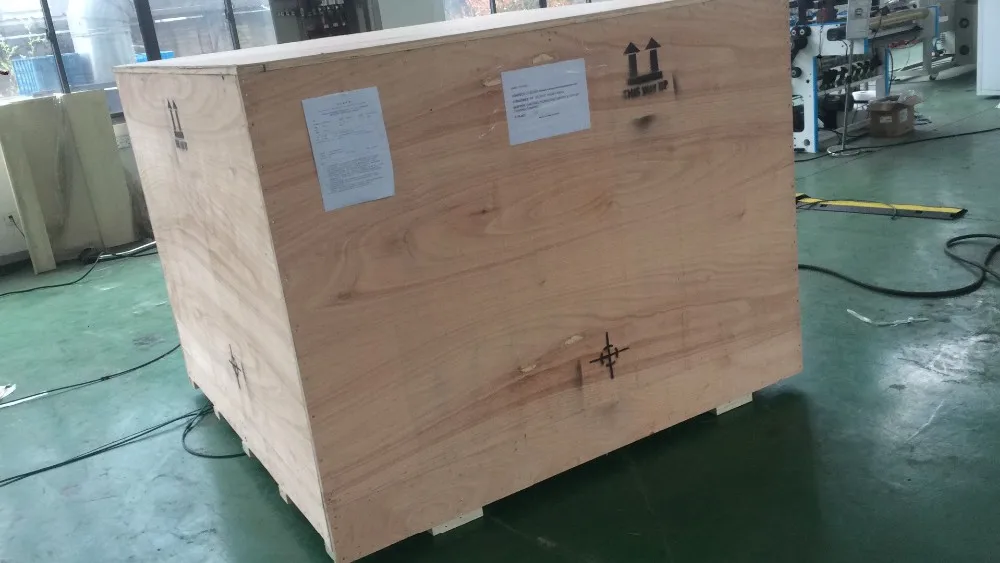

900C Plotter Paper Roll Thermal Paper Cutting Machine is packaged by flexo film and wooden case.
Company Introduction
Jota Machinery Industrial (Kunshan) Co.,Ltd is the original manufacturer in designing and manufacturing converting
equipment,slitter rewinder machinery for flexible packaging related industry.
As a company whose target is always win-win together with you, each professional staff of Jota Machinery Industrial (Kunshan) Co.,Ltd stands by 24h a day to assist you to explore your deep requirements, based on our knowledge and experience.
After deep discussion for your requirements, get a better and comprehensive understanding of your scenario, then we
will provide the most suitable solution for clearing your long-standing pain point, backs up you bravely taking the step
of changing your current status.
equipment,slitter rewinder machinery for flexible packaging related industry.
As a company whose target is always win-win together with you, each professional staff of Jota Machinery Industrial (Kunshan) Co.,Ltd stands by 24h a day to assist you to explore your deep requirements, based on our knowledge and experience.
After deep discussion for your requirements, get a better and comprehensive understanding of your scenario, then we
will provide the most suitable solution for clearing your long-standing pain point, backs up you bravely taking the step
of changing your current status.
Related Products
FAQ
Q1. Are you trading company or manufacturer?
-- We are Plotter Paper Roll Thermal Paper Cutting Machine with Wrapping Machine manufacturer, and also provide the business solution to all the friends.
Q2. Do you have quality certificate?
-- Yes we have CE, SGS etc.
Q3. What's the Plotter Paper Roll Thermal Paper Cutting Machine with Wrapping Machine delivery time?
-- Around 20~30days, however, based on order.
Q4. Can you help us to buy other goods relate ?
-- Sure of that, it is our honor to work for you, and control the goods quality.
-- We are Plotter Paper Roll Thermal Paper Cutting Machine with Wrapping Machine manufacturer, and also provide the business solution to all the friends.
Q2. Do you have quality certificate?
-- Yes we have CE, SGS etc.
Q3. What's the Plotter Paper Roll Thermal Paper Cutting Machine with Wrapping Machine delivery time?
-- Around 20~30days, however, based on order.
Q4. Can you help us to buy other goods relate ?
-- Sure of that, it is our honor to work for you, and control the goods quality.
