100MW Dry Air Cooler for Liquid Immersion Cooling Data Center
- Category: Air Conditioners >>>
- Supplier: Changzhou,Vrcoolertech,Refrigeration,Co.,Ltd.
Share on:
Product Overview
Description
Product description

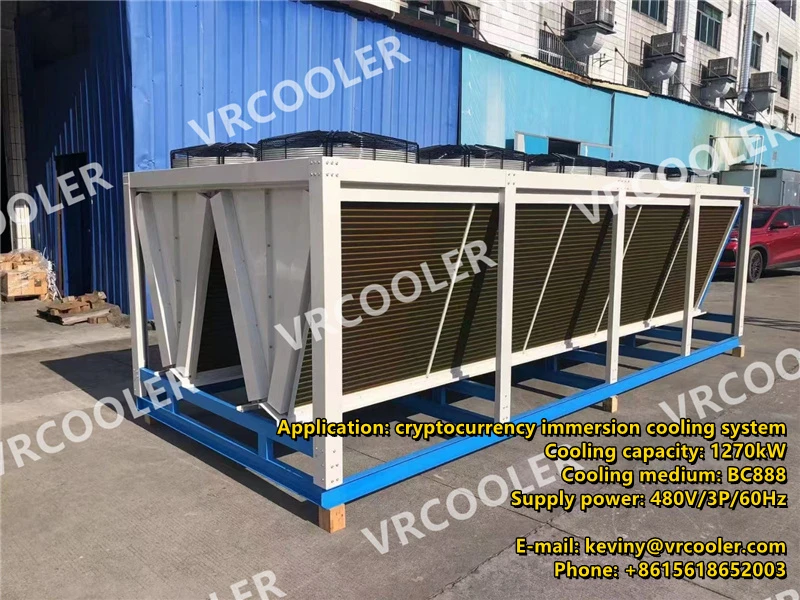

Air cooled solution for cooling an immersion fluid cooling bath.
Provide a reliable, low energy and safe air cooled heat exchanger for the cooling of immersion cooling bath. Fluid to be cooled is BC-888 dielectric coolant.
High quality and reliable fluid cooler with redundant fans to keep the mining bath cool in a safe and consistent manner.
Provide a reliable, low energy and safe air cooled heat exchanger for the cooling of immersion cooling bath. Fluid to be cooled is BC-888 dielectric coolant.
High quality and reliable fluid cooler with redundant fans to keep the mining bath cool in a safe and consistent manner.
1. Material options
·Heavy-gauge hot-dip galvanized steel is used for unit steel panels and structural elements featuring a zinc aluminium coating.
2. Heat transfer media
·The dry cooler is constructed of staggered and seamless copper tubes (15,9 or 12,7 diameter) with aluminium, rippled and corrugated fins (0,14 or 0,17 thickness).
·2,5 mm fin spacing for optimal air turbulence
·Thick and seamless copper headers and threaded steel connections
·Pressure tested at 15 bar
·Try our options for aggressive environments: special pre-coated anti-corrosion aluminium fins or copper fins (0,2 mm thickness).
·2,5 mm fin spacing for optimal air turbulence
·Thick and seamless copper headers and threaded steel connections
·Pressure tested at 15 bar
·Try our options for aggressive environments: special pre-coated anti-corrosion aluminium fins or copper fins (0,2 mm thickness).
3. Air movement system
·Axial fan with exceptionally compact direct drive short integrated motor and fan guard.
·The fan features an impeller and motor and is balanced as a complete unit using dynamic single plane balancing. Balance grade is G6.3.
·Fan and motor totally maintenance free.
·Bearings seals and motor encapsulation for long service life.
·The fan features an impeller and motor and is balanced as a complete unit using dynamic single plane balancing. Balance grade is G6.3.
·Fan and motor totally maintenance free.
·Bearings seals and motor encapsulation for long service life.
Case study
Projects name: Dry cooler for Sweden Garbage industry
Customer's request: Outdoor temp -20 to +30 driving all year, Water 10000 liters/houer In temp 80dg Out about 40c, Fan power 400volt 50Hz, Montage on the roof outdoor we have 3” pip up and down, Size inside 20 feet container
Our first solution:
Customer's first feedback: This is a plane cooler, I want v type. I want about 2 meter x 5 meter v type. I want to have as big as possible V type. I’m going to montage more hydraulic pumps now. I don’t know what I need but pleas offer 1 ho fits in 20 feet container and then I fix the rest here in Sweden. To day we have 10 m3/h, But I can have less if you want. We are cooling water and then oil from the water.
Our reply: The cooler we designed is enough to cool the 10m3/h water. Will you increase the flow rate in the future?
Of course we can change our design to a V-type cooler.
Of course we can change our design to a V-type cooler.
Customer: Yes we will total have 40m3 Water in the future but maybe its better to take 2pc v type for 20m3
Please offer 2pc v type for 20m3/h.
Please offer 2pc v type for 20m3/h.
Our second solution:
Customer's reply: Looks really good, please send me PI.
Heat Transfer capacity: 250kw
Cooling medium: oil
Medium flow rate: 100gpm
Inlet medium temp: 60
Outlet medium temp: 40
Inlet air temp: 32
Power Supply: 451v/3ph/60Hz
Material: Cu tube, golden coated AI fin condenser, galvanized sheet frame
Dry cooler for ore yard in Russian
Heat Transfer capacity: 493kw
Cooling medium: 20% ethylene glycol Inlet medium temp: 45
Outlet medium temp: 40
Inlet air temp: 35
Medium volume: 88m3/h
Medium volume: 88m3/h
Air volume: 19372m3/h
Power Supply: 400v/3ph/50Hz
Material: copper tube aluminum fin galvanized sheet frame,power coating
Heat transfer capacity: 94kW
Cooling medium: water
Inlet air temp.: 20℃
Inlet medium temp.: 35℃
Outlet medium temp.: 25℃
Medium volume: 60l/s
Material: copper tube aluminum fin and galvanized steel frame.
Supply power: 400V/3P/50Hz
Colombia dry cooler for injection machine
Britain dry cooler for steam turbine
Japan dual system radiator for engine
New zealand cooler for power industry
Saudi Arabia project for data center
Canada projects for serve room
Engineering Data
We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company.
Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China.
QUALITY CERTIFICATES
Since 2004 UNI EN ISO 9001:2008 Quality System
Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Packing and delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
