Electrostatic air cleaner fume gas scrubber system electrostatic precipitator esp air scrubber
- Category: Gas Disposal Machinery >>>
- Supplier: Nanning,Juwei,Machinery,And,Electricity,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Our advantages
Company Profile
Company Introduction
We are professionally specialized in manufacturing and exporting many kinds of electrostatic precipitator (ESP), air blowers and exhaust hoods for kitchen, restaurant, hotel, CBD, factory, industrial cutting machine plant, coffee bean roasting machine plant, CNC processing factory and so on.
With professional R&D and high-end machine equipment, we can offer customers with high quality, high efficiency and durability products, and committed to provide customers with reasonable and efficient purification program, accept OEM & ODM. Up to now, our products have been exported to over 35 countries and won customers' praise.
Products Description

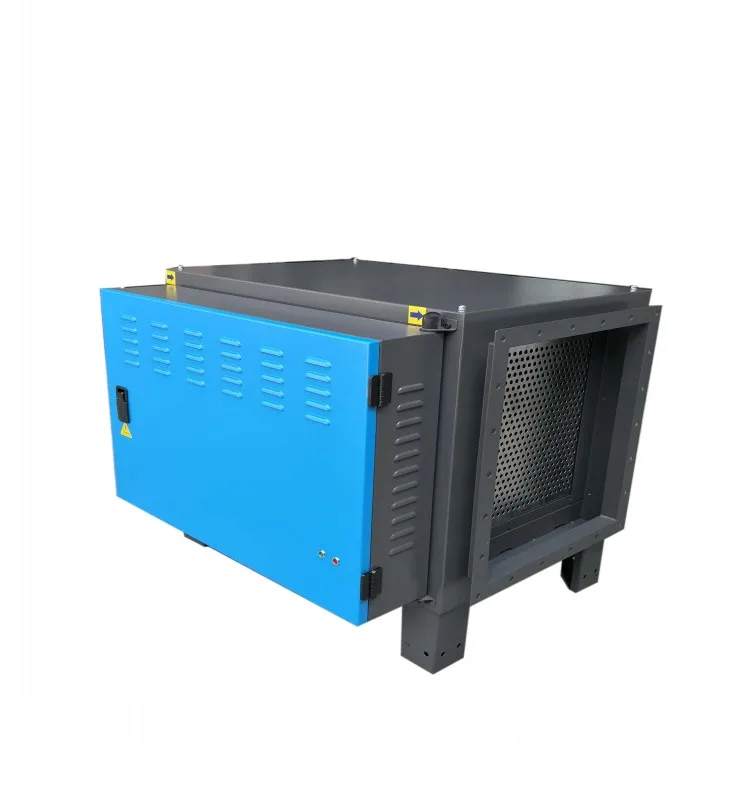

What is the electrostatic precipitator (esp)?
Model No.: | JW60 |
Air volume: | 6000 m3/h |
Filtration efficiency: | 96% |
Input power: | 220V/50HZ |
Power rate: | 300W |
Size: | 823*670*702mm |
ESP cells: | anti-corrosion aluminum alloy sheet |

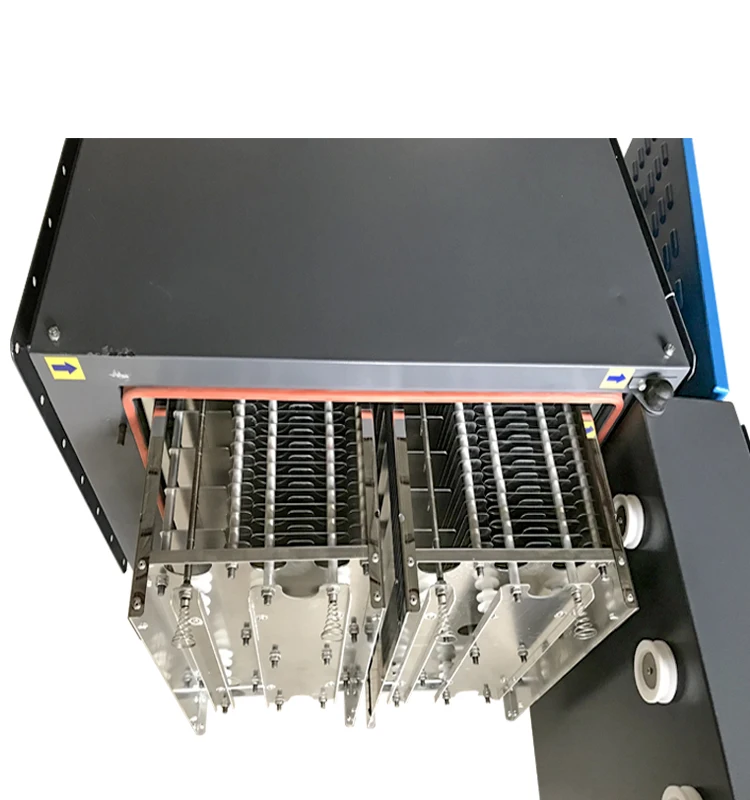

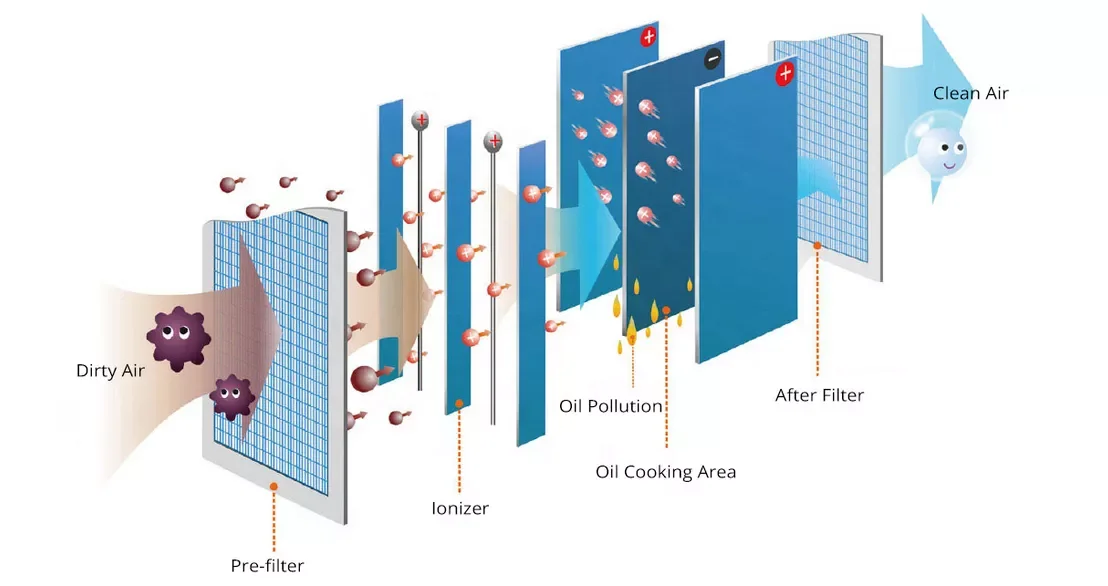

Contaminated air is drawn by the fan through a washable metal mesh pre-filter which traps large dust particles. The remaining particles, some as small as 0.01 microns, pass into a strong electrical field (ionizing section) where the particles receives an electrical charge. The charged particles then pass into a collector plate section made up of a series of equally spaced parallel plates. Each alternative plate is charged with the same polarity as the particles, which repel, while the interleaving plates are grounded, which attract and collect the contaminants. The contaminants are held in these plates until they are washed away. JUWEI electrostatic air cleaners are able to trap both wet and dry particles.

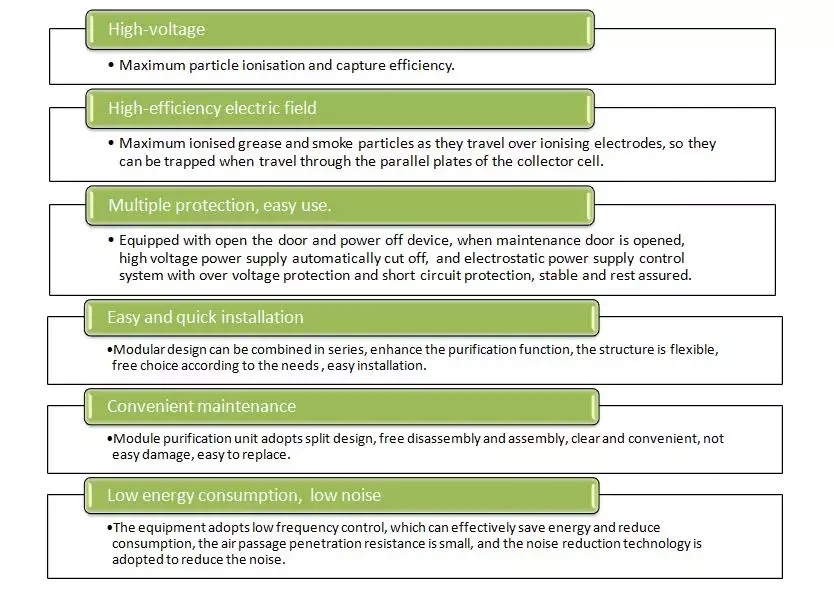

Our Advantages
Adopt 1.5mm thickness carbon steel with powder coated finish, strong casing, no rust, corrosion resistance.
Voltage is an important element, it should be as high as possible. To ensure the maximum particle ionisation and capture efficiency, both of our ioniser and collector cell use very high voltage.
Maximum ionised grease and smoke particles as they travel over ionising electrodes, so they can be trapped when travel through the
parallel plates of the collector cell.
parallel plates of the collector cell.
There's a cooling fan below the control box, which to cool down temperature, avoid breakdown.
Equipped with open the door and power off device, when maintenance door is opened, high voltage power supply automatically cut
off, and electrostatic power supply control system with over voltage protection and short circuit protection, stable and rest
assured.
off, and electrostatic power supply control system with over voltage protection and short circuit protection, stable and rest
assured.
Product Parameters
Model No. | Air volume(m3/h) | Filtration efficiency | Power rate(W) | Size(mm) | Flange size(mm) |
JW40 | 4000 | 96% | 200 | 543*856*732 | 584*463 |
JW60 | 6000 | 96% | 300 | 823*664*732 | 392*463 |
JW80 | 8000 | 96% | 300 | 823*856*732 | 584*463 |
JW120 | 2000 | 96% | 600 | 986*1173*732 | 901*463 |
JW160 (horizontal) | 16000 | 96% | 600 | 986*1558*732 | 1285*463 |
JW160 (vertical) | 16000 | 96% | 600 | 986*856*1302 | 584*1033 |
JW200 | 20000 | 96% | 1200 | 986*1077*1302 | 805*1033 |
JW240 | 24000 | 96% | 1200 | 986*1174*1302 | 901*1033 |
JW280 | 28000 | 96% | 1200 | 986*1366*1302 | 1093*1033 |
JW320 | 32000 | 96% | 1200 | 986*1558*1302 | 1285*1033 |
JW480 | 48000 | 96% | 576 | 1550*996*1844 | 1276*1584 |

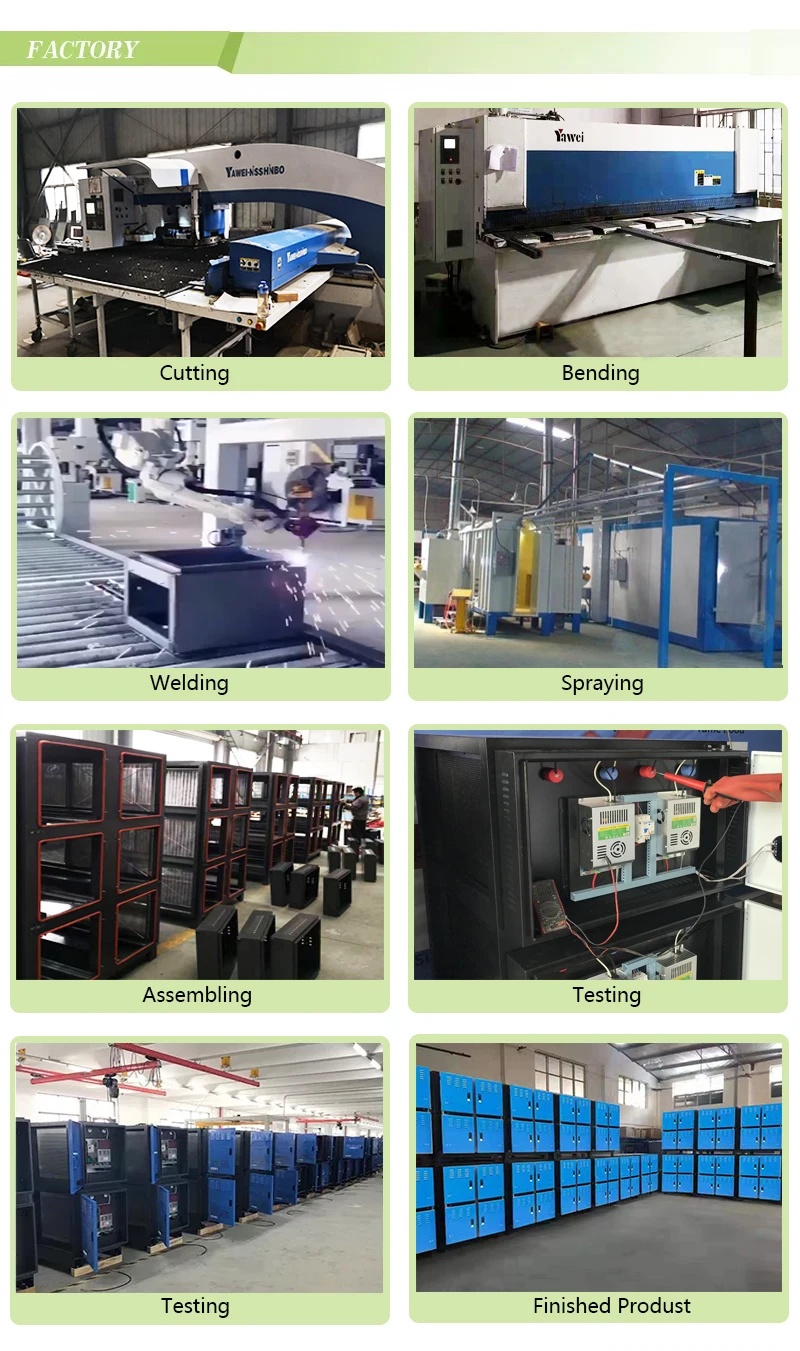

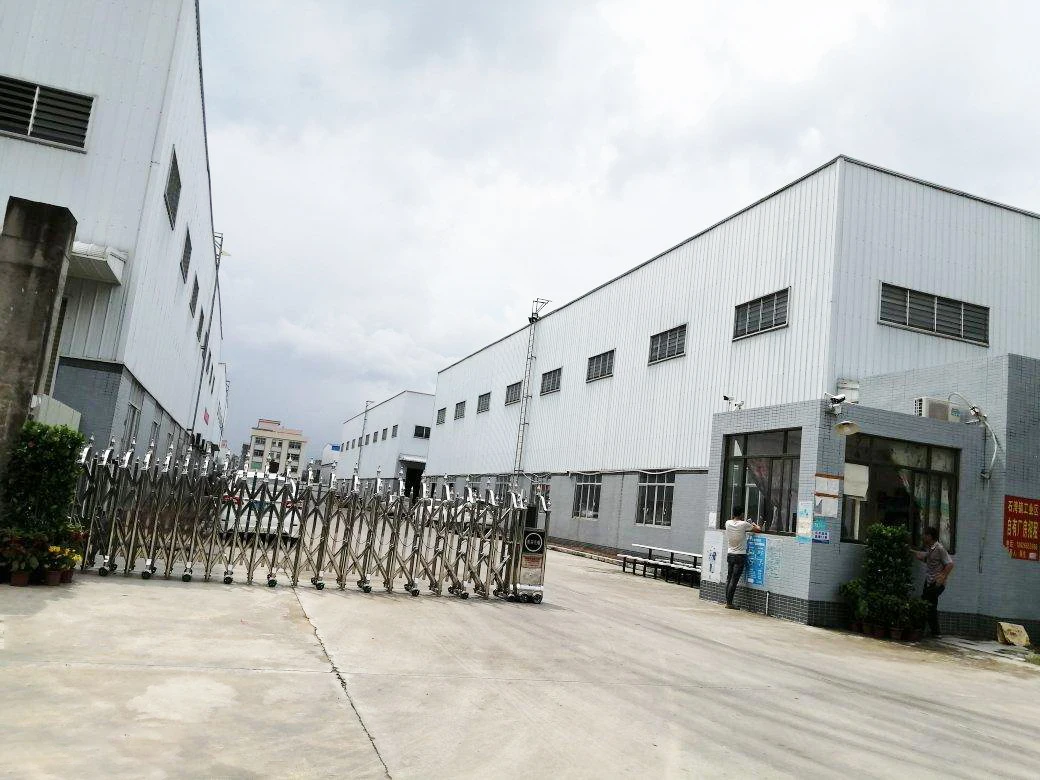

Factory
Application &Installation
How to install the electrostatic precipitator (esp)?
Sample drawing diagram in kitchen installation, the ESP air cleaner should be installed before exhaust fan.

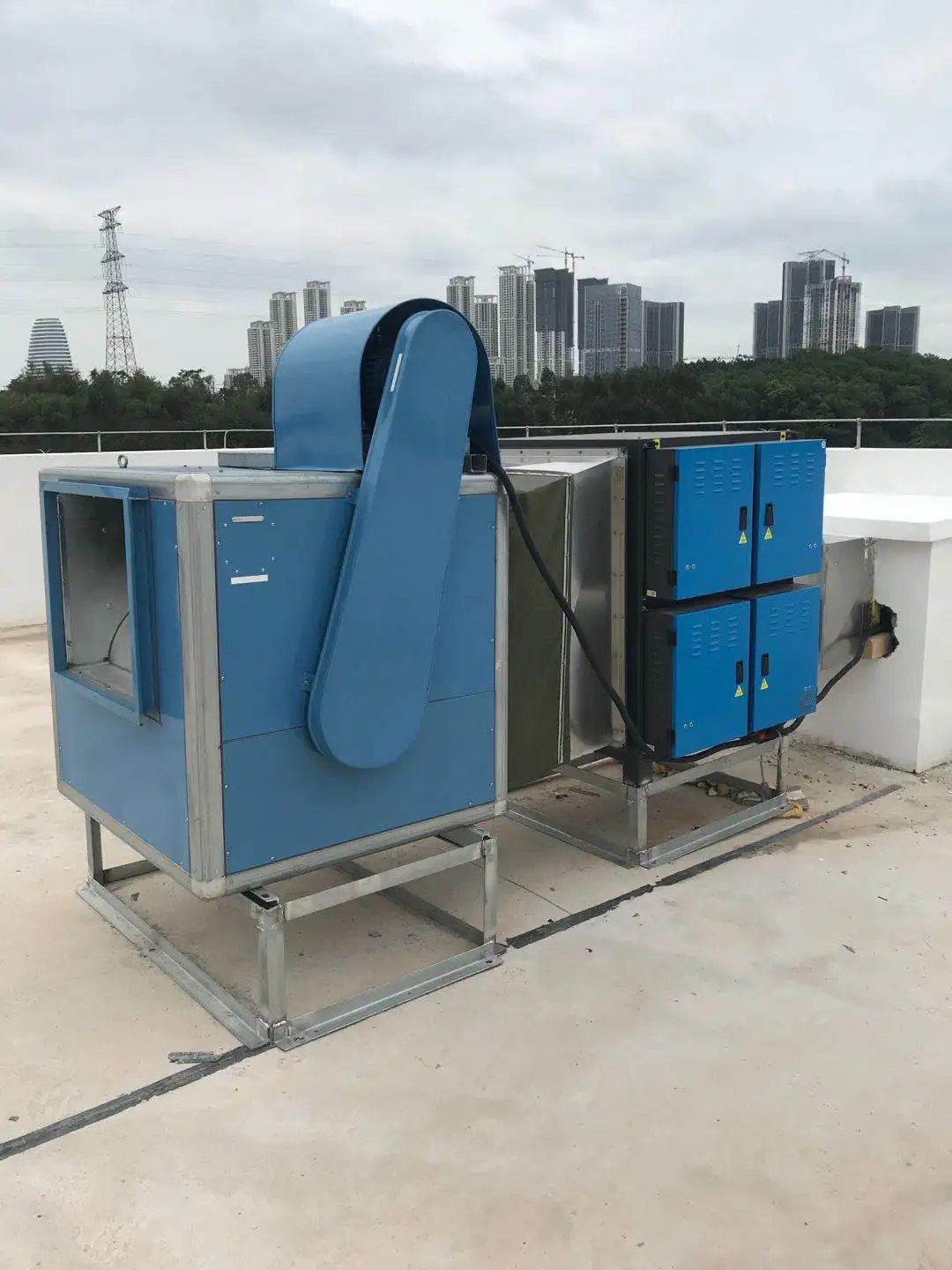

JUWEI Project Cases

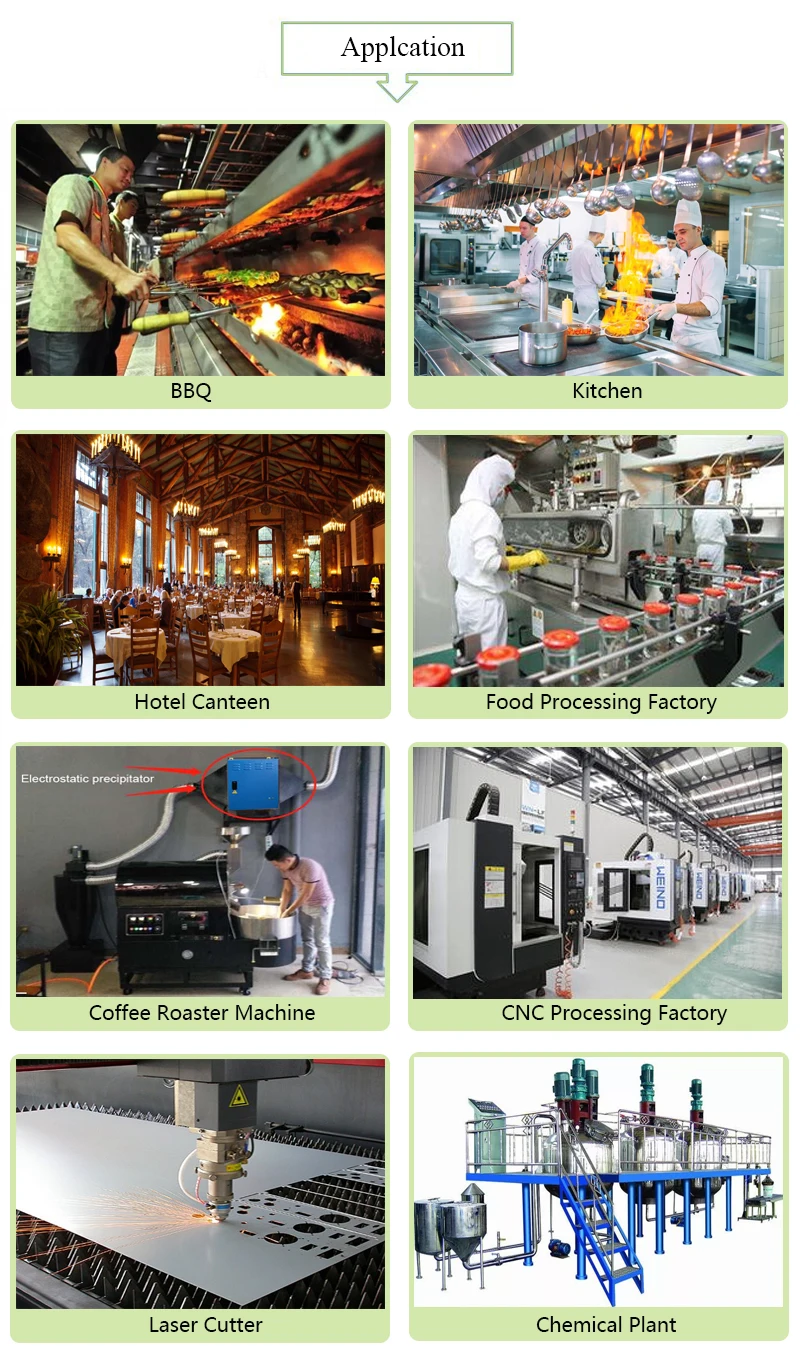

Our machine is typically application include commercial kitchen exhausts, supermarkets, hotels, schools, Air Handling Units (AHUs), factories, workshops, CNC machine shops and many other premises.
Recommend Products
Q: Are you the factory or trading company?
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
A: We are professional manufacturer, specialized in electrostatic(ESP) air cleaners, Air blowers, Exhaust fans and so on.
Q: Can we visit your factory?
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.
Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.
Q: How often shoule we clean the electrostatic air cleaner?
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.
How to maintain the electrostatic precipitator (esp)?
A: Please follow the manual strictly, manual will be provided for checking.
Q: What is your minimum order quantity?
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.
Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
