Microsensor Pressure Sensors OEM ODM Pressure Transmitter 4 20mA 1000bar Transducer MPM489 Liquid Oil Water Tank Pressure Sensor
- Category: >>>
- Supplier: Micro Sensor Co. Ltd.
Share on (1600603848735):
Product Overview
Description
Products Description
Basic Information

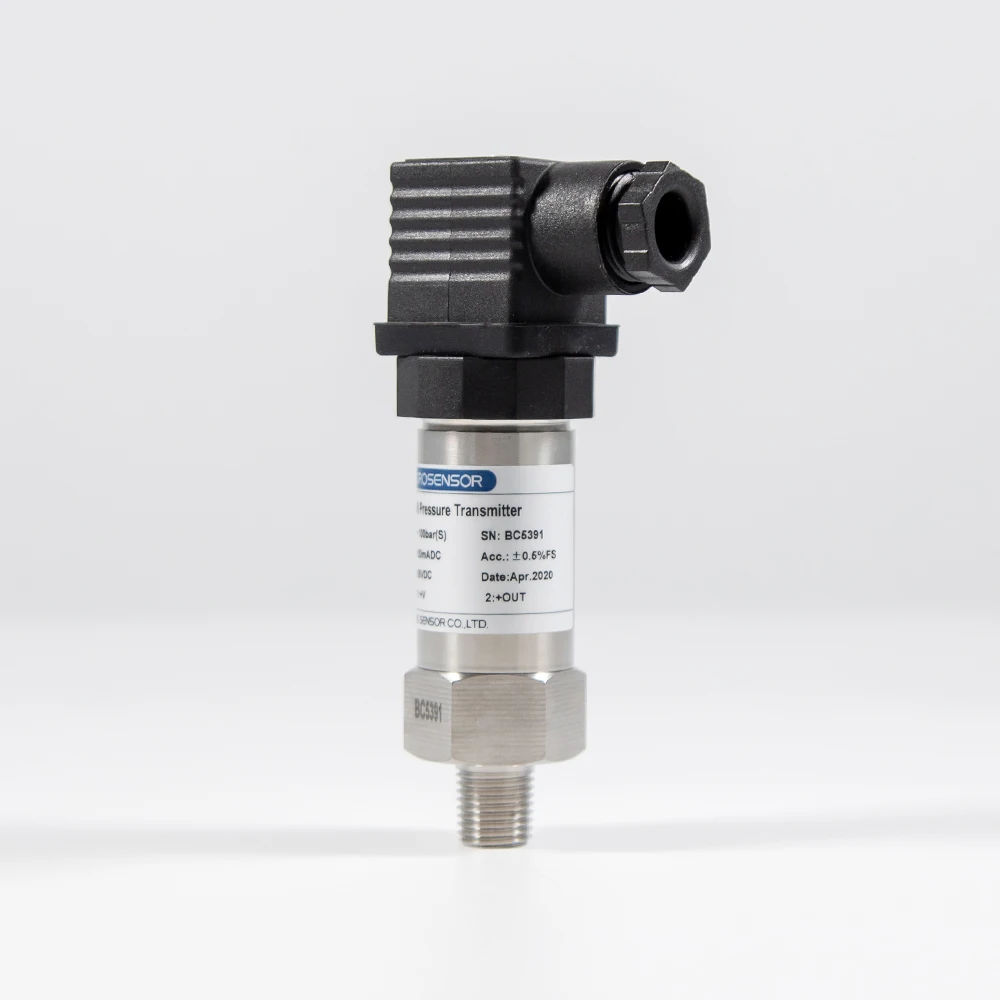

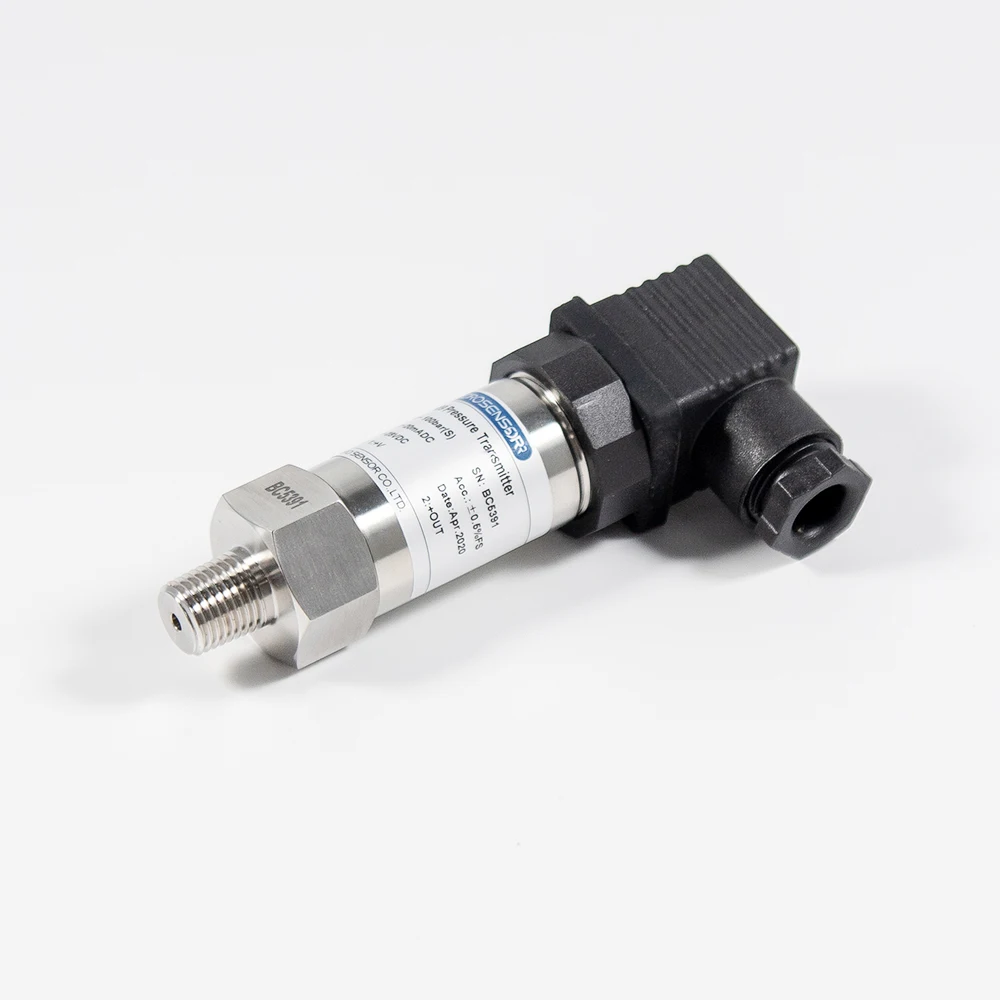

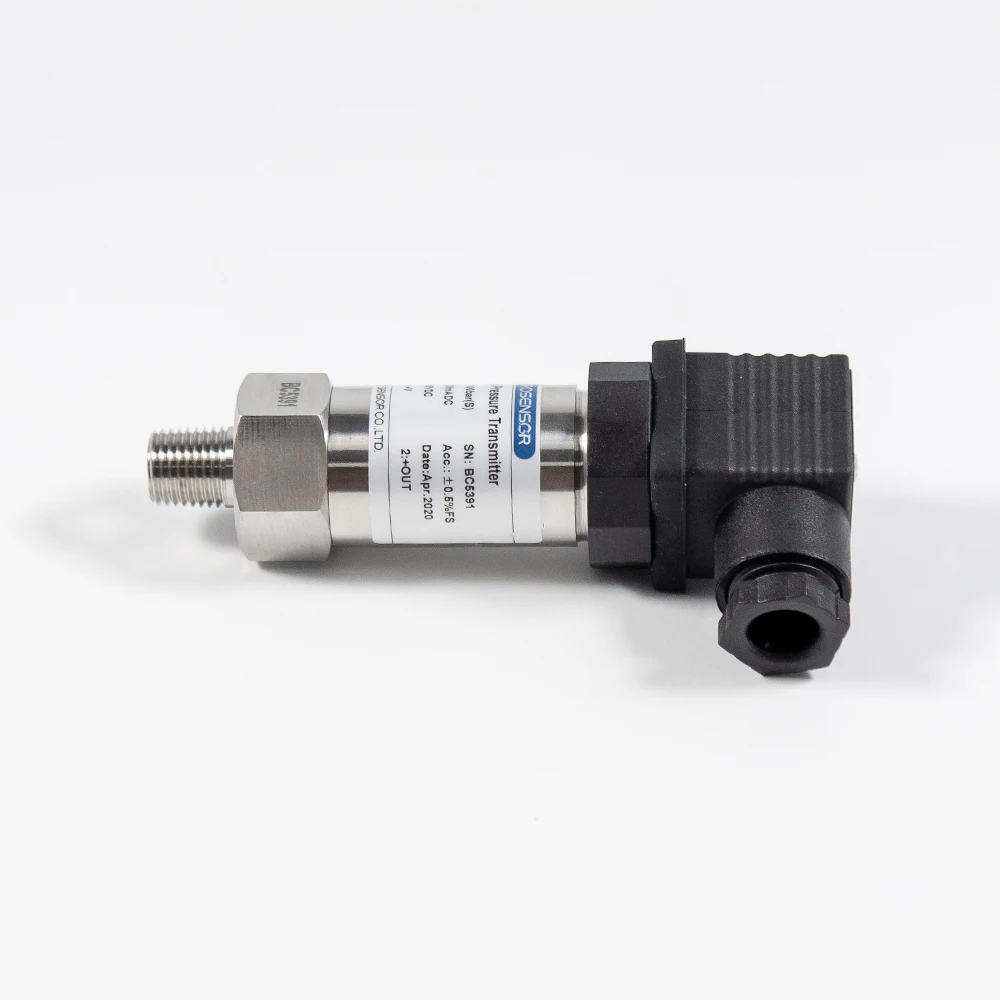

MPM489 product is a pressure transmitter with zero and span adjustable. It uses high stable and reliable pressure sensor and special circuit board to produce transmitter, and performance is good and reliable. MPM489 pressure transmitter is used for measure and control of petroleum, chemi-industry, electric power, hydrology and flow pressure measure, etc.
Feature
• Reliable performance and easy application
• Short protection and reverse polarity protection
• Measure gauge, absolute, and sealed gauge
• CE, RoHS and ATEX approved
Specification
Product Name | ATEX Pressure Transmitter |
Model | MPM489 |
Pressure range | -1bar…0bar~0.1bar…1000bar |
Process connection | • M20*1.5 male waterline seal (or on your demand) |
Output signal | • 4mA~20mA DC(2-wire); • 0/1V~5/10V DC(3-wire); • 0.5V~2.5/4.5V DC(3-wire) |
Load | <(U-11)/0.02Q(2-wire); >10k(3-wire); >10k(3-wire) |
Housing protection | IP65 |
Electrical connection | DIN43650 plug or cable(1.5m) |
Power supply | 11V~28VDC; 11V~28VDC; 3.3/5V DC |
Storage temp. | -40℃~120℃; -20℃~85℃ (Cable) |
Application temp. | -30℃~80℃; -10℃~60℃ (Exia); -20℃~60℃ (Exd); -10℃~70℃ (Cable) |
Material | Housing: stainless steel 304 Sensor housing: stainless steel 304 Diaphragm: stainless steel 316L Sealed-ring: Viton Plug housing: plastic Cable: Φ7.5mm Polyethylene Special Cable |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer since 1971 on Pressure/ Level/ Temperature/ Flow transmitters with 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with SDI, I2C, 4~20mA, 0.5~4.5V and etc, and wireless IOT measurement transmitters. We provide high-quality products with high competitive factory prices.
Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have a strict quality control system, and each product is done with fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: MOQ is 5, 1pc for testing is acceptable.
Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
Q: What is the lead time of your product?
A: We are a factory, our lead time is always within 10~15 working days for products without customization, but lead-time will vary based on different products. You can check detailed lead-time with our sales.
Q: What international certificates do you have for your products?
A: We have CE, RoHS, UL, ATEX as well as ship-use DNV, etc.
