Efficiency Wood Auto Finger Joint Boards Assembler Shaper Machine Finger Joint Line
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600603850859):
Product Overview
Description
Products Description
Product Line:

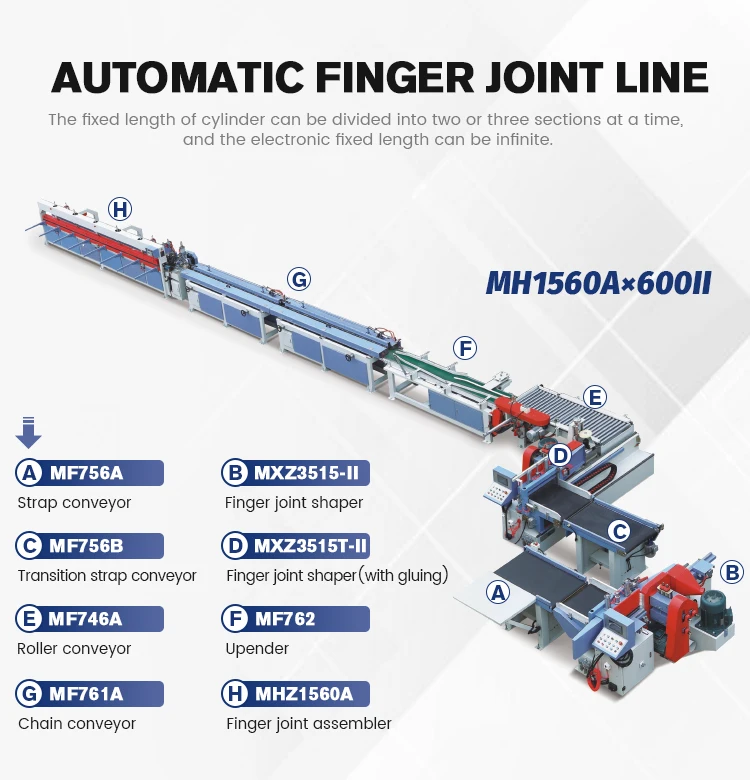

A: Strap conveyor → B: Finger joint shaper → C: Transition strap conveyor → D: Finger joint shaper(with Gluing) → E: Roller conveyor → F : Upender → G: Chain conveyor → H: Finger joint assembler

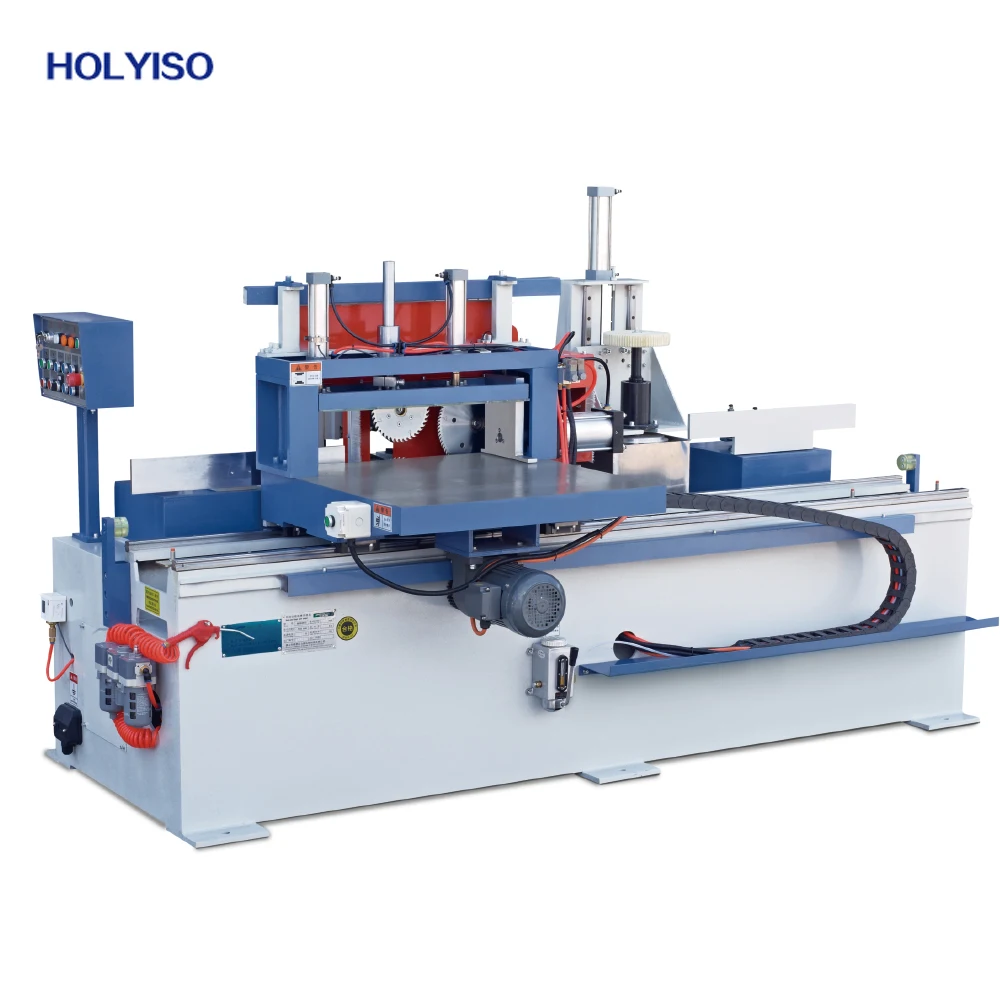

Model | MXZ3515T-II Finger joint shaper(with Gluing) | ||||||
Max working width | 600mm | ||||||
Max.working thickness | 150mm | ||||||
Main saw spindle diameter | Φ30mm | ||||||
Shaper spindle diameter | Φ70mm | ||||||
Main saw spindle speed | 2840r/min | ||||||
Shaper spindle speed | 6000rpm | ||||||
Shaper spindle power | 11kw | ||||||
Main saw spindle power | 4kw | ||||||
butting saw power | 0.75kw x2 | ||||||
Total power | 16.5kw | ||||||
Table size | 760*850mm | ||||||
Overall dimensions(LxWxH) | 2700*1730*1550mm | ||||||
Weight | 2200kg | ||||||
MODEL | MF756A | MF756B |
Working table length | 1150mm | 1150mm |
Working table width | 600mm | 600mm |
Motor power | 0.37kw | 0.37kw |
Overall dimensions | 1180*1330*920mm | 1180*725*920mm |
Working air pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |

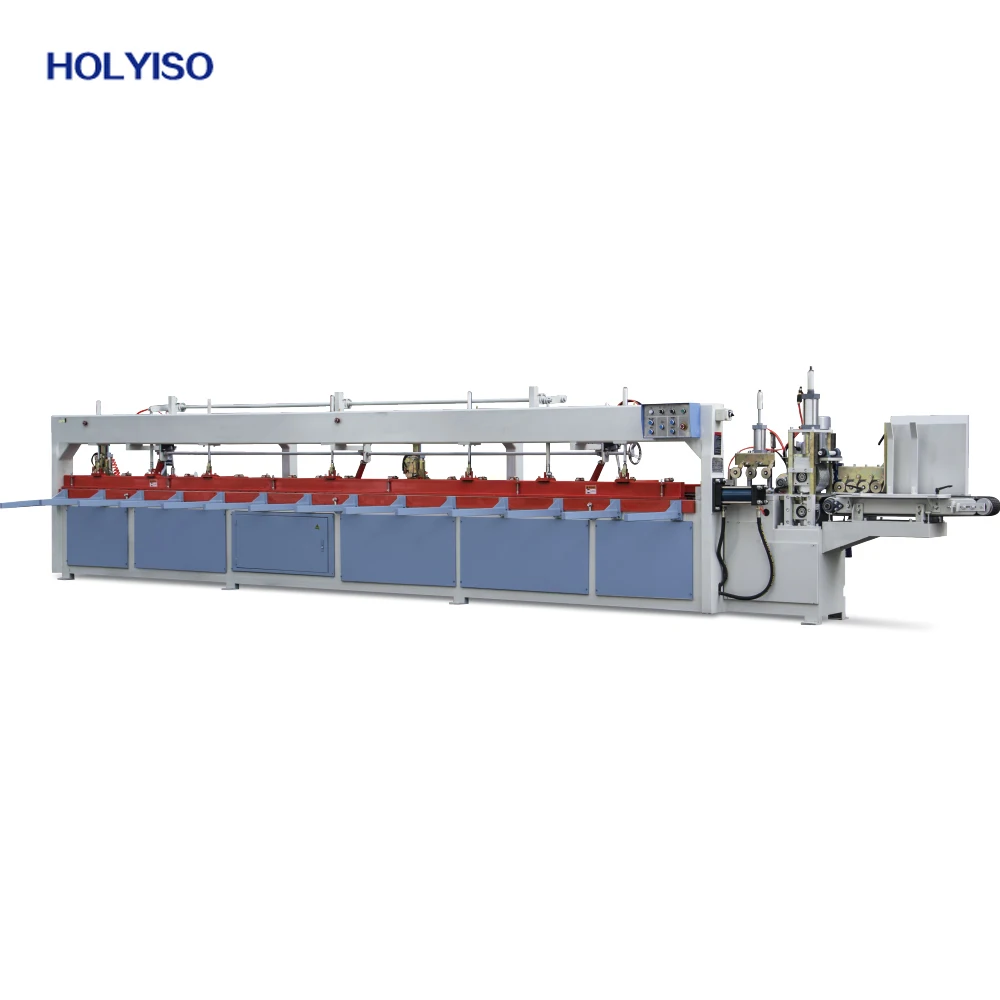

Model | MHZ1560A Finger Joint Assembler | ||||||
Max assembly length | 6000mm | ||||||
Max assembly width | 150mm | ||||||
Max assembly thickness | 80mm | ||||||
Saw blade spindle power | 3kw | ||||||
Oil pump motor power | 4kw | ||||||
Saw blade spindle speed | 3700rpm | ||||||
Feeding speed | 30-60m/min | ||||||
Overall dimensions(LxWxH) | 7650*1000*1420mm | ||||||
Weight | 7800kg | ||||||
MHZ1560A*600II Automatic Finger Joint Line
Application:

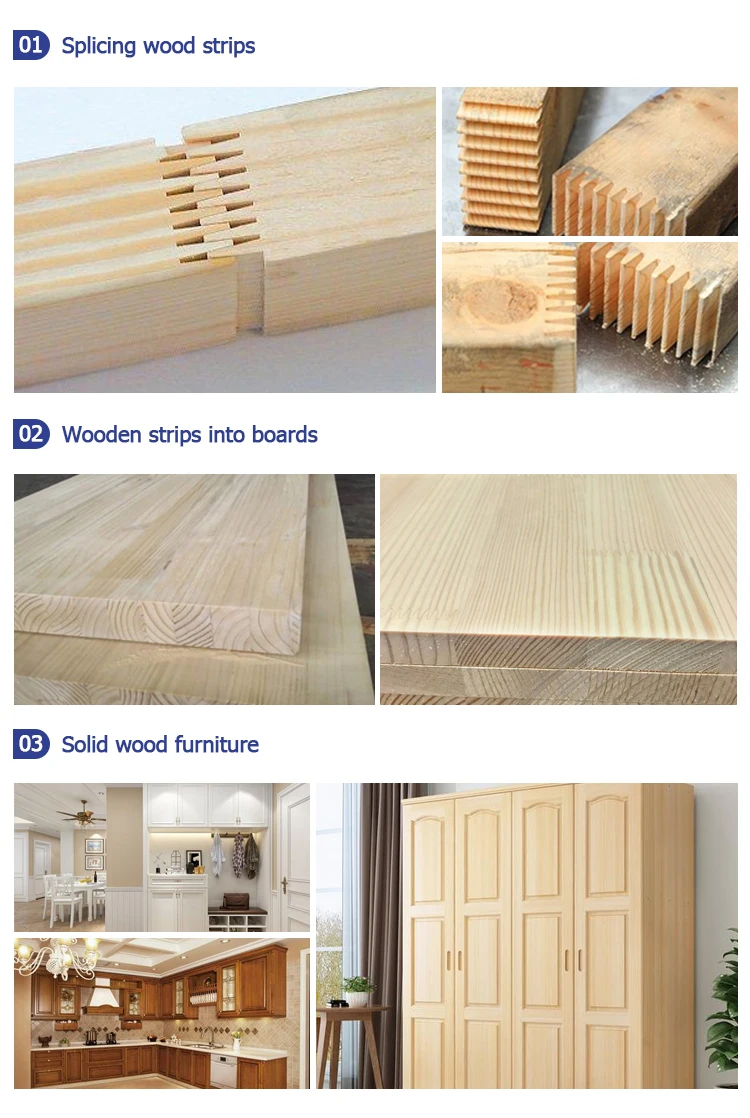

This product is suitable for the reprocessing of disused engineering wood cubes, grooving operations, and the reprocessing of disused timber on the construction site. Advantage:
1. The fixed length of cylinder can be divided into two or three sections at a time, and the electronic fixed length can be infinite.
2. This line with 2 sets chain conveyor make the faster for the Per-joint speed. Processing speed reach 30m/min.
3. Finger joint shapper line using servo drive,the processing efficiency is 50% higher than normal hydraulic transmission system.
Details Images
Advantage 1
Abba precision linear slide rail, precision can reach 0.02 mm,pre pressure linear sliding seat design,high precision strong stability can make the slide longer. Dust proof design unique linear slide rail, in the most harsh environments can still can run in both directions unblockedly.Advantage 2
Upender system, sticks will be tip to 90 degree then input the chain conveyor.Finish Product
Related Products
Packing&Shiping
Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Company Profile
Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.
We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
