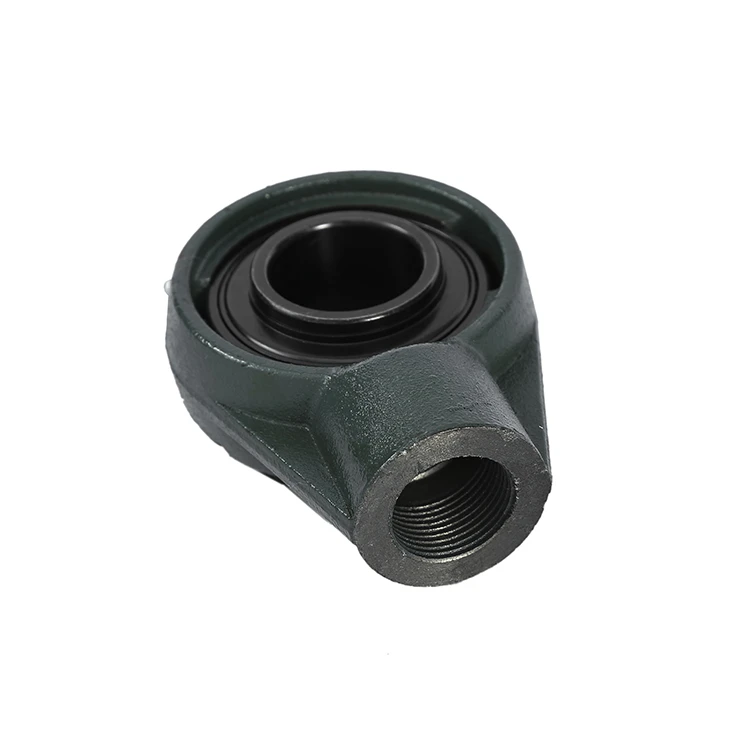

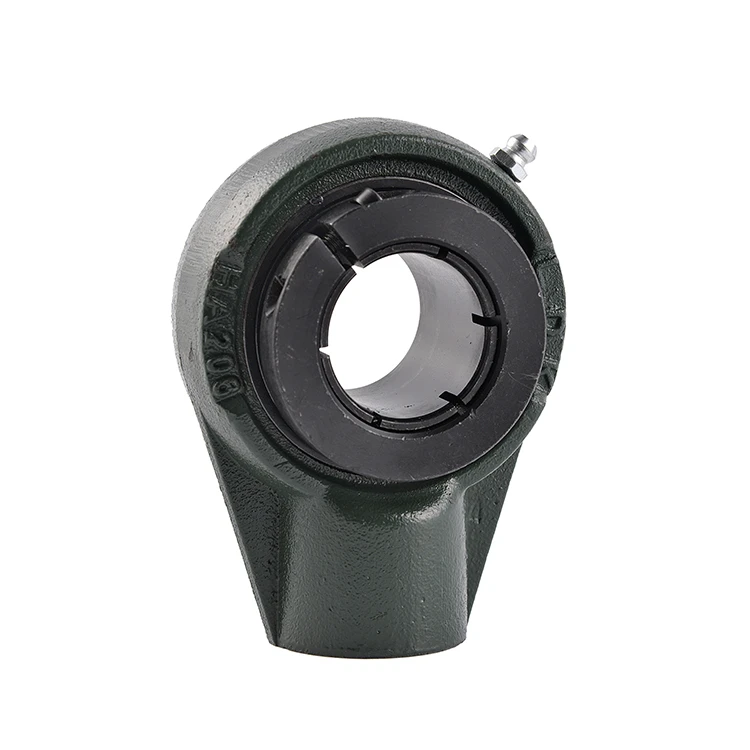

LDK China factory hanger units UEHA205 mounted ball bearings with concentric locking
| Unit No. | Shaft Dia | Dimensions(mm) | Weight | ||||||||||
| d | L | H0 | H | A | M(in) | F | C | A1 | B1 | S | (kg) | ||
| (in) | (mm) | ||||||||||||
| UEHA204 | 20 | 64 | 96 | 64 | 40 | G3/4 | 19 | 0 | 21 | 33 | 12.7 | 0.77 | |
| UEHA204-12 | 3/4 | ||||||||||||
| UEHA205 | 25 | 78 | 103 | 64 | 40 | G3/4 | 19 | 0 | 24 | 35.4 | 14.3 | 0.95 | |
| UEHA205-14 | 7/8 | ||||||||||||
| UEHA205-15 | 15/16 | ||||||||||||
| UEHA205-16 | 1 | ||||||||||||
| UEHA206 | 30 | 78 | 103 | 64 | 40 | G3/4 | 19 | 0 | 28 | 39.8 | 15.9 | 1.03 | |
| UEHA206-17 | 1-1/16 | ||||||||||||
| UEHA206-18 | 1-1/8 | ||||||||||||
| UEHA206-19 | 1-3/16 | ||||||||||||
| UEHA206-20 | 1-1/4 | ||||||||||||
| UEHA207 | 35 | 92 | 116 | 70 | 40 | G3/4 | 19 | 0 | 30 | 43.9 | 17.5 | 1.38 | |
| UEHA207-20 | 1-1/4 | ||||||||||||
| UEHA207-21 | 1-5/16 | ||||||||||||
| UEHA207-22 | 1-3/8 | ||||||||||||
| UEHA207-23 | 1-7/16 | ||||||||||||
| UEHA208 | 40 | 100 | 123 | 73 | 40 | G3/4 | 19 | 2 | 33 | 50.2 | 19.0 | 1.54 | |
| UEHA208-24 | 1-1/2 | ||||||||||||
| UEHA208-25 | 1-9/16 | ||||||||||||
| UEHA209 | 45 | 108 | 136 | 82 | 48 | G1 | 21 | 5 | 35 | 50.2 | 19.0 | 2.35 | |
| UEHA209-26 | 1-5/8 | ||||||||||||
| UEHA209-27 | 1-11/16 | ||||||||||||
| UEHA209-28 | 1-3/4 | ||||||||||||
| UEHA210 | 50 | 119 | 142 | 83 | 48 | G1 | 21 | 5 | 37 | 52.6 | 19.0 | 2.56 | |
| UEHA210-30 | 1-7/8 | ||||||||||||
| UEHA210-31 | 1-15/16 | ||||||||||||
| UEHA210-32 | 2 | ||||||||||||
| UEHA211 | 55 | 126 | 150 | 87 | 60 | G5/4 | 25 | 7 | 38 | 56.6 | 22.2 | 3.12 | |
| UEHA211-32 | 2 | ||||||||||||
| UEHA211-34 | 2-1/8 | ||||||||||||
| UEHA211-35 | 2-3/16 | ||||||||||||
| UEHA212 | 60 | 142 | 173 | 102 | 60 | G5/4 | 28 | 9 | 42 | 66.6 | 25.4 | 4.47 | |
| UEHA212-36 | 2-1/4 | ||||||||||||
| UEHA212-38 | 2-3/8 | ||||||||||||
| UEHA212-39 | 2-7/16 | ||||||||||||
UEHA Standard duty,Wider inner ring bearing, Concentric locking,Cast gray iron housing .
Cast DUCTILE iron housing available upon request.
