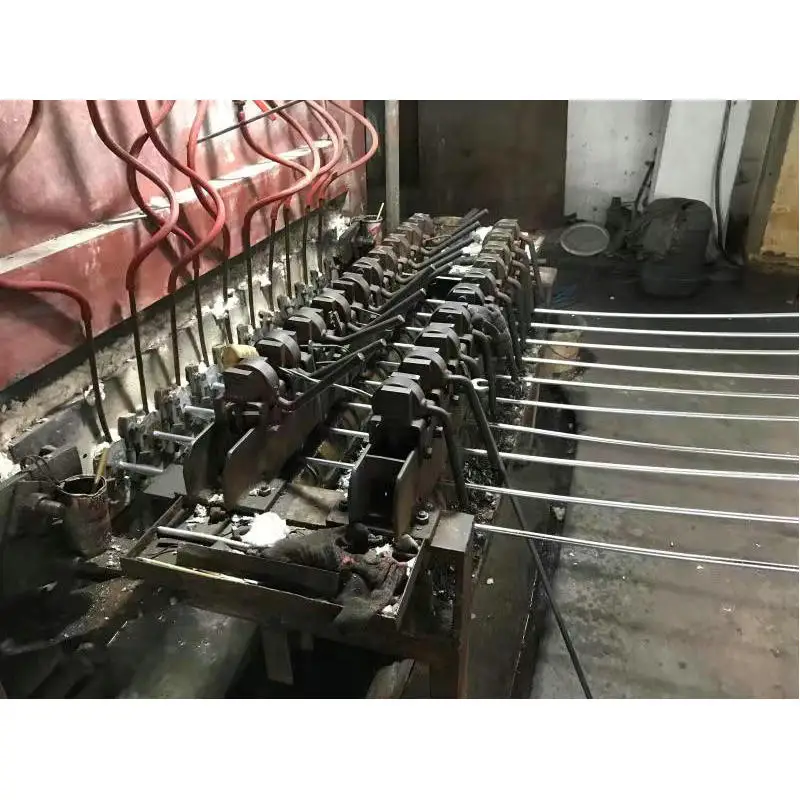

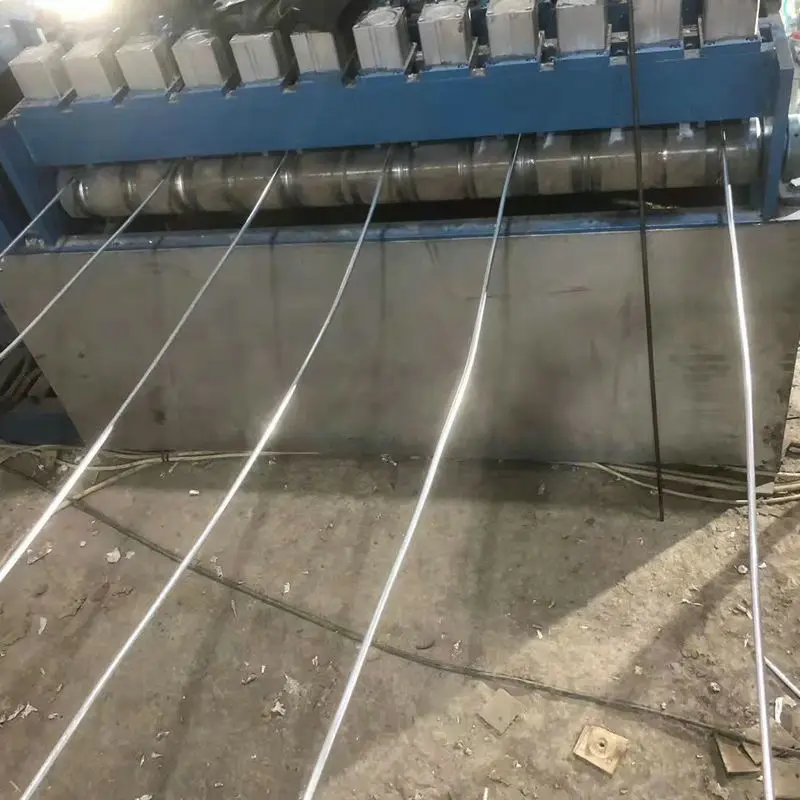

Aluminum Rod Melting Furnace Automatic Control Production Line Continuous Casting Machine

Product Overview

Description





Equipment introduction:
Melting furnace:
1. Structure: tilting gas furnace is composed of eight parts: furnace shell, furnace lining, combustion system, temperature control system, crucible with nozzle, burner, oil cylinder, oil pressure station.
2. Principle: this furnace is an aluminum alloy melting device by converting the chemical energy of fuel into heat energy, heating the inner chamber crucible with direct flame, melting the aluminum ingots in the crucible through the transfer of the crucible through overheating, and using the oil cylinder to dump the furnace body 90 degrees so that the aluminum water in the crucible with the nozzle can be completely poured out.
3. This type of furnace is based on the current die casting and casting market to meet the characteristics and requirementsabroad.We improve manufacturing quality, strictly control the processing temperature, reduce defects caused by temperature fluctuations, and especially improve the structure of the furnace body, and ltaly Baide brand gas engine willbe set according to the process temperature requirements.According to the production needs, the furnace type usesimported graphite crucible to greatly improve the utilization rate of the furnace



No.	Parameters:	Qty
1	Rated Power: 40 Kcal (About 80 cubic metres of natural gas melts 1T aluminium )	1 set
2	Type: Aluminium melting
3	Model: BG1000
4	Motor power of oil pressure station: 2.2kw
5	Input voltage: 380 VAC
6	Furnace Content Capacity: 1000KG
7	Melting rate: 280-300kg/h (if cold port, need 4-5hours to melt 1port aluminium, if hot port, need 2-2.5hours to melt 1 port, meanwhile always leave 1/4 melted liquid in the port )
8	Temperature: 680-800℃
9	Electric Cabinet: 1 Set

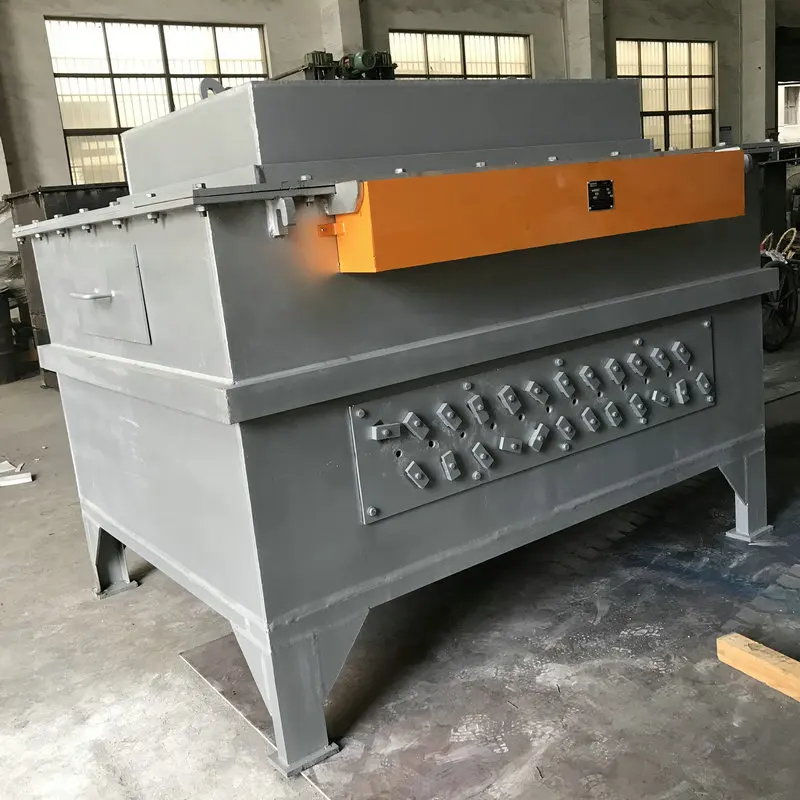

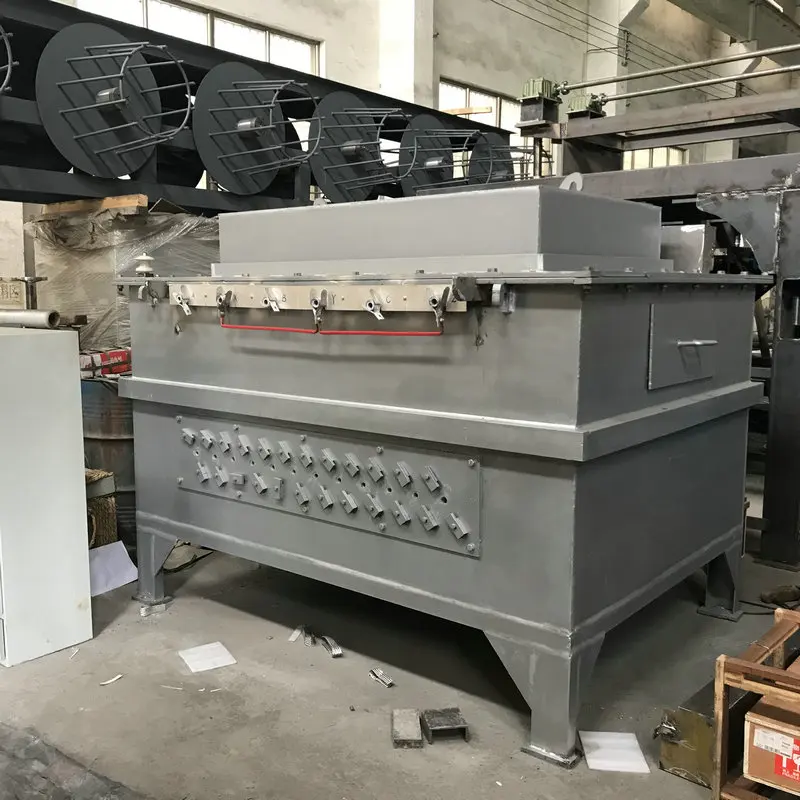

Holding furnace:
Descriptions:
1 The shell of furnace adopts 6mm Q235 steel plate;The outer reinforcement is made of 10# channel steel and 12# channel steel.The furnace chamber adopts first-class high-alumina brick (or heat-resistant building material), the insulation layer is cut with high-quality lightweight insulation material and silicate fiber board, and the high-alumina brick + anti-leakage layer + insulation brick + silicate fiber board is cut.
2 the aluminum solution adopts thermocouple continuous temperature measurement, and the furnace temperature is controlled by upper and lower limits.



No.	Parameters:	Qty
1	Rated Power: 50~60Kw	1 set
2	Type: Temperature Holding
3	Model: GYTL1000
4	Input voltage: 380 VAC
5	Furnace Content Capacity: 1000KG
6	Input phase: 3 phase (ABC)
7	Max. Temperature: 850℃
8	Cooling System: Water cooling
9	Electric Cabinet: 1 Set















Q. What is your MOQ?
A.1 set.

Q.Your company is a trading firm? or Factory?
A. We are a factory with 10+ years experience in industrial melting feild. we currently have three branches: main frequencyfurnace production, medium frequency furnace production, component machine production.You are warmly welcomed tovisit our factories.



Q.How is your products quality?
A.As a manufacturer, we have our own R&D team.Basing on several ears of technical innovation, we have accumulatedsuccessful experience in induction heating, temperature holding, fast melting. Weve customized so many furnaces with alpositive feedbacks.



Q. What kind of material our furnace can melting?
A.Jintong is able to supply a melting production line such as copper/zinc/aluminum melting line.Jintong mediumfrequency furnace can also melt iron, steel, gold, silver and so on.



Q.l am not so familiar with your machine now. I am not sure l can use it well if l buy it from you.
A. Don't worry about thls.Wlth the machIne, we will send you a brochure with detalled Informatlon of ourmachIne operatlon. ln addltlon, we wlll send you vldeos of machIne set up and usIng.our englneers arealways avallable for consultatlon.EngIneers can support at your place lf lt ls needed.
