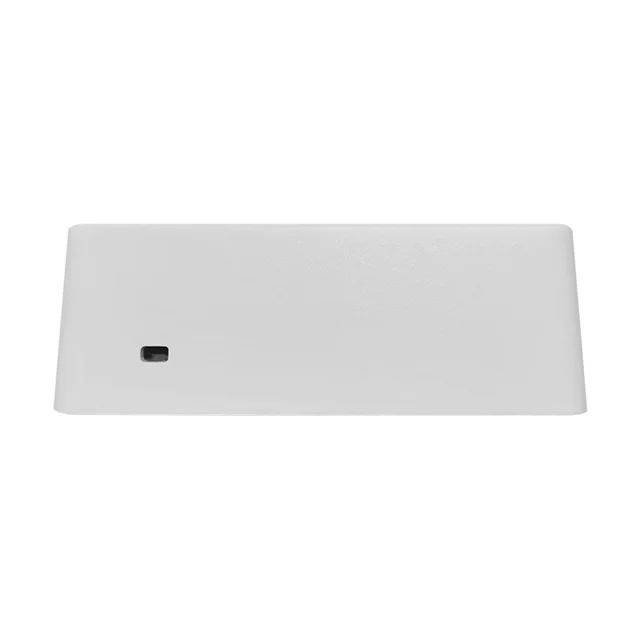

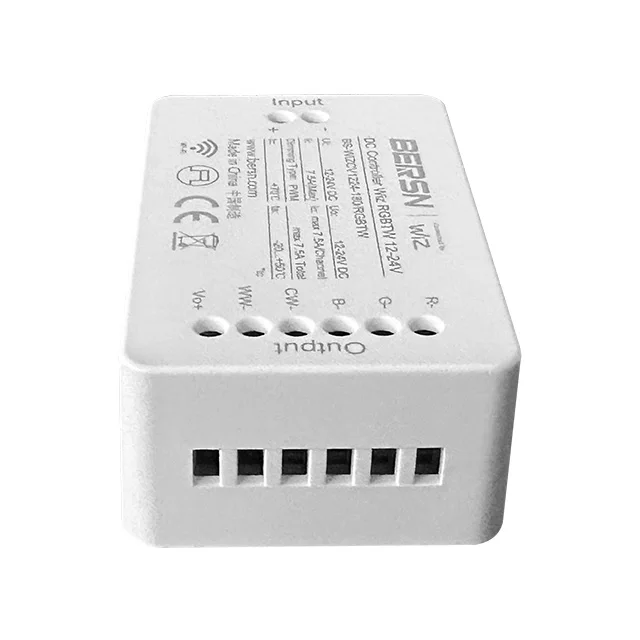

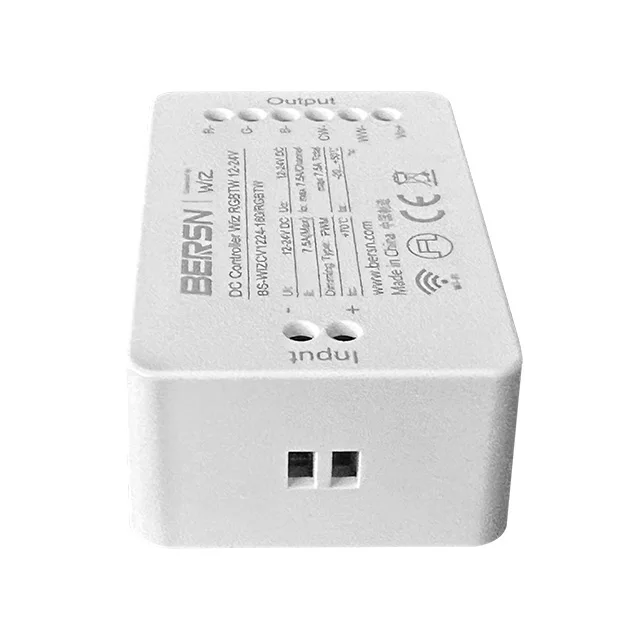

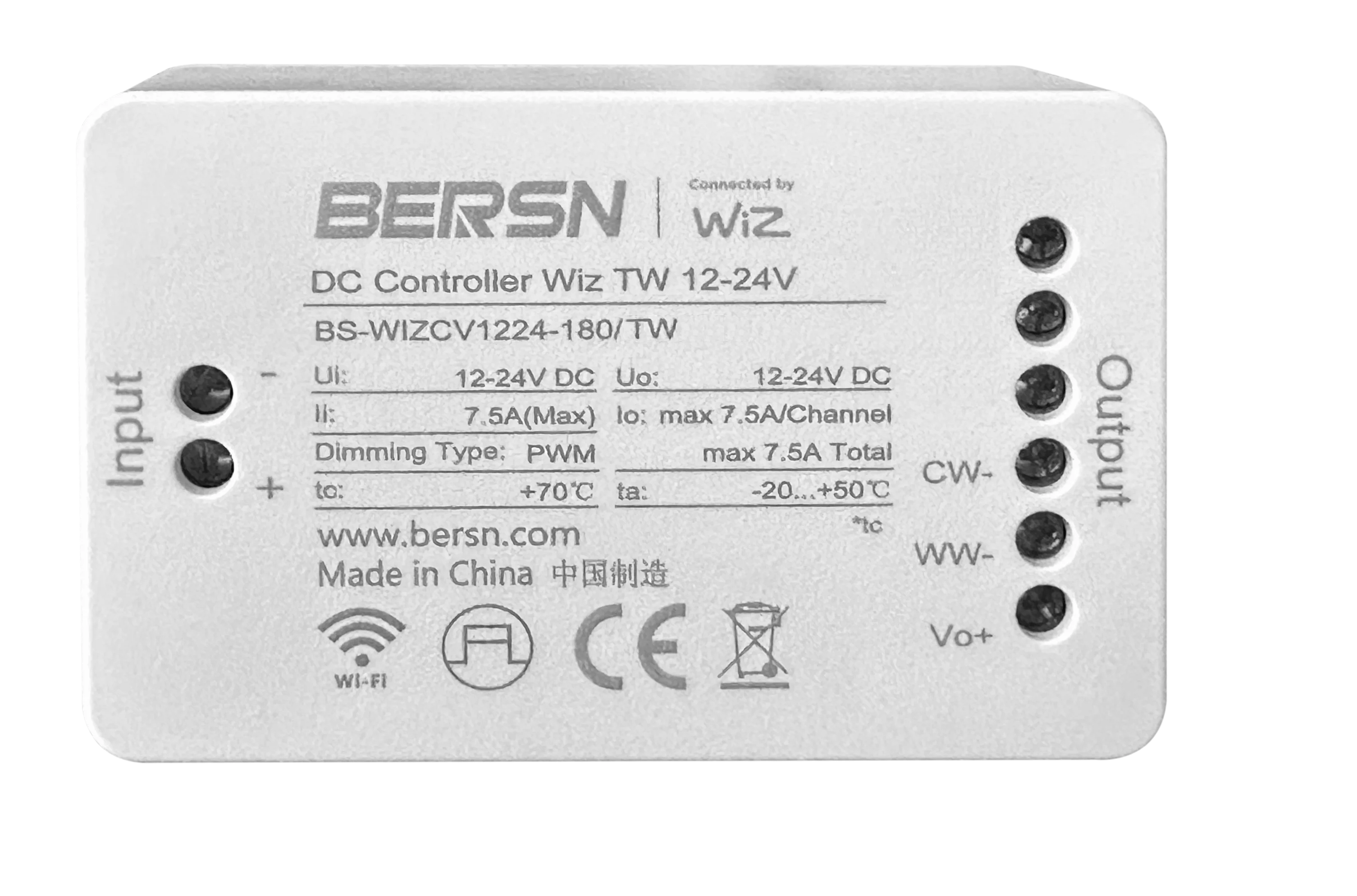

TW Bridge Box I 12 24V CV Smart Controller for Led Strip Light Buy Chinese products online
- Category: >>>
- Supplier: Shenzhen Bersn Opto-Electronics Co. Ltd.
Share on (1600603899178):
Product Overview
Description
Product Description
Smart LED Driver
Features
* Suitable for both independent and built-in usage
* Energy metering feature with 10% accuracy
* Max 180W output load
* Wi-Fi + Bluetooth dual protocol module which enable local Bluetooth messages for installation and connectivity to WiZ cloud
over Wi-Fi network
Input electrical parameters | ||||||

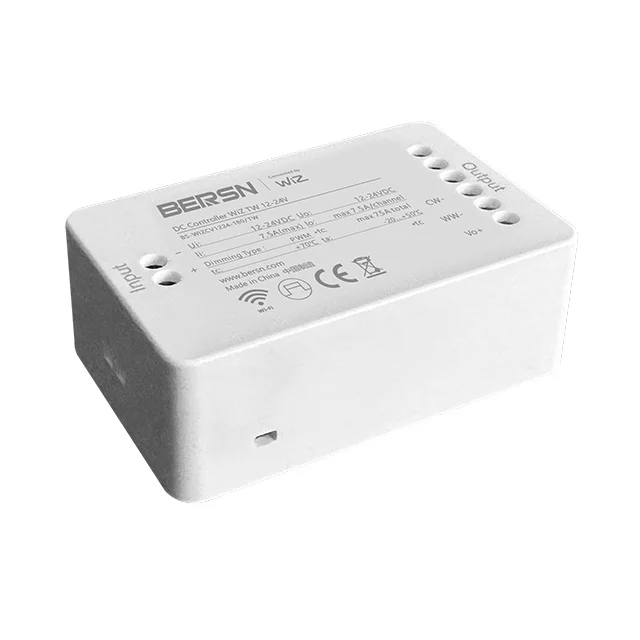

Specification item | WiZ TW Controller I 12-24V | unit | condition | |||
Model No. | BS-WIZCV1224-180 | Vac | ||||
Rated Power | 180W | Vac | safe working range | |||
Output Current (Io1;Io2) | 7.5A @ Max output power | Hz | ||||
Output Voltage (Vo1;Vo2) | 12-24Vdc | Hz | maximum allowable range | |||
Nominal Input Frequency | 50-60Hz | |||||
Power Factor | 0.9 @ full output power | |||||
Total Harmonic Distortion | ≤20% @ rated output powe | Vdc | Open circuit peak voltage | |||
Output Voltage Max | 50Vdc | mA | fully loaded | |||
Output current tolerance | ±5 | % | Maximum output current, Ta = 25 °C (cold start) | |||
Output current ripple LF | 5 | % | Ripple = peak / average, <1kHz | |||
Mains Surge Capability | L-N 1kV; L/N-GND 2kV | W | fully loaded | |||
Ambient Temperature | -20…+50°C | KHZ | ||||
Tcase Maximum | 80°C | Basic ; 2U+1000V | ||||
Humidity | 10~90% | |||||
Lifetime | 50,000 hrs | °C | ||||
Control Mode | Wireless protocol = Wi-Fi, BLE | Hour | At ambient temperature 40°C ; survival rate = 90 % | |||
Standby Power | 0.5W | |||||
Dimming range | 10...100% Dimming Via WIZ App | SCP | Overload protection | |||
Isolation controls input to output | SELV (acc. IEC61347-1) | |||||
Approval Marks | BIS / CE-RED / CCC; ENEC (PENDING) | |||||
FAQ
Q1. What about the lead time ? A. Sample needs 3-5days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Do you have any MOQ limit for order ?
A. Low MOQ, 1pc for sample checkjing is available
Q3. How do you ship the goods and how long does it take to arrive ?
A. We usually ship by DHL, UPS, Fedex or TNT takes 3-5days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on product ?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products ?
A. Yes, we offer 5 years warranty to led street light.
Q2. Do you have any MOQ limit for order ?
A. Low MOQ, 1pc for sample checkjing is available
Q3. How do you ship the goods and how long does it take to arrive ?
A. We usually ship by DHL, UPS, Fedex or TNT takes 3-5days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on product ?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products ?
A. Yes, we offer 5 years warranty to led street light.
Product Description

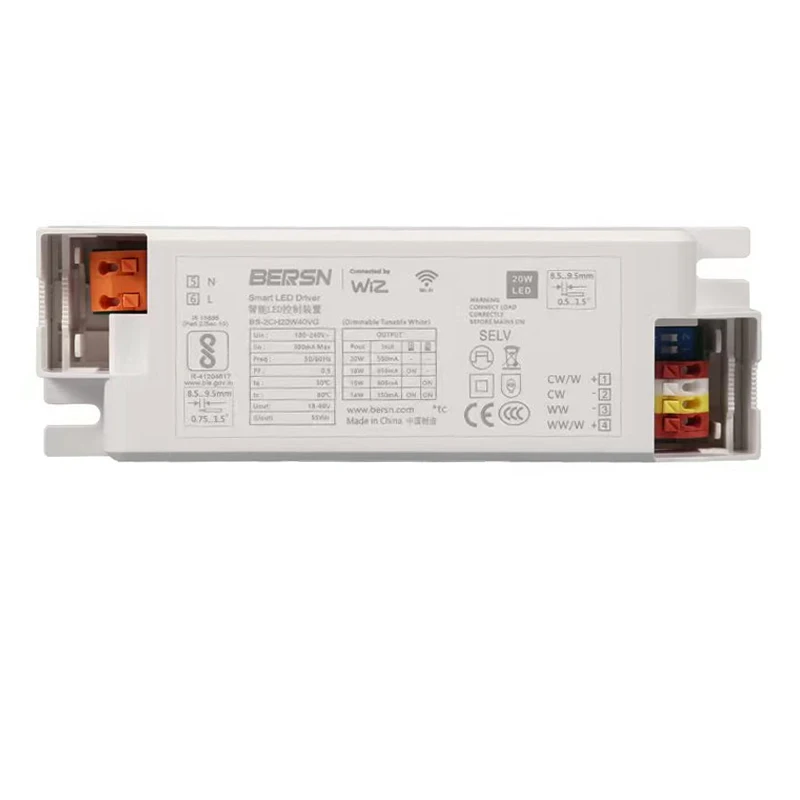

Smart LED Driver
Features
* Dimmable built-in constant current 2-channel LED Driver with WIZ* Tunable white with adjustable CCT from 2700-6500k, dimming range 10to 100 %.
* Easy wireless dimming and scheduling for energy saving and convenience
* Connecting to Wi-Fi for cloud-based control and remote access. No gateway needed
* Future-proof flexibility, support OTA (Over-The-Air) firmware update
* Protective features (short-circuit, open-circuit, over-load, no-load)
* Reliable, flicker-free

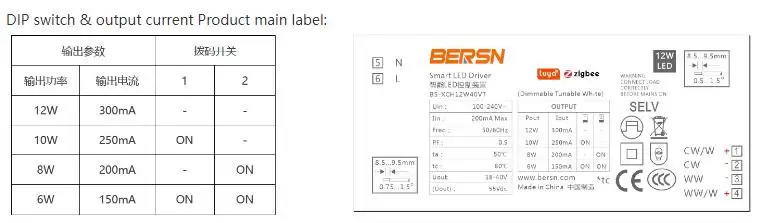

* Flexible current setting (DIPswtich-4 currents).
* 5 years warranty.
Input electrical parameters | ||||||
Specification item | Smart LED Driver 12W 150-300mA 40V WiZ TW 100-240V | unit | condition | |||
Model No. | BS-2CH12W40VG | Vac | ||||
Rated Power | 12W | Vac | safe working range | |||
Output Current (Io1;Io2) | 300/250/200/150mA AOC Via DIP Switch 4 Currents | Hz | ||||
Output Voltage (Vo1;Vo2) | 18-40Vdc | Hz | maximum allowable range | |||
Nominal Input Voltage | 100-240VAC | Full load 220V-240V | ||||
Input Voltage Range | 90-277VAC | mA | 230V at full load | |||
Nominal Input Current | 0.07-0.17A | % | 230V at full load | |||
Max Input Current | 0.26A | % | 230V at full load | |||
Nominal Input Frequency | 50-60Hz | |||||
Power Factor | 0.9 @ full output power | |||||
Total Harmonic Distortion | ≤20% @ rated output powe | Vdc | Open circuit peak voltage | |||
Output Voltage Max | 50Vdc | mA | fully loaded | |||
Output current tolerance | ±5 | % | Maximum output current, Ta = 25 °C (cold start) | |||
Output current ripple LF | 5 | % | Ripple = peak / average, <1kHz | |||
Mains Surge Capability | L-N 1kV; L/N-GND 2kV | W | fully loaded | |||
Ambient Temperature | -20…+50°C | KHZ | ||||
Tcase Maximum | 80°C | Basic ; 2U+1000V | ||||
Humidity | 10~90% | |||||
Lifetime | 50,000 hrs | °C | ||||
Control Mode | Wireless protocol = Wi-Fi, BLE | Hour | At ambient temperature 40°C ; survival rate = 90 % | |||
Standby Power | 0.5W | |||||
Dimming range | 10...100% Dimming Via WIZ App | SCP | Overload protection | |||
Isolation controls input to output | SELV (acc. IEC61347-1) | |||||
Approval Marks | BIS / CE-RED / CCC; ENEC (PENDING) | |||||
FAQ
Q1. What about the lead time ? A. Sample needs 3-5days, mass production time needs 1-2 weeks for order quantity more than.
Q2. Do you have any MOQ limit for order ?
A. Low MOQ, 1pc for sample checkjing is available
Q3. How do you ship the goods and how long does it take to arrive ?
A. We usually ship by DHL, UPS, Fedex or TNT takes 3-5days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on product ?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products ?
A. Yes, we offer 5 years warranty to led street light.
Q2. Do you have any MOQ limit for order ?
A. Low MOQ, 1pc for sample checkjing is available
Q3. How do you ship the goods and how long does it take to arrive ?
A. We usually ship by DHL, UPS, Fedex or TNT takes 3-5days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on product ?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products ?
A. Yes, we offer 5 years warranty to led street light.
