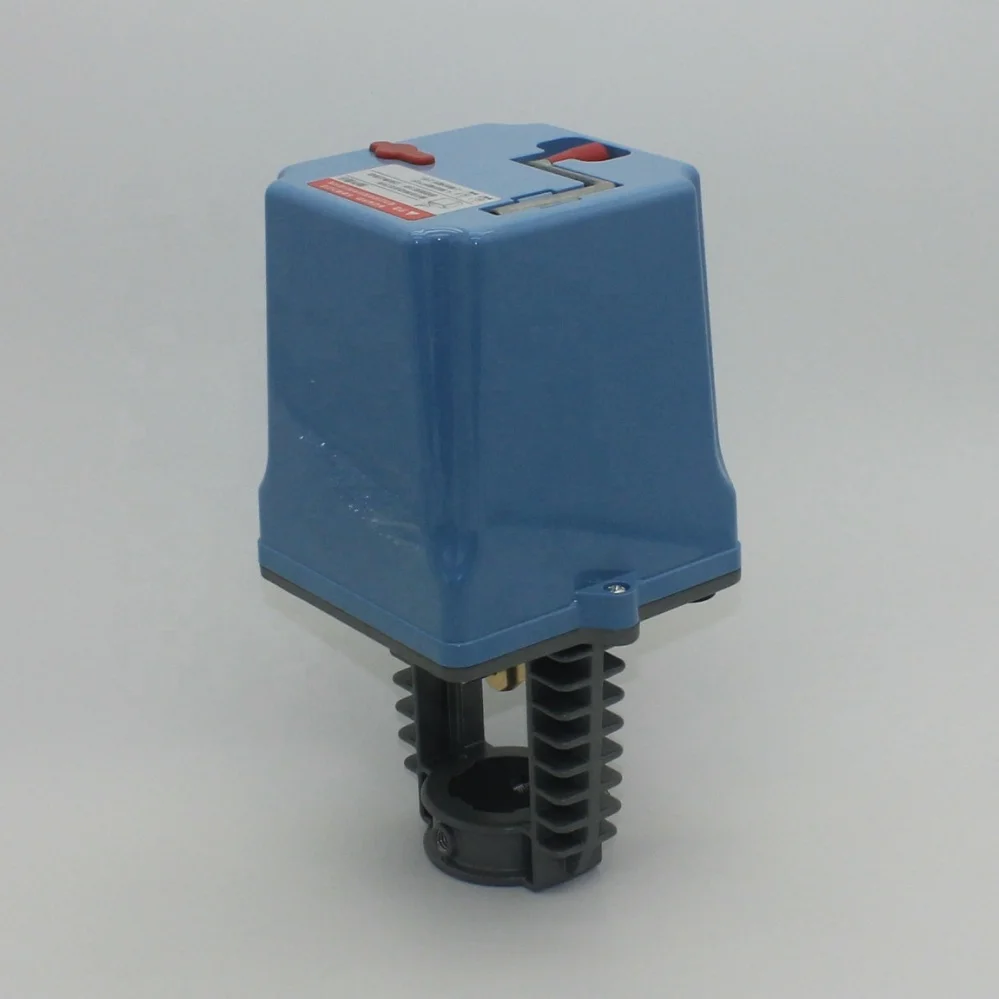

YH3X5 Electric Actuator
YH3X5. series electric actuator has 1500N force to match different valve body, which can regulate the fluid flow, aim to system constant temperature, constant pressure, constant humidity, widely used in HVAC application.
FEATURES AT A GLANCE
1.Forged aluminum bracket and ABS actuator cover.
2.Actuator can meet different differential pressure demand.
3.Synchronous motor, equip with shut off power function, which can open at any
position due to supply stable torque.
4.forward and reversal control setting meet different valve body.
2.Actuator can meet different differential pressure demand.
3.Synchronous motor, equip with shut off power function, which can open at any
position due to supply stable torque.
4.forward and reversal control setting meet different valve body.
5. On-Off, floating or modulating(0-10Vdc/4-20mA)
6.24Vac, 220Vac
7.Big force 1500N
6.24Vac, 220Vac
7.Big force 1500N

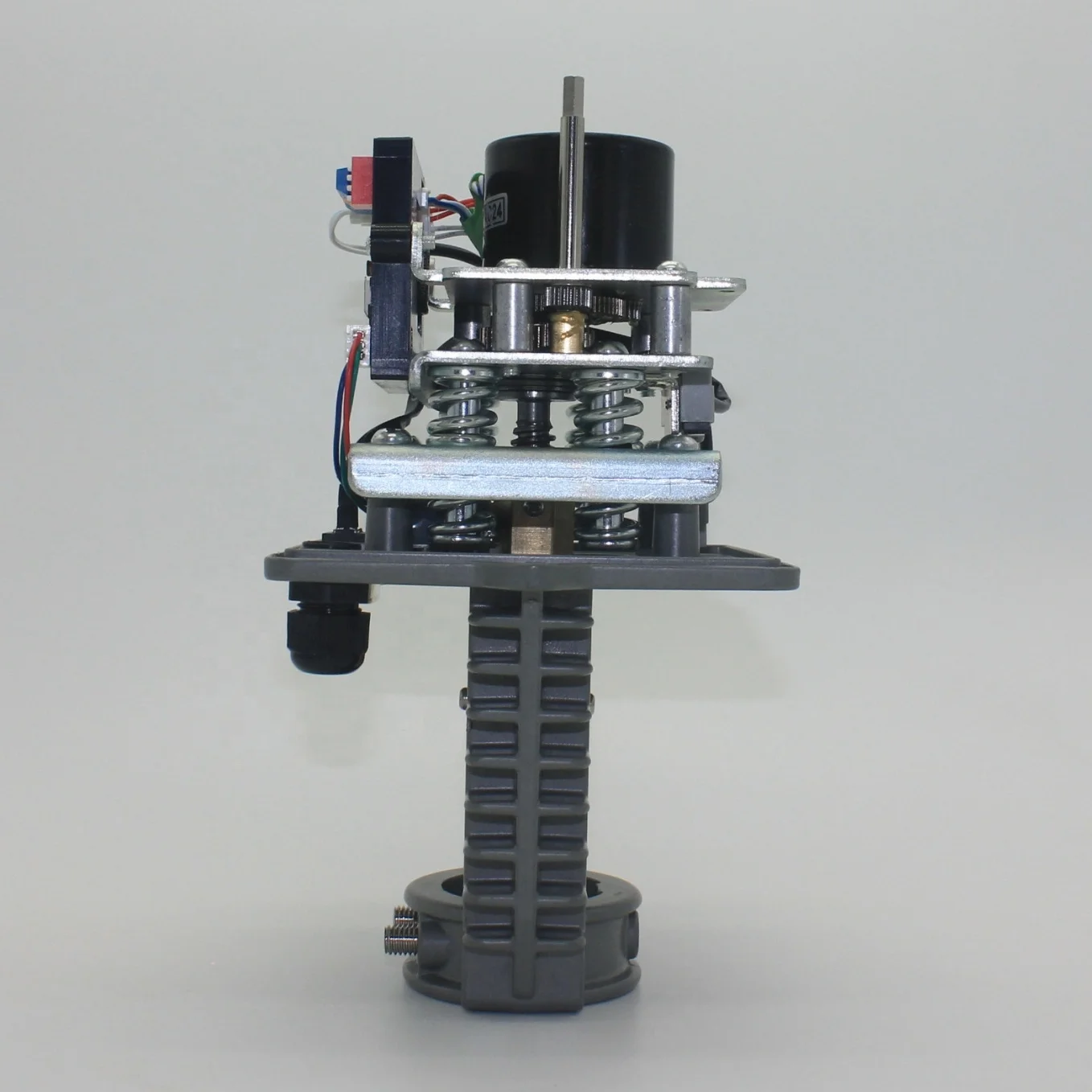

Right elevation
Left elevation

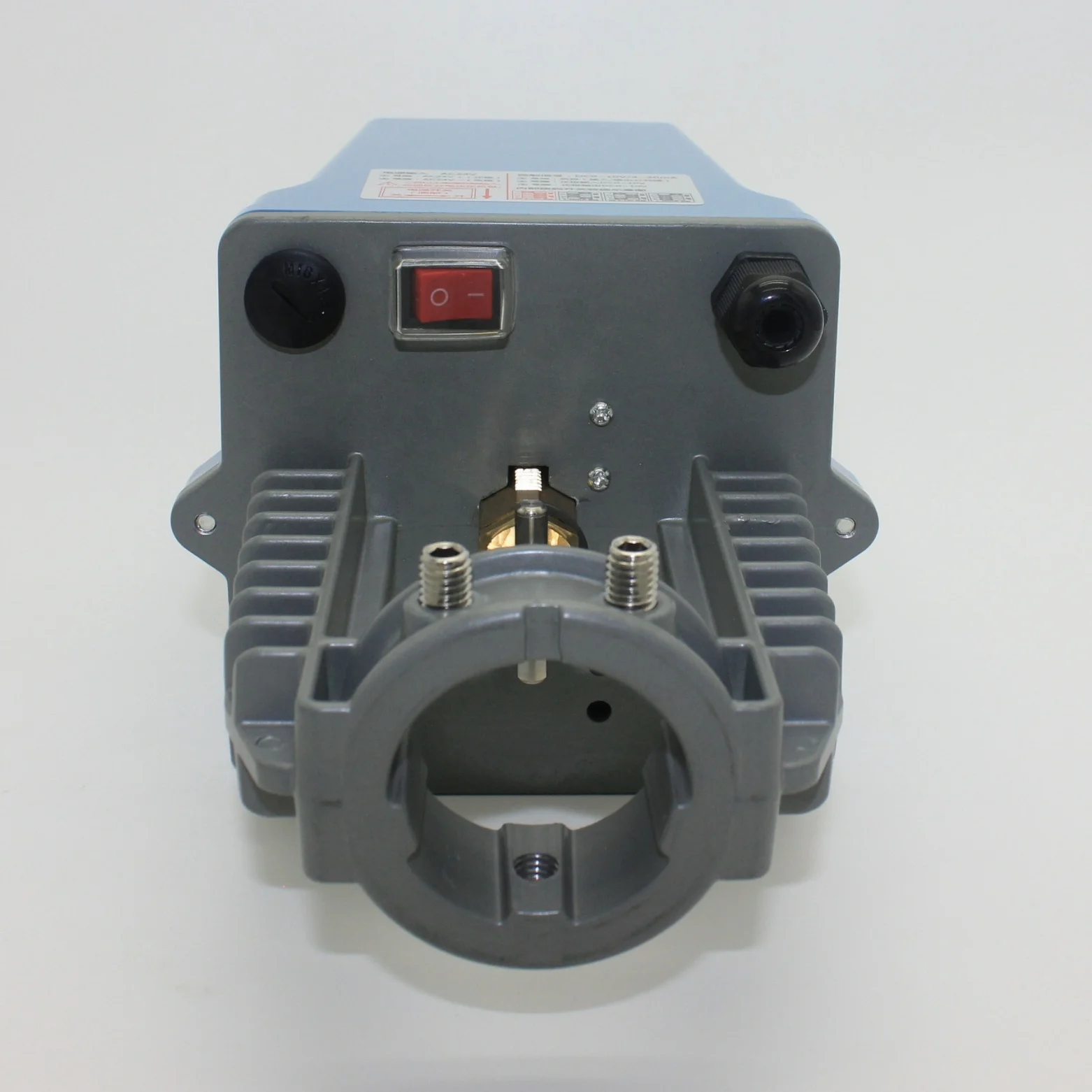

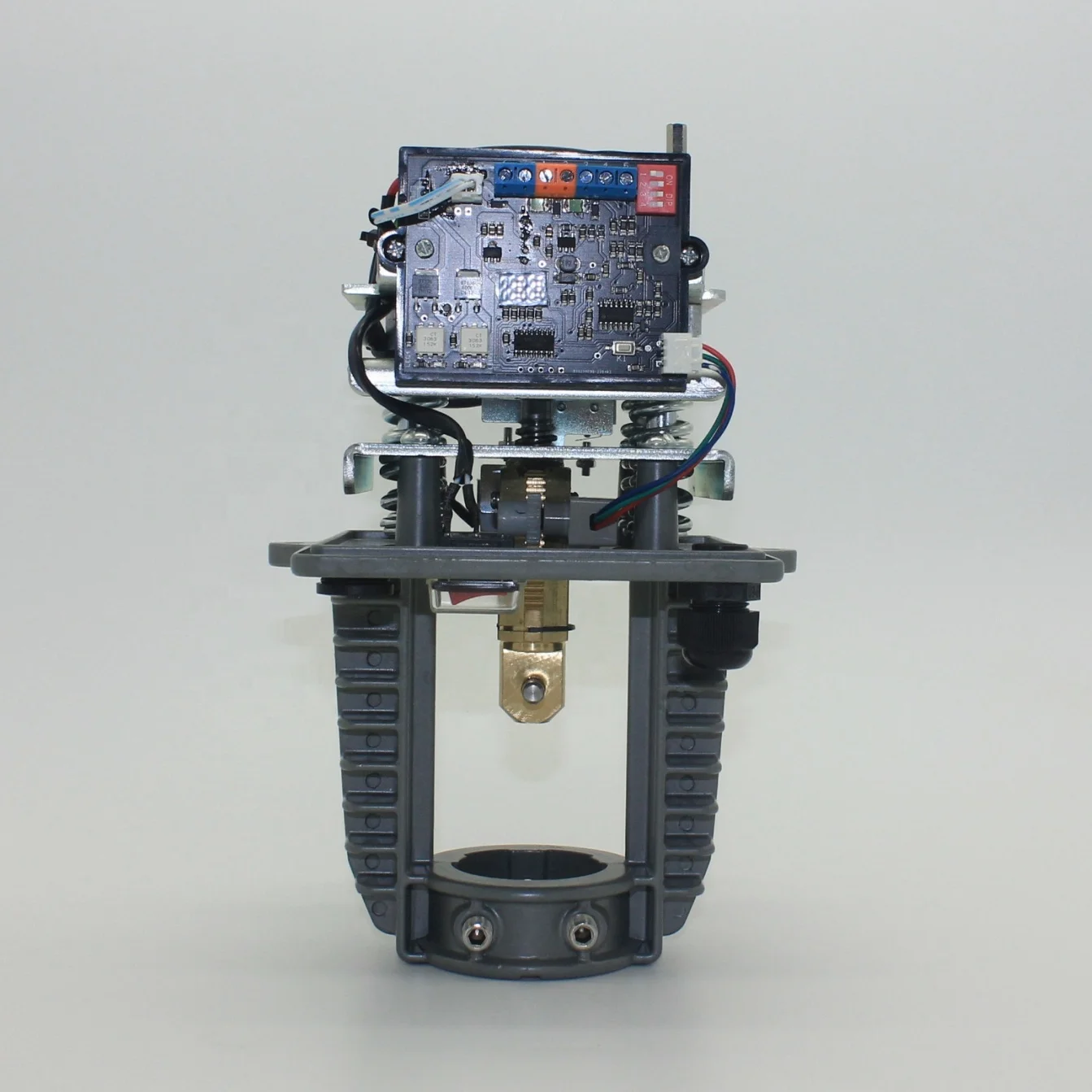

Front elevation
PRODUCT SPECIFICATIONS
Item No. | YH3X5.CKB15 | YH3X5.AK15 | YH3X5.AM15 | ||
Voltage | AC220V±15% | AC24V±15% | AC24V±15% | ||
Power | 16VA | ||||
Input Signal | On/Off | 3-point | 0-10Vdc or 4-20mA | ||
Feedback Signal | ------ | ------ | 0-10Vdc or 4-20mA | ||
Act Speed(mm/s) | 0.13(50Hz) | ||||
Max. Stroke(mm) | 22mm | ||||
Output Force(N) | 1500N | ||||
End Connection | Buckle | ||||
Height(mm) | 249 | ||||
Weight(kg) | 2.1 | ||||
