Product Overview
Description

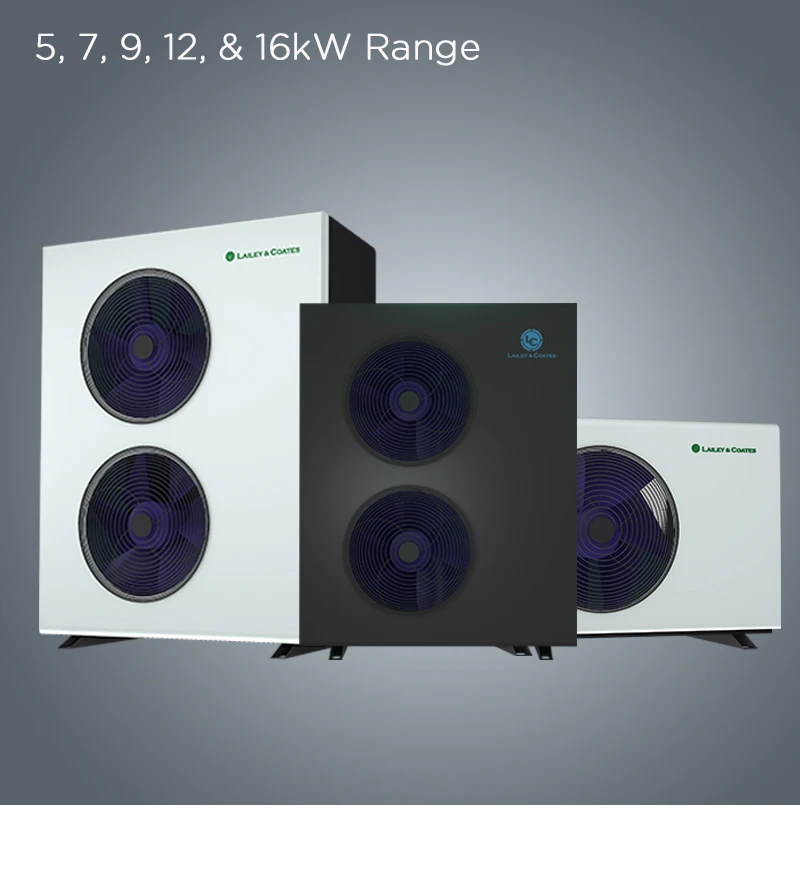

| Technical Datasheet -- R32 Monobloc Inverter Heat Pump | |||||||
| - | - | Air Temp. (℃) DB/ WB | Leaving Water Temp. (℃) | LCM-60R | LCM-90R | LCM-150R | LCM-180R |
| Heating | Capacity (kW) | 7/6 | 35 | 7.29 | 10.94 | 15.40 | 20.18 |
| 55 | 6.29 | 9.19 | 11.23 | 14.97 | |||
| Power Input (kW) | 7/6 | 35 | 1.48 | 2.18 | 3.26 | 4.21 | |
| 55 | 2.01 | 2.93 | 4.21 | 5.56 | |||
| COP (W/W) | 7/6 | 35 | 4.93 | 5.01 | 4.73 | 4.79 | |
| 55 | 3.13 | 3.14 | 2.67 | 2.69 | |||
| Cooling | Capacity (kW) | 35 / 24 | 18 | 7.29 | 10.52 | 14.37 | 18.40 |
| Power Input (kW) | 1.59 | 2.50 | 3.56 | 4.90 | |||
| EER (W/W) | 4.60 | 4.20 | 4.04 | 3.75 | |||

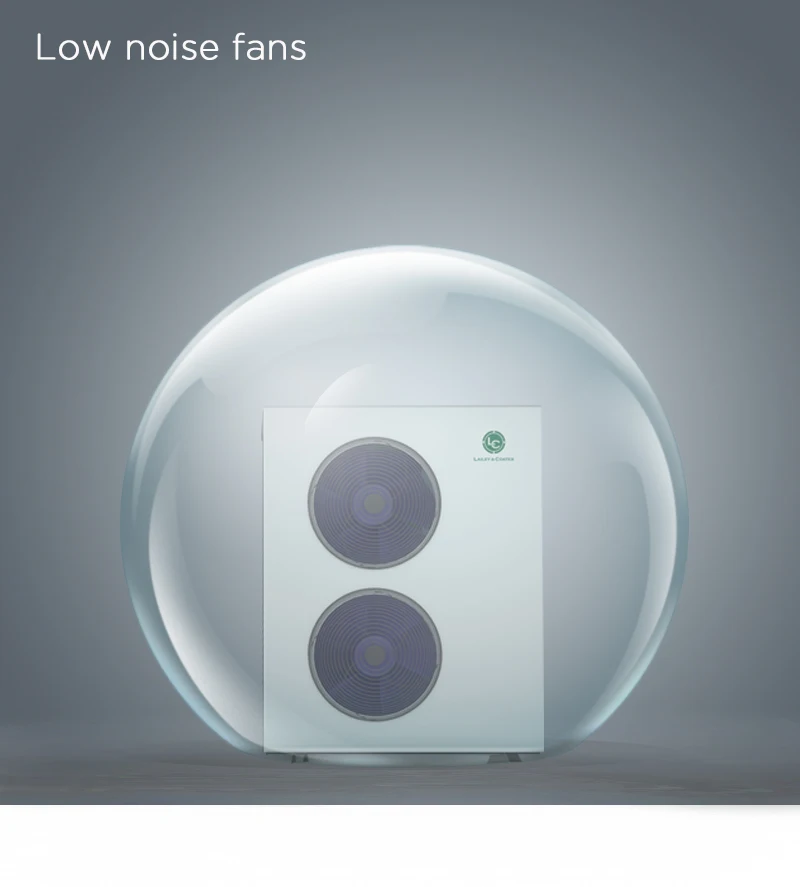

| Sound Pressure Level (at 1 m) Rated [dB (A)] | 48 | 48 | 51 | 51 | |||
| Maximum Running Current (A) | 10 | 17 | 25 | 31 | |||
| Rated Water Flow Rate (at LWT 35℃) (LPM) | 21 | 31 | 46 | 57 | |||
| Dimensions (Unit) (LxWxH) (mm) | 1040 x 421 x 757 | 1094 x 421 x 910 | 1094 x 451 x 1389 | ||||
| Net Weight (kg) | 80 | 86 | 118 | 128 | |||
| Power Supply (V/ Phase / Hz) | 220 ~ 240 / 1 / 50 | ||||||
| Compressor | GMCC | ||||||
| Refrigerant | R32 | ||||||
| How Does a Heat Pump Work? |
| Heat pumps extract the ambient temperature from the surrounding air and is then absorbed by the refrigerant gas,it is then compressed,this causes the heat to rise,the heat is then returned to your pool water via the Titanium Heat Exchanger coil. |

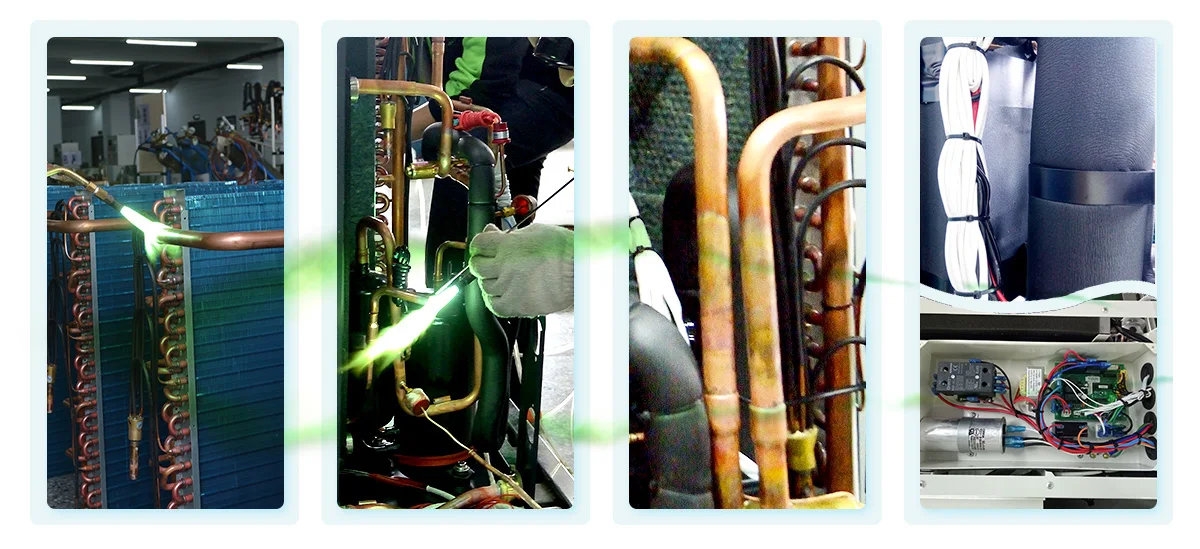

| The Core Components |
| Certifications |
